Why "Long-Term Stable Delivery" is the Real Value in Southeast Asia's Industrial Automation Upgrade

A control cabinet can arrive on schedule and still leave the panel builder unable to start work. The enclosure is present, but the mounting arrangement is unresolved. The cooling unit is available, but its cut-out does not match the released drawing. Most of the order has shipped, but one connection component prevents the power distribution assembly from being completed.

For industrial automation projects in Southeast Asia, SUWI recommends judging delivery completeness by a practical question: can the receiving team perform the next planned installation task with the parts, drawings and information supplied? Counting delivered items does not answer that question. The review needs to follow the assembly sequence.

This guide applies to the procurement of industrial enclosures, cooling equipment and power distribution components. It explains how to identify the order lines that control installation progress, resolve configuration questions before machining and evaluate partial deliveries.

A purchasing BOM usually groups items by supplier, product family or price. That is useful for buying, but it can hide dependencies between components. Before releasing the order, review the same BOM in the sequence the panel builder will use it.

SUWI's proposed release rule: mark a BOM line as installation-critical when its absence prevents the next scheduled task, or when fitting it later would require dismantling completed work. Review these lines first when availability changes. A low-cost accessory can deserve more schedule attention than a high-value component that will be installed later.

For a VX25 enclosure configuration, confirm the supplied parts and required accessories for the exact article number. Do not use a catalogue illustration as the packing list.

A component change becomes more expensive after its mounting interface has been machined. Before cutting a panel, identify which selected products determine hole positions, openings, clearances and cable routes.

For a cooling unit, the interface review should use the installation drawing for the exact model. Check the mounting opening, fastening positions, installation orientation, required clearances and any condensate arrangements specified by the manufacturer. A replacement with similar cooling output may still require a different panel opening.

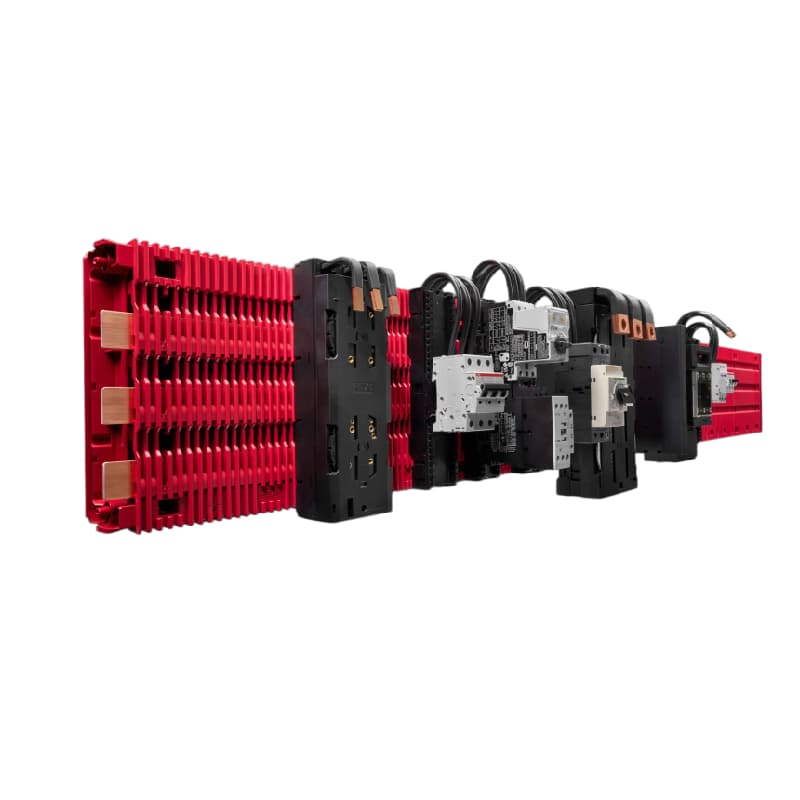

For power distribution, a matching current rating alone does not establish compatibility. The responsible electrical designer needs to review the selected system, device adapters, connections, protective arrangement and applicable assembly verification requirements.

If a product selection remains open, keep its affected machining on hold. Release unaffected work only where the panel builder can identify a clear boundary. Record that boundary on the drawing; an email saying “proceed with the cabinet” is too ambiguous when several interfaces are still changing.

The purchase order, BOM and machining drawing should identify the same approved revision. When a substitution is accepted, update all affected documents before fabrication continues.

“For installation in Southeast Asia” is not an engineering specification. An air-conditioned electrical room, an outdoor shelter and a cabinet beside a wet production process can require different configurations within the same country.

For cooling selection, provide the maximum ambient temperature at the cabinet, the permitted internal temperature and the estimated component heat losses under the intended operating conditions. State whether the cabinet is exposed to solar heating or nearby heat sources. A factory's general room temperature may not represent the air entering the cooling equipment.

Where filtered ventilation is proposed, first establish whether the outside air is sufficiently cool and clean for the task. A fan does not provide refrigeration. If the required internal temperature is below ambient, ventilation alone cannot meet that target. Assess an appropriate cooling method using the selected manufacturer's performance data.

For humidity, dust or cleaning exposure, describe the actual source and operating practice. “High humidity” does not explain whether the concern is condensation during shutdown, doors opened during operation or water applied during cleaning. Those conditions need different design responses.

Use these inputs to review enclosure cooling options and the enclosure configuration before ordering. Keep any unresolved environmental assumption visible in the quotation review.

Partial delivery can help a project when the first shipment contains a complete package for an agreed task. It adds little value when the receiving team can only unpack and store the equipment.

Illustrative example: the enclosures are available, but a required joining component is delayed. Before shipping, ask whether the panel builder can prepare mounting plates independently, whether the available installation space allows that work and whether later assembly would disturb completed wiring. The answer determines whether early shipment helps. This is a planning example, not a customer case.

For every proposed split shipment, record:

• The task the first shipment will allow the receiving team to complete.
• The components and approved drawings required for that task.
• The outstanding items and the tasks they prevent.
• The additional freight, storage and handling responsibilities.
• The person approving the revised installation sequence.

SUWI recommends agreeing these points before accepting the split. “Most items are ready” is an availability statement; it does not establish that a partial delivery is useful.

The required arrival date should come from the installation plan. It should allow for receiving inspection and any preparation needed before assembly starts. It should not automatically be the same date as installation.

Then separate the remaining milestones: configuration approval, machining release where applicable, order readiness, dispatch, transport, import clearance and final delivery. Record which dates are estimates and which have been agreed as commitments.

Do not add a standard transport allowance to an unconfirmed availability date and call the result a confirmed arrival date. The schedule remains conditional until the preceding supply and approval steps are resolved.

For international shipments, confirm the named delivery location, trade terms, importer and clearance responsibilities with the relevant parties. Ask the importer or broker which documents are needed for the specific products and destination. Cabinet machining, a changed supply scope or different shipment contents may require the paperwork to be reviewed again.

If a milestone slips, identify the installation task affected and the available options. A useful update explains the outstanding item, revised timing and decision needed from the buyer.

A checklist is useful only when unresolved answers lead to action. Keep a short exception list alongside the approved BOM. Each entry should identify the issue, the affected task, the responsible person and the point by which it must be resolved.

At handover, retain the final BOM, relevant drawings, available manufacturer manuals, product identification and agreed warranty contacts. Identify who handles shipment discrepancies, remote product questions and on-site work.

For the broader engineering workflow, see our industrial enclosure project planning guide.

Send the current BOM and drawings together with the destination, quantities, required arrival date and planned installation sequence. Highlight mandatory article numbers, unresolved accessories and any proposed substitutes. For cooling enquiries, include the relevant temperature and heat-loss inputs.

Tell us which task must start first. This gives the configuration and availability review a practical priority: identify the parts and decisions needed to make that task possible.
