Rittal VX25 enclosures are modular baying enclosure systems for industrial control panels, machine automation and electrical distribution applications. Explore VX25 models by enclosure dimensions and door configuration, with support for single-unit and bulk procurement.

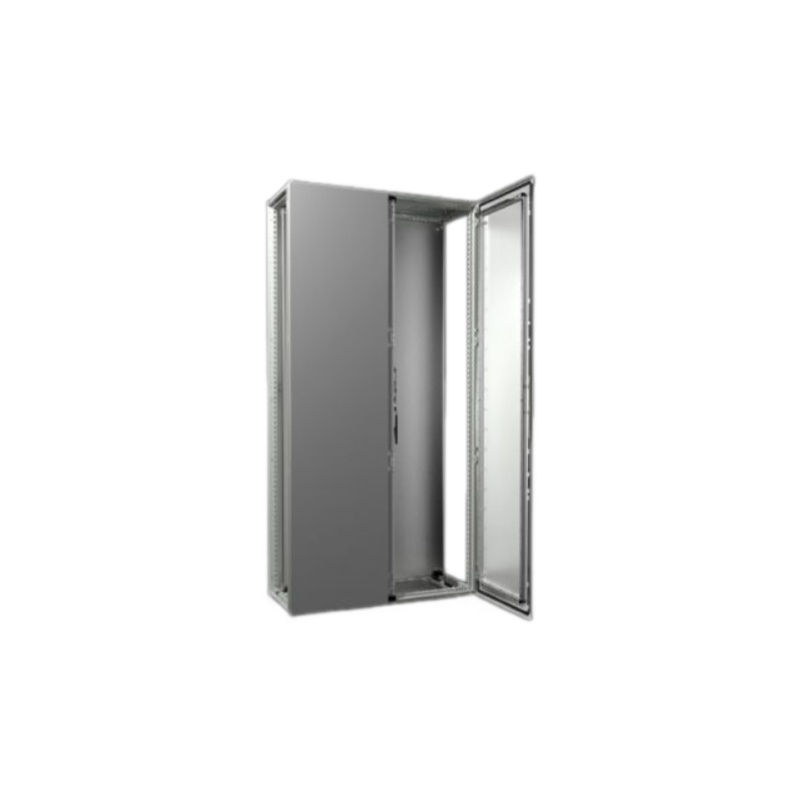

Rittal VX25 Basic Enclosure – Baying Enclosure System

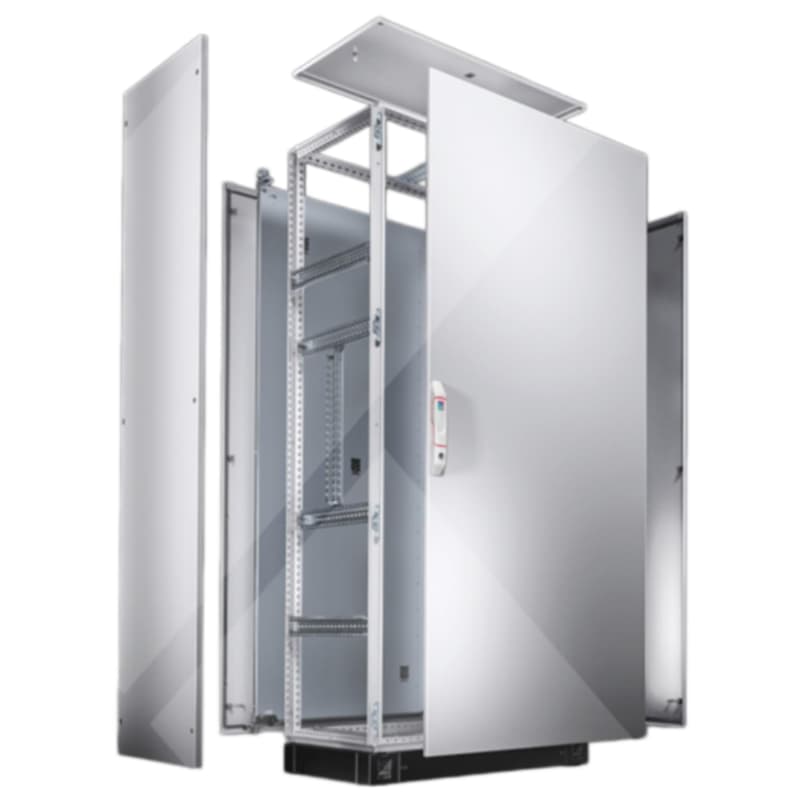

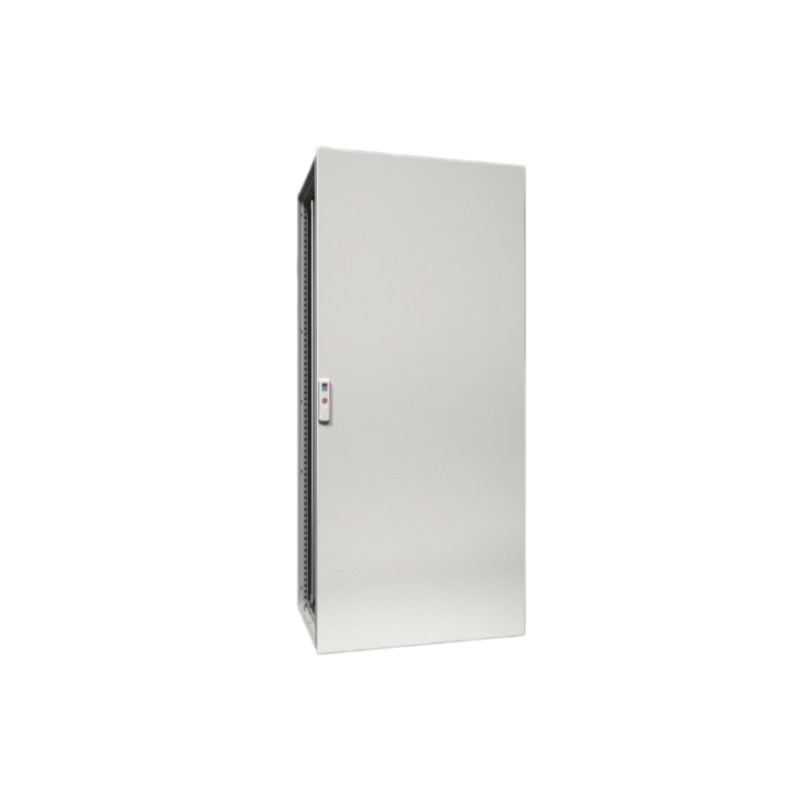

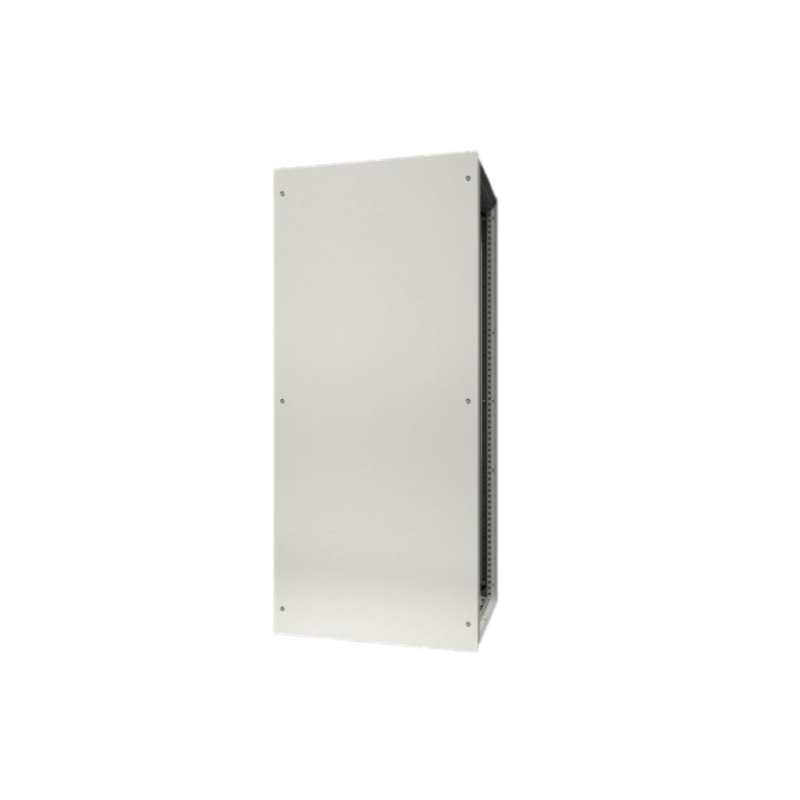

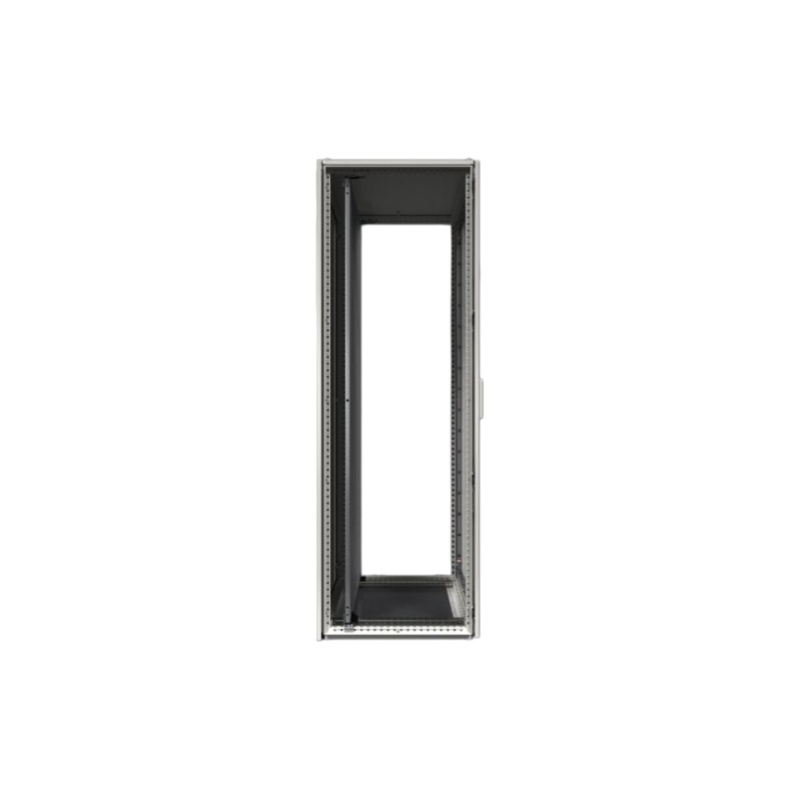

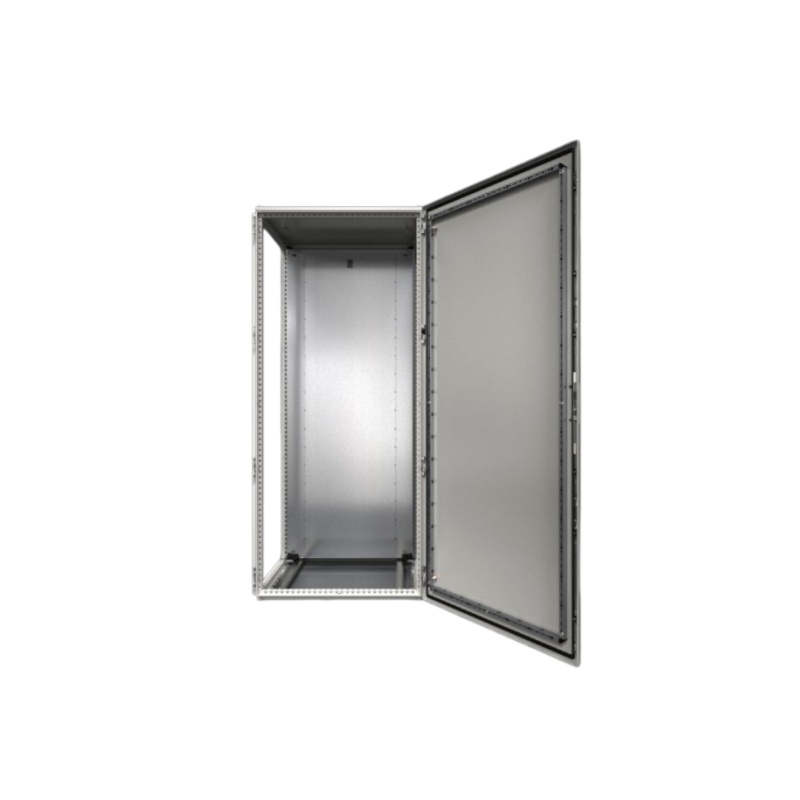

The Rittal VX25 Basic Enclosure is a modular bayed enclosure system for industrial control panels, machine automation, electrical distribution and larger switchgear installations.
It is particularly suited to panel builders, machine builders and system integrators who need configurable enclosure dimensions, expandable baying arrangements and flexible internal installation space.
SUWI can support VX25 projects with model selection, accessory compatibility checking, enclosure machining requirements and quotation support.
Rittal VX25 Basic Enclosure Dimensions and Model Selection
Selected popular article numbers are linked to dedicated product pages with detailed specifications. Other models can be quoted or confirmed with SUWI based on your required dimensions and configuration.
| Model | W X H X D (mm) | Number of doors |
| VX 8226000 | 1200 mm x 2200 mm x 600 mm | 2 |
| VX 8228000 | 1200 mm x 2200 mm x 800 mm | 2 |
| VX 8626000 | 600 mm x 2200 mm x 600 mm | 1 |
| VX 8628000 | 600 mm x 2200 mm x 800 mm | 1 |
| VX 8826000 | 800 mm x 2200 mm x 600 mm | 1 |
| VX 8828000 | 800 mm x 2200 mm x 800 mm | 1 |
| VX 8004000 | 1000 mm x 2000 mm x 400 mm | 2 |
| VX 8005000 | 1000 mm x 2000 mm x 500 mm | 2 |
| VX 8006000 | 1000 mm x 2000 mm x 600 mm | 2 |
| VX 8204000 | 1200 mm x 2000 mm x 400 mm | 2 |
| VX 8205000 | 1200 mm x 2000 mm x 500 mm | 2 |
| VX 8206000 | 1200 mm x 2000 mm x 600 mm | 2 |
| VX 8208000 | 1200 mm x 2000 mm x 800 mm | 2 |
| VX 8405000 | 400 mm x 2000 mm x 500 mm | 1 |
| VX 8406000 | 400 mm x 2000 mm x 600 mm | 1 |
| VX 8604000 | 600 mm x 2000 mm x 400 mm | 1 |
| VX 8605000 | 600 mm x 2000 mm x 500 mm | 1 |
| VX 8606000 | 600 mm x 2000 mm x 600 mm | 1 |
| VX 8608000 | 600 mm x 2000 mm x 800 mm | 1 |
| VX 8804000 | 800 mm x 2000 mm x 400 mm | 1 |
| VX 8805000 | 800 mm x 2000 mm x 500 mm | 1 |
| VX 8806000 | 800 mm x 2000 mm x 600 mm | 1 |
| VX 8808000 | 800 mm x 2000 mm x 800 mm | 1 |
| VX 8080000 | 1000 mm x 1800 mm x 400 mm | 2 |
| VX 8084000 | 1000 mm x 1800 mm x 400 mm | 1 |
| VX 8086000 | 1000 mm x 1800 mm x 600 mm | 2 |
| VX 8284000 | 1200 mm x 1800 mm x 400 mm | 2 |
| VX 8285000 | 1200 mm x 1800 mm x 500 mm | 2 |
| VX 8286000 | 1200 mm x 1800 mm x 600 mm | 2 |
| VX 8485000 | 400 mm x 1800 mm x 500 mm | 1 |
| VX 8486000 | 400 mm x 1800 mm x 600 mm | 1 |
| VX 8684000 | 600 mm x 1800 mm x 400 mm | 1 |
| VX 8685000 | 600 mm x 1800 mm x 500 mm | 1 |
| VX 8686000 | 600 mm x 1800 mm x 600 mm | 1 |
| VX 8880000 | 800 mm x 1800 mm x 500 mm | 2 |
| VX 8881000 | 800 mm x 1800 mm x 600 mm | 2 |
| VX 8884000 | 800 mm x 1800 mm x 400 mm | 1 |
| VX 8885000 | 800 mm x 1800 mm x 500 mm | 1 |
| VX 8886000 | 800 mm x 1800 mm x 600 mm | 1 |
| VX 8265000 | 1200 mm x 1600 mm x 500 mm | 2 |
| VX 8665000 | 600 mm x 1600 mm x 500 mm | 1 |
| VX 8865000 | 800 mm x 1600 mm x 500 mm | 1 |
| VX 8245000 | 1200 mm x 1400 mm x 500 mm | 2 |
| VX 8645000 | 600 mm x 1400 mm x 500 mm | 1 |
| VX 8845000 | 800 mm x 1400 mm x 500 mm | 1 |
| VX 8215000 | 1200 mm x 1200 mm x 500 mm | 2 |
| VX 8615000 | 600 mm x 1200 mm x 500 mm | 1 |
| VX 8815000 | 800 mm x 1200 mm x 500 mm | 1 |
| VX 8865000 | 800 mm x 1600 mm x 500 mm | 1 |
Send us your required enclosure dimensions, installation space and project requirements. SUWI can help identify a suitable VX25 configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Modular bayed enclosure system |
| Frame System | 25 mm pitch modular frame |
| Configuration | Single-door and double-door options |
| Baying | Side-by-side enclosure combination |
| Size Range | Multiple width, height and depth configurations |
| Accessories | Extensive VX25 accessory and spare parts system |
VX25 Basic Standard Configuration and Optional Accessories
The exact scope of supply depends on the selected VX25 article number. Before ordering, confirm which enclosure components are included with the selected model and which project-specific components need to be ordered separately.

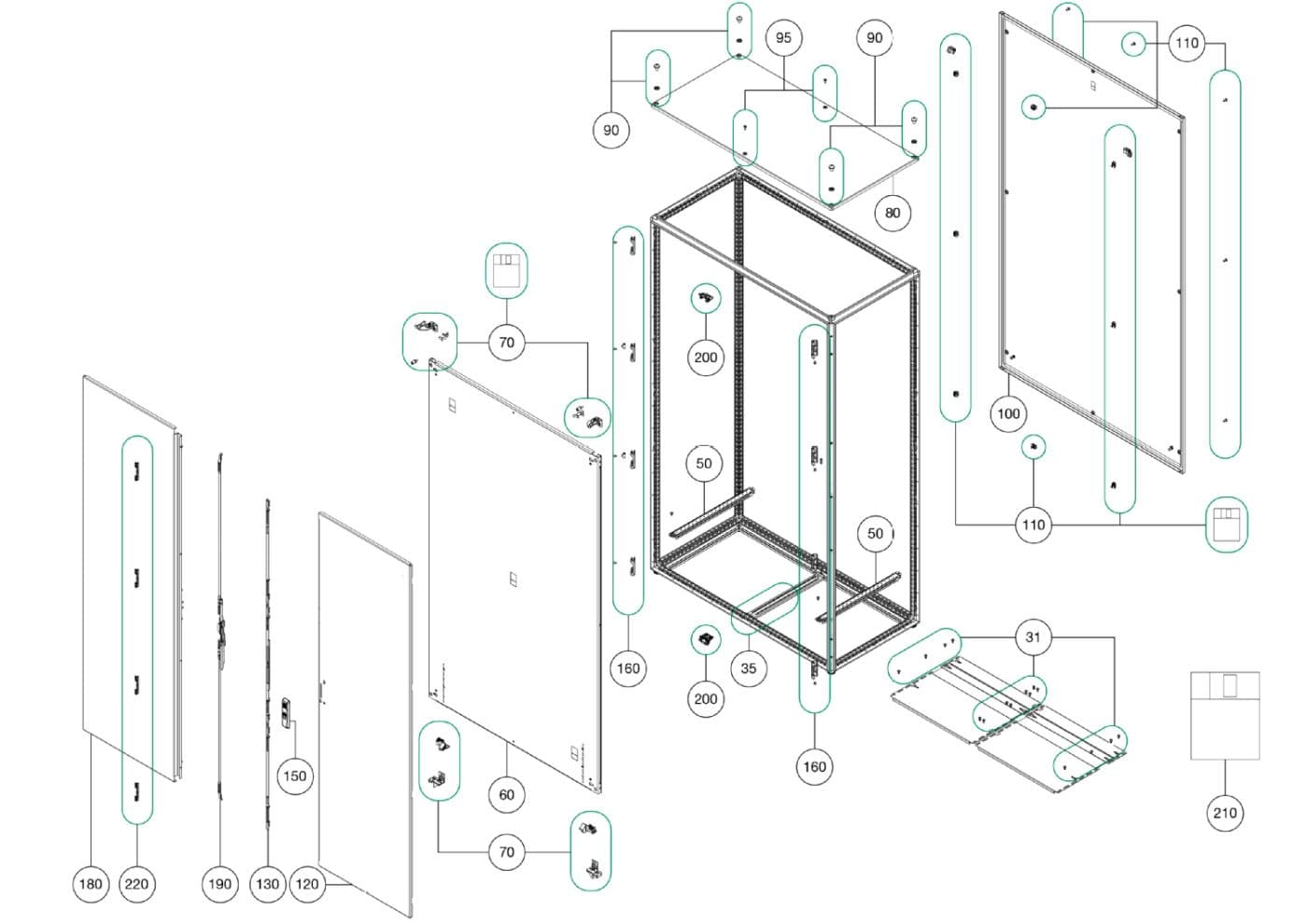

Standard enclosure configuration
The basic enclosure configuration typically consists of the enclosure structure and the components supplied with the selected VX25 article number. The exact scope of supply should always be checked against the individual model specification.
Optional or project-specific components
Depending on the installation, additional components may be required for:
Accessory compatibility should be checked against the enclosure article number, dimensions and installation arrangement before ordering.
Need help confirming the configuration?
Confirm Accessories for Your VX25 Enclosure
Choose a VX25 Basic Enclosure by Size and Model
VX25 Basic enclosures are available in multiple widths, heights and depths for different control and electrical installation requirements.
Use the table below to compare the available dimensions and door configurations. Click the article number to view the corresponding product page and detailed specifications.
If you are not sure which enclosure size is suitable, selection should normally be based on:
Important: Every model for which SUWI already has a dedicated product page should be made clickable. Models without an existing product page can remain as text until the individual page is published.
IEC 60529 compliant modular cabinets Advantages:
Why Choose Our VX25 Series?

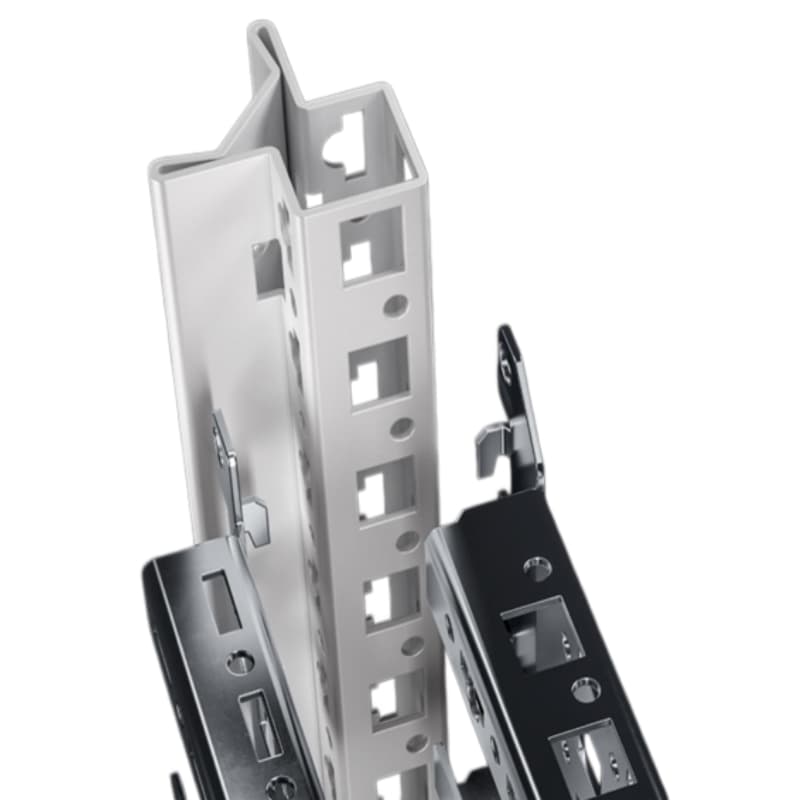

-25 mm Mounting System: All-round 25 mm pitch pattern with dual mounting levels for flexible interior installation.

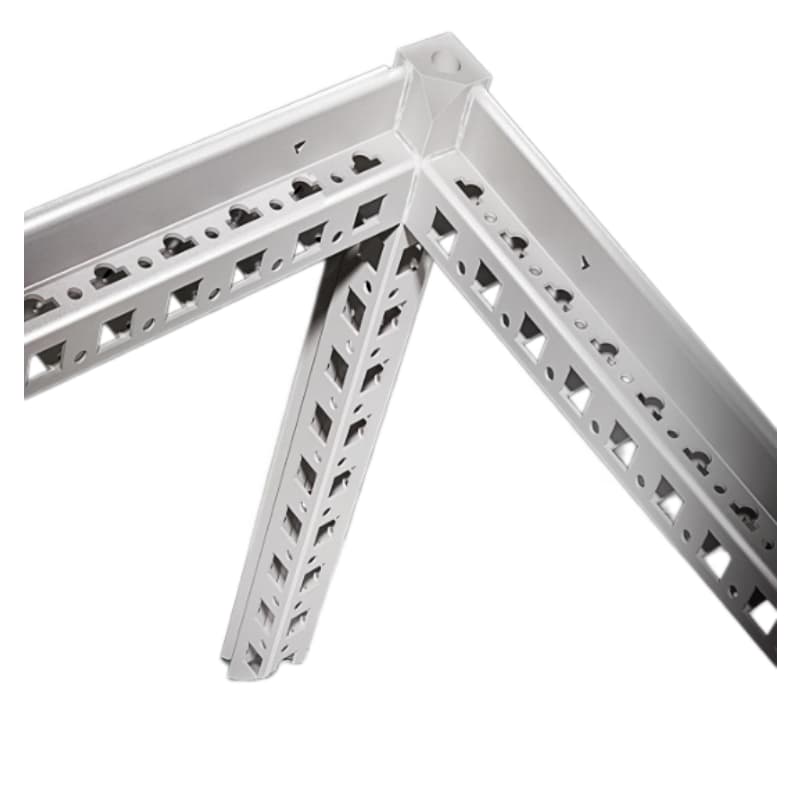

-Faster Assembly: Symmetrical frame design and standardized components simplify installation and assembly.
-Flexible Mounting Depth: Mounting plates can be offset by a further 20 mm for additional installation flexibility.
-Simplified Baying: Standardized connection components make side-by-side enclosure expansion easier.
-Flexible Cable Entry: Removable gland plates simplify cable routing and installation.

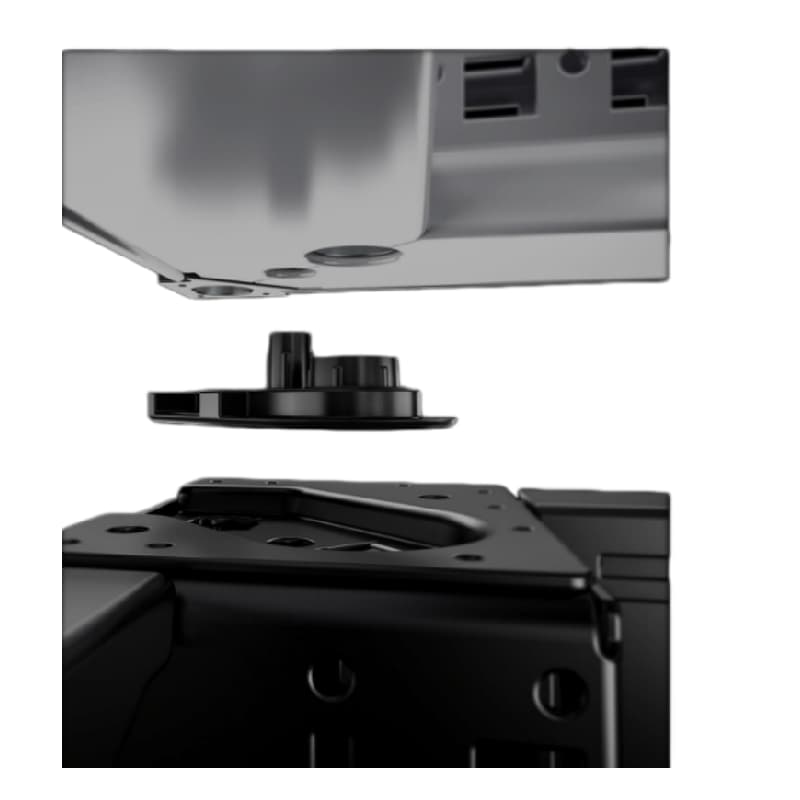

-Automatic Potential Equalization: Integrated contact elements automatically bond roof, side/rear panels and gland plates.
Is VX25 Basic Right for Your Project?
Choose VX25 Basic when:
For smaller wall-mounted or compact control applications, an AX or other compact enclosure may provide a more suitable footprint.
For environments where material selection, corrosion resistance or hygiene requirements are the primary consideration, compare the required enclosure material and environmental conditions before selecting the final series.
For installations with significant internal heat generation, the enclosure should not be selected independently from the required climate-control solution. The expected thermal load, ambient conditions and installation arrangement should be checked before choosing cooling equipment.
VX25 Enclosure Accessories
VX25 accessories should be selected according to the enclosure article number, dimensions and installation requirements. Use the accessory categories below to identify the required component type, or browse the full enclosure accessories range for additional compatible options.
Storage box
Colour: RAL 7035
Packs of: 1 pc(s).

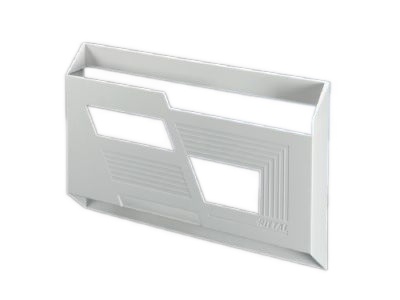

Plastic wiring plan pocket
Wiring plan pocket with transparent pouch
4115000 Wiring plan pocket of sheet steel
Depth: 90 mm
Packs of: 1 pc(s).
4052000

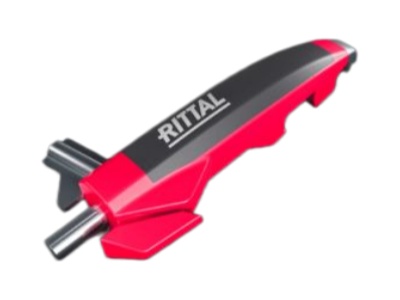

Multitool
Packs of: 1 pc(s).
4316000 Cable entry grommets
Number of cable entries: 8
Max. cable diameter: 13 mm
Packs of: 25 pc(s).

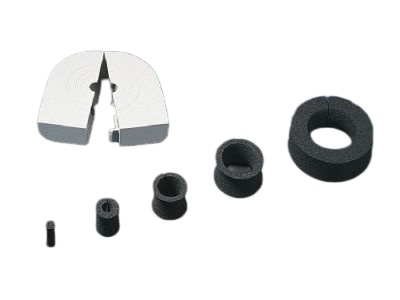

4311000 Connector grommets
Min. cable diameter: 8 mm
Max. cable diameter: 36 mm
Packs of: 10 pc(s).
4317000 Cable entry grommets
Number of cable entries: 3
Max. cable diameter: 21 mm
Packs of: 25 pc(s).

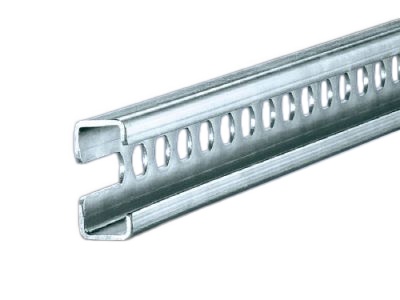

4946000 C rails 30/15
To fit width/depth: 1000 mm
Length: 955 mm
Packs of: 6 pc(s).
8619802 Cable entry plates
Suitable for width: 1000 mm
To fit enclosure type: VX / VX SE
Number of cut-outs: 5
Packs of: 4 pc(s).
8619430 Cable clamp rail
To fit enclosure type: VX / VX SE / CX one-piece console
Suitable for width: 1000 mm
Length: 954 mm
Packs of: 2 pc(s).
8618802 Section for cable entry,centre
Suitable for width: 1000 mm
To fit enclosure type: VX / VX SE / CX one-piece console
Packs of: 4 pc(s).
8618802 Section for cable entry,rear
Suitable for width: 1000 mm
To fit enclosure type: VX / VX SE / CX one-piece console
Packs of: 4 pc(s).

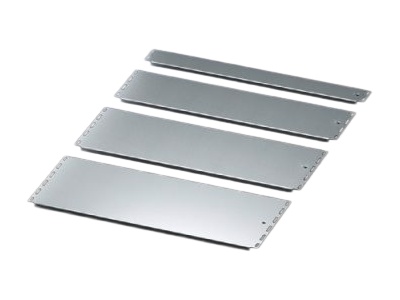

8001224 Gland plate
Width: 440 mm
Depth: 75 mm
Suitable for width: 1000 mm
Packs of: 1 pc(s).
8001224 Gland plate
Width: 440 mm
Depth: 175 mm
Suitable for width: 1000 mm
Packs of: 1 pc(s).
8001224 Gland plate
Width: 440 mm
Depth: 237.5 mm
Suitable for width: 1000 mm
Packs of: 1 pc(s).
8001224 Gland plate
Width: 440 mm
Depth: 275 mm
Suitable for width: 1000 mm
Packs of: 1 pc(s).
4318000 Cable entry grommets
Number of cable entries: 1
Max. cable diameter: 47 mm
Packs of: 25 pc(s).
8660005 Base / plinth corner pieces with base/plinth trim panels,front and rear
Height: 200 mm
Suitable for width: 1000 mm
Colour: RAL 9005
Packs of: 2 pc(s).
8660024 Base / plinth corner pieces with base/plinth trim panels,front and rear
Height: 200 mm
Suitable for width: 1000 mm
Colour: RAL 9005
Packs of: 2 pc(s).
8660031 Base / plinth trim panels,side
Design: Solid
Height: 200 mm
Suitable for depth: 400 mm
Colour: RAL 9005
Packs of: 2 pc(s).
8660041 Base / plinth trim panels,side
Design: Solid
Height: 200 mm
Suitable for depth: 400 mm
Colour: RAL 9005
Packs of: 2 pc(s).

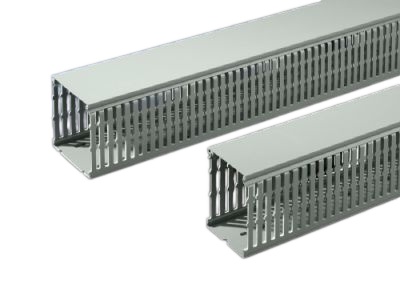

Cable duct
Depth: 80 mm
Length: 955 mm
Design: for mounting plates / For mounting on VX system punchings
4694000 Support strip
To fit enclosure type: VX / TS / VX SE / TP / AX
Length: 340 mm
Packs of: 20 pc(s).4309000 Support strip
To fit enclosure type: VX / TS / VX SE / TP / AX / AX plastic / AX wall-mounted enclosure, 3-part
Length: 390 mm
Packs of: 20 pc(s).4946000 C rails 30/15
To fit width/depth: 1000 mm
Length: 955 mm
Packs of: 6 pc(s).
4591700 Mounting plate infill
Suitable for height: 2000 mm
Packs of: 1 pc(s).

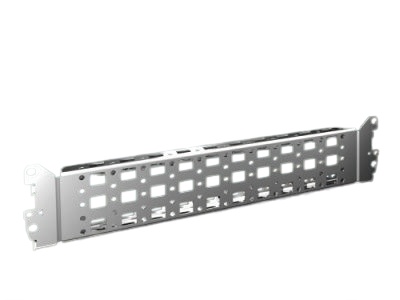

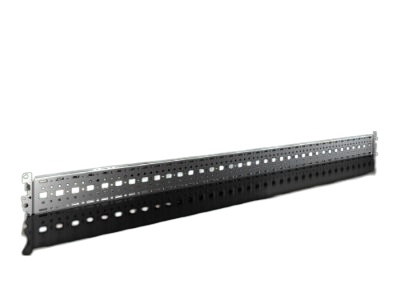

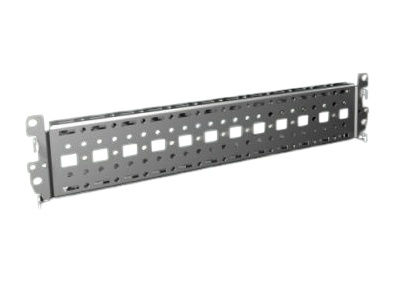

8617010 Punched section with mounting flange, 18 x 64 mm
To fit width/depth: 1000 mm
To fit enclosure type: VX
Packs of: 4 pc(s).
8617050 Punched section with mounting flange, 18 x 64 mm
To fit width/depth: 1000 mm
To fit enclosure type: VX
Packs of: 4 pc(s).
8619430 Cable clamp rail
To fit enclosure type: VX / VX SE / CX one-piece console
Suitable for width: 1000 mm
Length: 954 mm
Packs of: 2 pc(s).

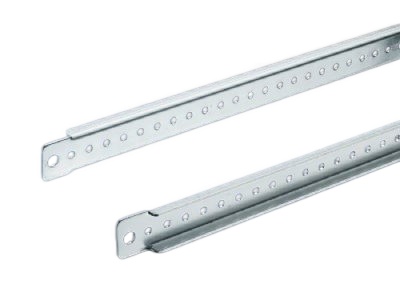

8617700 Punched rail 18 x 39 mm
To fit width/depth: 400 mm
To fit enclosure type: VX / VX SE
Packs of: 4 pc(s).
8660005 Base / plinth corner pieces with base/plinth trim panels,front and rear
Height: 200 mm
Suitable for width: 1000 mm
Colour: RAL 9005
Packs of: 2 pc(s).
8660024 Base / plinth corner pieces with base/plinth trim panels,front and rear
Height: 200 mm
Suitable for width: 1000 mm
Colour: RAL 9005
Packs of: 2 pc(s).
8660031 Base / plinth trim panels,side
Design: Solid
Height: 200 mm
Suitable for depth: 400 mm
Colour: RAL 9005
Packs of: 2 pc(s).
8660041 Base / plinth trim panels,side
Design: Solid
Height: 200 mm
Suitable for depth: 400 mm
Colour: RAL 9005
Packs of: 2 pc(s).

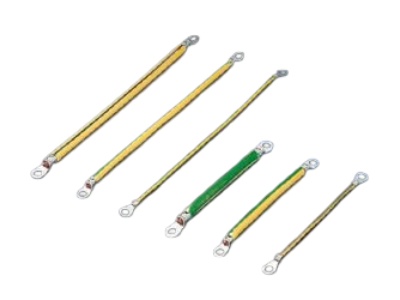

Earth straps
Packs of: 5 pc(s).

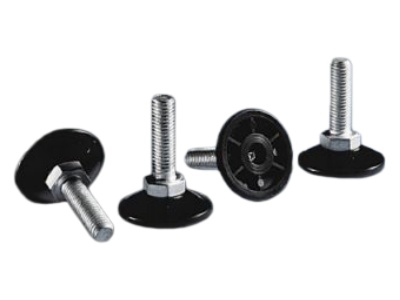

4612000 Levelling feet
Design: without hex socket
To fit enclosure type: VX / VX SE / TS / TS IT / PC / IW / Blue e+ chillers/ TX CableNet
Packs of: 4 pc(s).

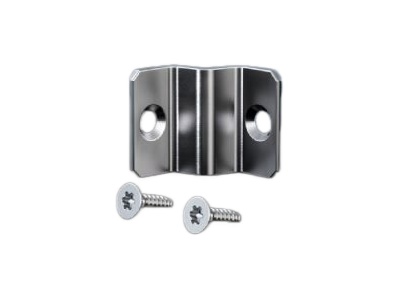

8617500 Baying bracket, internal
Material: Sheet steel
Packs of: 6 pc(s).
8617501
Baying block, internal
Packs of: 6 pc(s).

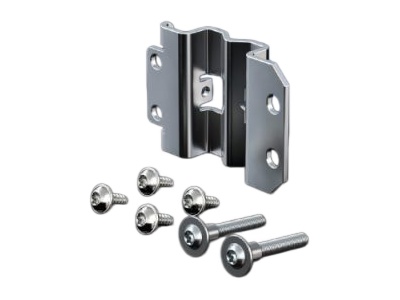

8617502 Baying connector, external
Material: Sheet steel, zinc-plated
Packs of: 6 pc(s).

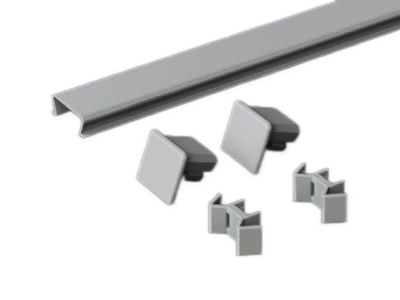

8800845 Baying cover, top
Suitable for depth: 400 mm
Material: Plastic
Colour: RAL 7035
Packs of: 1 pc(s).

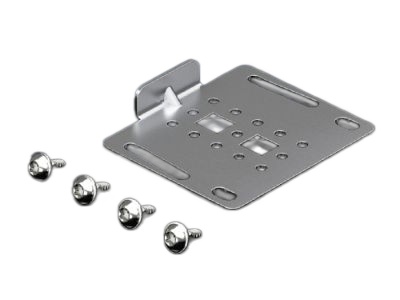

Quick-fit baying clamps
Material: Sheet steel
Supply includes: Assembly parts
8618200 Comfort handle VX
Design: for lock inserts
Material: Die-cast zinc
Colour: RAL 7035
To fit enclosure type: VX / VX IT
Packs of: 1 pc(s).
8618230 Comfort handle VX
Design: for padlock and lock inserts
Material: Die-cast zinc
Colour: RAL 7035
To fit enclosure type: VX / VX IT
Packs of: 1 pc(s).
8618240 Comfort handle VX
Design: for lock inserts E1
Material: Die-cast zinc
Colour: RAL 7035
To fit enclosure type: VX / VX IT
Packs of: 1 pc(s).
8618250 Comfort handle VX
Design: for profile half-cylinder
Material: Die-cast zinc
Colour: RAL 7035
To fit enclosure type: VX / VX IT
Packs of: 1 pc(s).
8618270 Comfort handle VX
Design: Prepared for ASSA lock system
Material: Die-cast zinc
Colour: RAL 7035
To fit enclosure type: VX / VX IT
Packs of: 1 pc(s).
Product Name 1
Design: G
Installation in handle system: Comfort handle VX for padlock and lock inserts
To fit enclosure type: VX / VX IT
Packs of: 1 pc(s).
2493500
Multiple lock
Material: Sheet steel
Packs of: 2 pc(s).
Safety lock
To fit enclosure type: VX / VX SE / TS / AX
Packs of: 1 pc(s).
8618251 Comfort handle VX
Design: for profile half-cylinder
Material: Die-cast zinc
Colour: RAL 9005
To fit enclosure type: VX / VX IT
Packs of: 1 pc(s).
4309400 Support strip
To fit enclosure type: VX / TS / VX SE / TP / AX
Length: 340 mm
Packs of: 20 pc(s).
4309000 Support strip
To fit enclosure type: VX / TS / VX SE / TP / AX / AX plastic / AX wall-mounted enclosure, 3-part
Length: 390 mm
Packs of: 20 pc(s).
4946000 C rails 30 / 15
To fit width/depth: 1000 mm
Length: 955 mm
Packs of: 6 pc(s).

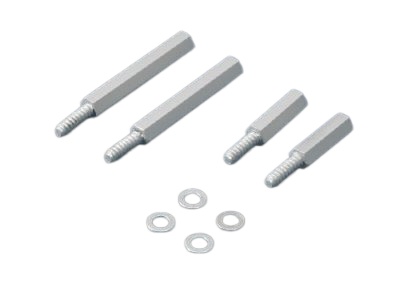

Spacers
Packs of: 12 pc(s).
8617010 Punched section with mounting flange, 18 x 64 mm
To fit enclosure type:
VX
To enclosure width/height/depth: 400 mm
Packs of: 4 pc(s).
8617050 Punched section with mounting flange, 18 x 64 mm
To fit enclosure type:
VX
To enclosure width/height/depth: 1000 mm
Packs of: 4 pc(s).
8617590 Partial mounting plates
Width: 900 mm
Depth: 300 mm
Suitable for width: 400 mm / 1000 mm
Suitable for depth: 400 mm
To fit enclosure type: VX / VX SE / PC
Note: Adaptor rail VX is required for installing in VX SE, PC, IW
Packs of: 1 pc(s).
8617600 Partial mounting plates
Width: 900 mm
Depth: 400 mm
Suitable for width: 1000 mm
Suitable for depth: 500 mm
To fit enclosure type: VX / VX SE / PC
Note: Adaptor rail VX is required for installing in VX SE, PC, IW
Packs of: 1 pc(s).
8617610 Partial mounting plates
Width: 900 mm
Depth: 500 mm
Suitable for width: 600 mm / 1000 mm
Suitable for depth: 600 mm
To fit enclosure type: VX / VX SE / PC
Note: Adaptor rail VX is required for installing in VX SE, PC, IW
Packs of: 1 pc(s).
8617820 Support rail 48 x 26 mm
To fit enclosure type: VX / VX SE / PC / IW / AX / CX one-piece console
Suitable for width: 1000 mm
Packs of: 2 pc(s).
8619430 Cable clamp rail
To fit enclosure type: VX / VX SE / AX / CX one-piece console
Suitable for width: 1000 mm
Packs of: 2 pc(s).
Hinge attachment
Packs of: 1 pc(s).
8619710 Punched section with mounting flange, 14 x 39 mm
To fit enclosure type: VX / VX SE / TP/ AX / AX plastic / AX wall-mounted enclosure, 3-part / CX one-piece console / CX console system
To enclosure width/height/depth: 500 mm
Packs of: 4 pc(s).
8617110 Punched section with mounting flange, 23 x 64 mm
To fit enclosure type: VX / VX SE / VX IT / AX / AX plastic
To enclosure width/height/depth: 400 mm
Packs of: 4 pc(s).
4591700 Mounting plate infill
Suitable for height: 2000 mm
Packs of: 1 pc(s).
8617150 Punched section with mounting flange, 23 x 64 mm
To fit enclosure type: VX / VX SE / VX IT / AX
To enclosure width/height/depth: 1000 mm
Packs of: 4 pc(s).
8617700 Punched rail 18 x 39 mm
To fit enclosure type: VX / VX SE
To fit width/depth: 400 mm
Packs of: 4 pc(s).

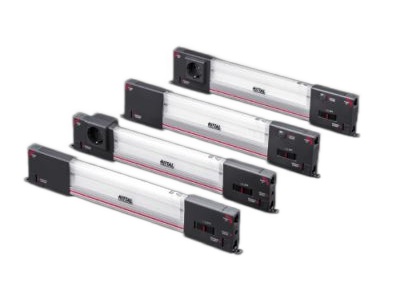

LED system light
UL approval: no
Packs of: 1 pc(s).
Storage box
Colour：RAL 7035
Packs of: 1 pc(s).Plastic wiring plan pocket
Wiring plan pocket with transparent pouch
Packs of: 1 pc(s).
4115000 Wiring plan pocket of sheet steel
Depth: 90 mm
Packs of: 1 pc(s).4052000 Multitool
Packs of: 1pc(s).
8104245 Side panel,screw-fastened,sheet steel
Suitable for height: 2000 mm
Suitable for depth: 400 mm
Packs of: 1 pc(s).
8618330 180° hinge
To fit enclosure type: VX
Door opening angle: 180°
Packs of: 4 pc(s).
8609203 Divider panel
Suitable for height: 2000 mm
Suitable for depth: 400 mm
Packs of: 1 pc(s).

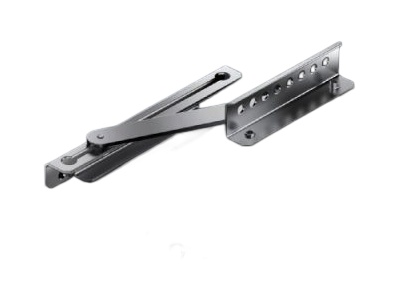

8618430 Door stay
To fit enclosure type: VX
Packs of: 1 pc(s).
2427100 Dust guard trim
Length: 1000 mm
Packs of: 1 pc(s).
8618341 180° hinge
To fit enclosure type: VX
Door opening angle: 180°
Packs of: 4 pc(s).
8618410 Shipping brace
Packs of: 10 pc(s).
8618425 Door stay for escape routes
To fit enclosure type: VX
Packs of: 10 pc(s).
8618420 Ride-up roller
Packs of: 10 pc(s).
4568000 Eyebolts
Material: Sheet steel
Thread: M12
Packs of: 4 ps(s).
Bundle VX base/plinth, W x D 1000 x 400 mm, H 100 mm
8660005
VX 8660.005 - Base/plinth corner pieces with base/plinth trim panels, front and rear for base/plinth system VX, sheet steel
Base/plinth corner pieces with trim panels for flexible cable entry.
8660031
VX 8660.031 - Base/plinth trim panels, side for base/plinth system VX, sheet steel
To finish off a base/plinth unit at the sides and for additional stability or interior configuration of bayed base/plinths. One 200 mm high or two 100 mm high trim panels may optionally be fitted on 200 mm high base/plinths.
Bundle VX base/plinth, W x D 1000 x 400 mm, H 200 mm
8660024
VX 8660.024 - Base/plinth corner pieces with base/plinth trim panels, front and rear for base/plinth system VX, sheet steel
Base/plinth corner pieces with trim panels for flexible cable entry.
8660041
VX 8660.041 - Base/plinth trim panels, side for base/plinth system VX, sheet steel
To finish off a base/plinth unit at the sides and for additional stability or interior configuration of bayed base/plinths. One 200 mm high or two 100 mm high trim panels may optionally be fitted on 200 mm high base/plinths.
Provide the VX25 article number and required installation arrangement to check compatible accessories before ordering.
Confirm Accessories for Your VX25 Enclosure
Before Ordering a VX25 Enclosure
To avoid selecting an enclosure that later requires dimensional or accessory changes, confirm the following project information before requesting a quotation:
| Parameter to confirm | What SUWI needs |
|---|---|
| Enclosure size | Width × Height × Depth |
| Article number | VX25 model/article number, if already known |
| Material | Required enclosure material |
| Protection requirement | Required protection level and installation environment |
| Installation | Standalone or bayed configuration |
| Door arrangement | Single-door or double-door |
| Accessories | Base/plinth, rails, cable-entry parts, locks, baying components, etc. |
| Climate control | Fan/filter, cooling unit or other thermal-management requirement |
| Machining | Cut-outs, holes, tapping or other enclosure processing |
| Quantity | Single unit or project quantity |
If the article number is not known, send the required dimensions, installation environment, equipment layout and accessory requirements, and SUWI can assist with configuration selection.
Spare parts
A wide range of spare parts is available for VX25 enclosures, covering enclosure components, doors, panels, mounting parts and locking components. For spare parts availability, pricing or further product information, please contact us.
30 – 8001212 – Gland plate for VX, VX IT, VX SE
30 – 8001242 – Sliding panel for VX, VX IT, VX SE
31 – 5051018 – Metal screw VX
35 – 5051019 – Base divider for VX
50 – 8617700 – Punched rail 18 x 39 mm for VX, VX SE
55 – 8617050 – Punched section with mounting flange, 18 x 64 mm for VX
60 – 5051024 – Mounting plate for VX, TS
70 – 5051045 – Mounting plate attachment for VX
75 – 5050416 – Earthing screws for VX, TS
80 – 5051046 – Roof plate for VX
90 – 5051250 – Roof mounting screw for VX
95 – 5050698 – Roof mounting screw for VX
100 – 5051063 – Rear panel for VX
110 – 5051085 – Rear panel attachment for VX
115 – 5051086 – Side panel attachment for VX
120 – 5051102 – Door, right for two-door VX
130 – 5051115 – Locking rod for VX
135 – 5051171 – Assembly component, locking rod for VX
150 – 5051117 – Lock plate for VX
160 – 8618320 – 130° hinges for VX
161 – 5051163 – 130° hinge retainer for VX
165 – 5050616 – Screw for VX
180 – 5051118 – Door, left for two-door VX
190 – 5051131 – Locking rod, adjacent door for two-door VX
195 – 5051173 – Assembly component, locking rod for two-door VX
200 – 5051133 – Central lock piece for VX
210 – 5051134 – Accessory bag for VX
220 – 5051135 – Lock element for two-door VX
230 – 5051172 – Positioning slide for VX
230 – 5051195 – Positioning slide for VX

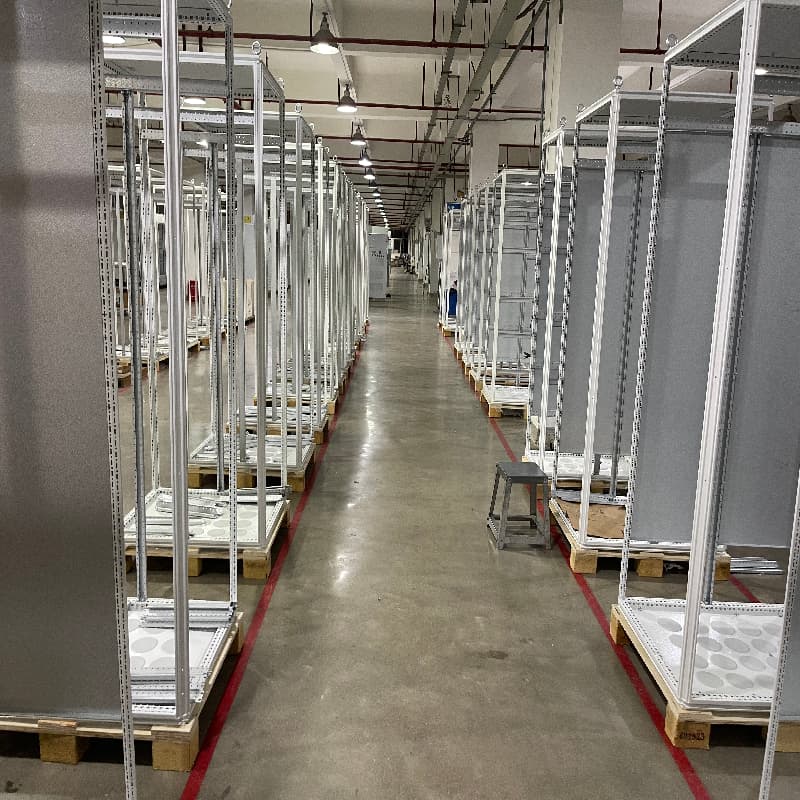

Our Factory
Supply & Support
Genuine Rittal VX25 enclosures
Single-unit and bulk procurement
Multiple VX25 models available
Availability confirmation by article number
International supply support
FAQ
Q1: What applications is the VX25 Basic Enclosure suitable for?
A: The VX25 Basic Enclosure is designed for industrial control cabinets, automation systems, manufacturing lines, machine control and electrical distribution applications. Its modular bayed design supports both standalone cabinets and multi-enclosure configurations, making it suitable for control and switchgear systems that may require additional installation space or future expansion.
Q2: What accessories are compatible with the VX25 enclosure?
A: The VX25 enclosure supports a wide range of compatible components, including mounting plates, gland plates, roof plates, punched sections, cable-entry components, mounting rails, base/plinth components and baying accessories. Compatibility should be checked according to the VX25 enclosure model and its width, height and depth.
Q3: What protection standard does the VX25 enclosure meet?
A: The VX25 modular enclosure is specified as compliant with IEC 60529. The required protection level should be confirmed according to the selected enclosure configuration, installed components and application environment.
Q4: How does the VX25 modular design simplify installation and future expansion?
A; The VX25 modular design provides flexible internal installation options for mounting components, cable management and enclosure configuration. Multiple VX25 cabinets can also be bayed side by side using dedicated baying brackets, internal baying blocks and external baying connectors, allowing the enclosure system to be expanded when additional equipment or installation space is required.
Rittal VX25 enclosures are modular baying enclosure systems for industrial control panels, machine automation and electrical distribution applications. Explore VX25 models by enclosure dimensions and door configuration, with support for single-unit and bulk procurement.
Read More
VX25 Baying-enclosure system helps users boost efficiency. It renders workflows traceable, faster, and more streamlined, while also making the digital twin a reality. As an authorized distributor in Fujian, we supply Rittal genuine VX25 series enclosures—featuring efficient baying integration, digital configuration tools, and local technical support—to help your industrial systems achieve exceptional performance.
Read More
The robust stainless steel housings feature an integrated cam system that allows for extensive system expansion without drilling, quickly and securely.
Read More
Enclosure with door of sheet steel, spray-finished with mounting plate and gland plate in the base Protection category up to IP 66.
Read More
The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Read More
The KX small enclosure stainless steel offers maximum data quality and consistency in engineering, flexibility, and safety for a variety of applications
Read More
Secure accommodation of all PC components, from monitors, to PCs and keyboards. Extremely simple to use and modern design. Complete protection from humidity and dirt, temperature fluctuations and unauthorized access.
Read More
The VX Hybrid Double Door is a robust yet lightweight enclosure solution, perfect for applications where simple, quick deployment, portability, and safety are critical. The removable mullion allows for a single mounting panel and ample space for installing and removal of the panel. With our superior dip-paint primer and powder coat paint, these enclosures will meet the conditions of many environments and applications. High level of protection to IP 66/Type 4.
Read More
