USA version - The Perforex Milling Terminal is a four-axis CNC machine and is used for modifying standard enclosures, and offers automatic machining of enclosure panels and housings, e.g. for holes, threading, and cut-outs. The Perforex Milling Terminal 1101 is a cost-effective means of automated component modification. Fast, simple machining of nearly all compact and large enclosures.
Item No :
AS 4055912Order(MOQ) :
1 pc(s).Weight :
1,600 kgSupply includes :
The Perforex MT S is configured for specific projects

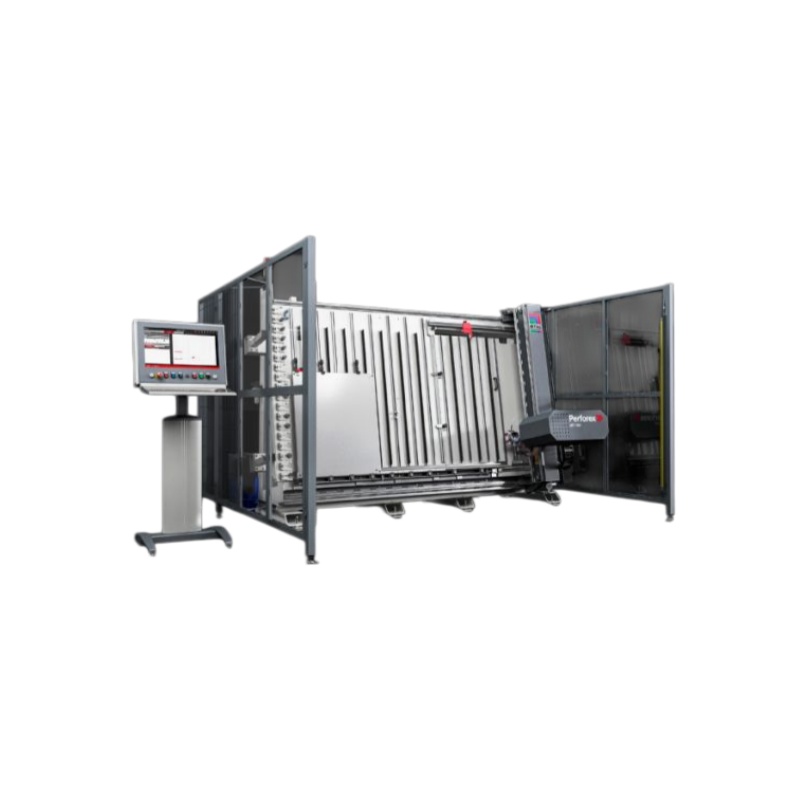

Rittal Perforex MT 1101 S CNC Milling Machine for Electrical Cabinet Processing
Rittal Perforex Milling Terminal MT 1101 S is a high-performance 4-axis CNC machining system designed for fast and efficient processing of electrical enclosures, control cabinets, and industrial housings. It performs automated drilling, tapping, milling, and cut-out operations, enabling a seamless transition from engineering data to finished enclosure components while significantly improving production efficiency and machining accuracy.
With integrated engineering software connectivity, automatic tool changing, a high-speed spindle, and precise workpiece clamping, the Perforex MT 1101 S delivers reliable and consistent machining performance across a wide range of materials. It is an ideal solution for modern electrical manufacturing facilities seeking to optimize enclosure fabrication processes and achieve higher levels of production automation.
| Article no.: | AS 4055912 |
| Version | Flat part machining Housing machining Patented plate with integral extraction of the milling swarf (such as chips, turnings, filings, or shavings). High-performance spindle including minimal quantity lubrication Automatic tool check DIN tools Pneumatic clamping device USA version |
| Supply includes | The Perforex MT S is configured for specific projects |
| Workable material |
|
| Machine options |
|
| Machine controller |
|
| Security |
|
| Interfaces |
|
| Note | We reserve the right to make technical modifications |
| Compressed air connection | 6 bar |
| Weight of workpiece, panel machining (max.) | 200 kg |
| Weight of workpiece, enclosure machining (max.) | 200 kg |
| Number of workstations | 18 |
| Machining accuracy | ± 0.2 mm |
| Speed X/Y axis | 60,000 mm/min |
| Speed Z-axis | 12,000 mm/min |
| Spindle speed (max.) | 21,000 rpm |
| Spindle power (max.) | 11 kW |
| Control voltage (DC) | 24 V |
| Rated current max. | 6.2 A |
| Rated operating voltage | 3L, 400 - 480 Y / 230 - 277 V, 50/60 Hz |
| Machining speed (max.) | 1,500 mm/min |
| Dimensions of clampable enclosures min. | Width: 100 mm Height: 100 mm Depth: 140 mm |
| Dimensions of clampable enclosures max. | Width: 1,200 mm Height: 1,400 mm Depth: 1,400 mm |
| Min. clamping panel dimensions | Width: 100 mm Height: 100 mm Depth: 1.25 mm |
| Max. clamping panel dimensions | Width: 2,450 mm Height: 1,500 mm Depth: 5 mm |
| Max. machinable area for enclosures | Width: 750 mm Height: 1,400 mm |
| Packaging unit | 1 pc(s). |
| Net weight | 1,600 kg |
| Gross weight | 1,600 kg |
| Customs tariff number | 84596110 |
| EAN | 4028177971455 |
Automated enclosure machining system Benefits:
• Improved productivity and fast ROI through automated enclosure machining
• High machining accuracy with short cycle times and consistent quality
• Seamless data integration through network-based software solutions
• Intuitive operation via 24-inch HMI touchscreen interface
• Automatic tool changing and tool length compensation for efficient production
• Integrated chip extraction for a clean machining environment
• Powerful spindle technology for precise and reliable processing
• Pneumatic clamping system designed specifically for enclosure machining
Original Rittal compatible machine
Industrial automation application
Global shipment support
Technical support
Spare parts availability
Automation & Robotics
Machining of control cabinets, robot systems, and automation equipment enclosures.
Electrical Engineering
Fast and precise processing of switchgear cabinets, control cabinets, and mounting structures.
Machine Building
Flexible production of equipment housings, electrical enclosures, and customized panels.
OEM Production
Improves manufacturing efficiency with reduced manual work and consistent machining quality.
Our Factory
FAQ
A:It machines various materials, including steel, stainless steel, aluminum, copper, and plastics, for electrical enclosures, panels, and mounting plates.
A:Suitable for control cabinets, industrial enclosures, mounting plates, doors, side panels, and custom housings. It performs drilling, milling, cut-outs, and threading operations.
A:Yes. It supports EPLAN Pro Panel, Rittal RiPPC, Rittal Configuration System, and DXF files for direct data-driven machining.
A:Up to ±0.2 mm, ensuring precise and consistent results for electrical assembly applications.
A:It reduces manual work, improves accuracy, shortens production time, and increases manufacturing efficiency.
A:Yes. It is designed for flexible production, including customized orders and Batch Size 1 manufacturing.
A:No. The intuitive HMI and digital workflow simplify operation with minimal training requirements.
USA version - The Perforex Milling Terminal is a four-axis CNC machine and is used for modifying standard enclosures, and offers automatic machining of enclosure panels and housings, e.g. for holes, threading, and cut-outs. The Perforex Milling Terminal 1101 is a cost-effective means of automated component modification. Fast, simple machining of nearly all compact and large enclosures.
