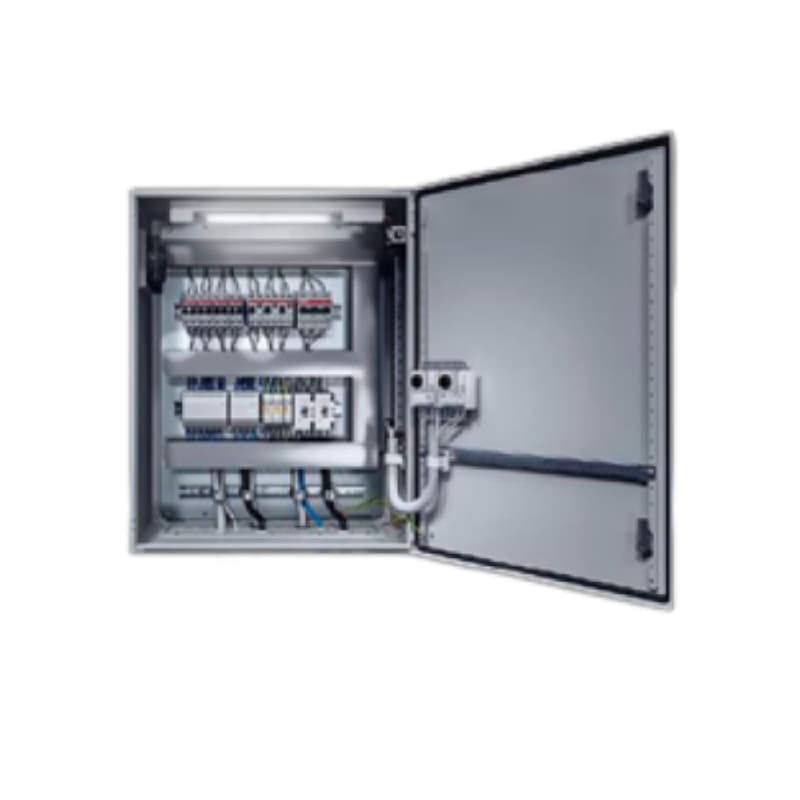

Enclosure with door of sheet steel, spray-finished with mounting plate and gland plate in the base Protection category up to IP 66.
Item No :
AE 1030500Material :
Housing: Carbon steel /Door: Carbon steel, all-round foamed-in PU sealColor :
Carbon SteelLock :
Lock version: Cam /locks: 1 /Lock Insert: 3 mm double-bitIK code :
IK08
Rittal original authentic AE enclosures for electronics can be conveyed in three words: Structured, rigid, and absolutely reliable. AE enclosures set aside flashy designs and will be treated with three-layer surface anti-corrosion process to form the ideal corrosion barrier. They are combined with a permanent high protection category (IP55 – IP66) by the seamless foamed-in-place PU seal, creating a complete solution. This design prevents water, dust and oil stains from coming into contact with the internal PLCs, touchscreens, servo drives and inverters to provide a constant micro-operating environment in the noisy and dusty/harsh factory floor.
Moreover, the AE line has been completely validated by global quality certifications, is off-the-shelf available and presents a wealth of practical dimensions and functional system accessories, which make the AE series easily adaptable to any production environment and establish the industry benchmark and quality choice.
| Article no. | W X H X D (mm） | Protection category IP to EN 60 529 | Number of doors |
| 1030500 | 380 mm x 300 mm x 155 mm | IP 66 | 1 |
| 1031500 | 380 mm x 300 mm x 210 mm | IP 66 | 1 |
| 1032500 | 200 mm x 300 mm x 120 mm | IP 55 | 1 |
| 1033500 | 300 mm x 300 mm x 210 mm | IP 66 | 1 |
| 1034500 | 300 mm x 400 mm x 210 mm | IP 66 | 1 |
| 1035500 | 200 mm x 300 mm x 155 mm | IP 55 | 1 |
| 1036500 | 300 mm x 300 mm x 155 mm | IP 66 | 1 |
| 1037500 | 400 mm x 800 mm x 300 mm | IP 66 | 1 |
| 1038500 | 380 mm x 600 mm x 210 mm | IP 66 | 1 |
| 1039500 | 600 mm x 380 mm x 210 mm | IP 66 | 1 |
| 1045500 | 400 mm x 500 mm x 210 mm | IP 66 | 1 |
| 1050500 | 500 mm x 500 mm x 210 mm | IP 66 | 1 |
| 1054500 | 600 mm x 600 mm x 250 mm | IP 66 | 1 |
| 1055500 | 800 mm x 600 mm x 300 mm | IP 66 | 1 |
| 1057500 | 500 mm x 700 mm x 250 mm | IP 66 | 1 |
| 1058500 | 600 mm x 800 mm x 250 mm | IP 66 | 1 |
| 1060500 | 600 mm x 600 mm x 210 mm | IP 66 | 1 |
| 1073500 | 760 mm x 760 mm x 300 mm | IP 66 | 1 |
| 1076500 | 600 mm x 760 mm x 210 mm | IP 66 | 1 |
| 1077500 | 760 mm x 760 mm x 210 mm | IP 66 | 1 |
| 1090500 | 600 mm x 1000 mm x 250 mm | IP 66 | 1 |
| 1100500 | 1000 mm x 760 mm x 210 mm | IP 55 | 2 |
| 1110500 | 1000 mm x 1000 mm x 300 mm | IP 55 | 2 |
| 1114500 | 1000 mm x 1400 mm x 300 mm | IP 55 | 2 |
| 1130500 | 1000 mm x 760 mm x 300 mm | IP 55 | 2 |
| 1180500 | 800 mm x 1000 mm x 300 mm | IP 66 | 1 |
| 1213500 | 1000 mm x 1200 mm x 300 mm | IP 55 | 2 |
| 1260500 | 600 mm x 1200 mm x 300 mm | IP 66 | 1 |
| 1280500 | 800 mm x 1200 mm x 300 mm | IP 66 | 1 |
| 1338500 | 380 mm x 600 mm x 350 mm | IP 66 | 1 |
| 1339500 | 600 mm x 380 mm x 350 mm | IP 66 | 1 |
| 1350500 | 500 mm x 500 mm x 300 mm | IP 66 | 1 |
| 1360500 | 600 mm x 600 mm x 350 mm | IP 66 | 1 |
| 1376500 | 600 mm x 760 mm x 350 mm | IP 66 | 1 |
| 1380500 | 380 mm x 380 mm x 210 mm | IP 66 | 1 |
1. Enclosures are dipcoat-primed and powder-coated for high corrosion protection
2. Sheet steel gland plates for self-assembly may be exchanged for prepunched plates for simple cable entry
3. Labelled mounting plate for simple, flexible installation options
4. Rear face with holes, prepared for wall mounting bracket or direct wall mounting
5. System mounting block for additional, individual depth population
6. Multi-folded enclosure protection channel prevents the ingress of dirt and water when the door is opened
7. Perforated mounting strips in the door enable fast attachment of support strips, cable conduit holders and covers
8. PE conductor connection facilities on the enclosure, door and mounting plate
9. Interchangeable door hinge with no need for machining in single-door enclosures

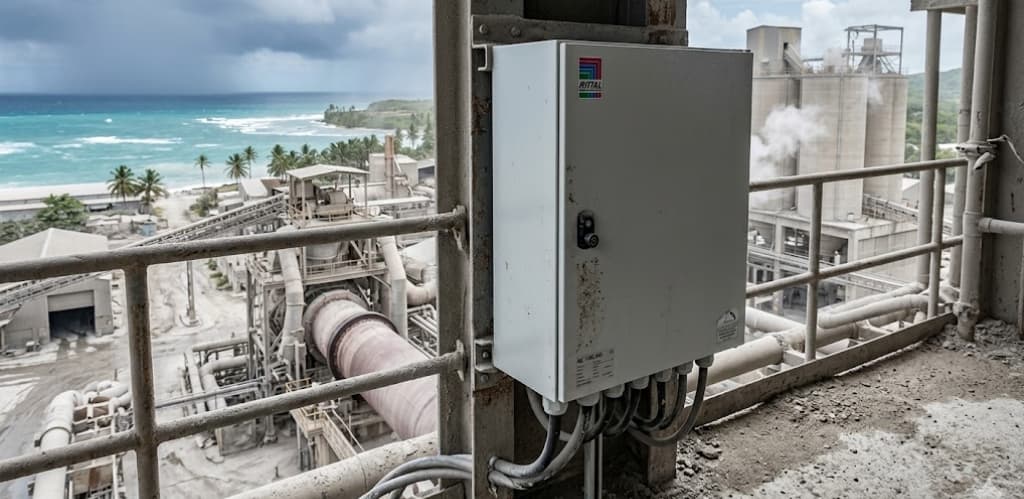

AE Wall-mounted enclosure Application
AE Wall-mounted enclosure of its superior electrophoretic dip-coat and powder coating processes are designed to meet the requirements of the dust, oil mist and vibration environment inside the facility and the mild inland semi-outdoor environment. It is the most affordable, dependable, and traditional form of protection for high-grade industrial control systems.Often used in the automotive industry, machine tools, logistics and conveying, smart buildings, smart grids, and inland general automation.

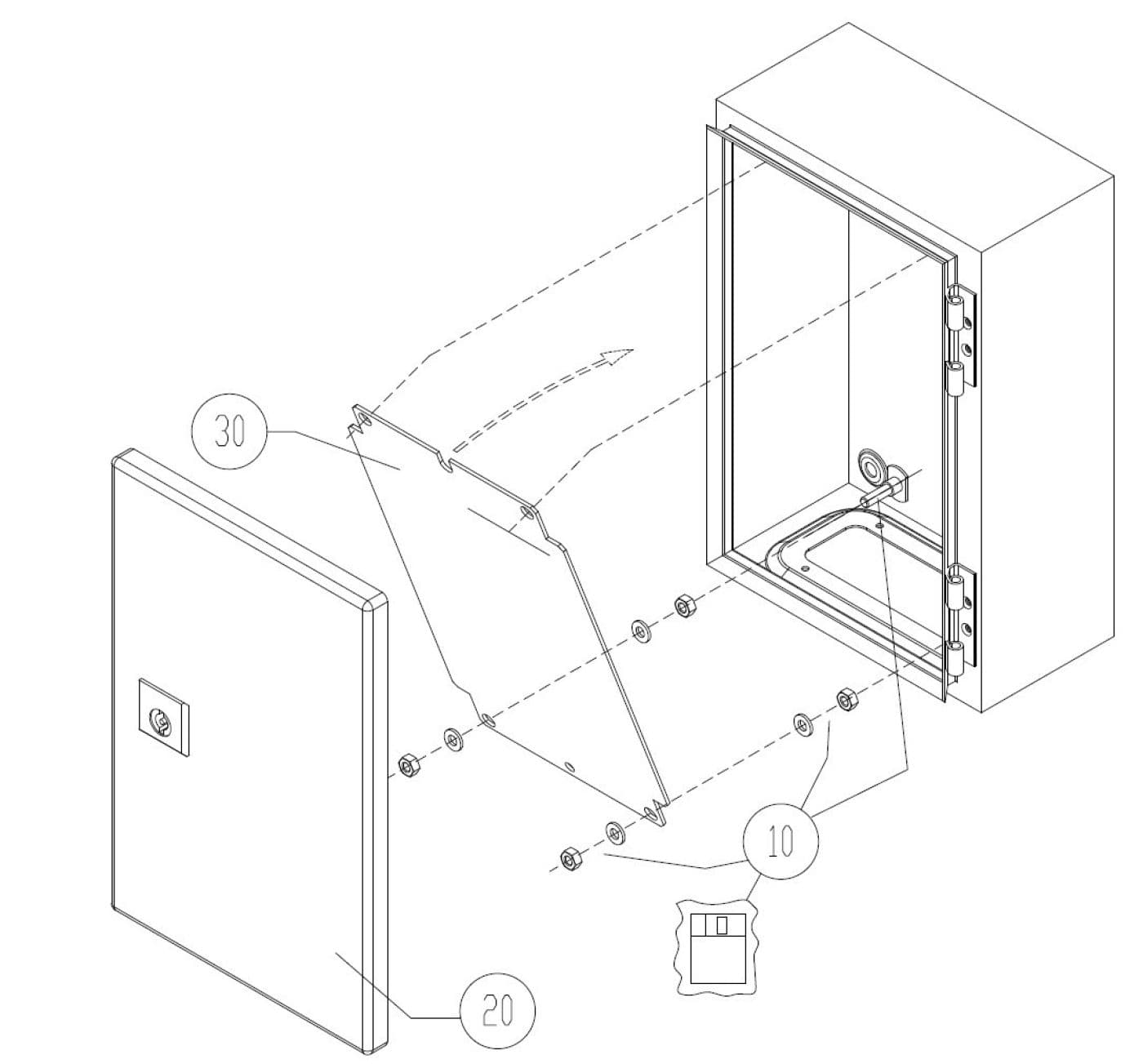

AE Compact Enclosure Spare Parts
No.10 5050506 — Accessory kit compatible with AE compact enclosure systems.
No.20 5050455 — Replacement door designed for AE compact enclosures.
No.25 2420000 — Industrial flange lock for secure enclosure locking.
No.30 5050431 — Galvanized mounting plate for AE compact cabinets.
No.40 5050554 — Heavy-duty hinge for AE enclosure doors.
No.50 2560400 — Metal sealing cover plate for unused enclosure openings.
Our Factory
FAQ
A:We are Xiamen Suwei Automation Technology Co., Ltd., established in January 2010, headquartered in Xiamen, Fujian, China. We specialize in industrial automation and are committed to providing efficient and innovative automation solutions to meet a variety of customer needs, serving clients globally.
A: You can purchase a variety of industrial automation products from us, including:
1. Low-voltage electrical and industrial control equipment
2. Automation electrical products
3. Touchscreens and relay devices
4. Industrial automation engineering solutions
We provide one-stop services to meet the needs of various industries and customers.
3 Q:Why are there no direct mounting holes on the back panel of the AE enclosure for wall screwing?
A: This is a deliberate design to ensure the enclosure's IP 66 / NEMA 4 protection rating remains completely uncompromised. Standard practice strictly prohibits drilling or screwing directly from the inside of the enclosure to the wall, as this would create leak paths for water and dust.
The Correct Method: Every AE enclosure comes pre-machined with four rear wall-mounting holes equipped with sealing plugs. To mount the enclosure, you should order the dedicated Wall Mounting Brackets (e.g., carbon steel version SZ 2503.010 or stainless steel version SZ 2433.000). These brackets are screwed into the pre-drilled holes from the outside of the enclosure, allowing for secure wall installation while keeping the interior perfectly sealed.
4 Q:How can I quickly migrate or convert an legacy AE model to the new AX series?
A: Most standard-sized AE enclosures have a direct, drop-in replacement in the new AX series with identical external dimensions
Conversion Example: For instance, the classic standard model AE 1060.500 (600 x600 x 210 mm) seamlessly converts to the new generation model AX 1060.000.
In most cases, you can simply change the prefix from "AE" to "AX" and update the suffix from ".500" to ".000" to find the upgraded equivalent with enhanced internal space and tool-free assembly features.
VX25 Baying-enclosure system helps users boost efficiency. It renders workflows traceable, faster, and more streamlined, while also making the digital twin a reality. As an authorized distributor in Fujian, we supply Rittal genuine VX25 series enclosures—featuring efficient baying integration, digital configuration tools, and local technical support—to help your industrial systems achieve exceptional performance.
Read More
The core philosophy of VX25 is "simplicity conquers complexity." Through highly standardized profiles and accessories, engineers can quickly build control systems that meet diverse and demanding industrial requirements—just like assembling building blocks. As an authorized distributor, we supply Rittal genuine VX25 series enclosures—featuring efficient baying integration, digital configuration tools, and local technical support—to help your industrial systems achieve exceptional performance.
Read More

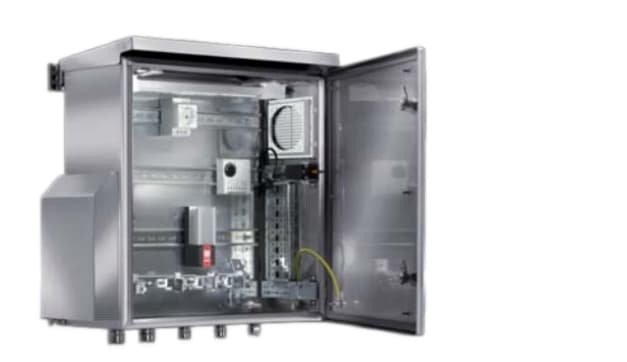

The robust stainless steel housings feature an integrated cam system that allows for extensive system expansion without drilling, quickly and securely.
