The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Material :
Door: Carbon steel, all-round foamed-in PU sealOrder(MOQ) :
1 pc(s)Color :
Carbon steelLock :
Lock version: Cam / Lock Insert: 3 mm double-bitIK code :
IK10ETIM 8 :
EC000261ETIM 9 :
EC000261

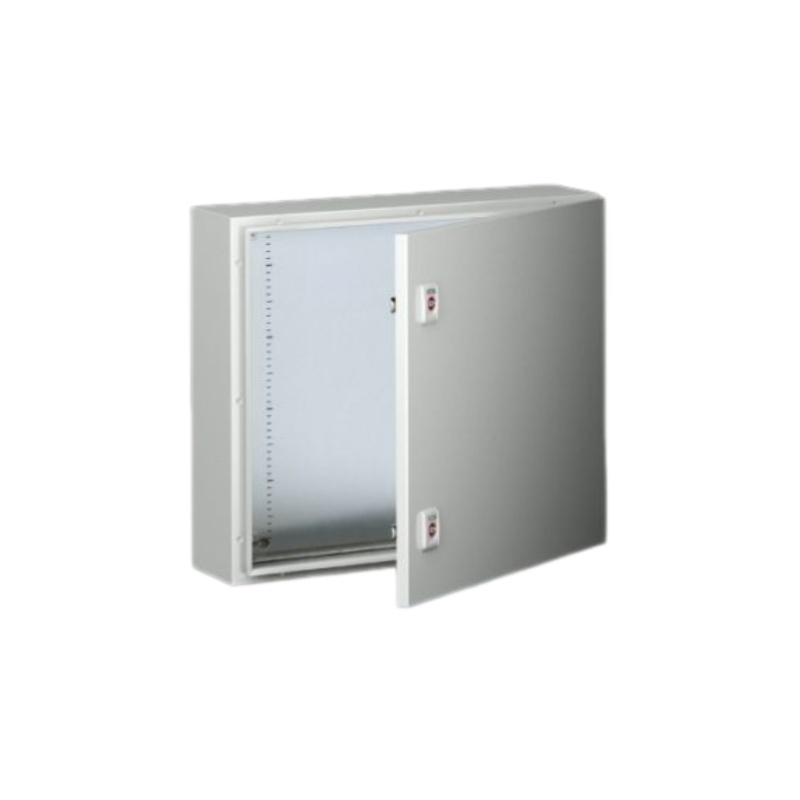

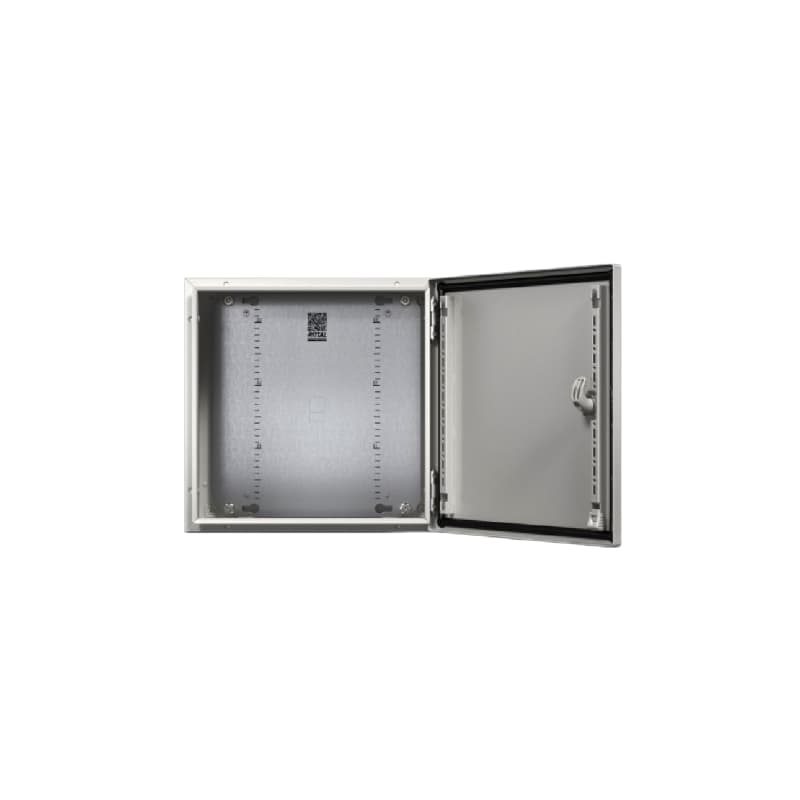

Rittal AX compact enclosure is designed to meet the evolving needs of Industry 4.0 and digitalized manufacturing environments. The AX series is based on the VX25 enclosure system and offers a standard, future-proof enclosure solution for industrial automation, control, and switchgear applications. Backed by broad system portfolio compatibility, it seamlessly integrates into the Rittal system, simplifies engineering work, and ensures consistency across all system value chain stages, enabling manufacturers to achieve higher productivity and enhanced operational performance in today's production context.
Suwei as an authorized Rittal distributor, we supply genuine AX compact enclosures in a wide range of sizes and configurations to meet diverse industrial requirements. Whether you need support for a new project, system expansion, or replacement equipment, our team can help you select the most suitable AX enclosure solution and provide fast quotation and professional technical assistance.
1. Select enclosure size
Determine the required W × H × D from the component layout, wiring space and cable-entry requirements.
2. Confirm door configuration
Single-door models are typically suitable for smaller control assemblies; larger enclosure sizes may use two-door configurations.
3. Check protection requirements
Confirm the required IP/NEMA rating against the installation environment.
4. Verify internal installation requirements
Check mounting plate space, rail requirements, cable entry and required AX accessories.
5. Confirm the Article No. before quotation
Send the required Article No. or enclosure dimensions to SUWI for availability, accessories and quotation confirmation.
AX Carbon Steel Enclosure Models & Selection Table
Compare AX carbon steel enclosure models by article number, dimensions, door configuration, lock type and protection rating.
Select the closest configuration for your application and contact SUWI if you need help confirming the correct model or compatible accessories.
| Article no. | W X H X D (mm) | Number of doors | Lock version | Protection category IP to IEC 60 529 |
| AX 1031000 | 380 mm x 300 mm x 210 mm | 1 | Cam | IP 66 |
| AX 1033000 | 300 mm x 300 mm x 210 mm | 1 | Cam | IP 66 |
| AX 1034000 | 300 mm x 400 mm x 210 mm | 1 | Cam | IP 66 |
| AX 1037000 | 400 mm x 800 mm x 300 mm | 1 | Cam | IP 66 |
| AX 1038000 | 380 mm x 600 mm x 210 mm | 1 | Cam | IP 66 |
| AX 1039000 | 600 mm x 380 mm x 210 mm | 1 | Cam | IP 66 |
| AX 1045000 | 400 mm x 500 mm x 210 mm | 1 | Cam | IP 66 |
| AX 1050000 | 500 mm x 500 mm x 210 mm | 1 | Cam | IP 66 |
| AX 1054000 | 600 mm x 600 mm x 250 mm | 1 | Cam | IP 66 |
| AX 1055000 | 800 mm x 600 mm x 300 mm | 1 | Cam | IP 66 |
| AX 1057000 | 500 mm x 700 mm x 250 mm | 1 | Cam | IP 66 |
| AX 1058000 | 600 mm x 800 mm x 250 mm | 1 | Cam | IP 66 |
| AX 1059000 | 600 mm x 800 mm x 400 mm | 1 | Cam | IP 66 |
| AX 1060000 | 600 mm x 600 mm x 210 mm | 1 | Cam | IP 66 |
| AX 1073000 | 760 mm x 760 mm x 300 mm | 1 | Cam | IP 66 |
| AX 1076000 | 600 mm x 760 mm x 210 mm | 1 | Cam | IP 66 |
| AX 1077000 | 760 mm x 760 mm x 210 mm | 1 | Cam | IP 66 |
| AX 1090000 | 600 mm x 1,000 mm x 250 mm | 1 | Cam | IP 66 |
| AX 1091000 | 600 mm x 1,000 mm x 400 mm | 1 | Cam | IP 66 |
| AX 1094000 | 800 mm x 400 mm x 250 mm | 2 | Cam | IP 55 |
| AX 1095000 | 800 mm x 400 mm x 300 mm | 2 | Cam | IP 55 |
| AX 1096000 | 1,000 mm x 600 mm x 300 mm | 2 | Cam | IP 55 |
| AX 1100000 | 1,000 mm x 760 mm x 210 mm | 2 | Cam | IP 55 |
| AX 1110000 | 1,000 mm x 1,000 mm x 300 mm | 2 | Cam | IP 55 |
| AX 1112000 | 1,200 mm x 400 mm x 300 mm | 2 | Cam | IP 55 |
| AX 1113000 | 1,200 mm x 600 mm x 300 mm | 2 | Cam | IP 55 |
| AX 1114000 | 1,000 mm x 1,400 mm x 300 mm | 2 | 3-point locking system | IP 55 |
| AX 1115000 | 1,000 mm x 1,400 mm x 400 mm | 2 | 3-point locking system | IP 55 |
| AX 1116000 | 1,200 mm x 1,200 mm x 400 mm | 2 | 3-point locking system | IP 55 |
| AX 1130000 | 1,000 mm x 760 mm x 300 mm | 2 | Cam | IP 55 |
| AX 1180000 | 800 mm x 1,000 mm x 300 mm | 1 | Cam | IP 66 |
| AX 1181000 | 800 mm x 1,000 mm x 400 mm | 1 | Cam | IP 66 |
| AX 1213000 | 1,000 mm x 1,200 mm x 300 mm | 2 | 3-point locking system | IP 55 |
| AX 1214000 | 1,000 mm x 1,200 mm x 400 mm | 2 | 3-point locking system | IP 55 |
| AX 1260000 | 600 mm x 1,200 mm x 300 mm | 1 | 3-point locking system | IP 66 |
| AX 1261000 | 600 mm x 1,200 mm x 400 mm | 1 | 3-point locking system | IP 66 |
| AX 1280000 | 800 mm x 1,200 mm x 300 mm | 1 | 3-point locking system | IP 66 |
| AX 1281000 | 800 mm x 1,200 mm x 400 mm | 1 | 3-point locking system | IP 66 |
| AX 1338000 | 380 mm x 600 mm x 350 mm | 1 | Cam | IP 66 |
| AX 1339000 | 600 mm x 380 mm x 350 mm | 1 | Cam | IP 66 |
| AX 1350000 | 500 mm x 500 mm x 300 mm | 1 | Cam | IP 66 |
| AX 1360000 | 600 mm x 600 mm x 350 mm | 1 | Cam | IP 66 |
| AX 1376000 | 600 mm x 760 mm x 350 mm | 1 | Cam | IP 66 |
| AX 1380000 | 380 mm x 380 mm x 210 mm | 1 | Cam | IP 66 |
| AX 1090000 | 600 mm x 1000 mm x 250 mm | 1 | Cam | IP 66 |
| AX 1094000 | 800 mm x 400 mm x 250 mm | 1 | Cam | IP 55 |
| AX 1113000 | 1200 mm x 600 mm x 300 mm | 2 | Cam | IP 55 |
Rittal AX carbon steel electrical enclosure Benefits :
1. More interior finishing options thanks to integrated housing cams in the 25 mm system grid in combination with the rail for interior finishing and our wide range of system accessories
2. Maintaining the protection class (UL approval) by mounting the rail for interior installation without drilling
3. Additional mounting level and increased load capacity due to base configuration rail
4. Easy planning and configuration with the Rittal configurator RiPanel

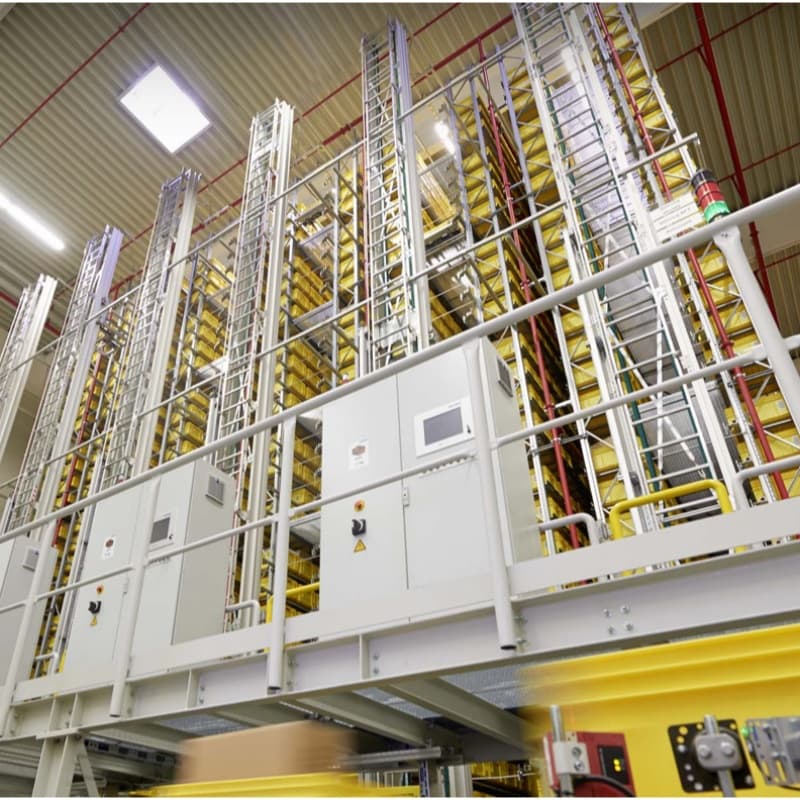

Rittal AX carbon steel enclosures are commonly used in industrial automation, machinery manufacturing, power distribution, and various other manufacturing applications, offering robust protection and performance in challenging environments.
If you need corrosion resistance, a washdown feature, or a hygienic design, consider our AX Stainless Steel Enclosures, which are ideal for food processing, pharmaceuticals, or outdoor use.
The AX range is approved by internationally recognised bodies such as UL and provides global compliance, reliability, and long service life. Through extensive testing and regular quality checks, it is ensured that Rittal AX enclosures are safe, efficient, and reliable in the future, which makes them a trusted choice for projects in the industrial sector around the world.
AX Carbon Steel vs Stainless Steel
| Requirement | Carbon Steel AX | Stainless Steel AX |
|---|---|---|
| General indoor automation | Recommended | Usually unnecessary |
| Standard machine control | Recommended | Optional |
| Corrosive environment | Verify conditions | Recommended |
| Washdown | Usually not preferred | Recommended |
| Hygienic application | Usually not preferred | Recommended |
| Cost-sensitive standard application | Better fit | Higher material cost |
Need corrosion resistance or washdown capability? → View AX Stainless Steel Enclosures
AX enclosure Spare Parts

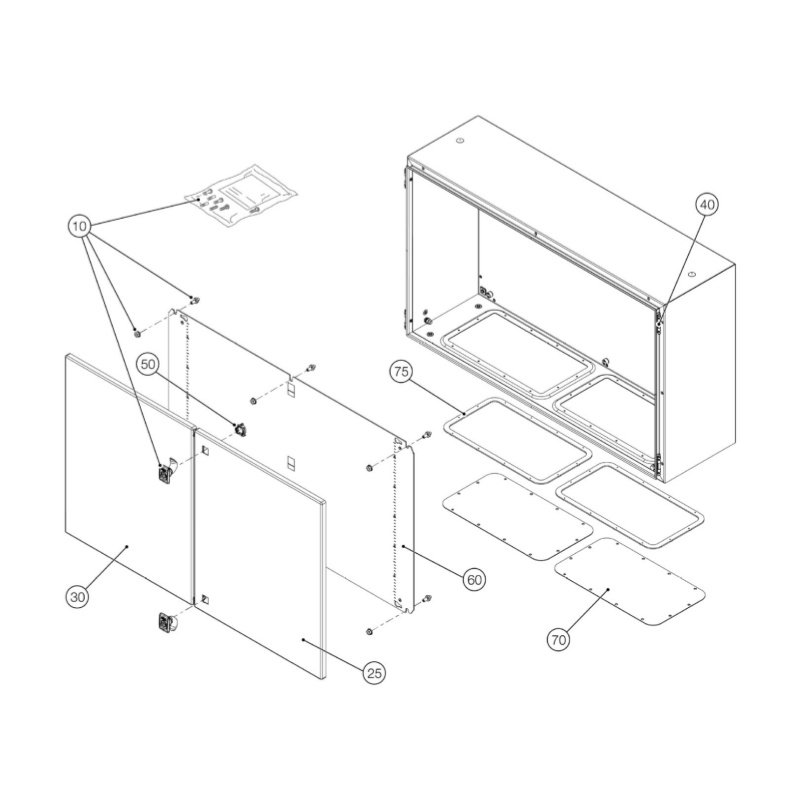

The table below lists the accessories and parts for the AX series products, including item numbers, product numbers, and names.These spare parts enable flexible configuration, maintenance, and customization of AX enclosures for various industrial applications.
Item 10 – Accessory bag for AX (Article No. 5051302)
Item 25 – Right-hand door for AX (Article No. 5052135)
Item 30 – Left-hand door for AX (Article No. 5052136)
Item 40 – Hinge for AX (Article No. 5051313)
Item 50 – Bayonet ring for AX (Article No. 5051402)
Item 60 – Mounting panel for AX (Article No. 5052134)
Item 70 – Flange plates for AX (Article No. 5051395)
Item 75 – Sealing frame for AX (Article No. 5051425)
Item 80 – Self-tapping screw (Article No. 5051407)
Our Factory
Supply & Technical Support
Original Rittal product supply with product selection, technical support and enclosure customization services available for industrial automation projects.
Q1. How do I select the correct AX Article No.?
A: Select the AX Article No. based on the required width, height, depth, material, protection rating and installation requirements. Use the model selection table to compare available sizes. If you are unsure, send SUWI your required dimensions and application conditions for model verification.
Q2. What is included with an AX carbon steel enclosure?
A: The standard scope depends on the specific AX Article No. and configuration. Typical components may include the enclosure body, door, mounting plate and gland plate. Always check the product configuration for the selected model before ordering, as accessories and optional components may be supplied separately.
Q3. What is the difference between AX carbon steel and stainless steel?
A: Carbon steel AX is generally suitable for standard indoor industrial environments and offers a cost-effective enclosure solution. Stainless steel AX provides greater corrosion resistance and is better suited to demanding, humid, washdown or corrosive environments. Final material selection should be based on the actual installation conditions.
Q4. Which accessories are compatible with my AX enclosure?
A: Accessory compatibility depends on the AX Article No., enclosure dimensions and accessory type. Common options include mounting components, cable-entry accessories, wall-mounting brackets, rain canopies and other installation hardware. Verify compatibility before ordering rather than selecting accessories by enclosure series alone.
Q5. Can SUWI help verify an AX model before ordering?
A: Yes. Provide the required enclosure dimensions, application environment, quantity and any required accessories or modifications. SUWI can help check the appropriate AX model and accessory compatibility before quotation.
Q6. Can I order AX enclosures with machining or cut-outs?
A: Yes. SUWI can support custom cut-outs, drilling, tapping and other enclosure machining based on your drawings or installation requirements. Send your drawing, required AX model, quantity and machining details with your RFQ so the enclosure and modification requirements can be reviewed together.
Know the article number? Send the article number, quantity and delivery destination.
Need help choosing? Send the required enclosure size, installation environment, installed components, cable-entry requirements and accessories. Suwiauto can check the AX model and compatible accessories before quotation.
