The robust stainless steel housings feature an integrated cam system that allows for extensive system expansion without drilling, quickly and securely.
Item No :
AX Stainless steel Compact and small enclosuresOrder(MOQ) :
1 pc(s).Lock :
Varies by modelETIM 8 :
EC000261ETIM 9 :
EC000261

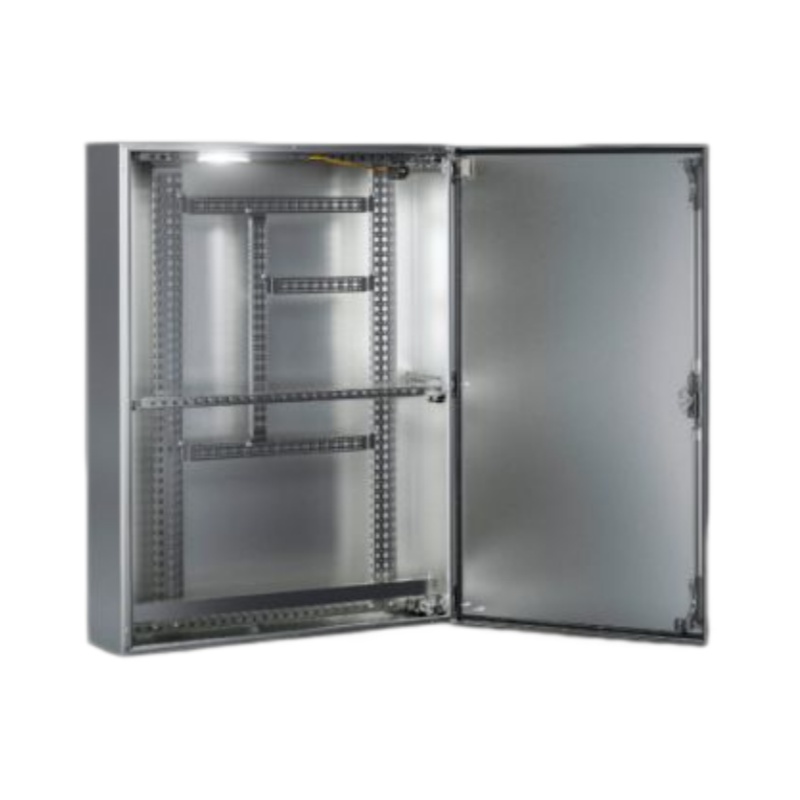

Rittal AX Stainless Steel Enclosures
The Rittal AX stainless steel enclosure is a compact wall-mounted enclosure for electrical and control equipment. Rittal offers the AX stainless steel series in AISI 304 (1.4301) and AISI 316L (1.4404). AISI 304 is suitable for general industrial environments, while AISI 316L provides higher corrosion resistance for more demanding applications.
Multiple AX stainless steel models are available with different dimensions, door configurations, locking systems and protection ratings, with selected models rated up to IP66 and NEMA 4X.
Already know the Rittal article number? Send the article number, quantity and destination country for availability and quotation.
Not sure which AX model you need? Select by dimensions, stainless steel grade, protection rating, door configuration and locking system using the table below.

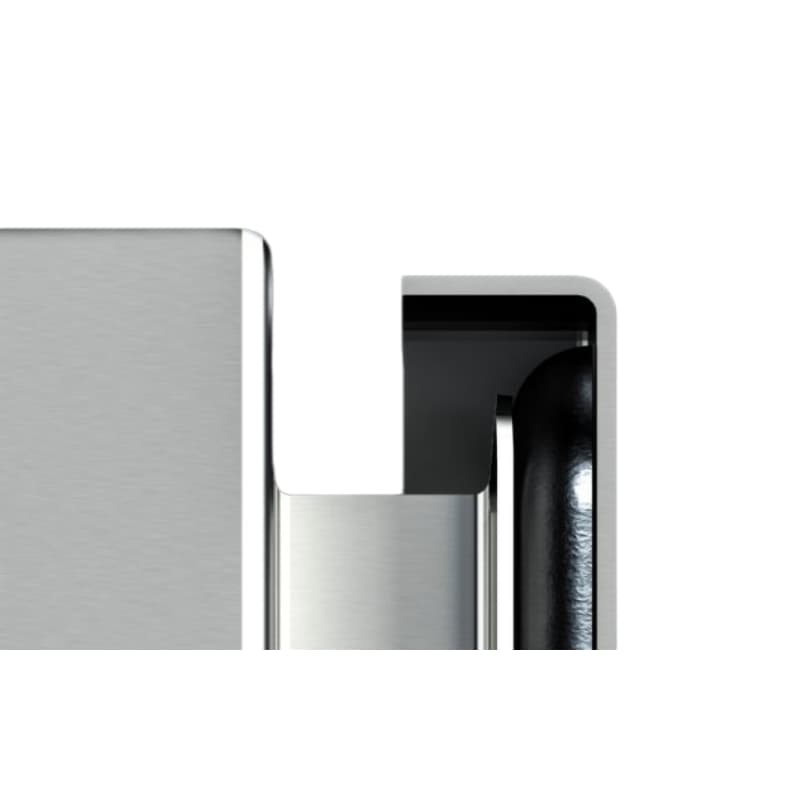

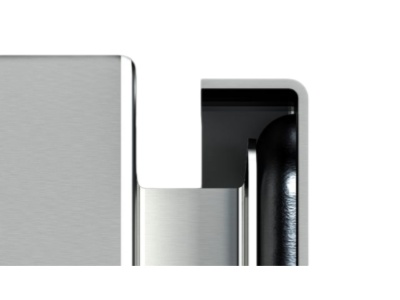

Security
The slim enclosure edge and seamless PU foam seal provide protection up to IP66 and IK10.

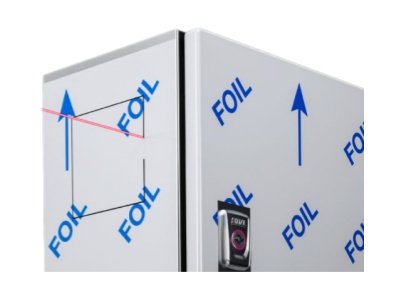

Easy Machining & Transport Protection
The laser-resistant protective film helps prevent scratches during machining and transportation.

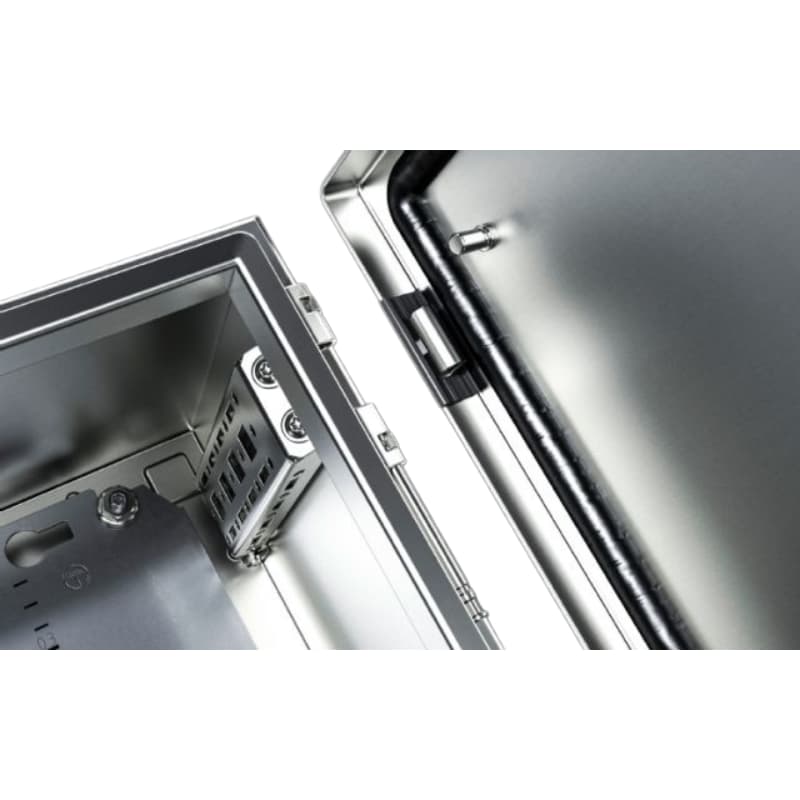

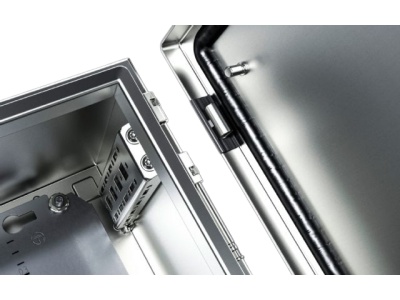

Easy Assembly
Tool-free door assembly allows quick installation by simply positioning the door and pressing in the hinge pin.

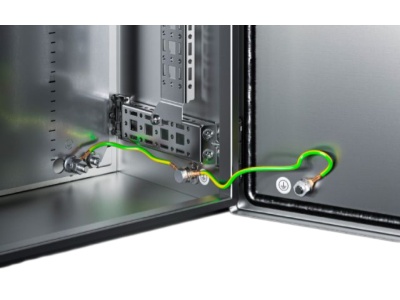

Straightforward Earthing
The machined keyhole simplifies mounting plate earthing with automatic potential equalisation.
Consider AX stainless steel where condensation, splash, process moisture or frequent surface cleaning makes a painted enclosure less desirable.
Use stainless steel where salts, aggressive vapours or chemical residues may reach the enclosure. Prefer 316L when chloride or chemical exposure requires higher corrosion resistance.
Confirm rain, solar load, UV exposure, temperature range, condensation control and any canopy or climate-control requirement. Stainless steel alone does not complete an outdoor specification.
Check water pressure, temperature, direction, cleaning frequency and chemical compatibility. Every gland, cut-out and accessory must preserve the required enclosure protection.
Standard AX stainless steel may suit non-product or secondary zones, but it is not automatically a Hygienic Design enclosure. For hygiene-critical or open-product zones, assess Rittal Hygienic Design construction and the applicable sanitation standard.
If there is no credible corrosion, hygiene or washdown risk, Carbon Steel AX may provide the required wall-mounted platform and protection rating at lower material cost.
Use this quick comparison to identify the AX enclosure configuration that best matches your application before reviewing individual model sizes and specifications.
| Selection factor | AX Stainless Steel |
|---|---|
| Material | AISI 304 / AISI 316L |
| Enclosure type | Compact wall-mounted enclosure |
| Protection | Up to IP66 / NEMA 4X, depending on model |
| Door configuration | Single / double door |
| Locking | Cam / 3-point locking |
| Selection by | Size, material, protection, door and lock |
Click the relevant AX model number below to view detailed specifications, accessories and ordering information.
| Article no. | W × H × D (mm) | Number of doors | Lock version |
|---|---|---|---|
| 1003000 | 300 mm x 300 mm x 210 mm | 1 | Cam |
| 1005000 | 300 mm x 380 mm x 210 mm | 1 | Cam |
| 1006000 | 380 mm x 380 mm x 210 mm | 1 | Cam |
| 1007000 | 500 mm x 500 mm x 210 mm | 1 | Cam |
| 1008000 | 380 mm x 600 mm x 210 mm | 1 | Cam |
| 1009000 | 600 mm x 380 mm x 210 mm | 1 | Cam |
| 1010000 | 600 mm x 600 mm x 210 mm | 1 | Cam |
| 1011000 | 380 mm x 300 mm x 210 mm | 1 | Cam |
| 1012000 | 600 mm x 760 mm x 210 mm | 1 | Cam |
| 1013000 | 500 mm x 500 mm x 300 mm | 1 | Cam |
| 1014000 | 760 mm x 760 mm x 300 mm | 1 | Cam |
| 1015000 | 400 mm x 500 mm x 210 mm | 1 | Cam |
| 1016000 | 800 mm x 1000 mm x 300 mm | 1 | Cam |
| 1017000 | 800 mm x 1200 mm x 300 mm | 1 | 3-point locking system |
| 1018000 | 1000 mm x 1000 mm x 300 mm | 2 | Cam |
| 1019000 | 1000 mm x 1200 mm x 300 mm | 2 | 3-point locking system |
| 1302000 | 300 mm x 380 mm x 210 mm | 1 | Cam |
| 1303000 | 380 mm x 380 mm x 210 mm | 1 | Cam |
| 1304000 | 600 mm x 600 mm x 210 mm | 1 | Cam |
| 1305000 | 1000 mm x 1200 mm x 300 mm | 2 | 3-point locking system |
Stainless steel grade and approvals may vary by article number. Open the individual AX model page or verify the exact article number before ordering.
The 1302–1305 links open the corresponding manufacturer detail because no Suwiauto detail URL was present in the supplied page. Replace them with local product-detail URLs when those pages are published. Verify current approvals, protection ratings and scope of supply against the exact article number.
Choosing the right AX configuration depends on your enclosure size, installation environment, mounting requirements, and the components that need to be installed inside the enclosure.
Start by selecting the required enclosure dimensions and protection level based on the available installation space and operating conditions. Then determine the appropriate mounting method, cable entry arrangement, door configuration, and internal mounting space required for your electrical components.
Accessories should also be considered as part of the configuration. Depending on your application, you may need mounting plates, wall-mounting brackets, cable entry components, door accessories, or other AX-compatible parts. Selecting these together with the enclosure helps ensure proper fit and simplifies installation.
For outdoor, dusty, wet, or demanding industrial environments, check the required IP/NEMA protection rating as well as the enclosure material and surface finish.
If you are unsure which AX configuration fits your application, send us your required dimensions, installation environment, protection rating, mounting method, and accessory requirements. We can help identify a suitable AX enclosure and compatible accessories for your project.
| Selection factor | Stainless Steel AX | Carbon Steel AX |
|---|---|---|
| Housing and door | Brushed 1.4301/AISI 304 or 1.4404/AISI 316L stainless steel | Dipcoat-primed carbon steel with exterior powder coating, typically RAL 7035 |
| Choose it when | Moisture, cleaning, corrosive deposits or damage to paint presents a credible life-cycle risk | The installation is dry or controlled and the coating can remain intact |
| Corrosion strategy | Corrosion resistance comes from the selected stainless grade; still verify chemicals, chlorides and cleaning conditions | Protection relies on the coating system; scratches, cut edges and aggressive exposure require attention |
| Standard appearance | Brushed metallic finish | Textured light-grey painted finish |
| Hygiene | Smoother and easier to clean, but standard AX is not automatically Hygienic Design | Normally selected outside hygiene-critical zones |
| Protection | Up to IP66 and NEMA 4X, depending on exact article number and installed components | Up to IP66; NEMA/type rating differs from stainless models and must be checked by article number |
| Commercial trade-off | Higher purchase cost may be justified by corrosion risk and cleaning duty | Usually the economical choice where stainless performance is not required |
Before choosing an AX stainless steel enclosure, check more than the external W × H × D dimensions. The usable mounting area, internal component depth, cable routing space and accessory installation requirements can all affect whether a model is suitable for the application.
Check the usable mounting area.
Compare the mounting plate dimensions with the actual space required for PLCs, power supplies, terminals, contactors, drives and wiring ducts. Allow additional clearance for installation, maintenance and future expansion.
Allow for component and wiring depth.
Do not compare the nominal enclosure depth directly with component depth. Leave sufficient space for terminals, cable bends, connectors, DIN rails and any equipment mounted on the inside of the door.
Confirm cable entry requirements.
Consider the number, size and entry direction of incoming cables before selecting the enclosure. Cable glands, sealing inserts and cable-entry accessories may require additional installation space.
Verify mounting and accessory compatibility.
AX accessories are not always selected only by series name. Compatibility may depend on enclosure width, height, depth, mounting position and the exact AX article number.
Check the installation environment.
Confirm the required IP/NEMA protection level and choose the stainless steel grade according to the operating environment. AISI 304 is generally suitable for standard industrial conditions, while AISI 316L should be considered where higher corrosion resistance is required.
Confirm the scope of supply before ordering.
Mounting plates, wall-mounting brackets, cable-entry components and other accessories may differ by article number. Review the individual AX model page or provide the article number before placing an order.
If you are unsure which AX model fits your project, send us the required enclosure size, installed components, operating environment and accessory requirements. We can help verify the model and compatible accessories before quotation.
| Selection factor | AISI 304 | AISI 316L |
| Corrosion resistance | Good corrosion resistance for general industrial environments | Higher corrosion resistance for more demanding environments |
| Typical use | General industrial applications | Chemical, marine or other corrosive environments |
| Material grade | 1.4301 | 1.4404 |
| Selection priority | Cost-effective choice for standard conditions | Preferred when higher corrosion resistance is required |
AISI 304 is generally suitable for standard industrial environments, while AISI 316L should be considered where higher corrosion resistance is required. The correct material should be selected according to the installation environment and the specification of the exact AX article number.
The certification and technical-document links below are retained for buyer reference. Because approvals and documentation can vary by AX article number, verify the exact model and applicable document before ordering.
The base enclosure is supplied as an assembly platform, not as a finished control panel. Use the exact article number to verify the final scope.
Stainless steel enclosure housing
Door or doors with all-round foamed-in PU seal
Zinc-plated carbon-steel mounting plate
Standard lock arrangement with 3 mm double-bit insert
Door opening angle of approximately 130°, subject to model
Wall-mounting brackets and rain canopy
Cable glands, entry plates, sealing inserts and cut-outs

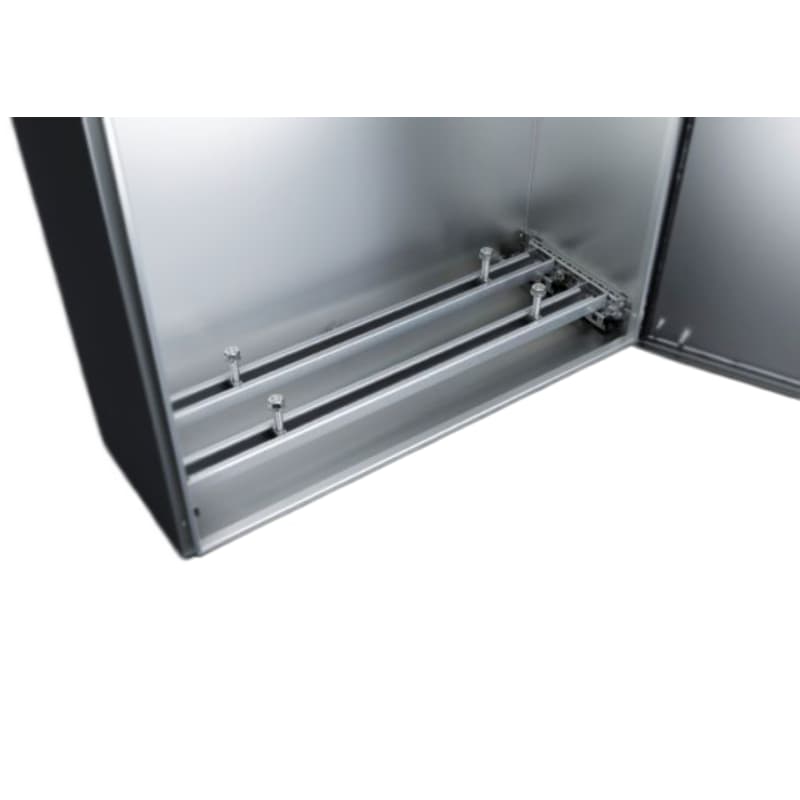

Interior-installation rails, chassis and DIN-rail hardware
Alternative handles, lock inserts and security hardware

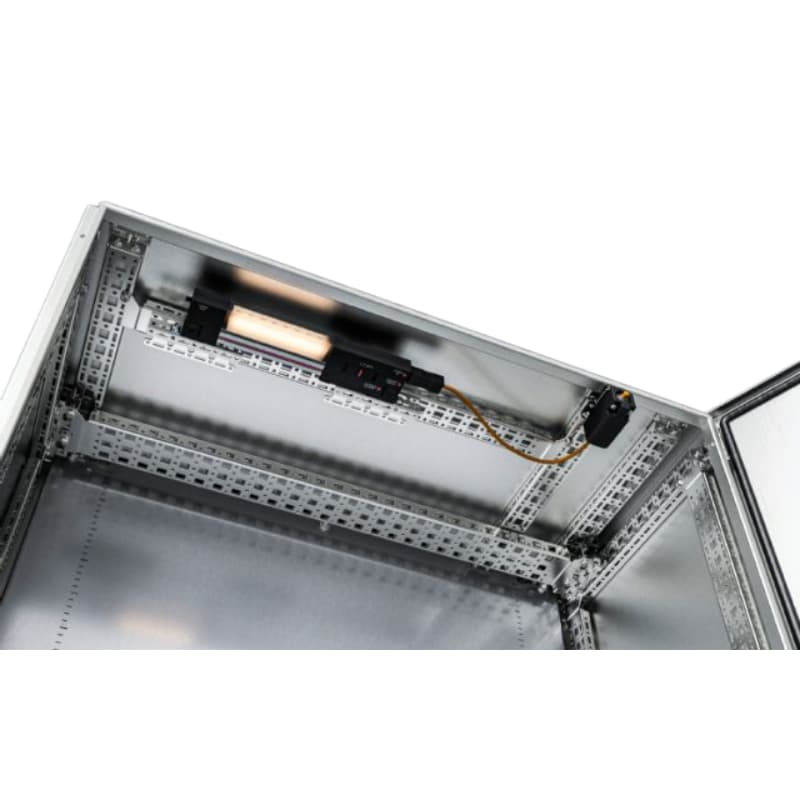

Door stays, document pockets, earthing accessories and climate control
Small and medium single-door models commonly use cam locks; larger single- and double-door models may use a 3-point locking system. Confirm the number of doors, door swing, number of locks, required key or insert, and whether access control is needed before quotation.
Accessories are grouped by installation task. Compatibility depends on the exact AX article number, enclosure dimensions, mounting position and installation method. Verify compatibility before ordering.

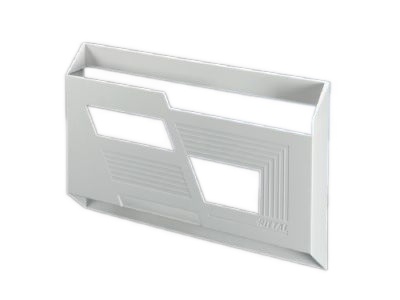

Plastic Wiring Plan Pocket
Packaging unit: 1 pc(s).

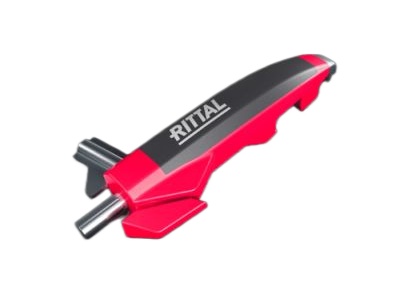

4052000 Multitool
Packaging unit: 1 pc(s).
Wiring Plan Pocket with Transparent Pouch
Packaging unit: 1 pc(s).
Cable gland, brass
Cable gland, polyamide

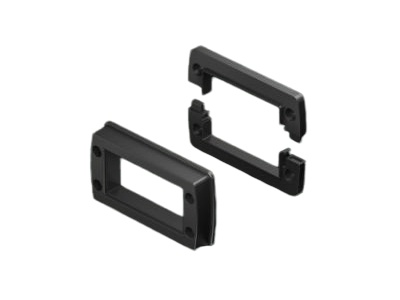

Sealing frame, modular
Packaging unit: 1 pc(s).
Cable gland HD
Packaging unit: 5 pc(s).
Inlay
Packaging unit: 5 pc(s).

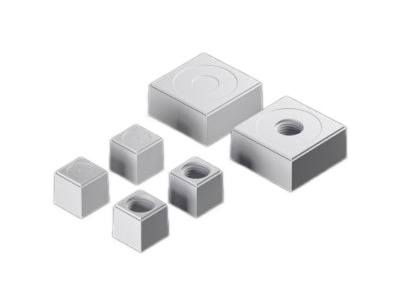

Sealing insert

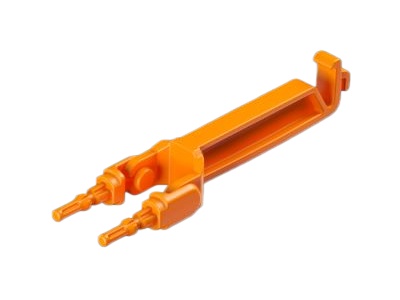

Locking clip for sealing insert
Packaging unit: 10 pc(s).
4594000 Support Strip
Suitable for enclosure type: VX / TS / VX SE / AX / AX plastic / AX wall-mounted housing, 3-part
Length: 290 mm
Packaging unit: 20 pc(s).
2394100 Base configuration rail
Suitable for enclosure type: AX
Packaging unit: 4 pc(s).

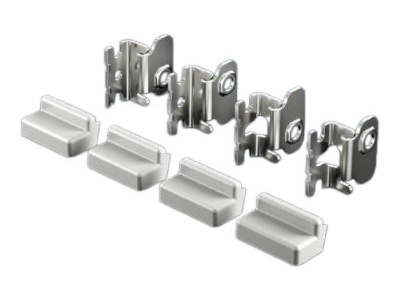

2433010 Wall mounting bracket
Material: Stainless steel 1.4301 (AISI 304)
Wall distance: 20 mm
Suitable for enclosure type: AX stainless steel / KX stainless steel
Packaging unit: 4 pc(s).

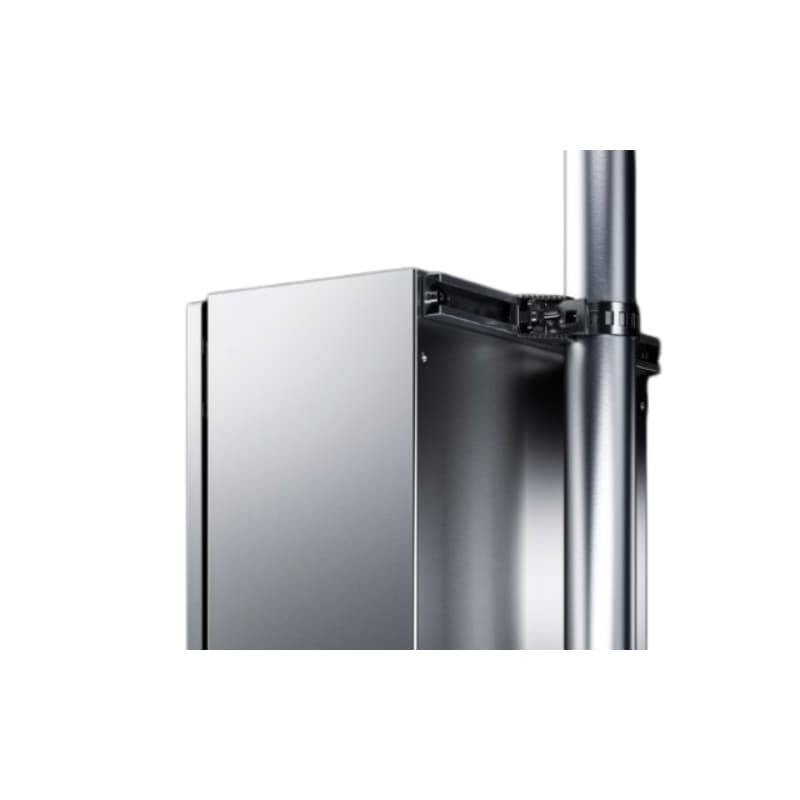

2584100 Pole clamp
Suitable for enclosure type: AX / KX / AX plastic / AX IT / CS Wall mounting enclosure / AX outdoor housing / AE / KL / EB / AX wall-mounted housing, 3-part
Packaging unit: 2 pc(s).

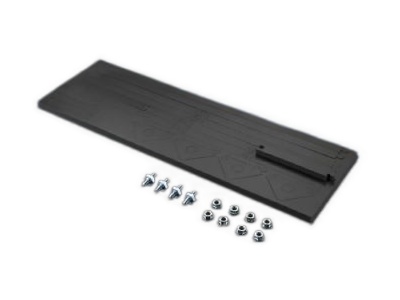

1199100 Baying kit
Suitable for enclosure type: AX / KX / AE / KL
Note: One pack is sufficient for a baying point up to H x D = 800 x 350 mm / Baying is not supported on the hinged side of the KX E-box
Packaging unit: 1 pc(s).

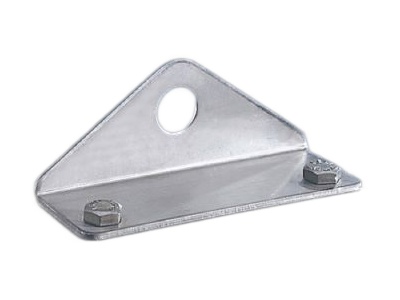

2583010 Wall mounting angle
Material: Stainless steel 1.4301 (AISI 304)
Suitable for enclosure type: AX / KX
Packaging unit: 4 pc(s).
Ground Straps
Packaging unit: 5 pc(s).

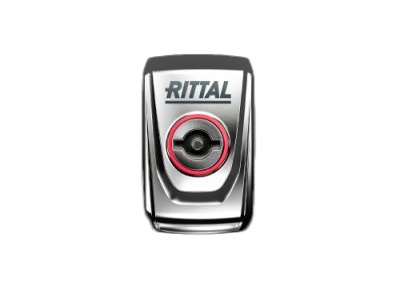

2304100 Cam lock
Lock Insert: Double-bit insert
Material: Stainless steel 1.4301 (AISI 304)
Suitable for enclosure type: AX stainless steel
Packaging unit: 1 pc(s).

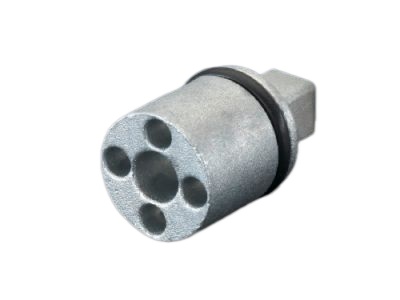

2307000 Lock Insert
Version: A
Lock Insert: Fiat
Installation in handle system:Comfort Handle AX / Mini-Comfort Handle AX / Ergoform-S handle Standard / Ergoform-S handle Standard for KS plastic enclosures
Packaging unit: 1 pc(s).

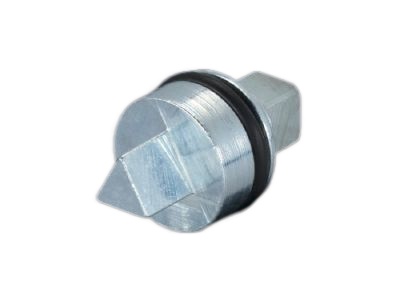

2460650 Lock Insert
Version: A
Lock Insert: 6.5 mm triangular (ONOMO)
Installation in handle system:Comfort Handle AX / Mini-Comfort Handle AX / Ergoform-S handle Standard / Ergoform-S handle Standard for KS plastic enclosures
Packaging unit: 1 pc(s).
2461000 Lock Insert
Version: A
Lock Insert: 8 mm square
Installation in handle system:Comfort Handle AX / Mini-Comfort Handle AX / Ergoform-S handle Standard / Ergoform-S handle Standard for KS plastic enclosures
Packaging unit: 1 pc(s).
2462000 Lock Insert
Version: A
Lock Insert: 7 mm triangular
Installation in handle system:Comfort Handle AX / Mini-Comfort Handle AX / Ergoform-S handle Standard / Ergoform-S handle Standard for KS plastic enclosures
Packaging unit: 1 pc(s).

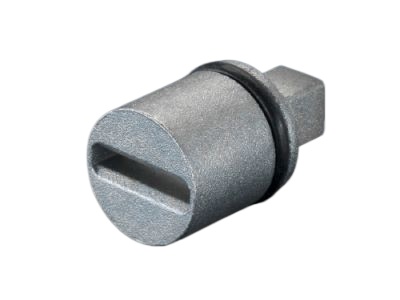

2464000 Lock Insert
Version: A
Lock Insert: Screwdriver
Installation in handle system:Comfort Handle AX / Mini-Comfort Handle AX / Ergoform-S handle Standard / Ergoform-S handle Standard for KS plastic enclosures
Packaging unit: 1 pc(s).

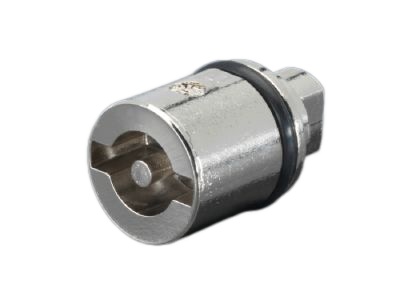

2466000 Lock Insert
Version: A
Lock Insert: 3 mm double-bit
Installation in handle system:Comfort Handle AX / Mini-Comfort Handle AX / Ergoform-S handle Standard / Ergoform-S handle Standard for KS plastic enclosures
Packaging unit: 1 pc(s).

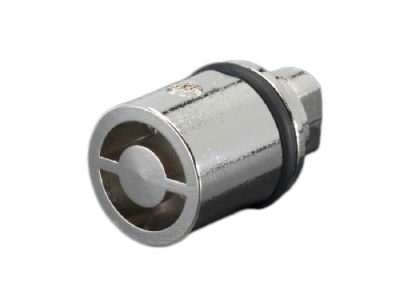

2465000 Lock Insert
Version: A
Lock Insert: Daimler insert
Installation in handle system:Comfort Handle AX / Mini-Comfort Handle AX / Ergoform-S handle Standard / Ergoform-S handle Standard for KS plastic enclosures
Packaging unit: 1 pc(s).

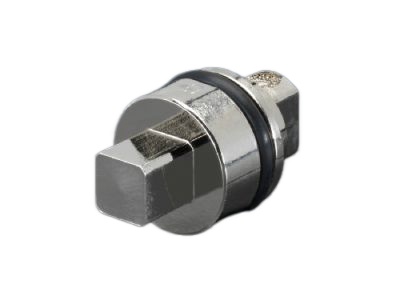

2460000 Lock Insert
Version: A
Lock Insert: 7 mm square
Installation in handle system:Comfort Handle AX / Mini-Comfort Handle AX / Ergoform-S handle Standard / Ergoform-S handle Standard for KS plastic enclosures
Packaging unit: 1 pc(s).
2537400 Mini-Comfort Handle AX
Version: prepared for ASSA lock system
Material: Die-cast zinc
/ Plastic
Color: RAL 7035
Suitable for enclosure type: AX with cam lock, carbon sheet / AX IT with cam lock / KX E-Box / VX partial door / CX One-Piece Console / CX console / CX Desk Unit
Packaging unit: 1 pc(s).
2537100 Mini-Comfort Handle AX
Version: For lock inserts and semi-cylinder
Material: Die-cast zinc
/ Plastic
Color: RAL 7035
Suitable for enclosure type: AX with cam lock, carbon sheet / AX IT with cam lock / KX E-Box / VX partial door / CX One-Piece Console / CX console / CX Desk Unit
Packaging unit: 1 pc(s).
2537500 Mini-Comfort Handle AX
Version: prepared for KESO/KABA lock system
Material: Die-cast zinc
/ Plastic
Color: RAL 7035
Suitable for enclosure type: AX with cam lock, carbon sheet / AX IT with cam lock / KX E-Box / VX partial door / CX One-Piece Console / CX console / CX Desk Unit
Packaging unit: 1 pc(s).
2572010 T Handle
Version: B
Lock Insert: without lock cylinder insert
Material: Die-cast zinc
Installation in handle system: AX with cam / E-box KX, carbon steel / CX console / CX Desk Unit / CX One-Piece Console
Packaging unit: 1 pc(s).

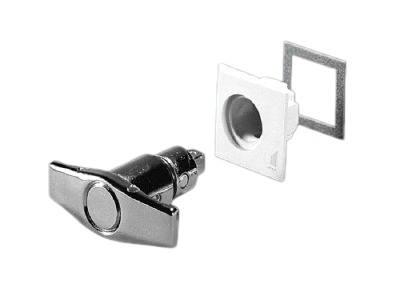

2575010 T Handle
Version: B
Lock Insert: Fiat
Material: Die-cast zinc
Installation in handle system: AX with cam / E-box KX, carbon steel / CX console / CX Desk Unit / CX One-Piece Console
Packaging unit: 1 pc(s).
2463000 Lock Insert
Version: A
Lock Insert: 7 mm triangular
Installation in handle system:Comfort Handle AX / Mini-Comfort Handle AX / Ergoform-S handle Standard / Ergoform-S handle Standard for KS plastic enclosures
Packaging unit: 1 pc(s).
2394210 Rail for Interior Installation AX
Suitable for enclosure type: AX
Suitable for depth: 210 mm
Packaging unit: 4 pc(s).
4594000 Support Strip
Suitable for enclosure type: AX / VX / TS / VX SE / AX plastic / AX wall-mounted housing, 3-part
For enclosure width/height/depth: 290 mm
Packaging unit: 20 pc(s).

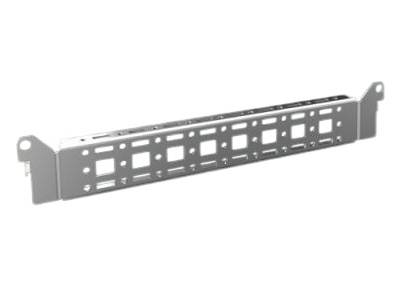

8619700 System chassis 14 x 39 mm
Suitable for enclosure type: AX / VX / AX plastic / CX One-piece Console / CX Pedestal / AX outdoor housing / AX wall-mounted housing, 3-part
For enclosure width/height/depth: 400 mm
Packaging unit: 4 pc(s).

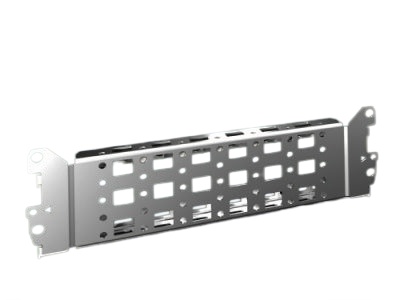

8617100 System chassis 23 x 64 mm
Suitable for enclosure type: AX IT/ VX SE / AX
For enclosure width/height/depth: 300 mm
Packaging unit: 4 pc(s).
2394100 Base configuration rail
Suitable for enclosure type: AX
Packaging unit: 4 pc(s).
Plastic Wiring Plan Pocket
Packaging unit: 1 pc(s).
Wiring Plan Pocket with Transparent Pouch
Packaging unit: 1 pc(s).
4052000
Multitool
Packaging unit: 1 pc(s).
4000300 Pressure relief stoppers
Material: Stainless steel 1.4301 (AISI 304)
Packaging unit: 5 pc(s).

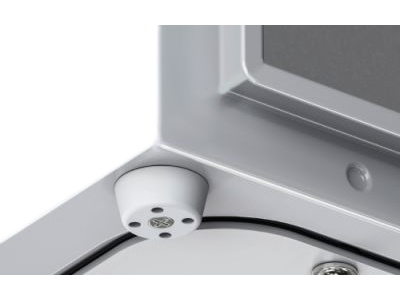

2459000 Enclosure Breather Valve
Material: Polyamide
Packaging unit: 6 pc(s).
2361010 Canopy
Suitable for width: 300 mm
Suitable for depth: 210 mm
Suitable for enclosure type: AX
Packaging unit: 1 pc(s).
2519110 Door stay
Installation position: top/bottom

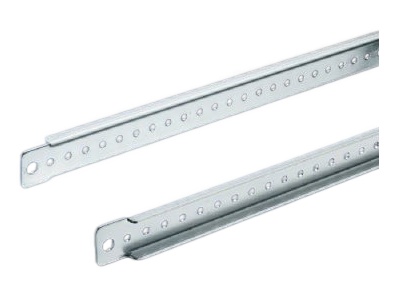

Mounting tip: For installation in AX stainless steel, only in conjunction with the rail for interior installation AX
Suitable for enclosure type: AX stainless steel
Packaging unit: 1 pc(s).
Suwiauto is an authorized Rittal partner with a long-term partnership dating back to 2014. We supply genuine Rittal AX enclosures and support industrial buyers with model selection, accessory compatibility checks, availability confirmation and international shipping. For project or bulk requirements, send us your required AX models, quantities and delivery country for quotation and lead-time confirmation.
View our Rittal authorization certificate
Q1: Are mounting brackets included?
A: The scope of supply varies by AX article number. Check the individual model page or provide the AX article number before ordering; wall-mounting brackets or other mounting accessories may need to be ordered separately.
Q2: Which accessories fit my AX model?
A: Compatibility depends on your exact AX enclosure model, size, and part number. Please provide the AX part number or enclosure dimensions so we can recommend compatible accessories.
Q3: How do I check availability?
A: Send us the product part number and required quantity. We will check the latest stock availability and confirm it with you.
Q4: What is the lead time?
A: Lead time varies depending on the product, quantity, stock status, customization requirements, and delivery destination. Please contact us for an estimated dispatch and delivery time.
Q5: Can Suwiauto ship internationally?
A: Yes. Suwiauto supports international orders. Shipping options, freight costs, and delivery times depend on the destination and order details.
Q6: What information should I send for a quote?
A: Please provide the product name or part number, required quantity, AX model or enclosure dimensions (if applicable), required accessories or customization, delivery location, and desired delivery date.
Sending the information below allows the enclosure, material and accessories to be checked together and reduces quotation revisions.
Know the article number? Send the article number, quantity and delivery destination.
Need help choosing? Send the required enclosure size, operating environment, installed components, cable-entry plan, protection rating and accessory requirements. Suwiauto can check the model and compatible accessories before quotation.
Rittal VX25 enclosures are modular baying enclosure systems for industrial control panels, machine automation and electrical distribution applications. Explore VX25 models by enclosure dimensions and door configuration, with support for single-unit and bulk procurement.
Read More
VX25 Baying-enclosure system helps users boost efficiency. It renders workflows traceable, faster, and more streamlined, while also making the digital twin a reality. As an authorized distributor in Fujian, we supply Rittal genuine VX25 series enclosures—featuring efficient baying integration, digital configuration tools, and local technical support—to help your industrial systems achieve exceptional performance.
Read More
The robust stainless steel housings feature an integrated cam system that allows for extensive system expansion without drilling, quickly and securely.
Read More
Enclosure with door of sheet steel, spray-finished with mounting plate and gland plate in the base Protection category up to IP 66.
Read More
The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Read More
Blue e+ chillers are efficient, flexible and compact. The cooling water is centrally cooled, supplying the air/water heat exchanger and other systems an efficient cooling solution. Up to 70% energy saved due to speed-regulated components and inverter technology. International approvals and multi-voltage capability for worldwide use. Intuitive operation using touch display and intelligent communication interfaces ensure convenient operation and analysis.
Read More
The KX small enclosure stainless steel offers maximum data quality and consistency in engineering, flexibility, and safety for a variety of applications
Read More
Industrial NEMA 4X enclosure cooling unit by Rittal TopTherm Blue e. Designed for electrical cabinet thermal management, corrosion resistance, and reliable industrial cooling performance.
Read More
