Replacement filter mats for roof fans, filter fans or thermoelectric coolers to effectively protect control enclosure components from dirt, dust and water.
Item No :
SK spare filter matsVersion :
for filter fansMaterial :
Chemical fibersWeight :
0.045 kgETIM 8 :
EC002513ETIM 9 :
EC002513

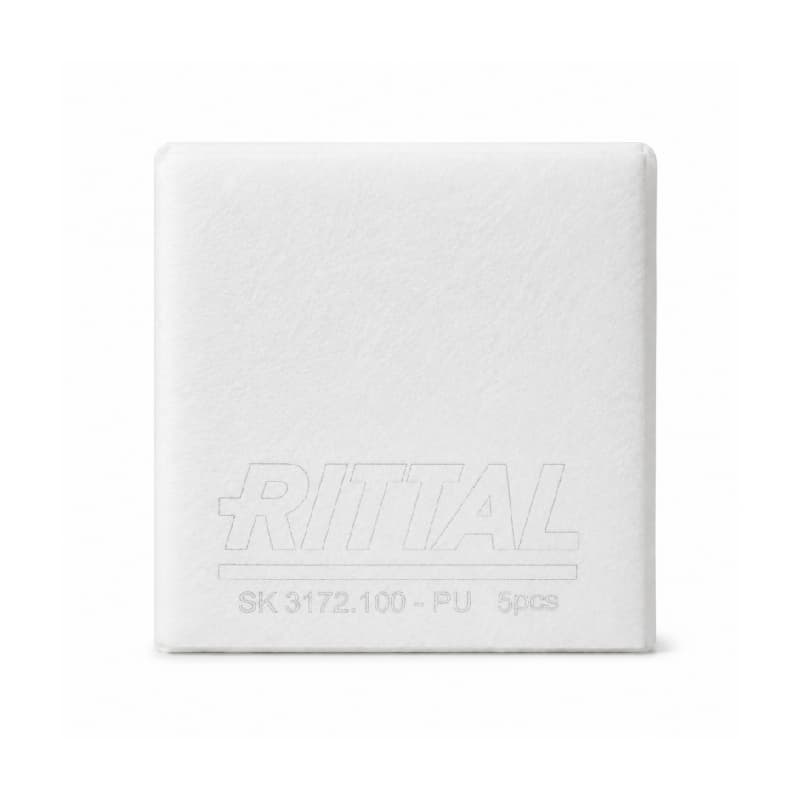

Chopped Fiber Filter Mat for Industrial Electrical Enclosures
Chopped Fiber Filter Mat is a high-performance filtration material designed for industrial electrical enclosures, control cabinets, and cabinet ventilation systems. It is commonly used with filter fans and outlet filters to provide reliable dust protection while maintaining efficient airflow inside the enclosure.
The three-dimensional chopped fiber structure delivers excellent dust retention capacity, low pressure drop, and stable filtration performance in industrial environments. It helps prevent dust, particles, and airborne contaminants from entering electrical cabinets, protecting sensitive components such as PLCs, drives, power supplies, and control devices.
Designed for continuous industrial operation, this filter mat supports effective enclosure ventilation, reduces maintenance frequency, and helps improve the reliability of electrical and automation system

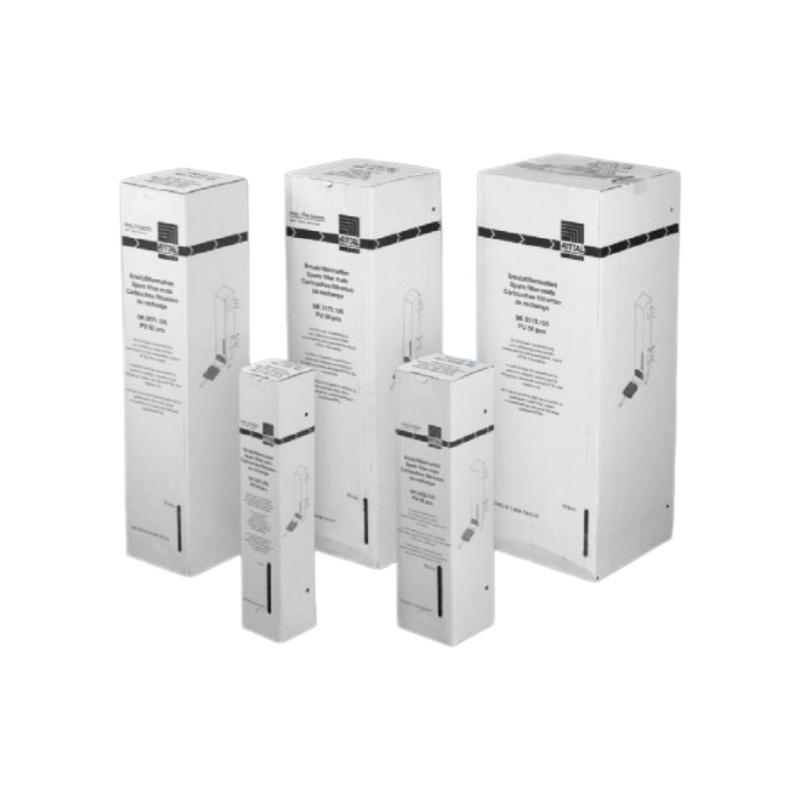

| Article no. | Version | Suitable for Model No. | Packaging unit |
|---|---|---|---|
|
3171100
|
for filter fans
|
3239....
|
5 pc(s).
|
|
3171105
|
for filter fans
|
3239....
|
50 pc(s).
|
|
3172100
|
for filter fans
|
3240....
3241.... |
5 pc(s).
|
|
3172105
|
for filter fans
|
3240....
3241.... |
50 pc(s).
|
|
3173100
|
for filter fans
|
3243....
3244.... 3245.... |
5 pc(s).
|
|
3173105
|
for filter fans
|
3243....
3244.... 3245.... |
50 pc(s).
|
|
3174000
|
for filter holders
|
3175.000
|
3 pc(s).
|
|

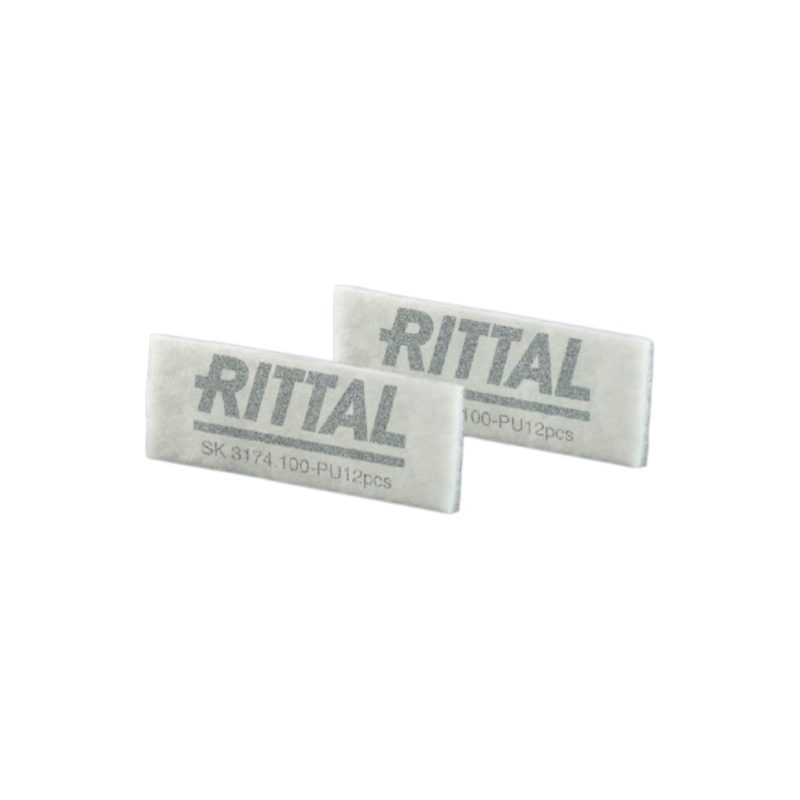

3174100
|
for roof fans
|
3138....
3139.... 3140.... |
12 pc(s).
|
|
3201050
|
for thermoelectric coolers
|
3201.200
3201.300 |
5 pc(s).
|
|
3237054
|
-
|
3237.3xx/3237.7xx
|
5 pc(s).
|
|
3237066
|

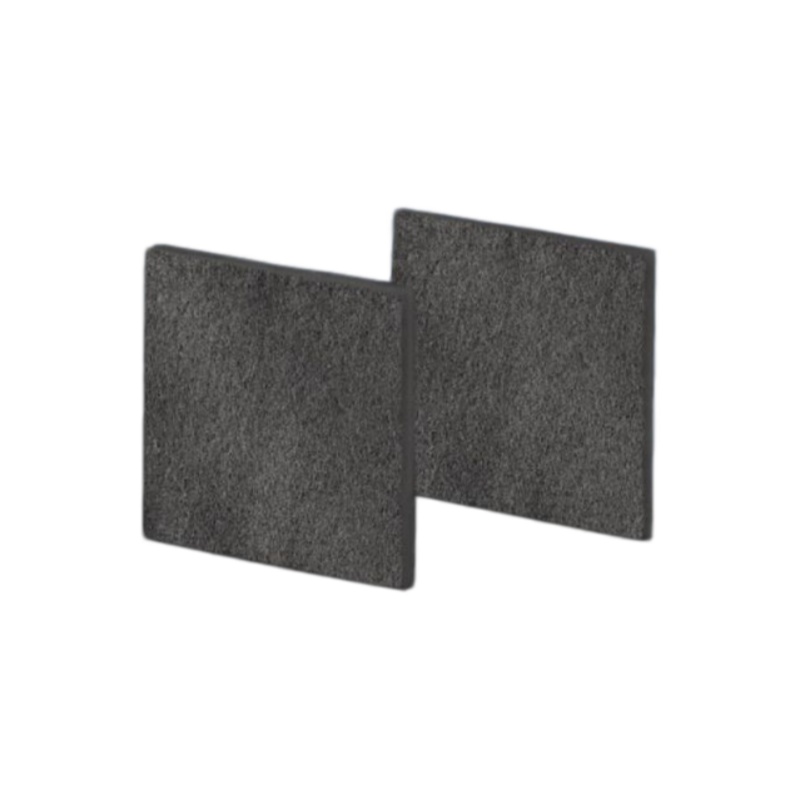

for EMC filter fans
|
3237.060/3237.6xx
|
5 pc(s).
|
|
3237067
|
-
|
3237.4xx/3237.8xx
|
5 pc(s).
|
|
3238066
|
for EMC filter fans
|
3238.6..
|
5 pc(s).
|
|
3239066
|
for EMC filter fans
|
3239.6..
|
5 pc(s).
|
|
3240066
|
for EMC filter fans
|
3240.6..
3241.6.. |
5 pc(s).
|
|
3243066
|
for EMC filter fans
|
3243.6..
3244.6.. 3245.6.. |
5 pc(s).
|
|
3321700
|
for filter fans
|
3237.2xx/3237.1xx
|
5 pc(s).
|
|
3321705
|
for filter fans
|
3237.2xx/3237.1xx
|
50 pc(s).
|
|
3322700
|
for filter fans
|
3238....
|
5 pc(s).
|
|
3322705
|
for filter fans
|
3238....
|
50 pc(s).
|
Key Benefits:
High dust absorption capacity for industrial environments
Low air resistance to maintain efficient cooling airflow
Stable filtration performance during continuous operation
Protects electrical components from dust and contamination
Designed for use with enclosure filter fans and ventilation systems
Easy replacement for reduced maintenance downtime
Applications
Common applications include:
-Industrial control cabinets for automation systems
-Electrical enclosures for PLC and control equipment
-Power distribution cabinets and electrical panels
-Machine control cabinets and industrial machinery
-Factory automation and production line equipment
For industrial replacement and OEM requirements, we supply Rittal-compatible chopped fiber filter mats with custom sizes and bulk order options to meet different enclosure ventilation needs. Contact us for pricing, specifications, and technical support.

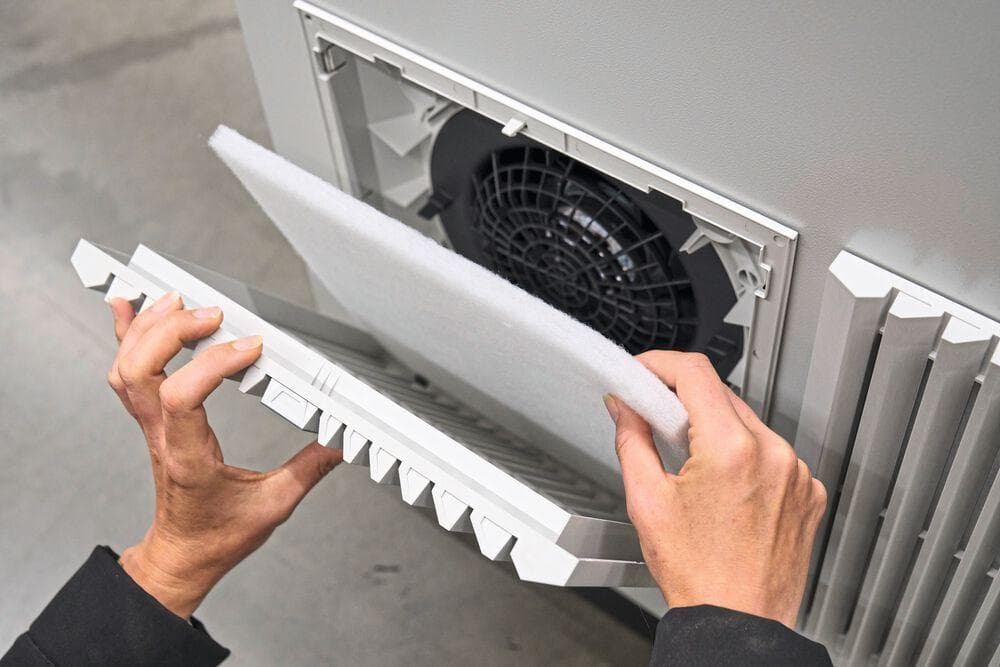

When Should the Filter Mat Be Replaced?
The service life of a chopped fiber filter mat depends on the installation environment, dust level, and operating conditions of the electrical enclosure. Regular inspection is recommended to ensure proper airflow and cooling performance.
The filter mat should be replaced when:
---Excessive dust buildup is visible on the filter surface
---Airflow through the filter fan or ventilation system is reduced
---Cabinet temperature increases due to restricted air circulation
---The cooling performance of the enclosure ventilation system declines
---The filter material is damaged or loses its original shape
For most industrial applications, checking the filter mat every 3–6 months is recommended. In environments with high levels of dust, oil mist, or airborne particles, more frequent replacement may be required.
Timely replacement helps maintain efficient cabinet ventilation, protect sensitive electrical components, and ensure reliable operation of industrial control systems.
Supply Options
We provide chopped fiber filter mats for industrial enclosure applications, including:
--Standard replacement filter mats
--Custom sizes according to enclosure requirements
--OEM and bulk supply solutions
--Replacement options for industrial ventilation systems
Contact us for product specifications, availability, and quotation.
Our Factory
SUWI specializes in manufacturing electrical enclosures and industrial automation products. With professional equipment and strict quality control, we provide reliable products and customized solutions for global customers.
FAQ
A: Yes. Custom dimensions and replacement filter mat solutions are available according to enclosure requirements and customer specifications.
A: The correct filter mat depends on enclosure size, ventilation system type, operating environment, dust level, and required airflow performance.
A: A blocked filter mat can reduce airflow, increase cabinet temperature, and affect the cooling performance of the ventilation system. Regular inspection helps maintain reliable operation of electrical components.
A: Standard filter mats are available for quick delivery. For custom sizes or bulk orders, lead time depends on product specifications and quantity. Contact us with your requirements, and we will provide the available stock status and estimated delivery time.
