HMI with 7" TFT Display

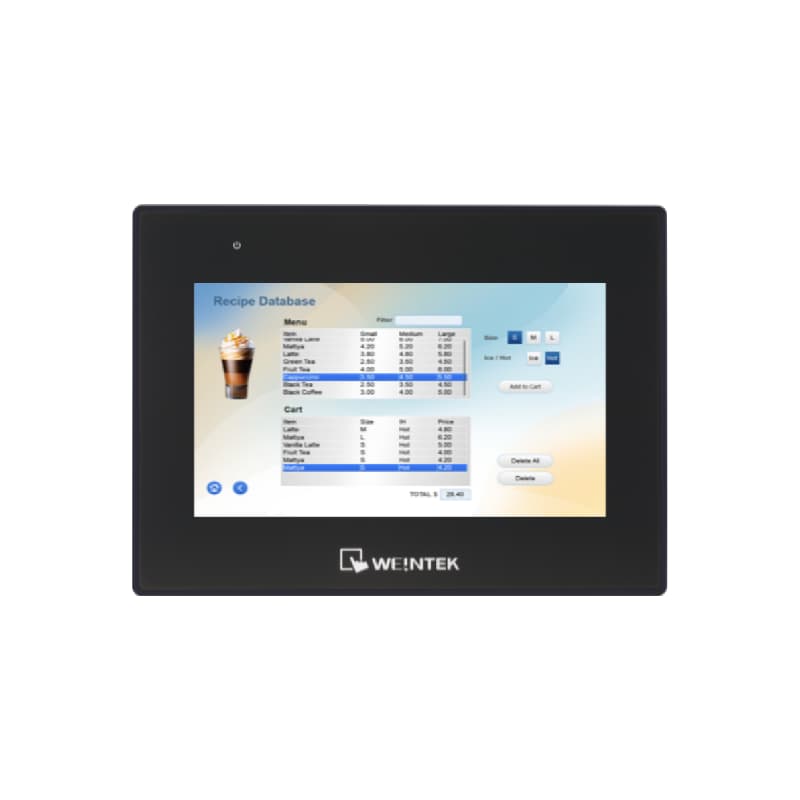

Weintek cMT2078X: Smart 7" HMI Built for Your Digital Transition
Designed for the IIoT era, the cMT2078X is a smart 7-inch HMI from Weintek's cMT X Standard smart HMI series. It eliminates the usual bottlenecks in computing with a high-performance quad-core processor and a dedicated 3D graphics engine, providing quick response in communication and smooth, silky screen operation on the spot.
The cMT2078X is designed for use in today's smart factories and is fitted with physically isolated dual Ethernet ports. It is an ideal design for network security because it is able to separate IT (office/cloud) from OT (production control) networks. Furthermore, it has a special hardware design for serial ports, which natively supports the Siemens MPI 187.5K protocol. Its IP66 front panel and inbuilt power isolator ensure maximum protection from industrial noise and extreme conditions.
The cMT2078X is an ideal high-end solution for digital retrofits and informational upgrades of legacy equipment, with support for MQTT, SQL database integration and EasyAccess 2.0 remote maintenance.
| Display |
|
| Display | 7" TFT |
| Resolution | 800 x 480 |
| Brightness (cd/m2) | 400 |
| Contrast Ratio | 800:1 |
| Backlight Life Time | >30,000 hrs. |
| Colors | 16.7M |
| LCD View Angle (T/B/L/R) | 80/60/80/80 |
| Pixel Pitch (mm) | 0.1926(H) x 0.179(V) |
| Touch Panel | |
| Type | 4-wire Resistive Type |
| Accuracy | Active Area Length(X)±2%, Width(Y)±2% |
| Memory | |
| Flash | 4 GB |
| RAM | 1 GB |
| Processor | |
| CPU | Quad-core RISC |
| I/O Port | |
| Memory Card Type | N/A |
| USB Host | USB 2.0 x 1 |
| Ethernet Port | LAN 1: 10/100 Base-T x 1 LAN 2: 10/100 Base-T x 1 |
| COM Port | Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2W Con.B: COM1 RS-232 4W, COM3 RS-232 2W*(1) |
| WiFi | N/A |
| RS-485 Dual Isolation | N/A |
| CAN Bus | N/A |
| Audio Output | N/A |
| Power | |
| Input Power | 24±20% VDC |
| Power Isolation | Built-in |
| Power Consumption | 820mA@24VDC |
| Voltage Resistance | 500VAC (1 min.) |
| Isolation Resistance | Exceed 50MΩ at 500VDC |
| Mechanical |
|
| Enclosure | Plastic |

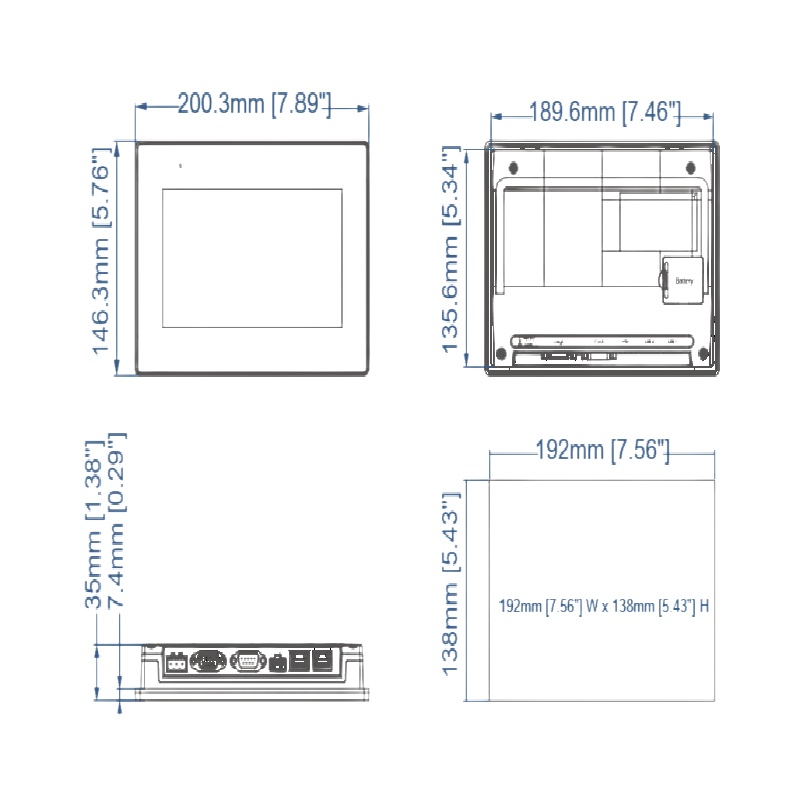

| Dimensions WxHxD | 200.3 x 146.3 x 35.0 mm |
| Panel Cutout | 192 x 138 mm |
| Weight | Approx. 0.6 kg |
| Mount | Panel mount |
| Environment |
|
| PCB Coating | Yes |
| Protection Structure | UL Type 4X (indoor use only) / NEMA4 / IP66 Compliant Front Panel |
| Storage Temperature | -20° ~ 60°C (-4° ~ 140°F) |
| Operating Temperature | 0° ~ 55°C (32° ~ 131°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Altitude | 3,000 m |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| Certificate | |
| CE | CE marked |
| UL | cULus Listed |
| Software | |
| Weincloud | EasyAccess 2.0 (Optional) Dashboard (Optional) |
| CODESYS | Optional |
* CODESYS® is a trademark of CODESYS GmbH.
(1) Only Tx & Rx (no RTS/CTS) may be used for COM1 RS-232 when COM3 RS-232 is also used.
EasyBuilder Pro - An Efficient HMI Configuration Software
Key Advantages:
Enhanced Connectivity: Built-in Ethernet and multiple COM ports for easy integration into existing PLC networks.
IIoT Integration: Supports MQTT and OPC UA (if applicable), making it an ideal IIoT ready human machine interface.
Remote Monitoring: Enables remote access via mobile devices or PC for real-time status updates.
Durable Design: Industrial-grade protection for harsh environments with high vibration and temperature fluctuations.
