Activates the heater and/or fan when a preset relative humidity inside the enclosure is exceeded. This raises the relative humidity above the dew point and prevents condensation on assemblies and electronic components.
Item No :
SK 3180000Order(MOQ) :
1 pc(s)Product Origin :
DEColor :
RAL 7035Weight :
0.095 kg

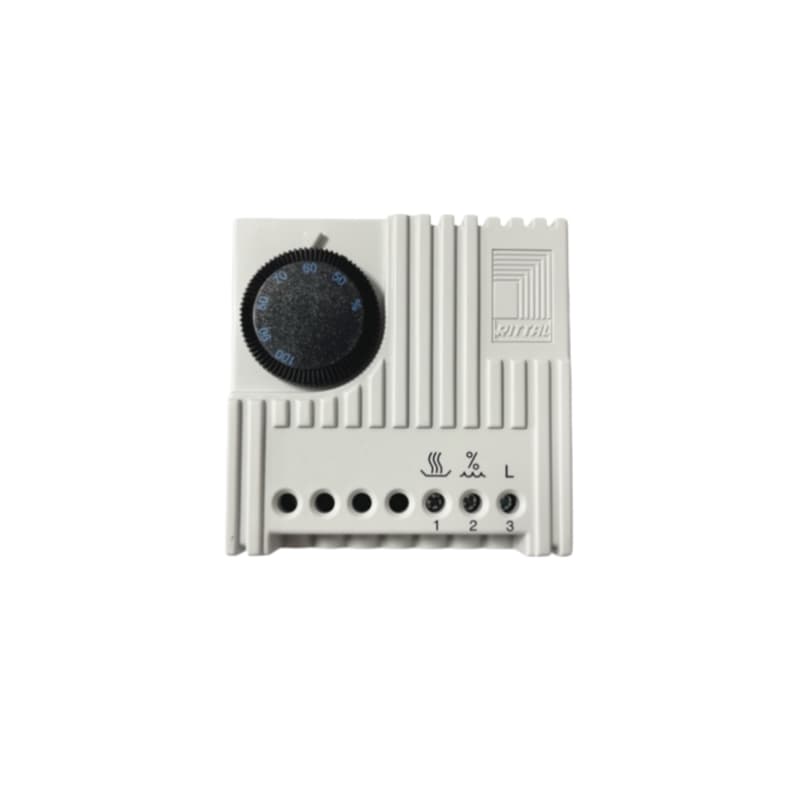

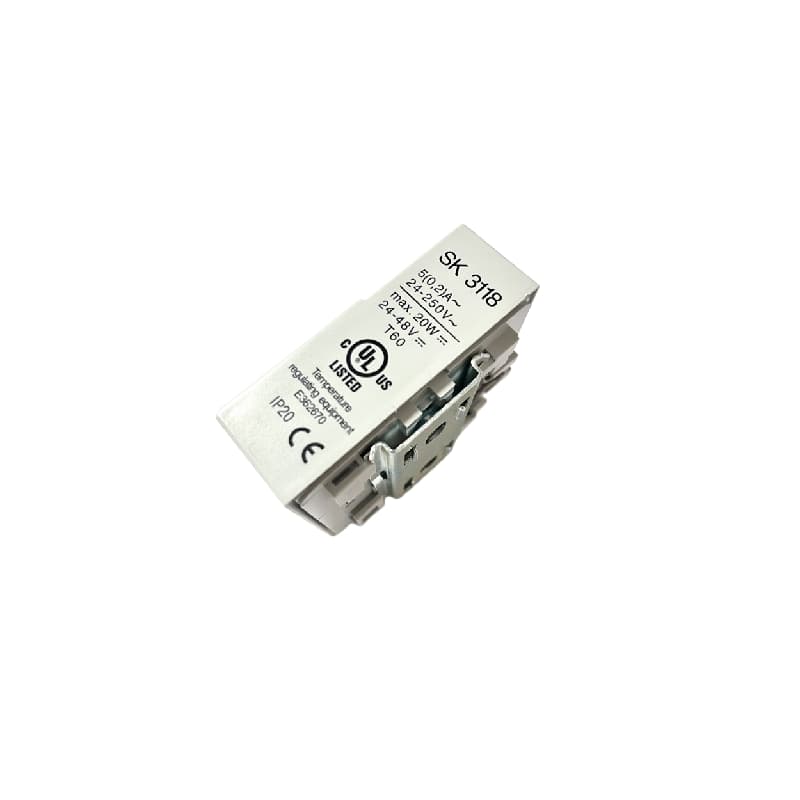

Rittal SK 3118.000 Hygrostat
Rittal SK 3118.000 Enclosure Hygrostat is an instrument for controlling the relative humidity in closed enclosures. If the set relative humidity is exceeded the hygrostat turns on the enclosure heaters and/or cooling fans automatically. This action effectively removes moisture from the air, heats the air above the dew point and stops harmful condensation from occurring on sensitive electronic components and assemblies.
The SK 3118.000 is provided with a single pole change-over contact that acts as a quick-release switch and is used to switch between the setting range of 50%RH to 100%RH with a switching difference of about 4%. The easy-to-use design features a terminal strip with external screw connectors for convenient wiring and offers flexible mounting on 35 mm DIN rail or attached directly to enclosure profiles.
| Article no.: | SK 3118000 |
| Dimensions | 71 mm x 71 mm x 33.5 mm |
| Packaging unit | 1 pc(s). |
| Color | RAL 7035 |
| Rated operating voltage |
24 V - 250 V, 1~ 24 - 48 V (DC) |
| Net weight | 0.095 kg |
| Gross weight | 0.104 kg |
| Customs tariff number | 90321080 |
| EAN | 4028177036734 |
| ETIM 9 | EC004587 |
| ETIM 8 | EC004587 |
| ECLASS 8.0 | 27210708 |
| Technical specifications |
1.Contact population: Single-pole change-over contact as a quick-break contact 2.Permissible contact load: AC ~ 5 (0.2) A (inductive load at cos φ = 0.6)/DC = max. 20 W 3.Setting range: 50 – 100% relative humidity 4.Switching difference: approx. 4% |
Rittal SK 3118000 Hygrostat Benefits :
a. Time-saving connection technique using a terminal strip with a screw connection from the outside.
b. Flexible mounting on a vertical or horizontal 35 mm support rail to EN 50 022, snap fastening in the enclosure section or on the mounting plate using the supplied adapter.
Installation and operating suggestions
Placement: Mount the humidity sensor in the top/middle portion of the enclosure. Place away from heaters or other heat-producing items to ensure that the relative humidity measured in the cabinet is representative of the cabinet's internal environment.
Recommended Use: Usually used in combination with the Rittal cabinet heaters (e.g., SK 3105).Even automatic humidity control and dew-point prevention are available by using a humidity control device (XXX series) in a control loop.

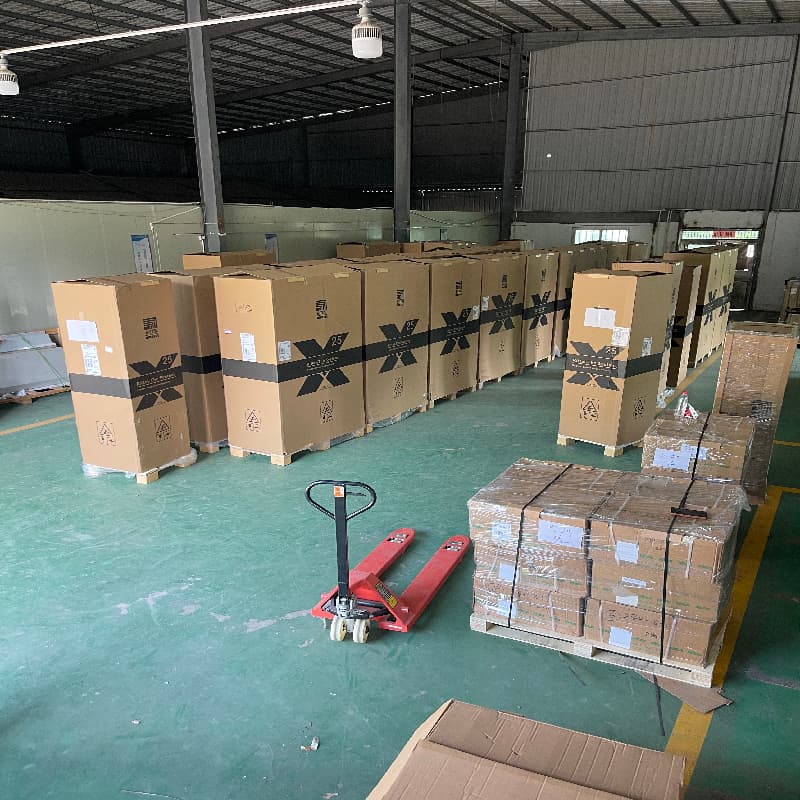

Our Factory
FAQ
A:We are Xiamen Suwei Automation Technology Co., Ltd., established in January 2010, headquartered in Xiamen, Fujian, China. We specialize in industrial automation and are committed to providing efficient and innovative automation solutions to meet a variety of customer needs, serving clients globally.
2 Q: What can I purchase from you?
A: You can purchase a variety of industrial automation products from us, including:
Low-voltage electrical and industrial control equipment
Automation electrical products
Touchscreens and relay devices
Industrial automation engineering solutions
We provide one-stop services to meet the needs of various industries and customers.
3. Q: What services do you offer?
A: In addition to product sales, we also provide complete industrial automation project solutions, including design, installation, commissioning, and more, ensuring comprehensive project support for our customers.
4. Q: What products and support do you provide as a Rittal distributor?
A: As a Rittal authorized channel distributor, we guarantee that all our products are 100% genuine. With our well-established ready stock system, we fully support bulk purchasing and offer same-day shipping for urgent projects. Beyond product supply, we also provide comprehensive technical support to ensure your needs are met from start to finish.
The robust stainless steel housings feature an integrated cam system that allows for extensive system expansion without drilling, quickly and securely.
Read More
Rittal Blue e+ fan-and-filter units help you to achieve your climate goals while at the same time reducing your energy costs. The new Blue e+ filter fan from Rittal represents a major upgrade in the field of industrial climate control. It not only continues the tradition of high-efficiency cooling but also integrates smart connectivity and energy-saving technologies. If your enclosures are located in harsh environments with high dust levels, it is recommended to opt for the new pleated filters. Compared to traditional fiber filter mats, the pleated design increases the surface area, enabling it to capture more fine dust while maintaining a more stable airflow.
Read More
Revolutionary energy efficiency through innovative hybrid technology. Average 75% energy saved due to speed-regulated components and heat pipe technology. Unique multi-voltage capability for worldwide use. Intuitive operation via touch display.
Read More
High-efficiency Blue e Wall-Mounted Cooling Units, from 300W to 4000W cooling capacity, to meet your cooling demands. Ideal for industrial plants, buildings, IT data centers, laboratories, offices and more. The units with cooling capacities above 1000W are fitted with integrated electric refrigerant evaporator, delivering energy-efficient cooling. Two types available: slim and horizontal types, to meet various installation needs. Contact us now to learn more and choose the cooling system that best fits your needs!
Read More
SK 3110000 Suitable for controlling fan units, heaters, and heat exchangers. This thermostat can also be used as a signal generator for monitoring the internal enclosure temperature.
Read More

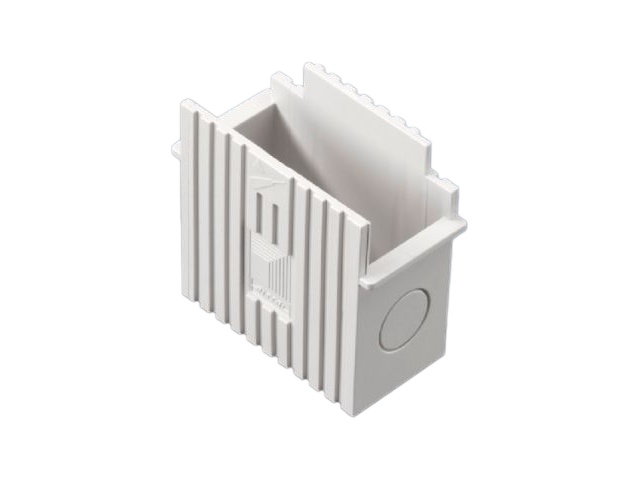

SK 3110200 With mounting option for screwed cable glands, for targeted cable infeed from appropriate equipment such as filter fan units and enclosure heaters. In conjunction with screwed cable glands, it also provides strain relief.
