Item No :
SK 3110000Order(MOQ) :
1 pc(s)Color :
RAL 7035Weight :
0.095 kg

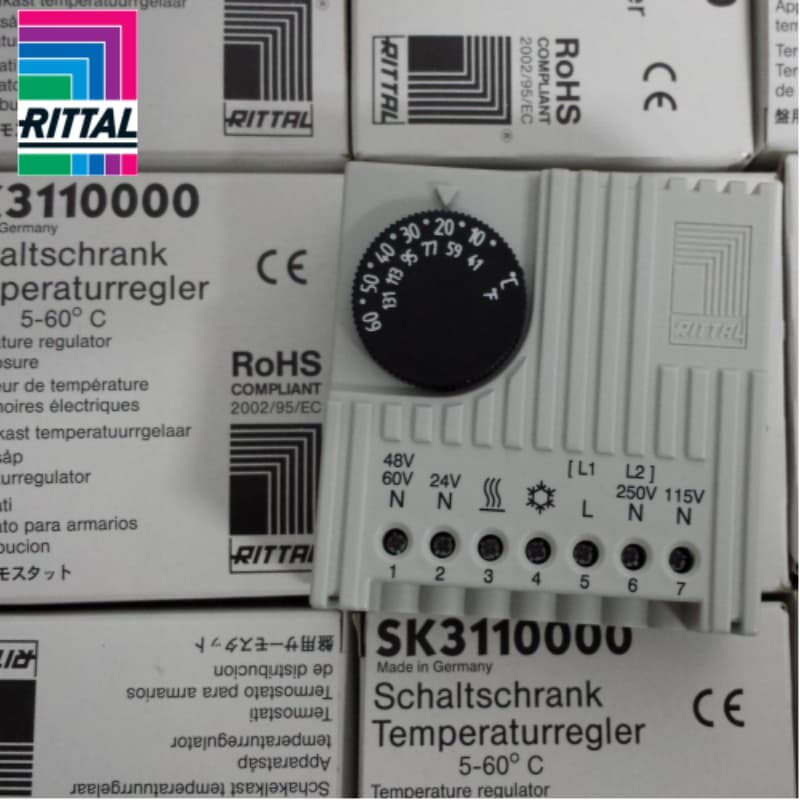

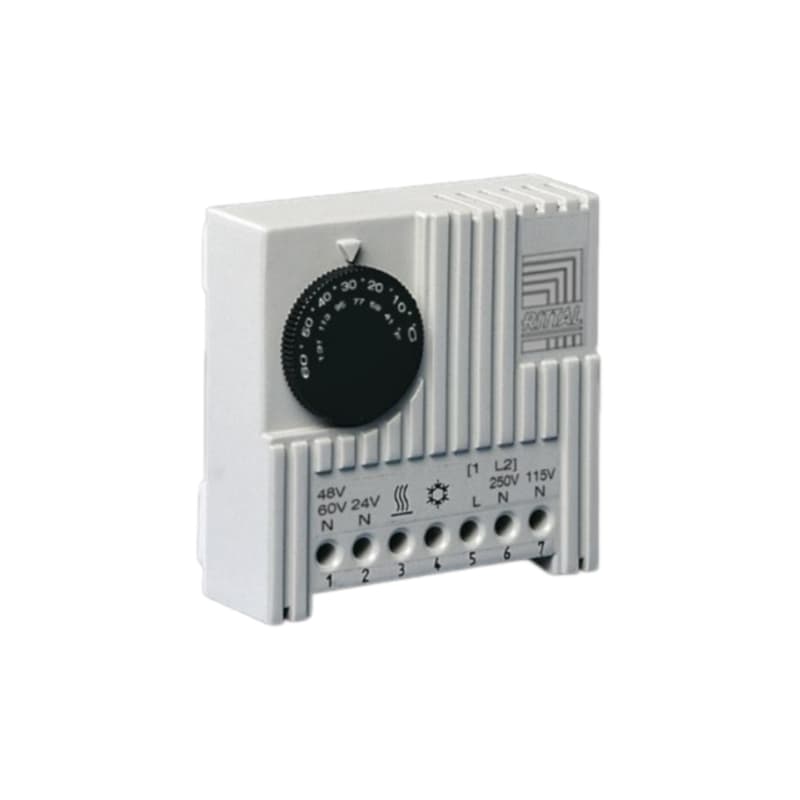

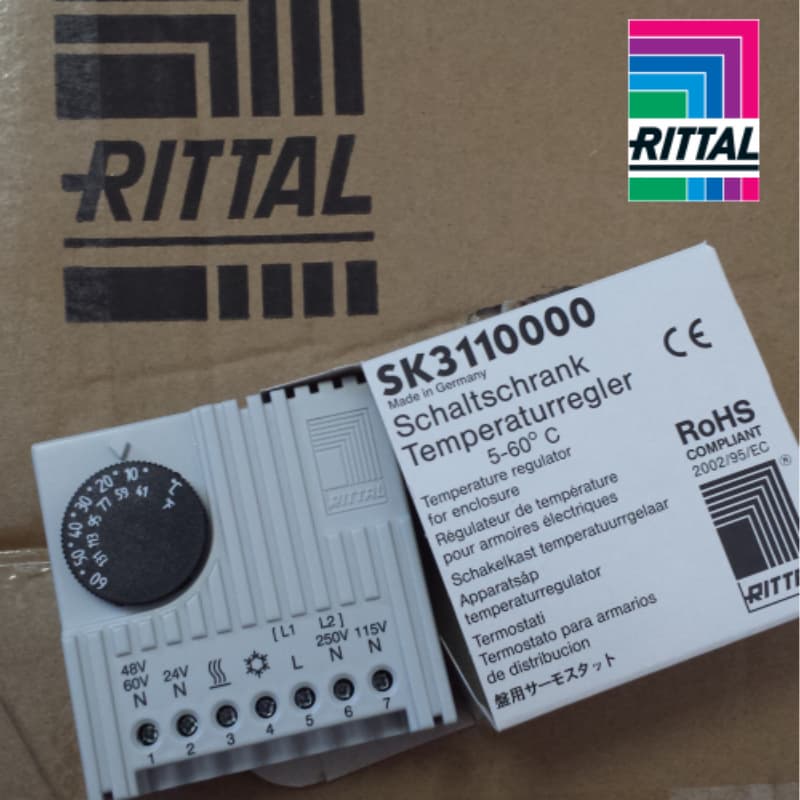

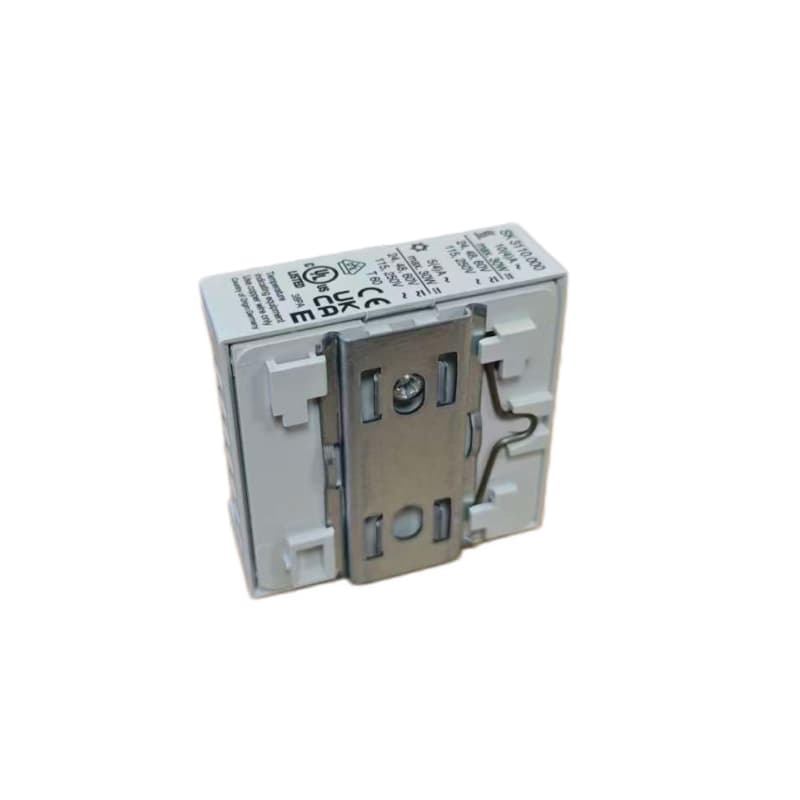

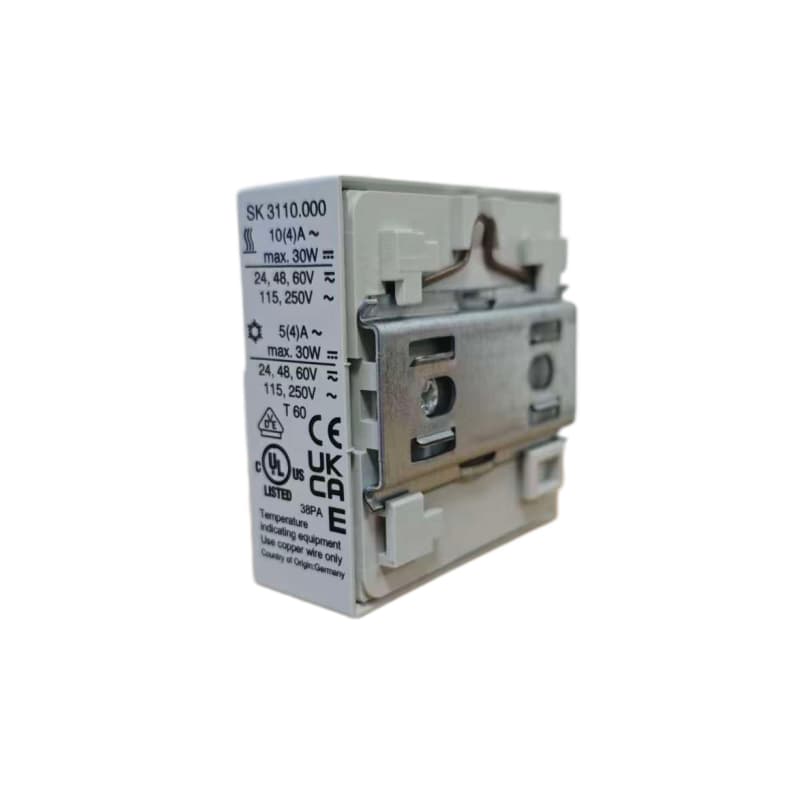

Rittal SK 3110.000
Rittal SK 3110.000 Enclosure Thermostat is a cornerstone of industrial climate control. Equipped with a reliable bimetallic sensor, this highly versatile device functions independently of an external power supply. Thanks to its potential-free, single-pole change-over contact, it can seamlessly switch between controlling cooling fans/cooling units or managing enclosure heaters to prevent freezing and condensation.
Furthermore、the robust switching contact can also serve as a signal transmitter to trigger over-temperature alarms. Boasting a temperature setting range of +5℃ to +60 ℃ and supporting easy DIN rail mounting, the SK 3110.000 ensures a stable micro-climate within industrial automation and power distribution systems worldwide.
| Article no. | SK 3110000 |
| Color | RAL 7035 |
| Packaging unit | 1 p c (s) |
| Dimensions | 71 mm x 71 mm 33.5 mm |
| Setting range | 5 °C...60 °C ( 41 °F...140 °F ) |
| Rated operating voltage |
24 V - 230 V, 1~ 24 V - 60 V (DC) |
| Net weight | 0.095 kg |
| Gross weight | 0.12 kg |
| Customs tariff number | 90321020 |
| EAN | 4028177036598 |
| ETIM 9 | EC004587 |
| ETIM 8 | EC004587 |
| ECLASS 8.0 | 27210707 |
| Benefits |
1.Time-saving connection technique using a terminal strip with a screw connection from the outside. 2.Flexible mounting on a vertical or horizontal 35 mm support rail to EN 50 022, snap fastening in the enclosure section or on the mounting plate using the supplied adapter. |
From bulk procurement of standard enclosures to customized technical selection for complex projects, our team is here to provide full-lifecycle, all-around support.
Rittal thermostat 3110000 Technical specifications :
Bi-metal controller as a temperature-sensitive element with thermal feedback
Contact population: Single-pole change-over contact as a quick-break contact
Permissible contact load: Category 5 – 3 (heating): AC 10 (4) A (inductive load at cos φ = 0.6) / category 5- 4 (cooling): AC 5 (4) A (inductive load at cos φ = 0.6) / DC = max. 30 W
Switching difference: approx. 1 K ± 0.8 K.

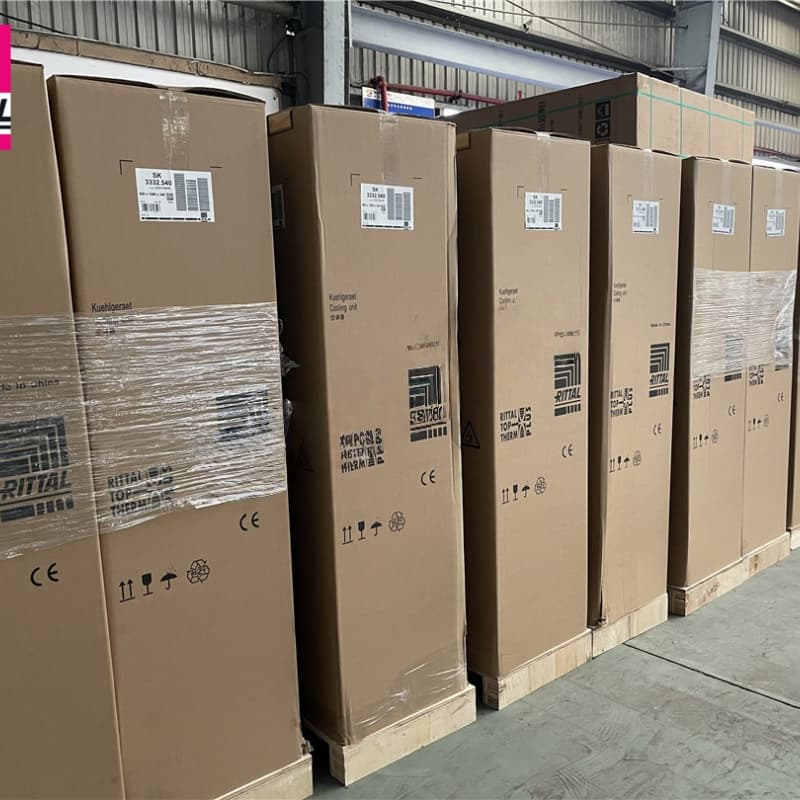

Our Factory
FAQ
Q1: What is the setting range of the SK 3110000 thermostat?
A: The temperature setting range is adjustable from +5°C to +60°C, making it suitable for most industrial environments.
Q2: Can I use this thermostat to control both a heater and a fan?
A: The SK 3110.000 features a single-pole change-over contact, meaning it can be wired to control either a heating device or a cooling device, but typically not both simultaneously with a single unit.
Q3: Is it compatible with international voltage standards?
A: Yes, it is a broad-voltage component that supports 24V to 230V AC/DC systems, ideal for global engineering projects.
