VX base/plinth corner pieces with front and rear trim panels provide high-stability support, flexible cable management, and modular expansion options for industrial electrical enclosures and control cabinets.
Item No :
VX 8660Material :
Carbon steelColor :
RAL 9005ETIM 8 :
EC000721ETIM 9 :
EC000721

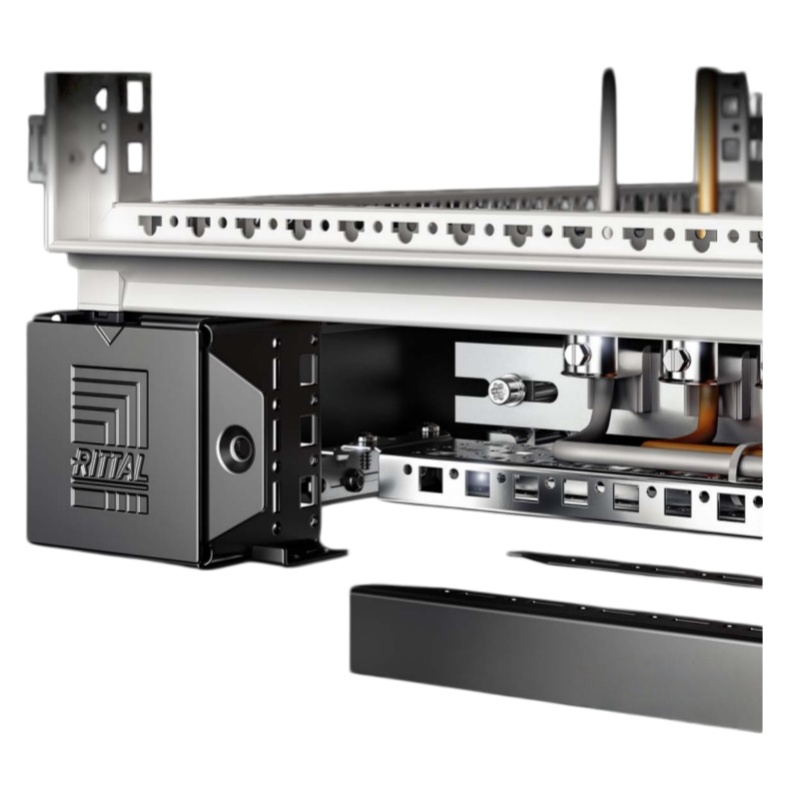

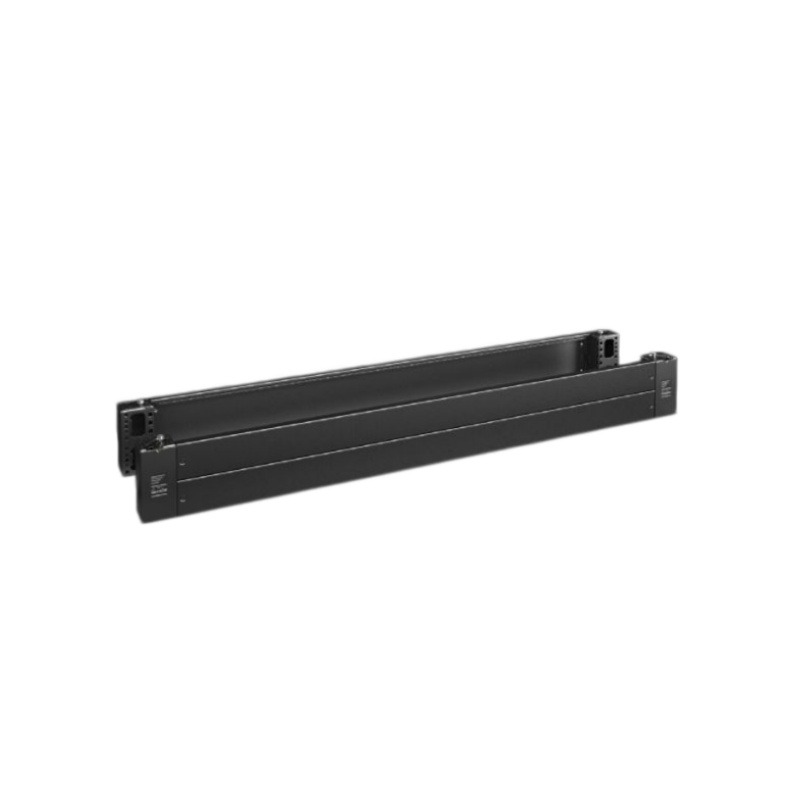

The VX base/plinth corner pieces with front and rear trim panels are designed for use with the Rittal VX enclosure system. The modular plinth components provide a stable support structure for industrial enclosures while creating a clean finished appearance and protecting the lower cabinet area.
The assembly includes carbon steel corner pieces and front/rear trim panels, which provide structural support and enclosure finishing for the plinth system. The modular design enables flexible installation, enhances enclosure stability, and provides options for organized cable entry and routing.
| Article no. | Height | Suitable for width | Color |
| VX 8660000 | 100 mm ( 3.94 ˝ ) |
= 300 mm ( = 11.8 ˝ ) |
RAL 9005 |
| VX 8660001 | 100 mm ( 3.94 ˝ ) |
= 400 mm ( = 15.7 ˝ ) |
RAL 9005 |
| VX 8660002 | 100 mm ( 3.94 ˝ ) |
= 600 mm ( = 23.6 ˝ ) |
RAL 9005 |
| VX 8660003 | 100 mm ( 3.94 ˝ ) |
= 800 mm ( = 31.5 ˝ ) |
RAL 9005 |
| VX 8660004 | 100 mm ( 3.94 ˝ ) |
= 850 mm ( = 33.5 ˝ ) |
RAL 9005 |
| VX 8660005 | 100 mm ( 3.94 ˝ ) |
= 1,000 mm ( = 39.4 ˝ ) |
RAL 9005 |
| VX 8660006 | 100 mm ( 3.94 ˝ ) |
= 1,000 mm ( = 39.4 ˝ ) |
RAL 9005 |
| VX 8660007 | 100 mm ( 3.94 ˝ ) |
= 1,200 mm ( = 47.2 ˝ ) |
RAL 9005 |
| VX 8660008 | 100 mm ( 3.94 ˝ ) |
= 1,600 mm ( = 63 ˝ ) |
RAL 9005 |
| VX 8660009 | 100 mm ( 3.94 ˝ ) |
= 1,800 mm ( = 70.9 ˝ ) |
RAL 9005 |
| VX 8660020 | 200 mm ( 7.87 ˝ ) |
= 300 mm ( = 11.8 ˝ ) |
RAL 9005 |
| VX 8660021 | 200 mm ( 7.87 ˝ ) |
= 400 mm ( = 15.7 ˝ ) |
RAL 9005 |
| VX 8660022 | 200 mm ( 7.87 ˝ ) |
= 600 mm ( = 23.6 ˝ ) |
RAL 9005 |
| VX 8660023 | 200 mm ( 7.87 ˝ ) |
= 800 mm ( = 31.5 ˝ ) |
RAL 9005 |
| VX 8660024 | 200 mm ( 7.87 ˝ ) |
= 1,000 mm ( = 39.4 ˝ ) |
RAL 9005 |
| VX 8660025 | 200 mm ( 7.87 ˝ ) |
= 1,200 mm ( = 47.2 ˝ ) |
RAL 9005 |
| VX 8660026 | 200 mm ( 7.87 ˝ ) |
= 1,600 mm ( = 63 ˝ ) |
RAL 9005 |
| VX 8660027 | 200 mm ( 7.87 ˝ ) |
= 1,800 mm ( = 70.9 ˝ ) |
RAL 9005 |
Key Benefits of VX Enclosure Base Plinth System

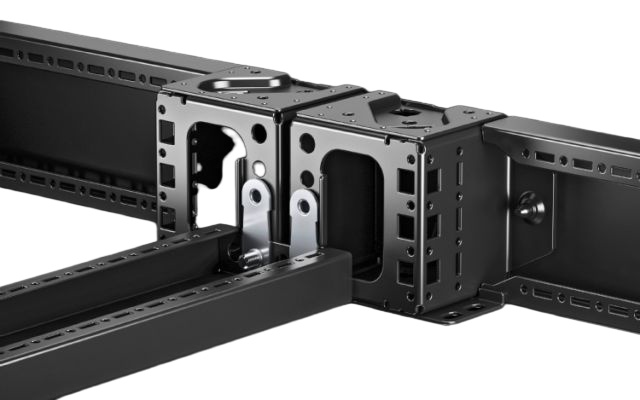

High-Stability Structural Design: The corner pieces reinforce the plinth structure, improving base rigidity and ensuring reliable stability for enclosure installation.
Flexible Cable Management: The plinth trim panels are designed to support flexible cable entry and routing options, simplifying cable management within the enclosure system.
Modular Installation: Designed for VX enclosure systems, the modular plinth components allow easy integration with a wide range of compatible cabinet accessories and system expansions.

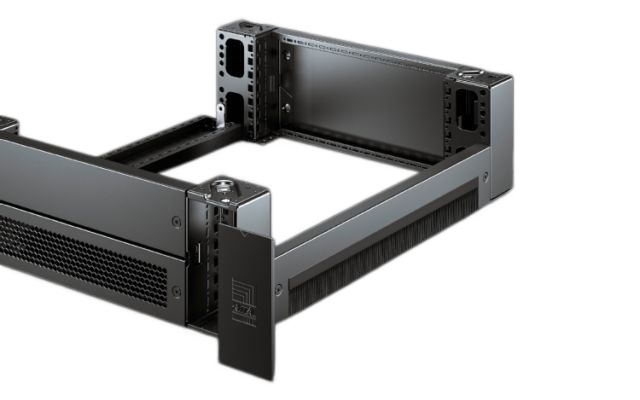

Clean and Professional Appearance:The front and rear trim panels provide a continuous enclosed finish, enhancing the appearance while protecting the lower section of the enclosure.

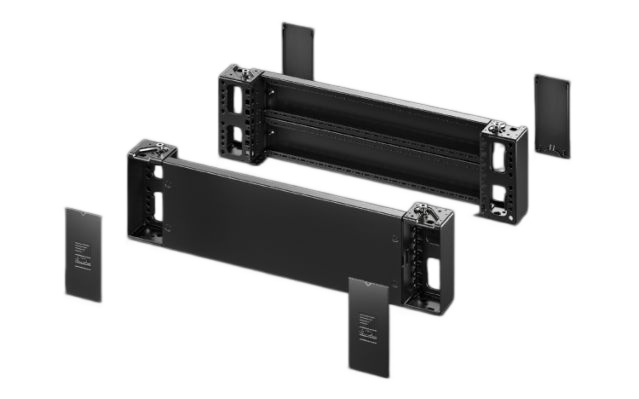

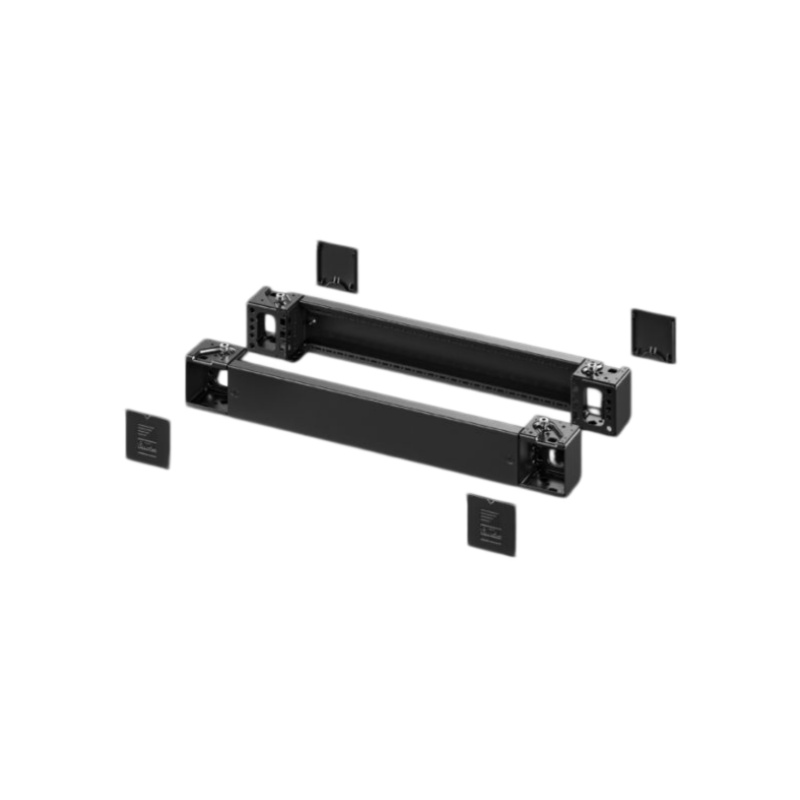

Supply includes （VX 8660001)
4 x corner covers
Assembly components
4 x base/plinth corner pieces, 100 mm high
2 x base/plinth trim panels, front/rear, 100 mm high
Note: The above supply scope applies to VX 8660001 only. For other VX base/plinth models and configurations, please contact us for VX base/plinth corner pieces availability and details.
VX plinth trim panels Applications
The VX base/plinth system is designed to provide stable support, protection, and flexible installation solutions for industrial enclosure applications. It is widely used in electrical, automation, power distribution, and industrial control environments where reliable cabinet support and organized cable management are required.
Industrial Electrical Enclosures: Provides a robust and stable foundation for VX enclosure systems, improving cabinet installation safety and protecting the lower section of the enclosure.
Automation Control Cabinets: Ideal for PLC cabinets, machine,control cabinets, and automation systems, offering reliable support and flexible configuration options.
Power Distribution Cabinets: Suitable for switchgear, power distribution, and energy management applications requiring durable enclosure structures.
Industrial Machinery & Equipment: Supports electrical cabinets used in manufacturing lines, production equipment, and industrial automation systems.
Data & Network Enclosures: Provides a secure base solution for industrial IT cabinets with enhanced stability and cable management capabilities.
With its modular design, high-strength carbon steel construction, and compatibility with VX accessories, the VX base/plinth system delivers a reliable and adaptable solution for various industrial enclosure applications.

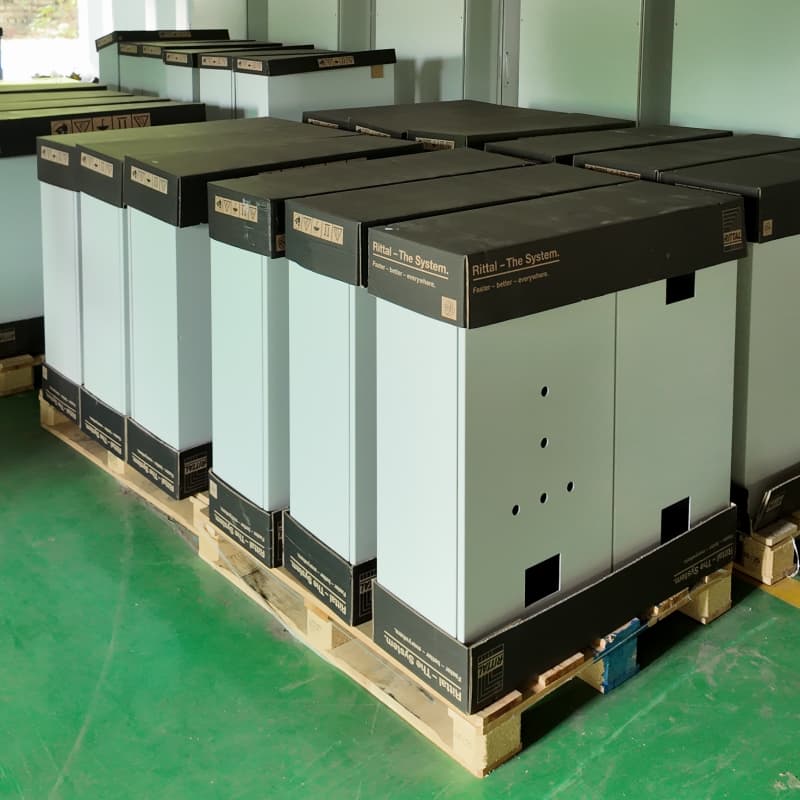

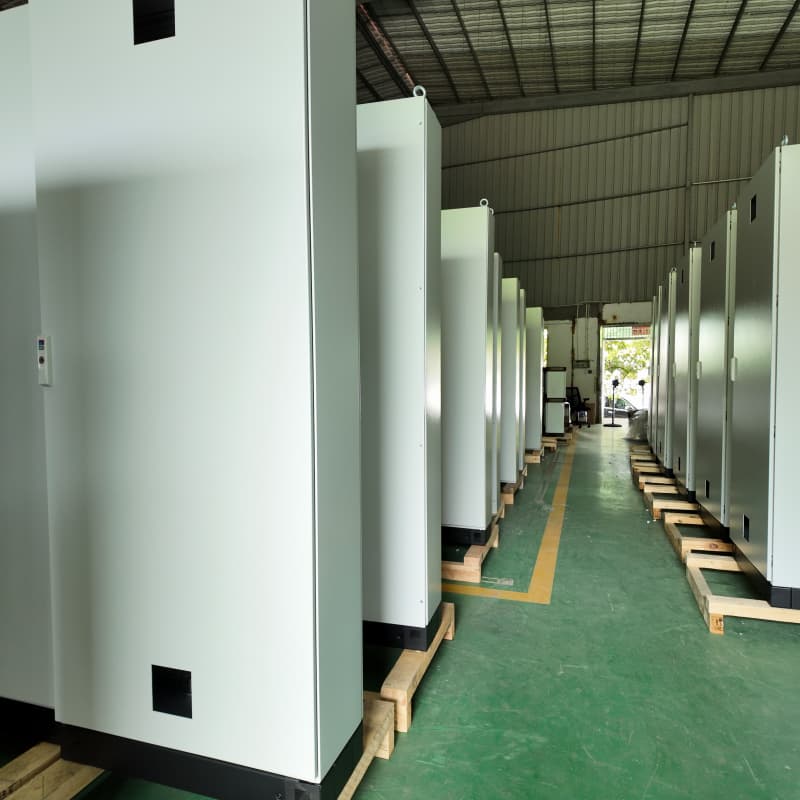

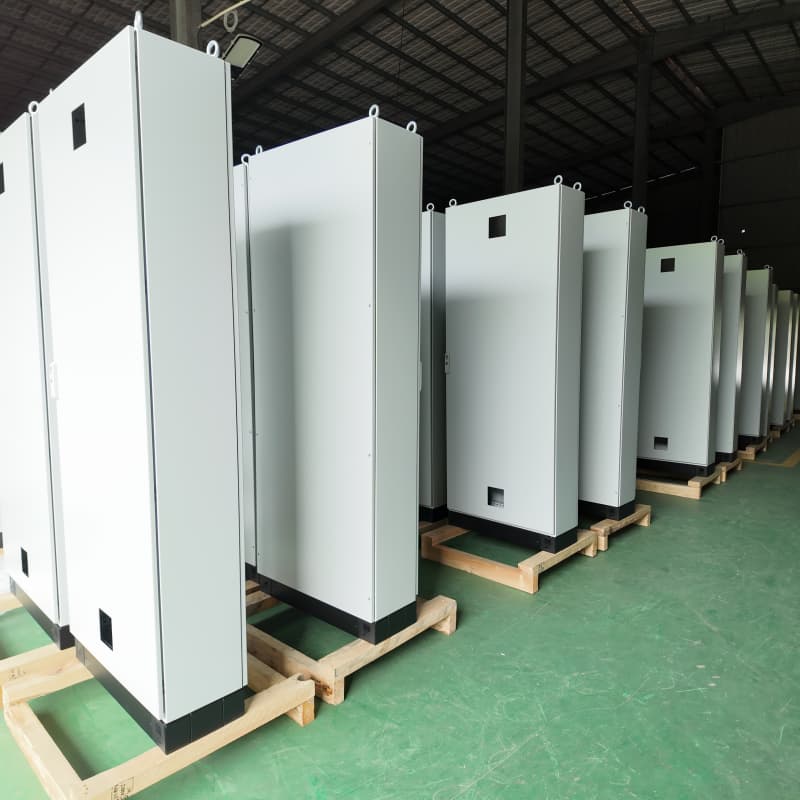

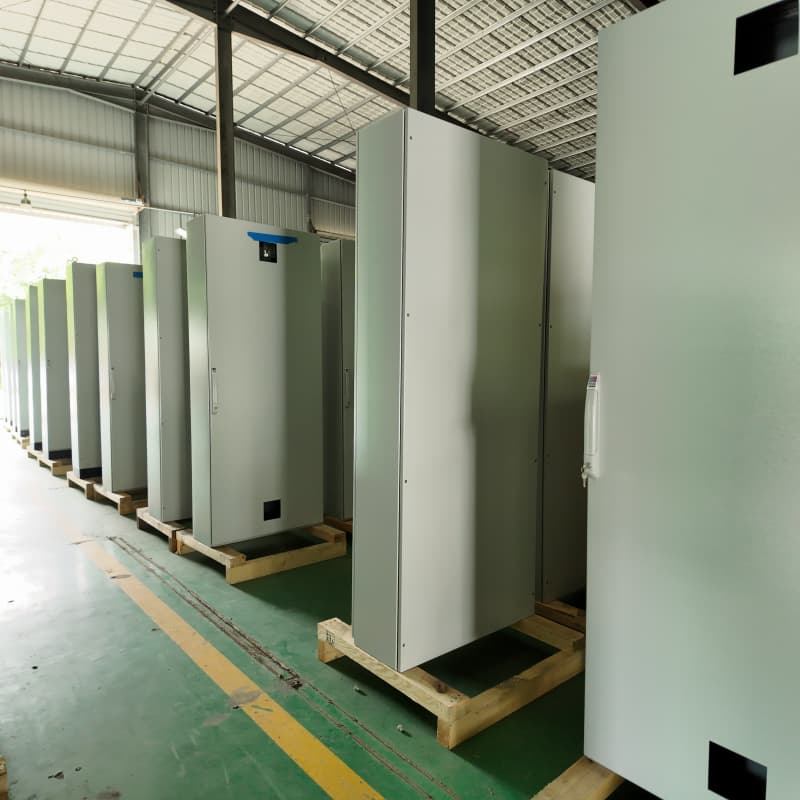

Our Factory
FAQ
A: Please check your enclosure series, dimensions, and required plinth configuration before ordering. If you are unsure, provide your cabinet model and application details for confirmation.
A: The selection depends on installation requirements, cable routing needs, operating environment, and cabinet configuration.
A: Compatibility should be verified based on the enclosure structure and accessory requirements. Contact us with your project details for technical assistance.
A: Please provide the enclosure model, cabinet dimensions, required quantity, application details, and any special installation requirements.
A: Yes. We can provide various VX plinth components and related enclosure accessories. Please contact us for available models and configurations
A:Yes. We support customized industrial enclosure components based on customer drawings, specifications, and project requirements.
A:Lead time depends on product availability, quantity, and customization requirements. Please contact us for current delivery information.
