LED system light - the first light designed especially for enclosures! Advanced LED technology provides even more light into the last recess.
Order(MOQ) :
1 pc(s)Color :
Enclosure: RAL 7016Supply includes :
Assembly screwsETIM 8 :
EC000321ETIM 9 :
EC000321

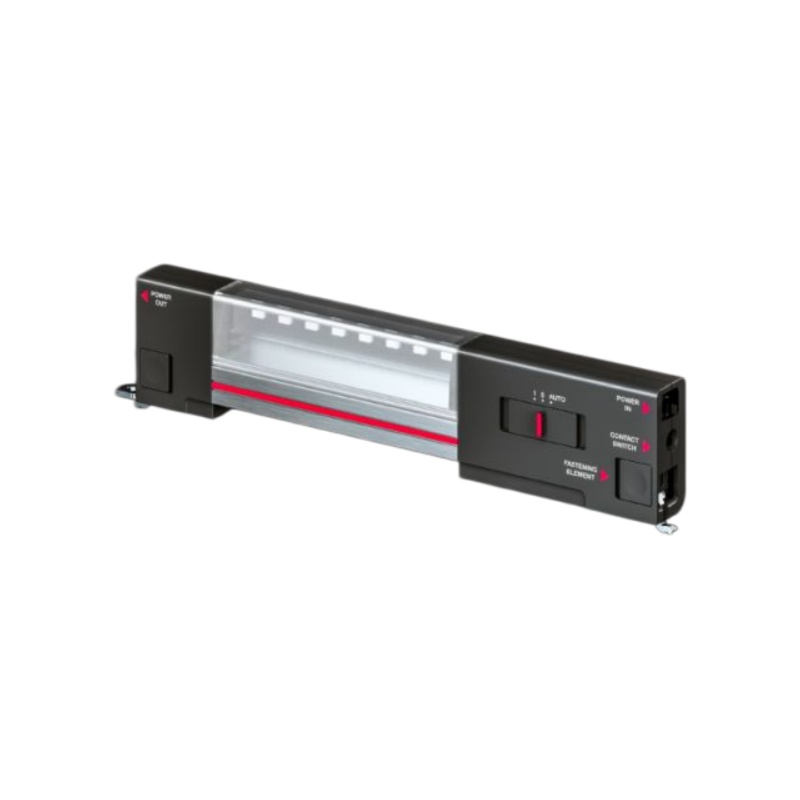

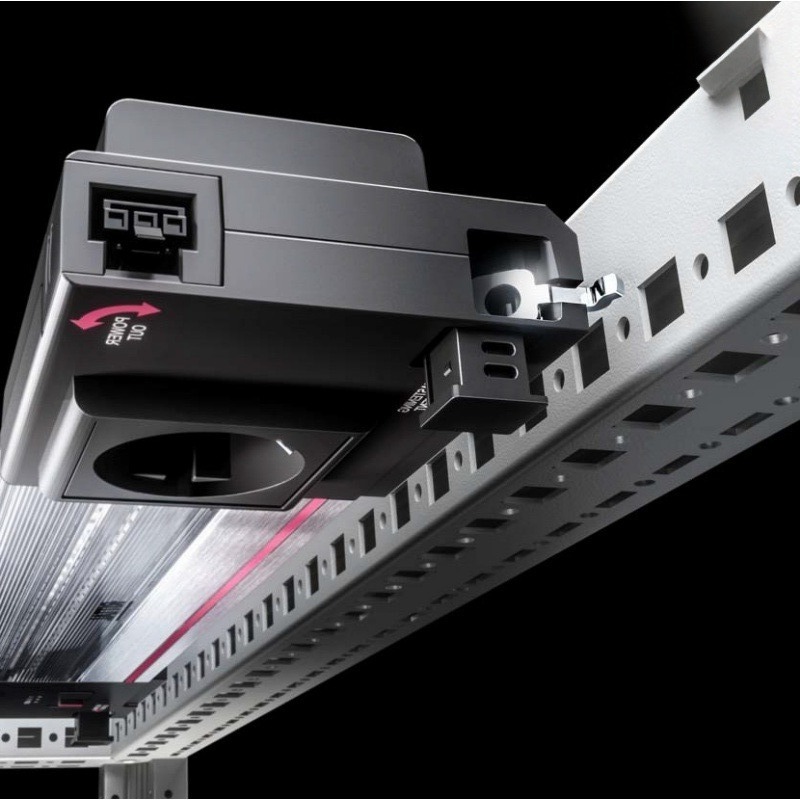

The Rittal LED System Light is a high-performance, energy-efficient lighting solution specifically designed for enclosure and control panel applications.
Engineered for reliability and long-term use, it provides uniform, bright illumination that enhances visibility inside electrical cabinets and automation systems
Get A Quote
| Article no. | Luminous flux | Width | Socket version | Version | Rated operating voltage |
| SZ 2500100 | 400 lm | 262 mm ( 10.3 ˝ ) |
/ | without socket | 100 V - 230 V, 1~, 50 Hz/60 Hz |
| SZ 2500104 | 400 lm | 262 mm ( 10.3 ˝ ) |
/ | without socket | 100 V - 230 V, 1~, 50 Hz/60 Hz |
| SZ 2500110 | 600 lm | 337 mm ( 13.3 ˝ ) |
/ | without socket | 100 V - 230 V, 1~, 50 Hz/60 Hz |
| SZ 2500114 | 600 lm | 337 mm ( 13.3 ˝ ) |
/ | without socket | 100 V - 230 V, 1~, 50 Hz/60 Hz |
| SZ 2500200 | 900 lm | 437 mm ( 17.2 ˝ ) |
/ | without socket | 100 V - 230 V, 1~, 50 Hz/60 Hz |
| SZ 2500210 | 900 lm | 437 mm ( 17.2 ˝ ) |
D, ground pin (type F, CEE 7/3) | with socket | 100 V - 230 V, 1~, 50 Hz/60 Hz |
| SZ 2500214 | 900 lm | 437 mm ( 17.2 ˝ ) |
USA/CDN (type B, NEMA 5-15) | with socket | 100 V - 125 V, 1~, 50 Hz/60 Hz |
| SZ 2500300 | 1,200 lm | 437 mm ( 17.2 ˝ ) |
/ | with motion detector | 100 V - 230 V, 1~, 50 Hz/60 Hz |
| SZ 2500310 | 1,200 lm | 437 mm ( 17.2 ˝ ) |
D, ground pin (type F, CEE 7/3) | with socket, with motion detector | 100 V - 230 V, 1~, 50 Hz/60 Hz |
| SZ 2500314 | 1,200 lm | 437 mm ( 17.2 ˝ ) |
USA/CDN (type B, NEMA 5-15) | with socket, with motion detector | 100 V - 125 V, 1~, 50 Hz/60 Hz |
| SZ 2500220 | 900 lm | 437 mm ( 17.2 ˝ ) |
/ | without socket | 24 V (DC) |
| SZ 2500320 | 1,200 lm | 437 mm ( 17.2 ˝ ) |
/ | with motion detector | 24 V - 56 V (DC) |

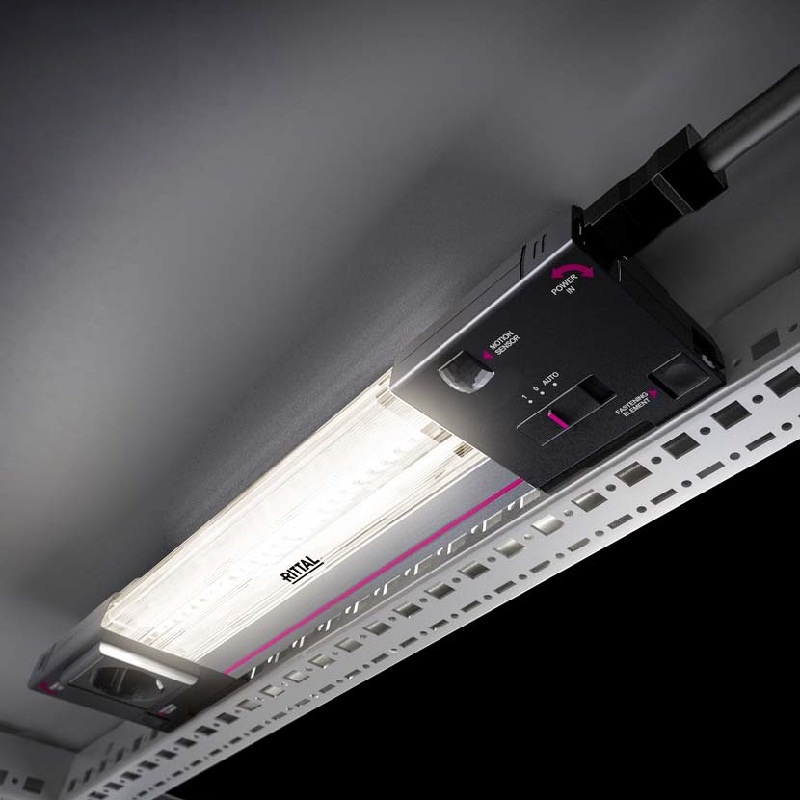

Motion sensor LED enclosure light Benefits
Optimum illumination of the entire enclosure
Option of clip-on, screw or magnetic attachment

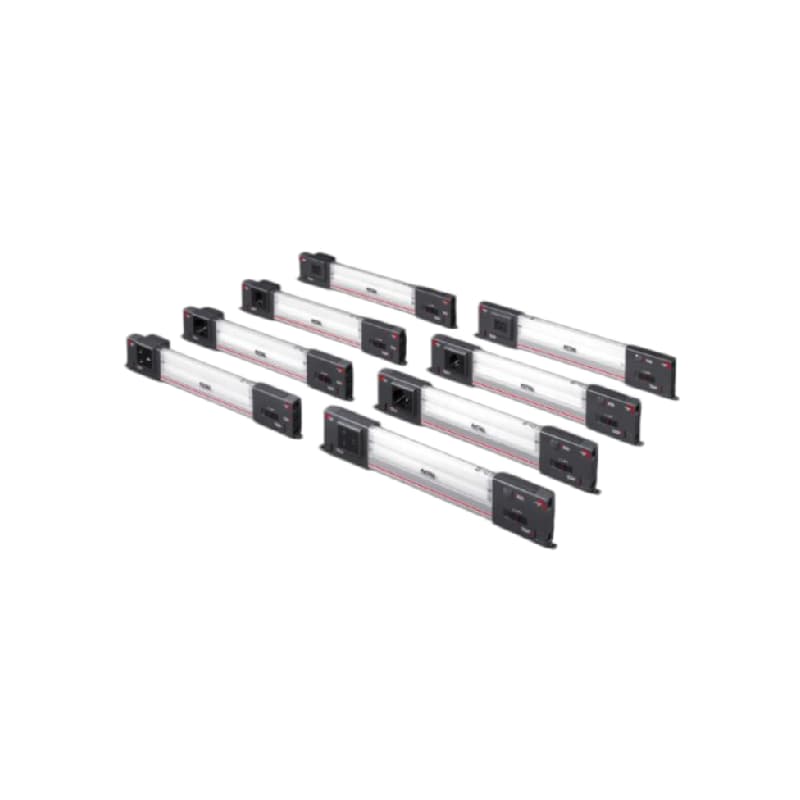

A configuration to suit every application

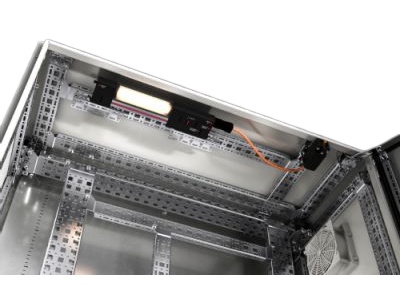

LED System Light Application
Rittal VX, KX, TS, and AX enclosures
Industrial control cabinets and switchgear
Automation and production line panels
Inspection and maintenance lighting for electrical systems

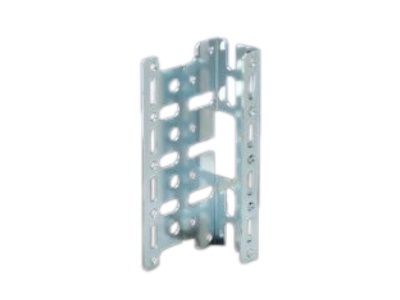

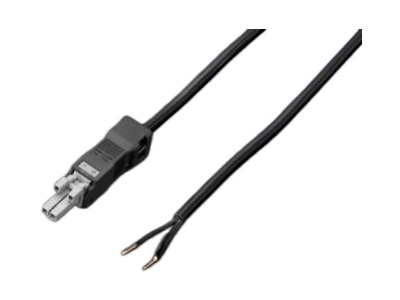

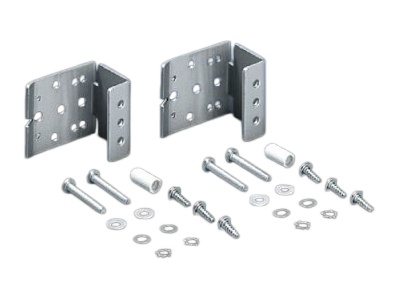

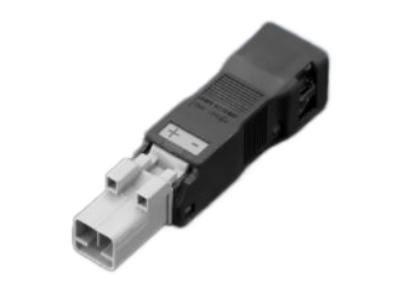

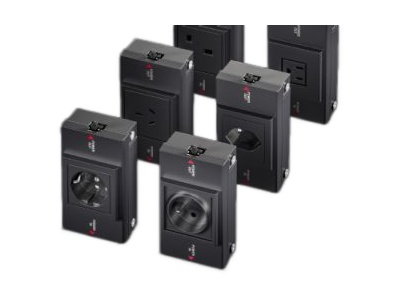

LED System Light Accossories

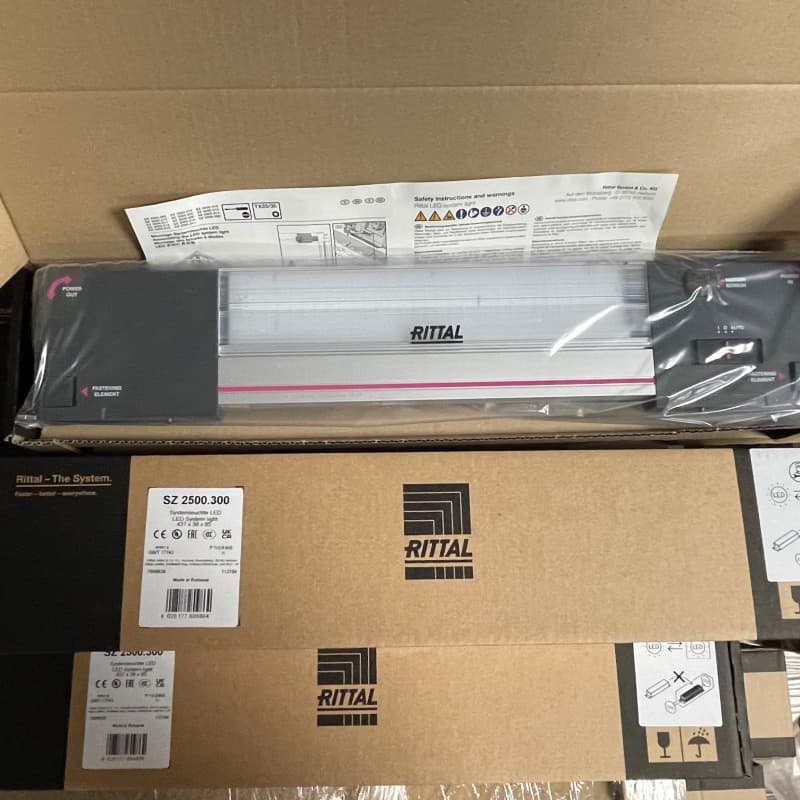

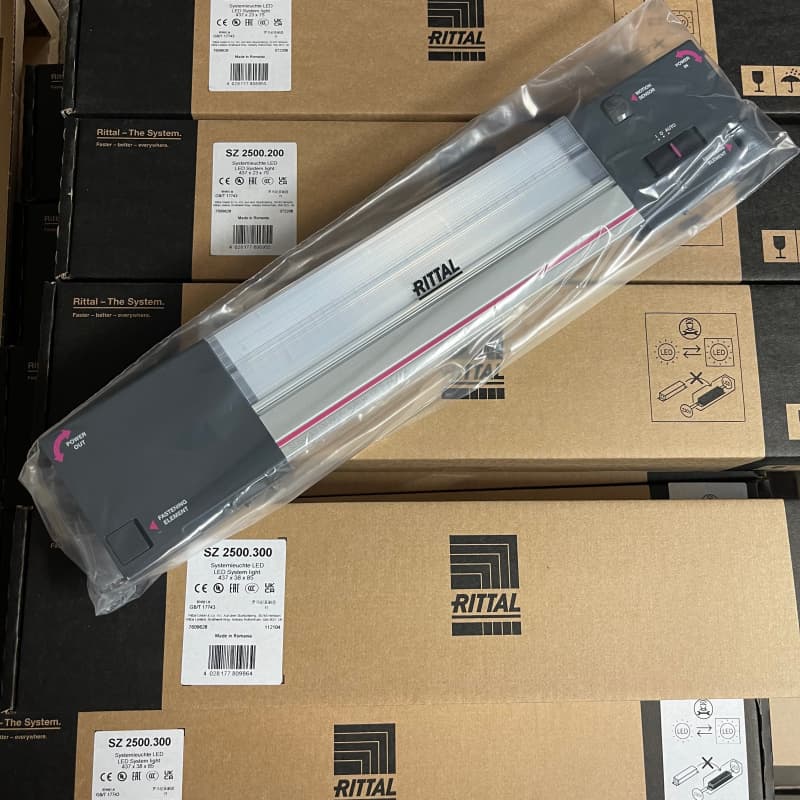

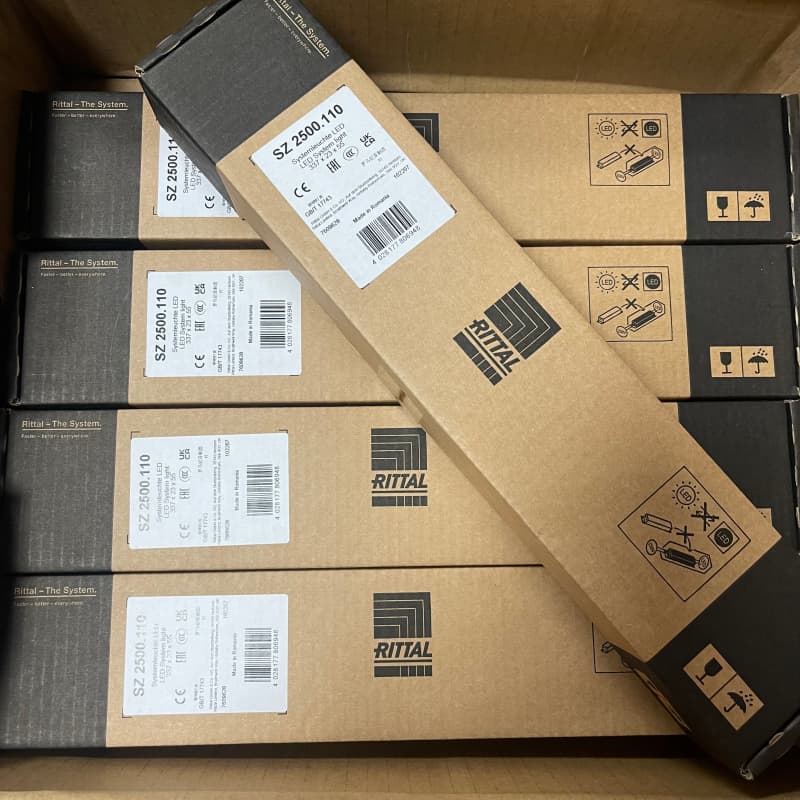

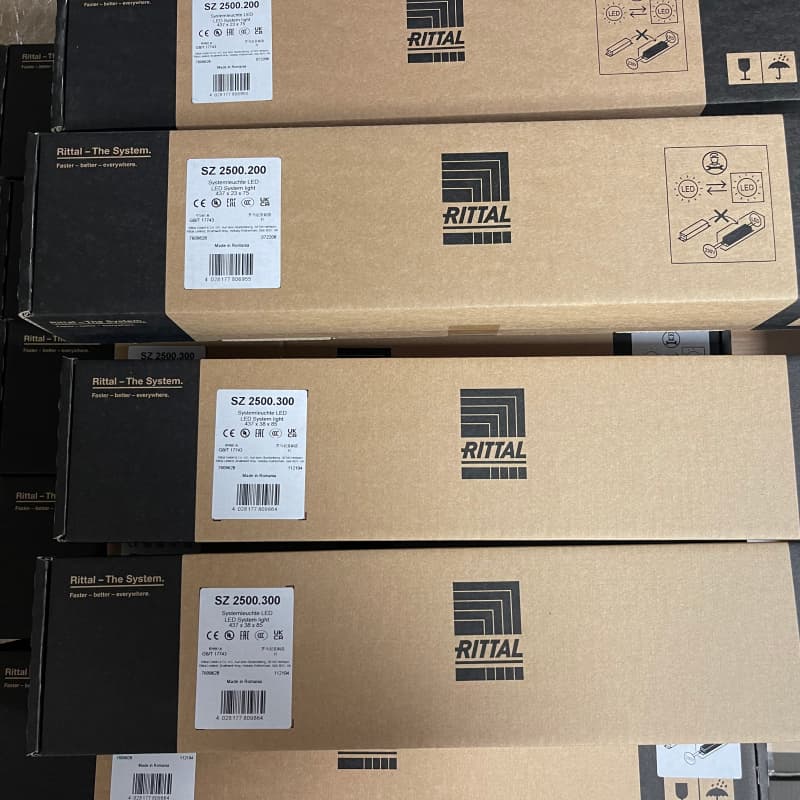

LED System Light Packing
FAQ
A:We are Xiamen Suwei Automation Technology Co., Ltd., established in January 2010, headquartered in Xiamen, Fujian, China. We specialize in industrial automation and are committed to providing efficient and innovative automation solutions to meet a variety of customer needs, serving clients globally.
A: You can purchase a variety of industrial automation products from us, including:
1. Low-voltage electrical and industrial control equipment
2. Automation electrical products
3. Touchscreens and relay devices
4. Industrial automation engineering solutions
We provide one-stop services to meet the needs of various industries and customers.
3 Q:How do I choose the right LED lighting system?
A: Consider the following factors:
Installation location
Required brightness (lumens)
Power supply voltage
Mounting method
Environmental conditions
IP protection rating
Control options (sensor, switch, dimming)
A: Yes. Some models are equipped with motion sensors, door-position switches, or automatic on/off functions to improve energy efficiency and user convenience.
