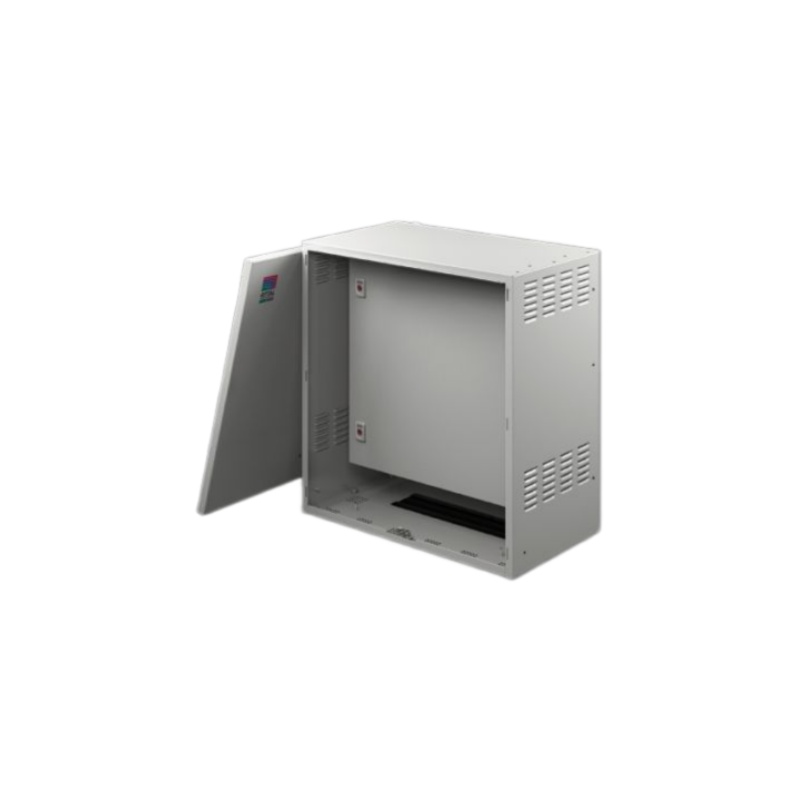

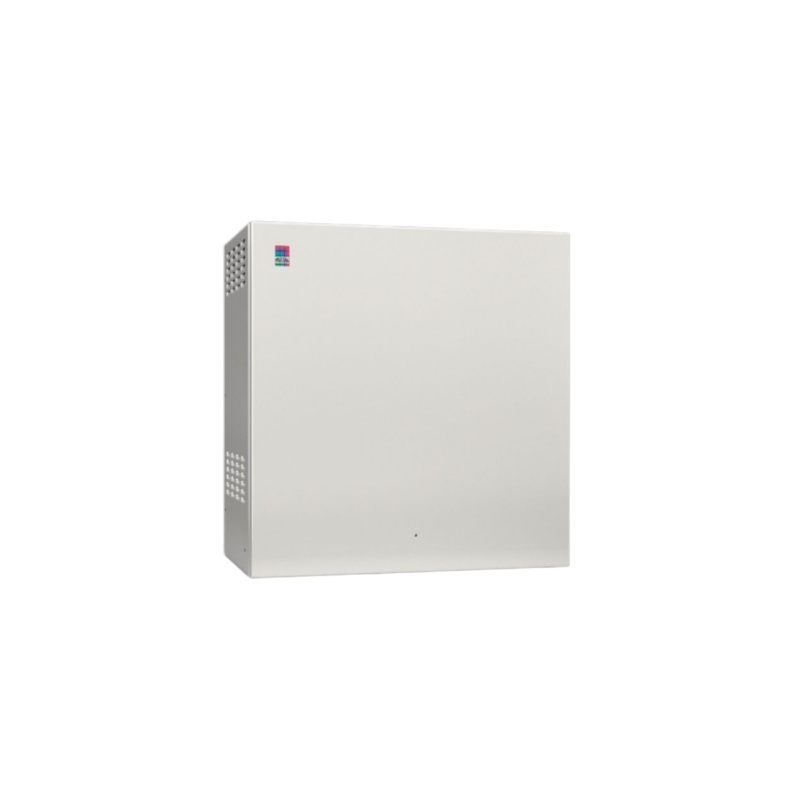

Housing for AX compact enclosures, for use outdoors. For creating an enclosure-within-an-enclosure concept. Cut-out at the bottom and integrated louvres in the side and base for optimum enclosure ventilation.
Material :
Aluminum AlMg3Order(MOQ) :
1 pc(s).ETIM 9 :
EC000261

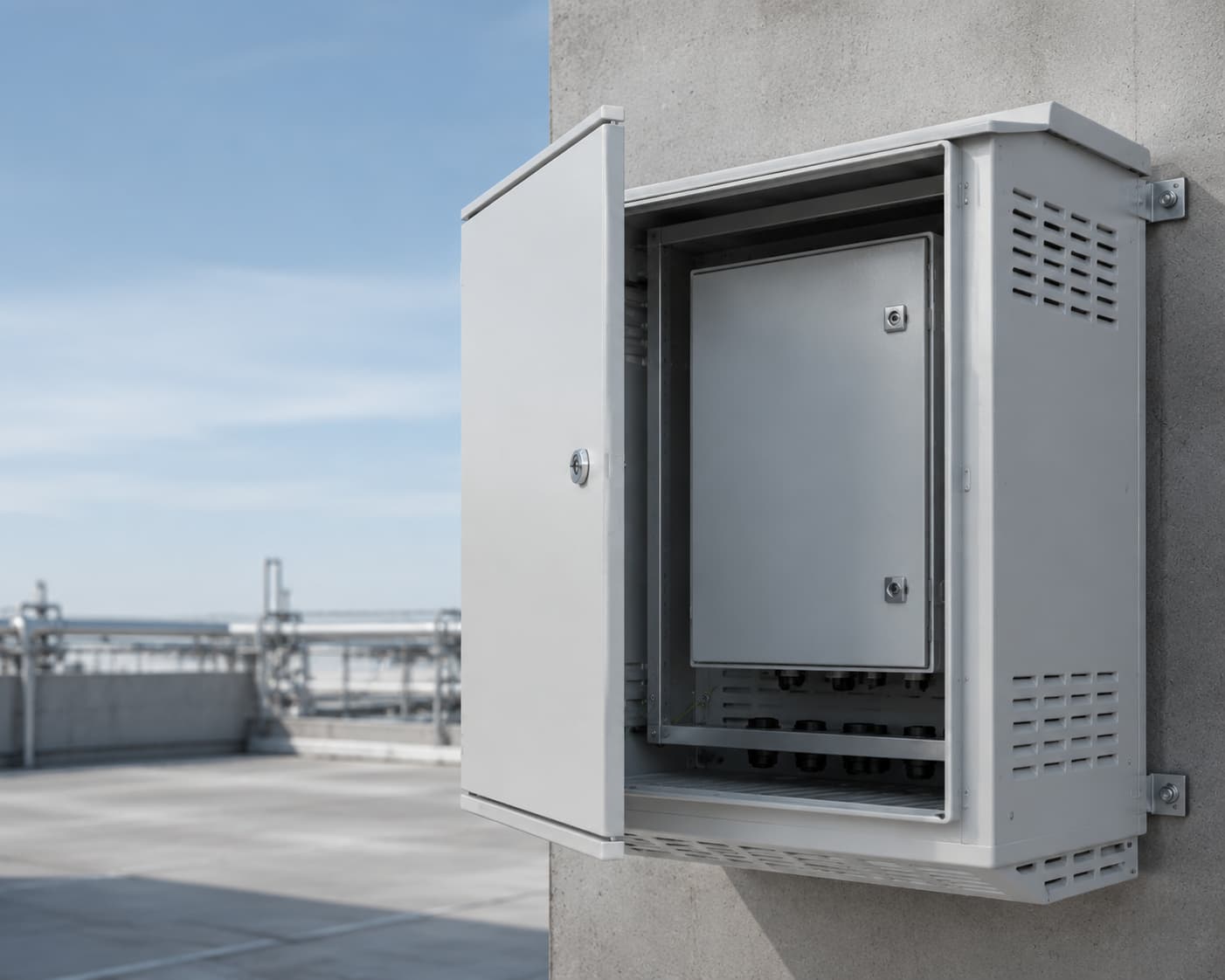

The Outdoor Enclosure for AX Wall-Mount Enclosures is designed to provide added protection for AX compact enclosures installed in outdoor and exposed locations. Its enclosure-within-an-enclosure design creates an outer barrier around the control cabinet, helping shield electrical components from rain, dust, sunlight, and changing weather conditions.
Integrated ventilation openings support natural airflow around the inner enclosure, while the accessible design makes installation and maintenance straightforward. This outdoor AX enclosure housing is suitable for industrial automation, renewable energy, telecommunications, infrastructure, utilities, and outdoor control systems
The specifications below provide a general product overview. Select an AX outdoor enclosure model below to view detailed dimensions, compatible enclosure sizes, weights, technical specifications, and available product options.
| Article no. | Suitable for enclosure type | Suitable for width | Suitable for height | Suitable for depth |
| AX 9792055 | AX | = 300 mm ( = 11.8 ˝ ) |
= 400 mm ( = 15.7 ˝ ) |
= 210 mm ( = 8.27 ˝ ) |
| AX 9792065 | AX | = 500 mm ( = 19.7 ˝ ) |
= 500 mm ( = 19.7 ˝ ) |
= 210 mm ( = 8.27 ˝ ) |
| AX 9792075 | AX | = 600 mm ( = 23.6 ˝ ) |
= 600 mm ( = 23.6 ˝ ) |
= 350 mm ( = 13.8 ˝ ) |
Outdoor Electrical Enclosure Benefit
Outdoor Protection: Provides extra protection against weather, dust, and environmental exposure for outdoor electrical installations.
Double Enclosure Design: Creates an additional protective layer to improve equipment reliability and service life.

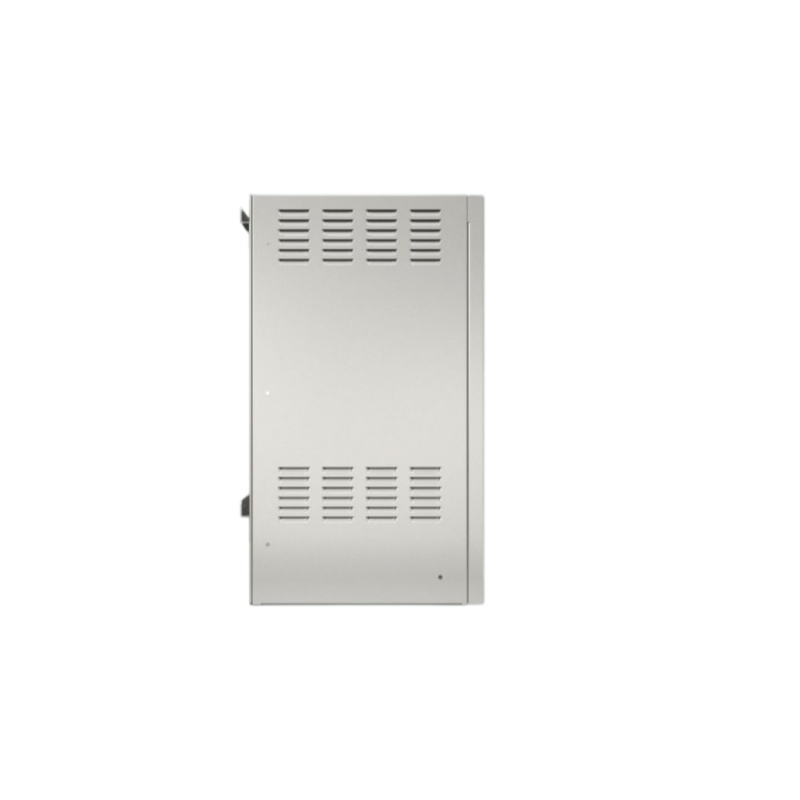

Natural Ventilation: Built-in louvers and openings support airflow and thermal management.

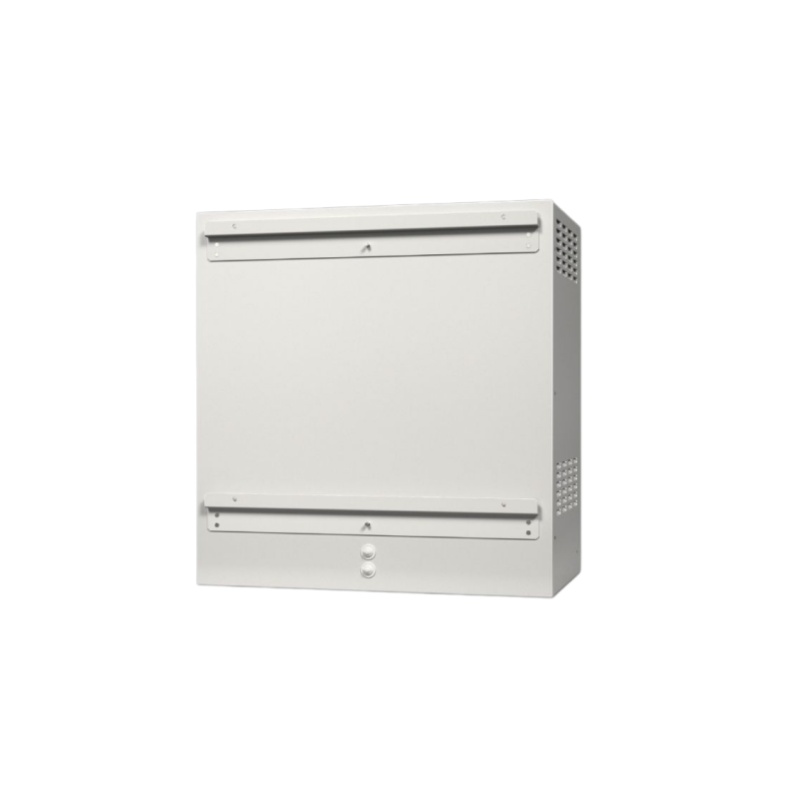

Easy Installation: Designed for AX wall-mounted enclosures with simple installation and maintenance.
This outdoor AX enclosure housing is suitable for protecting wall-mounted control and monitoring cabinets used in:
Industrial automation systems
Water and wastewater facilities
Renewable-energy installations
Building-services equipment
Outdoor machinery
Traffic and transportation infrastructure
Utility monitoring systems
Telecommunications installations
Process-control equipment
Warehousing and material-handling systems
Final suitability must be evaluated against the site’s temperature, precipitation, corrosion, dust, cable-entry and security requirements.
Our Factory
FAQ
A: Not necessarily. Cooling requirements depend on equipment heat loss, ambient temperature, solar loading, cabinet dimensions and allowable component temperature. A thermal calculation is recommended.
A: Cable-entry arrangements, finish, dimensions and compatible inner-enclosure configurations may be customizable depending on the manufacturer. Any modification should be reviewed for its effect on ventilation, grounding and environmental performance.
A: Yes. The reference technical information states that carbon-steel or stainless-steel enclosures may be installed depending on the application and environment.
A: The listed scope of supply covers the external housing and its mounting, cable-entry, locking, grounding and assembly components. Treat the inner AX enclosure as a separate item unless your supplier’s quotation explicitly states otherwise.
Housing for AX compact enclosures, for use outdoors. For creating an enclosure-within-an-enclosure concept. Cut-out at the bottom and integrated louvres in the side and base for optimum enclosure ventilation.
