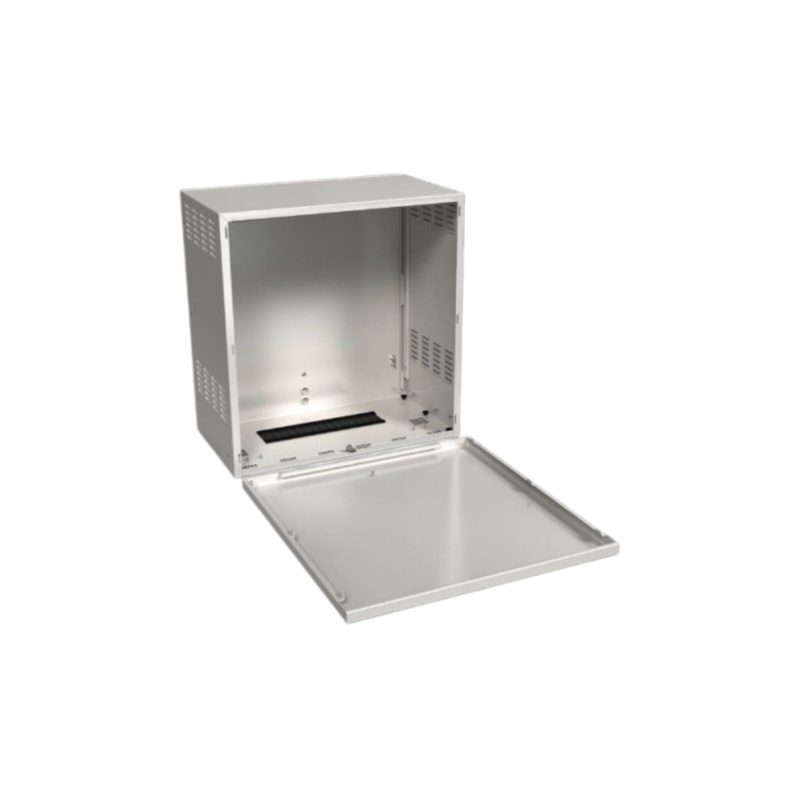

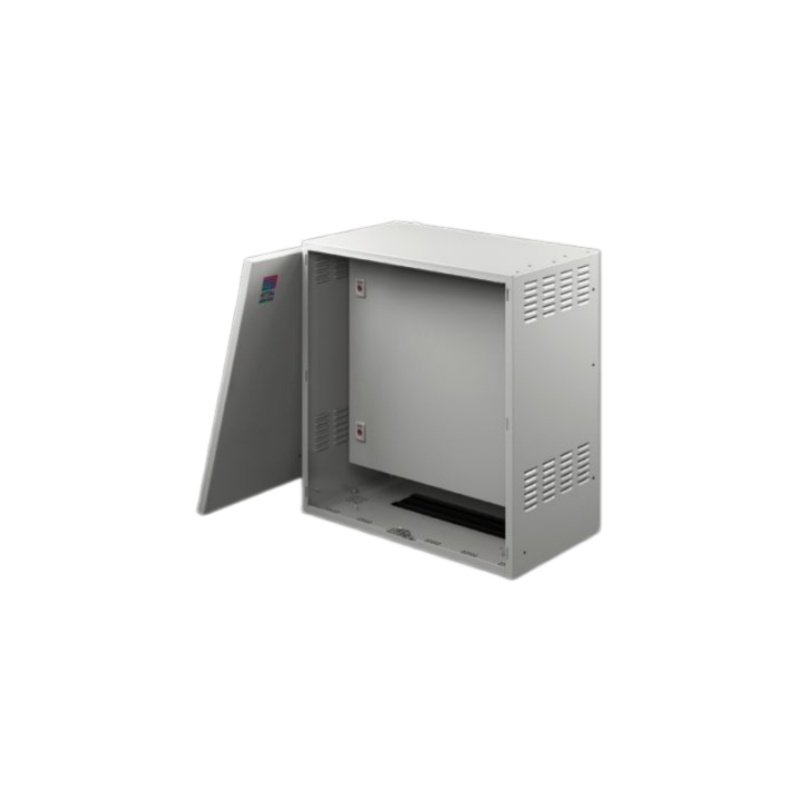

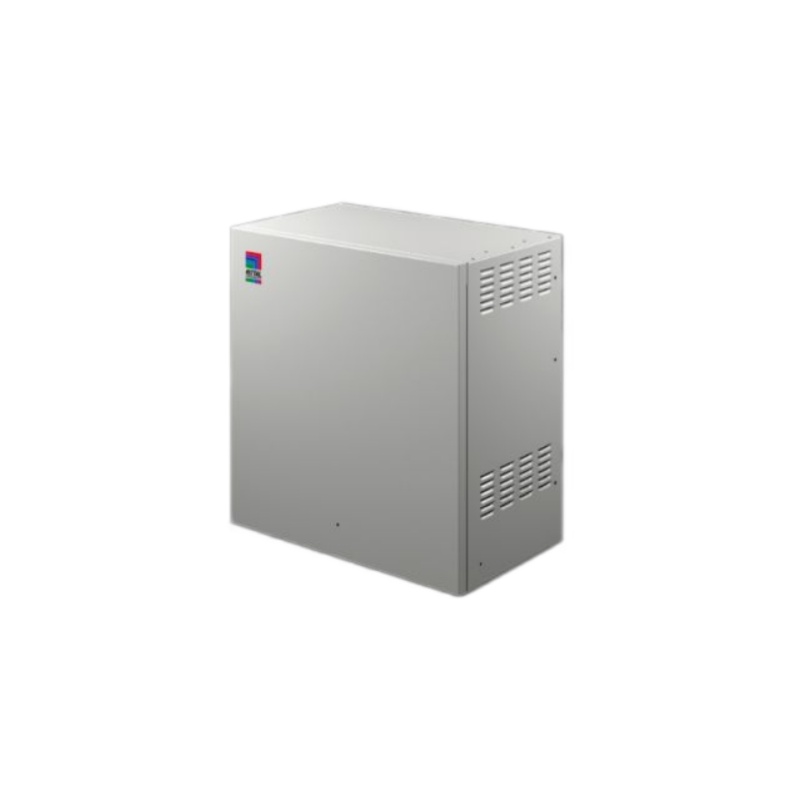

Housing for AX compact enclosures for outdoor use, consisting of enclosure shell, rear panel, base and plug-in door. For creating an enclosure-within-an-enclosure concept. Cut-out at the bottom and integrated louvres in the side and base for optimum enclosure ventilation.
Item No :
AX 9792055Material :
Aluminum AlMg3Order(MOQ) :
1 pc(s).Weight :
10.5 kgETIM 9 :
EC000261ECLASS 8.0 :
27180101
The AX 9792055 Outdoor Enclosure Housing provides an additional protective layer for AX compact wall-mounted enclosures used in outdoor and exposed locations. Its enclosure-within-an-enclosure design surrounds the inner control cabinet with a separate outer housing, helping reduce direct exposure to rain, dust, sunlight and changing environmental conditions.
Integrated louvers in the sides and base support natural airflow around the inner enclosure, helping limit heat buildup. The aluminum construction and powder-coated finish make the housing a practical choice for industrial automation, telecommunications, infrastructure, renewable energy, utility monitoring and other outdoor control applications.
Explore the complete Outdoor Enclosure for AX Wall-Mount Enclosures range to compare available models, compatible enclosure sizes and technical specifications. Click here to view the full product range.
| Article no.: | AX 9792055 |
| Dimensions | 421 X 550 X 308 mm |
| Material | Aluminum AlMg3 |
| Surface finish | Powder-coated |
| Note | Depending on the application/environment, a carbon steel or stainless steel enclosure may be built into the housing |
| Gross weight | 11.1 kg |
| Net weight | 10.5 kg |
| Packaging unit | 1 pc(s). |
| Customs tariff number | 94032080 |
| EAN | 4028177961807 |
| ETIM 9 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Suitable for | Enclosure type: AX Width: = 300 mm Height: = 400 mm Depth: = 210 mm ( Enclosure type: AX Width: = 11.8 ˝ Height: = 15.7 ˝ Depth: = 8.27 ˝ ) |

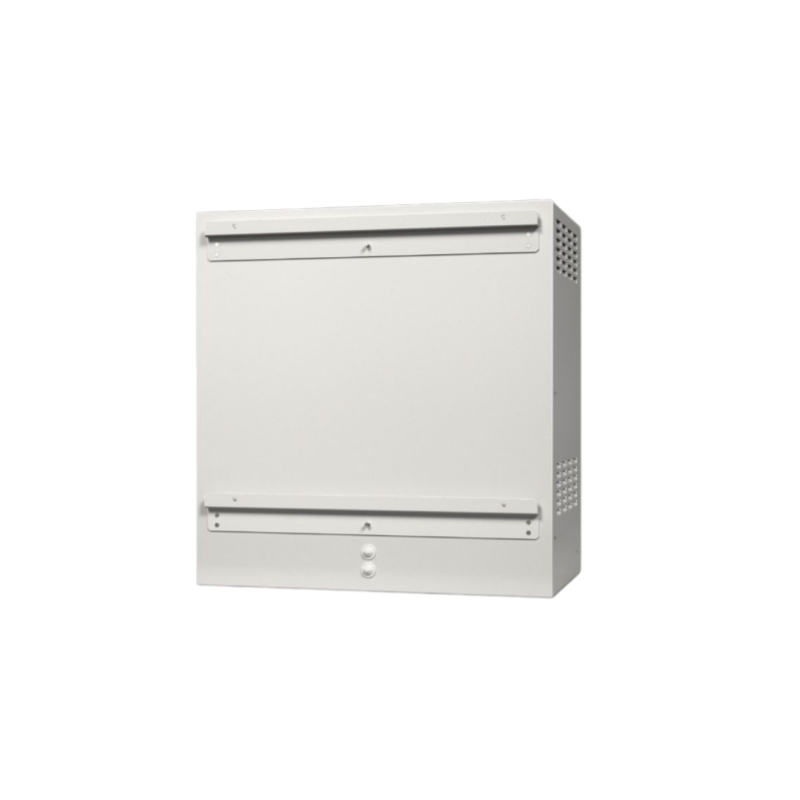

| Supply includes | Support rails for wall mounting Brush strip Stepped collar M25 Cam lock with 3 mm double-bit insert Incl. grounding and assembly components |
AX 9792055 outdoor enclosure Benefits
Designed to house compatible AX compact enclosures in outdoor applications
Creates an enclosure-within-an-enclosure design for an added layer of protection

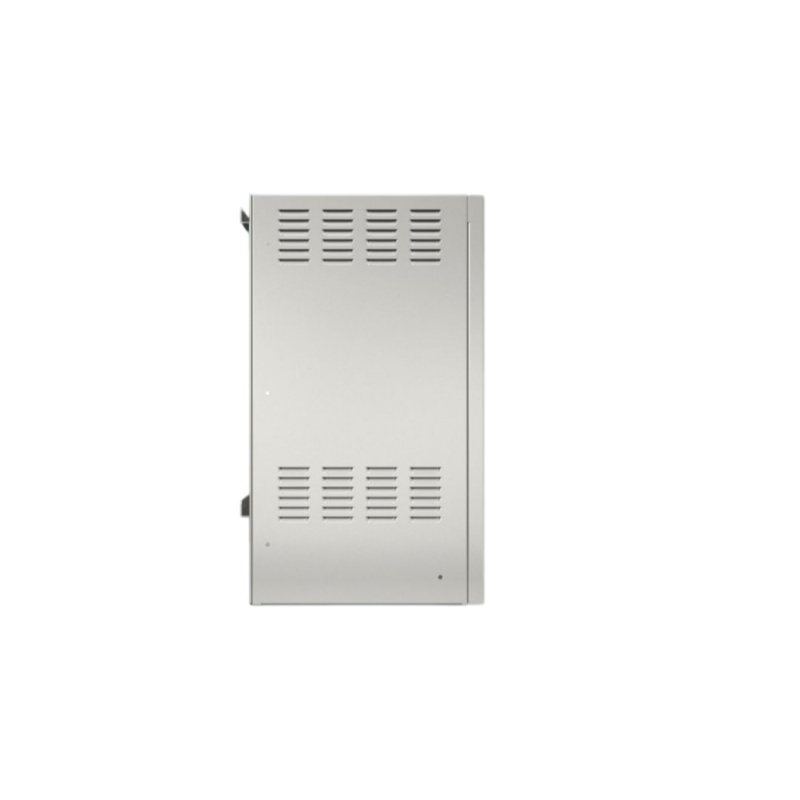

Features a bottom cutout and integrated side and base louvers to support natural airflow around the inner enclosure
Designed for outdoor applications, this housing accommodates compatible AX compact enclosures and creates an enclosure-within-an-enclosure protection concept. A bottom cutout and integrated louvers in the sides and base support natural airflow around the inner enclosure, helping reduce heat buildup.
Accessories
Our Factory
FAQ
A: Choose AX 9792055 for compact control installations, AX 9792065 when more panel space is required, and AX 9792075 for larger or deeper equipment configurations. Always match the model to the dimensions of the inner AX enclosure.
A: Contact our team for model selection, installation guidance, technical documentation, replacement components and product support.
A: Pricing depends on the selected model, order quantity, accessories, customization and delivery location. Request a quotation for current pricing and lead time.
A: They are suitable for industrial automation, telecommunications, renewable energy, infrastructure, utilities and other outdoor control applications.
