The IoT interface is a central component of intelligent networking of Rittal cooling solutions or sensors for monitoring physical environment conditions. Equipped with a large variety of interfaces and protocols, it serves to collect and transmit data to higher level IT systems, or to systems for local monitoring of machine conditions.
Item No :
SK 3124300Material :
Plastic to UL 94-V0Order(MOQ) :
1 pc(s).Color :
RAL 7016ETIM 8 :
EC001099ETIM 9 :
EC001099

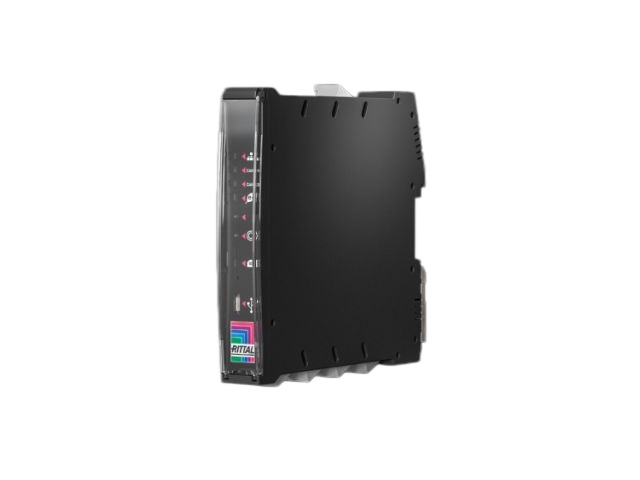

The Rittal SK 3124300 IoT Interface is an industrial IoT communication module designed for networking Rittal cooling units, Blue e+ enclosure cooling units, chillers, and environmental monitoring sensors. It enables centralized data collection, remote monitoring, alarm transmission, and system integration for industrial control cabinets and enclosure climate control applications.
With support for communication protocols such as OPC UA, SNMP, and Modbus TCP, the Rittal IoT Interface can be easily integrated into factory automation systems, building management systems, energy management platforms, and IT monitoring networks. It helps users monitor equipment status, temperature conditions, fault alarms, and maintenance information in real time.
The Rittal SK 3124.300 IoT Interface is ideal for industrial automation, data centers, electrical cabinets, smart manufacturing, machine control systems, and applications requiring reliable enclosure climate control monitoring.
| Article no.: | SK 3124300 |
| Dimensions | 18 mm x 117 mm x 120 mm |
| Material | Plastic to UL 94-V0 |
| Color | RAL 7016 |
| Supply includes | IoT interface USB cable (USB A plug on a micro USB B plug) Angle bracket for Blue e+ cooling unit |
| Type of connection (electrical) | Push-in spring terminal (24 V DC) |
| Interface bus system | 2 x RJ45 CAN bus |
| Network interface |
|
| Mounting tip | The IoT interface can be secured using a spring-loaded metal clamp on a 35 x 7.5 top hat rail according to DIN EN 60715 or by means of an angle bracket on the rear of a Blue e+ cooling unit. |
| Note |
|
| Operating temperature range | 0 °C...70 °C ( 32 °F...158 °F ) |
| Protection category IP to IEC 60 529 | IP 20 |
| Packaging unit | 1 pc(s). |
| Net weight | 0.27 kg |
| Gross weight | 0.28 kg |
| Customs tariff number | 85369095 |
| EAN | 4028177924369 |
| ETIM 9 | EC001099 |
| ETIM 8 | EC001099 |
| ECLASS 8.0 | 27143136 |
| Interfaces | 1 × Micro USB type B (device) for USB 2.0 1 × Micro SD memory card slot for SD 2.0 1 × USB 2.0 high-speed functions (EHCI) 1 × acknowledgment button 1 × push-in spring terminal for NTC sensor 2 × RJ45 jack for RS 485 interface (climate control unit interface) |
| Protocols | OPC-UA SNMPv1 SNMPv2c SNMPv3 Modbus/TCP TCP/IPv4 TCP/IPv6 Radius Telnet SSH FTP SFTP HTTP HTTPS NTP DHCP DNS SMTP Syslog LDAP |
SK 3124300 IoT Interface Benefits
1.Plug-and-play commissioning via integrated web server
2.No PLC programming required for basic setup
3.Real-time monitoring of enclosure climate
4.Remote alarm notification
5.Predictive maintenance capability
6.Integration with existing factory networks
7.Supports Industry 4.0 digitalization initiatives
Blue e+ cooling units
Blue e cooling units, requiring the
SK 3124310 Blue e IoT Adapter
Chillers
Enclosure climate monitoring sensors
Factory automation systems
Energy management platforms
IT monitoring networks
Data center monitoring
Electrical control cabinet predictive maintenance
For a complete enclosure monitoring solution, the SK 3124300 IoT Interface is commonly used together with:
1.Rittal Blue e+ Cooling Units – Intelligent enclosure cooling with energy-efficient inverter technology.
2.Rittal CMC III Monitoring System – Centralized monitoring platform for enclosure infrastructure.
3.Temperature Sensors – Continuous cabinet temperature monitoring.
4.Humidity Sensors – Detect excessive humidity and condensation risks.
5.Door Contact Sensors – Monitor unauthorized cabinet access.
6.Leakage Sensors – Detect coolant or water leakage before equipment damage occurs.
The SK 3124300 IoT Interface is fully compatible with Rittal Blue e+ cooling units.

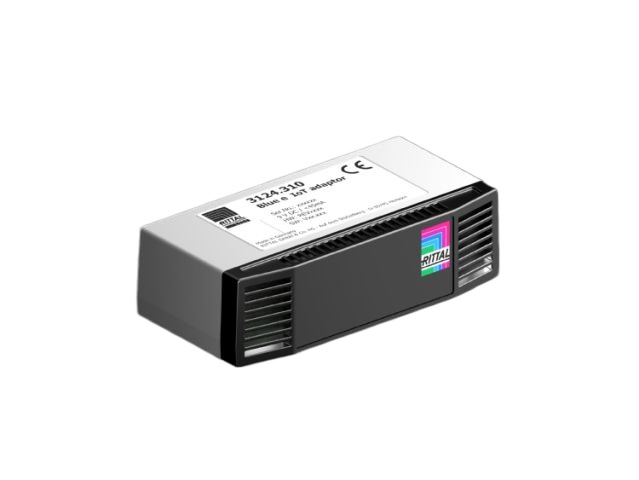

For legacy Blue e cooling units, an additional Blue e IoT Adapter (3124.310) is required to enable communication with the IoT Interface and connect older cooling systems to modern industrial Ethernet networks.
Accessories
Need Pricing or Technical Support?
Our engineers can help you:
Approvals
FAQ
1 Q:What role does SK 3124300 play in the system?
A: The SK 3124300 IoT Interface functions as the central communication interface. It collects and transmits data from one or multiple SK 3124310-equipped cooling units into SCADA, PLC, or other industrial monitoring systems.
2.Q: How does the SK 3124300 + SK 3124310 system work in industrial enclosure cooling monitoring solutions?
A: In Rittal industrial enclosure cooling monitoring solutions, the SK 3124310 modules connect individual Blue e cooling units, while the SK 3124300 IoT Interface aggregates and standardizes the data for remote monitoring, predictive maintenance, and system integration.
3.Q: What systems can the combined solution integrate with?
A: The SK 3124300 + SK 3124310 setup can integrate with SCADA, PLC, DCS, and building management systems (BMS), enabling centralized industrial cooling system monitoring and control.
4.Q: Is this combination suitable for multi-cabinet monitoring?
A: Yes. The SK 3124300 IoT Interface combined with multiple SK 3124310 adapters is designed for multi-cabinet or multi-cooling-unit monitoring in industrial automation environments.
5.Q: Purchase Note
A: Rittal SK 3124300 IoT Interface and SK 3124310 Blue e IoT Adapter, original genuine products, in-stock supply available. Suitable for industrial enclosure cooling monitoring, IoT retrofit upgrades, and centralized system integration. Contact us for pricing and bulk purchase solutions.
High-efficiency Blue e Wall-Mounted Cooling Units, from 300W to 4000W cooling capacity, to meet your cooling demands. Ideal for industrial plants, buildings, IT data centers, laboratories, offices and more. The units with cooling capacities above 1000W are fitted with integrated electric refrigerant evaporator, delivering energy-efficient cooling. Two types available: slim and horizontal types, to meet various installation needs. Contact us now to learn more
Read More
Revolutionary energy efficiency through innovative hybrid technology. Average 75% energy saved due to speed-regulated components and heat pipe technology. Unique multi-voltage capability for worldwide use. Intuitive operation via touch display.
Read More
The robust stainless steel housings feature an integrated cam system that allows for extensive system expansion without drilling, quickly and securely.
Read More
Enclosure with door of sheet steel, spray-finished with mounting plate and gland plate in the base Protection category up to IP 66.
Read More
The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Read More
Blue e+ chillers are efficient, flexible and compact. The cooling water is centrally cooled, supplying the air/water heat exchanger and other systems an efficient cooling solution. Up to 70% energy saved due to speed-regulated components and inverter technology. International approvals and multi-voltage capability for worldwide use. Intuitive operation using touch display and intelligent communication interfaces ensure convenient operation and analysis.
Read More
Secure accommodation of all PC components, from monitors, to PCs and keyboards. Extremely simple to use and modern design. Complete protection from humidity and dirt, temperature fluctuations and unauthorized access.
Read More

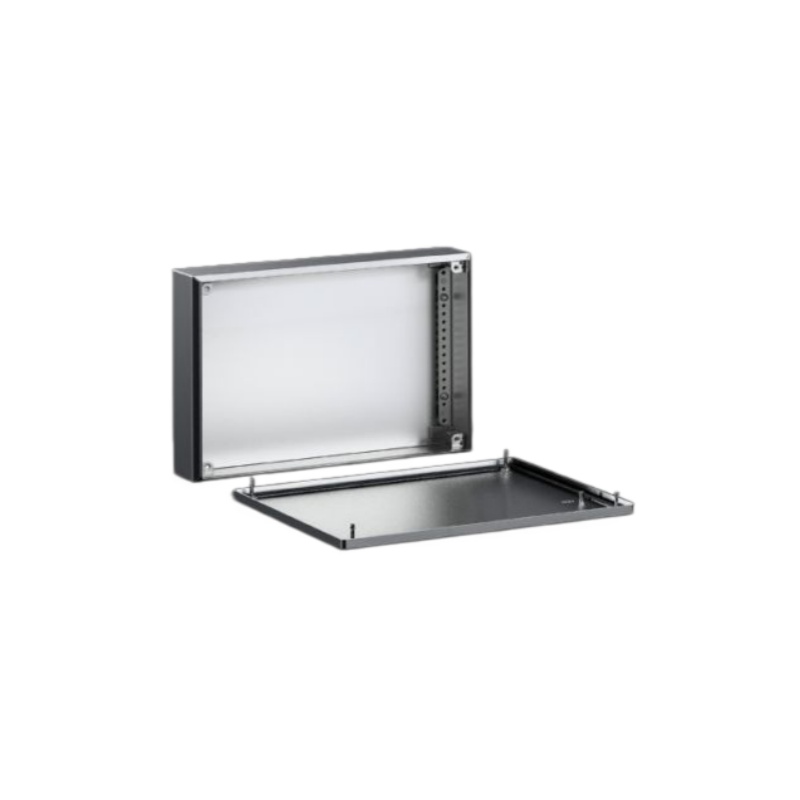

The KX small enclosure stainless steel offers maximum data quality and consistency in engineering, flexibility, and safety for a variety of applications
