In conjunction with the IoT interface (3124.300), the adapter enables the intelligent networking of the Blue e cooling units.
Item No :
SK 3124310Order(MOQ) :
1 pc(s).Color :
Front: RAL 9005 / Housing: RAL 7035Weight :
0.18 kgETIM 8 :
EC001099ETIM 9 :
EC001099

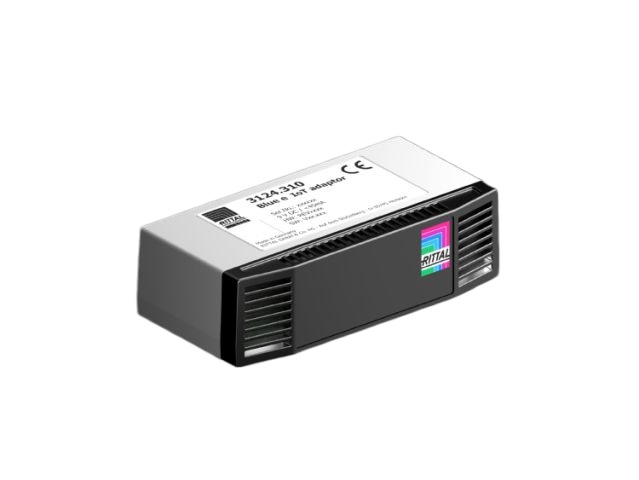

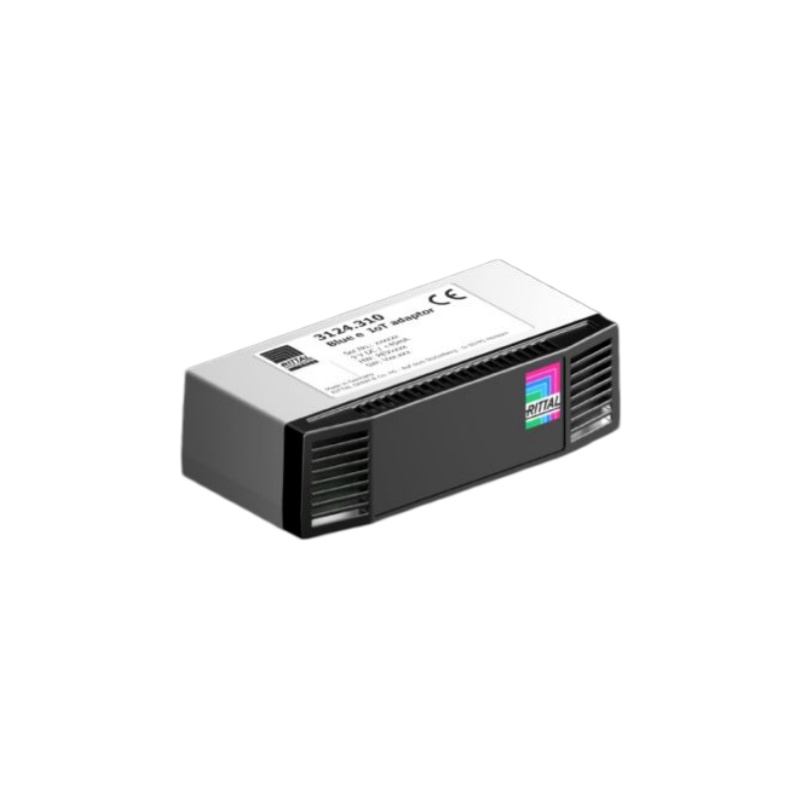

Rittal Blue e remote monitoring adapter 3124310
SK 3124310 connects compatible Rittal Blue e cooling units with an e-Comfort controller to the SK 3124300 IoT Interface. It transfers cooling-unit data, operating states and system messages. The adapter and the IoT Interface have different roles; this adapter is not a standalone Ethernet gateway.
Before ordering, confirm the cooling-unit article number, controller type, existing IoT Interface and the monitoring system you intend to connect.
| Article no. | SK 3124310 |
| Dimensions | 80 x 30 x 40 mm |
| Material | Plastic Front: Smooth Housing: Textured |
| Color | Front: RAL 9005 Housing: RAL 7035 |
| Interfaces | 1 x Modbus RTU
|
| Operating temperature range |
|
| Operating temperature range | 0 °C...55 °C ( 32 °F...131 °F ) |
| Protection category IP to IEC 60 529 | IP 30 |
| Packaging unit | 1 pc(s). |
| Net weight | 0.18 kg |
| Gross weight | 0.2 kg |
| Customs tariff number | 85176200 |
| EAN | 4028177939059 |
| ETIM 9 | EC001099 |
| ETIM 8 | EC001099 |
| ECLASS 8.0 | 27143136 |
Blue e IoT Adapter 3124.310 Benefits
Digitization and networking create significant value for industrial operations. In combination with the IoT Interface (3124.300), Blue e Series cooling units can be seamlessly integrated into Industry 4.0 environments without interfering with existing automation logic.
The system supports true plug-and-play deployment: the IoT interface can be quickly configured and commissioned via its integrated web server, requiring no additional programming effort.
It enables condition monitoring for up to 10 cooling units in a master/slave configuration, providing centralized visibility and improved operational transparency across connected systems.
SK 3124.310 Supply Includes
1.Blue e IoT Adapter
2.Installation and Short User's Guide
3.Mounting Bracket
4.Mounting accessories
5.Sub-D on RJ11 connecting cables, length 150 mm
6.Mounting clips for securing top-hat rails
Check the complete cooling-unit article number and confirm that it has an e-Comfort controller. The model families below are listed on the manufacturer’s product page; the suffixes describe variants and are not complete order numbers.
3303.5/6xx; 3304.5/6xx; 3305.5/6xx; 3328.5/6xx; 3329.5/6xx; 3332.5/6xx; 3361.5/6xx; 3366.5/6xx; 3377.5/6xx; 3307.7xx; 3310.7xx; 3382.5/6xx; 3359.5/6xx; 3383.5/6xx; 3273.500; 3384.5/6xx; 3385.5/6xx; 3386.5/6xx; 3387.5/6xx; 9776.550
A Blue e label alone is insufficient confirmation. For Blue e+ equipment, check its own IoT connection requirements rather than automatically adding this adapter.
Send the cooling-unit nameplate and controller photo for a compatibility check.
| Component | Role | Ordering decision |
|---|---|---|
| SK 3124310 Blue e IoT Adapter | Connects compatible e-Comfort cooling units to the IoT Interface. | Check whether it is required for the installed Blue e unit. |
| SK 3124300 IoT Interface | Collects and forwards data to the network or monitoring system. | Confirm whether an interface is already installed or must be ordered separately. |
The adapter lists Modbus RTU and a cooling-unit interface. Network functions such as OPC-UA, SNMP, Modbus/TCP and web configuration belong to the IoT Interface. Confirm the target PLC/SCADA protocol, available data and configuration requirements before specifying the system.
Web commissioning of the IoT Interface does not mean that every PLC or SCADA integration is ready without data mapping or configuration.
Our Factory
FAQ
1Q: Can I retrofit my existing cooling unit?
A: Check its full article number and controller type first. Send the nameplate and controller photo; the Blue e series name alone does not confirm compatibility.
A: No. For the documented arrangement, you also need a compatible IoT Interface, its power supply and the required connections. Confirm what is already installed before ordering.
A: Do not assume this from the connector shape. The documented path uses SK 3124300; check the PLC protocol and data requirements against the interface documentation.
A: Confirm the layout first. A documented master/slave arrangement differs from independently connected units, so calculate the adapter and cable quantities from the actual system design.
A: Check device compatibility, interface firmware, cable connections and power. Then use the manual’s LED indications and troubleshooting guidance to locate the issue.
A: Send cooling-unit article numbers, controller photos, unit quantity, existing interface and firmware details, target monitoring system, cable distances and delivery destination.
