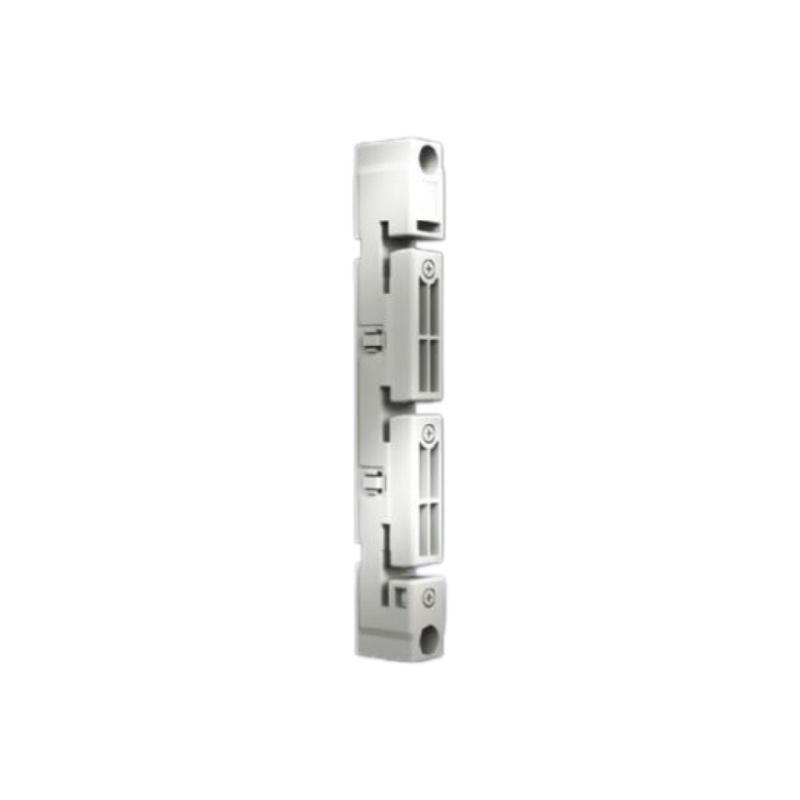

For PLS special busbars 800 A/1600 A, 3-pole and 4-pole Suitable for top mounting, depending on the variant. Busbar supports suitable for switchgear, power distribution cabinets, and industrial control cabinets.
Item No :
SV 9342000 / 9342050Order(MOQ) :
4 pc(s).Color :
RAL 7035ETIM 9 :
EC001166
PLS busbar support bracket is mainly used to support and secure PLS special-shaped copper busbars. PLS Busbar Supports provides insulation, support, and resistance to electrodynamic forces caused by short circuits inside distribution cabinets. It is widely used in industrial control cabinets, low-voltage switchgear (such as systems compliant with IEC 61439 standards), and power distribution centers.
| Article no. | Number of poles | Suitable for busbars | UL approval |
| SV 9341000 | 3-pole | PLS 800 | / |
| SV 9342000 | 3-pole | PLS 1600 | / |
| SV 9341050 | 3-pole | PLS 800 | Yes |
| SV 9342050 | 3-pole | PLS 1600 | Yes |
1. PLS 800/1600 supports are specially designed for Rittal's special-profile PLS busbars (L/I-shape).
2. Drill-free connection for PLS busbar supports.
3. Made of premium PA 6.6-GF30, featuring high temperature resistance, flame retardancy (UL 94-V0), and exceptional tracking resistance.
4. Enhanced mechanical design firmly locks busbars to prevent deformation or displacement under short-circuit stresses.
5. Standard 60 mm bar center-to-center distance (3-pole system).
Download SV.050 UL+C-UL Certificate (PDF)

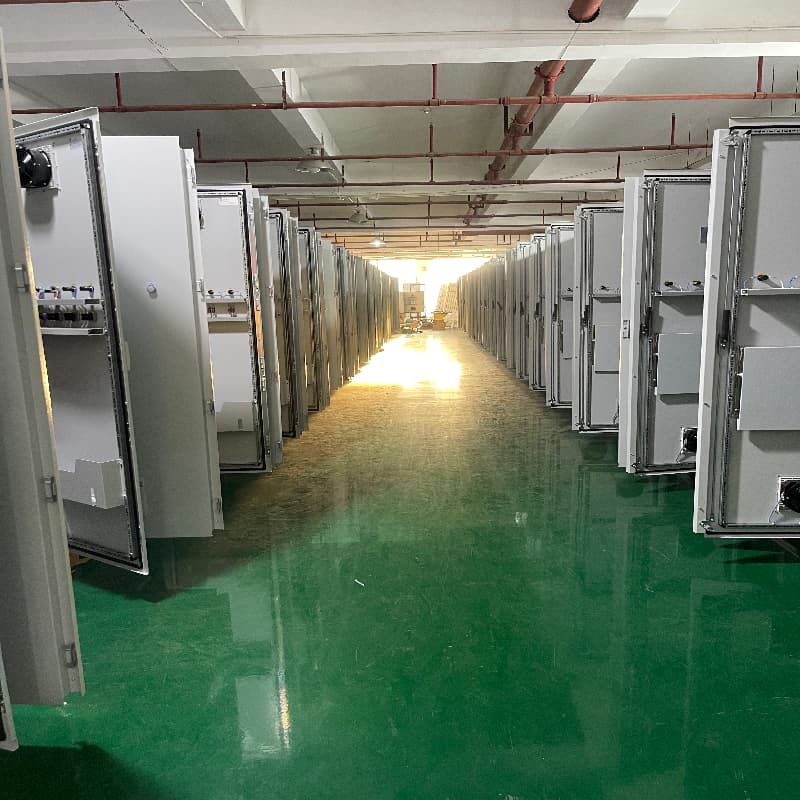

Our Factory
FAQ
A:We are Xiamen Suwei Automation Technology Co., Ltd., established in January 2010, headquartered in Xiamen, Fujian, China. We specialize in industrial automation and are committed to providing efficient and innovative automation solutions to meet a variety of customer needs, serving clients globally.
A: You can purchase a variety of industrial automation products from us, including:
1. Low-voltage electrical and industrial control equipment
2. Automation electrical products
3. Touchscreens and relay devices
4. Industrial automation engineering solutions
We provide one-stop services to meet the needs of various industries and customers.
A: Often yes, if the replacement matches the original dimensions, insulation rating, and mounting pattern. Confirm compatibility before re-energizing the system.
A: Ask for review when the busbar carries high fault current, runs in a harsh environment, uses unusual geometry, or must meet a specific standard or certification.
