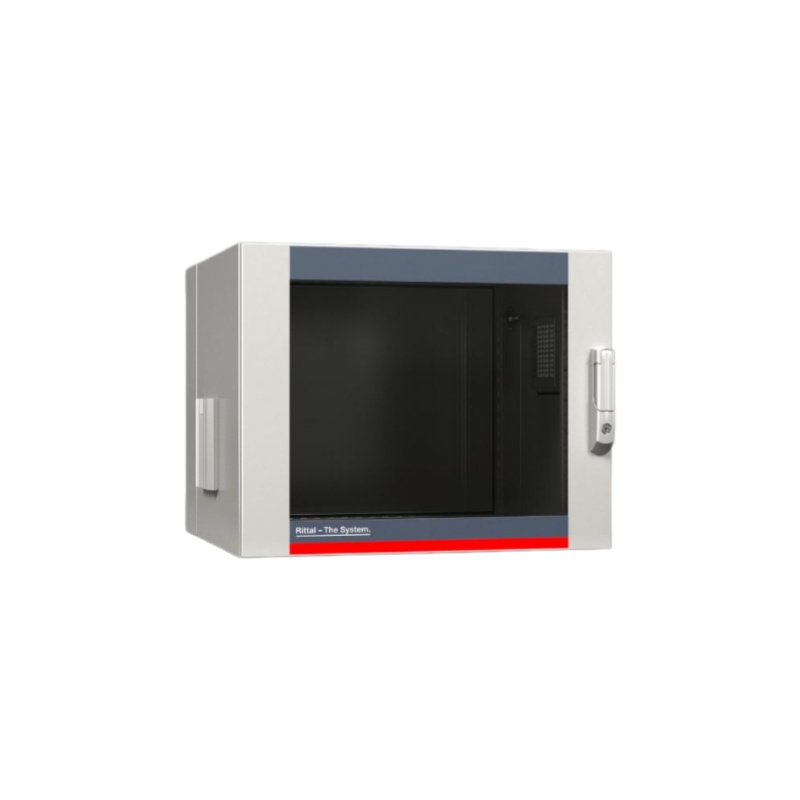

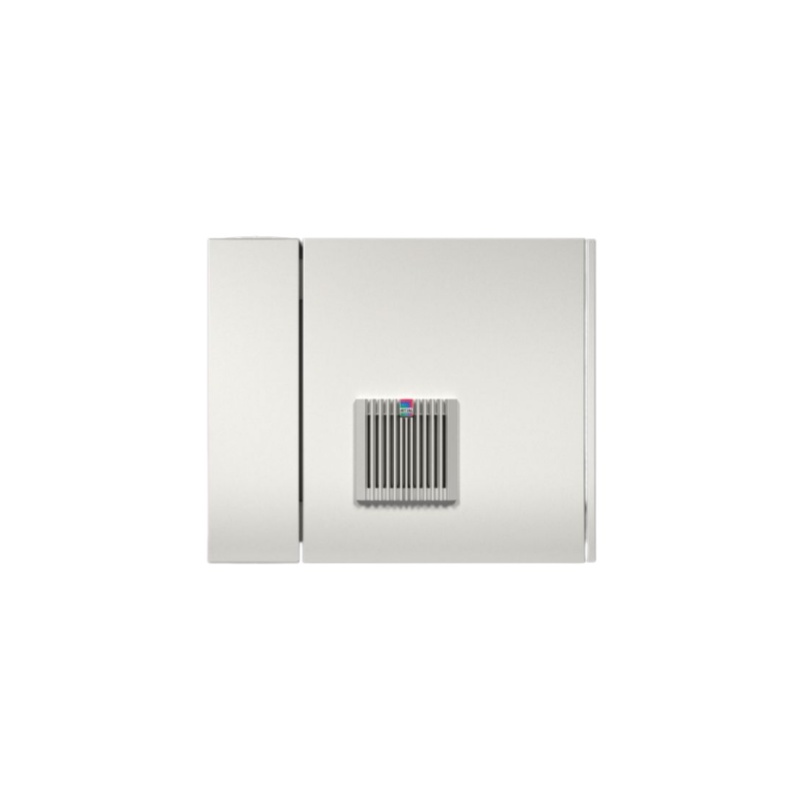

AX wall-mounted housing, 3-part with Blue e+ outlet filter

Supply includes

Wall section: Supplied with solid top and bottom gland plates for cable entry and installation flexibility.

Hinged section: Equipped with 25 mm pitch mounting pattern on the front and rear frame, including two fixed 19-inch mounting profiles at the front.

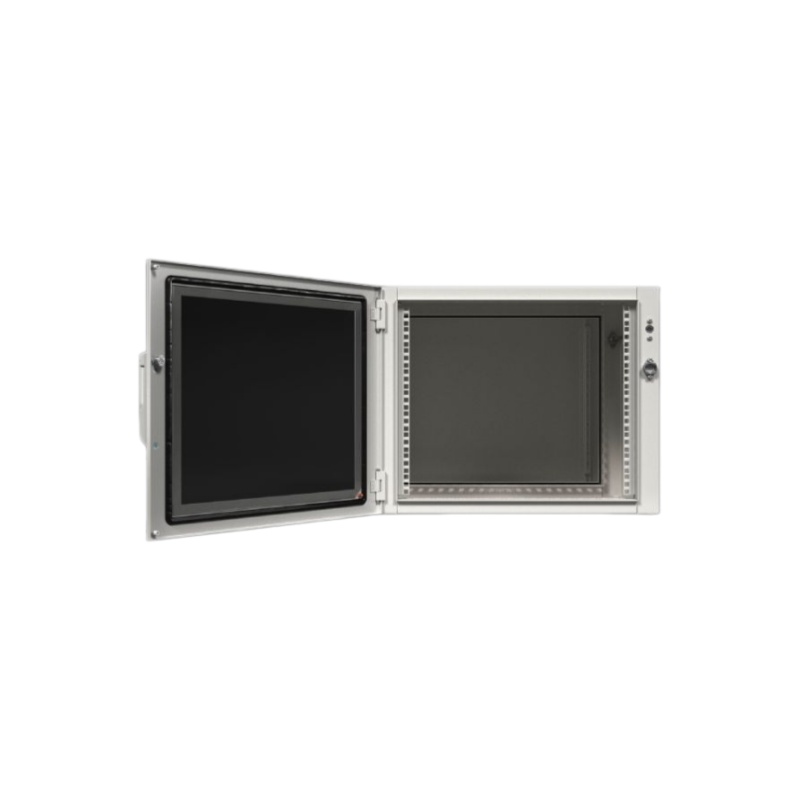

Designer viewing door: Transparent viewing door for convenient equipment monitoring and status inspection.

Locking system:

   a:Glazed door with security lock 3524 E

   b:Center section with 3 mm double-bit lock

Cooling components: Includes 2 × Blue e+ outlet filters 3238.300 supplied separately for enclosure ventilation and thermal management.

Comfort handle: Ergonomic handle compatible with lock inserts and integrated 2-point locking system for secure enclosure access.

Benefits of AX Wall Mounted Electrical Enclosure(3-Piece Design)

Flexible interior installation with mounting plates and rails

The AX wall-mounted enclosure supports flexible internal installation with mounting plates and mounting rails.

The modular interior design allows electrical components and control equipment to be arranged according to different installation requirements. Mounting plates from different accessory systems can be integrated to expand the installation options.

The rear section of the AX wall-mounted enclosure is equipped with perforated mounting strips with U-profile and system punchings.

The 25 mm pitch pattern allows flexible positioning of mounting rails and accessories, providing convenient configuration options for internal component installation.

The AX enclosure provides an adjustable 19-inch mounting position with a variable installation depth.

The 482.6 mm (19-inch) mounting angles are installed in the front section of the enclosure and can be adjusted according to internal space requirements.

The 19-inch mounting angles can be rotated through 180° and fixed in different positions.

This design allows additional installation space and improves flexibility when arranging internal components.

The mounting angles can be installed at different depths using the adjustable mounting system.

The flexible depth configuration allows the enclosure to accommodate different equipment sizes and internal installation layouts.

Applications

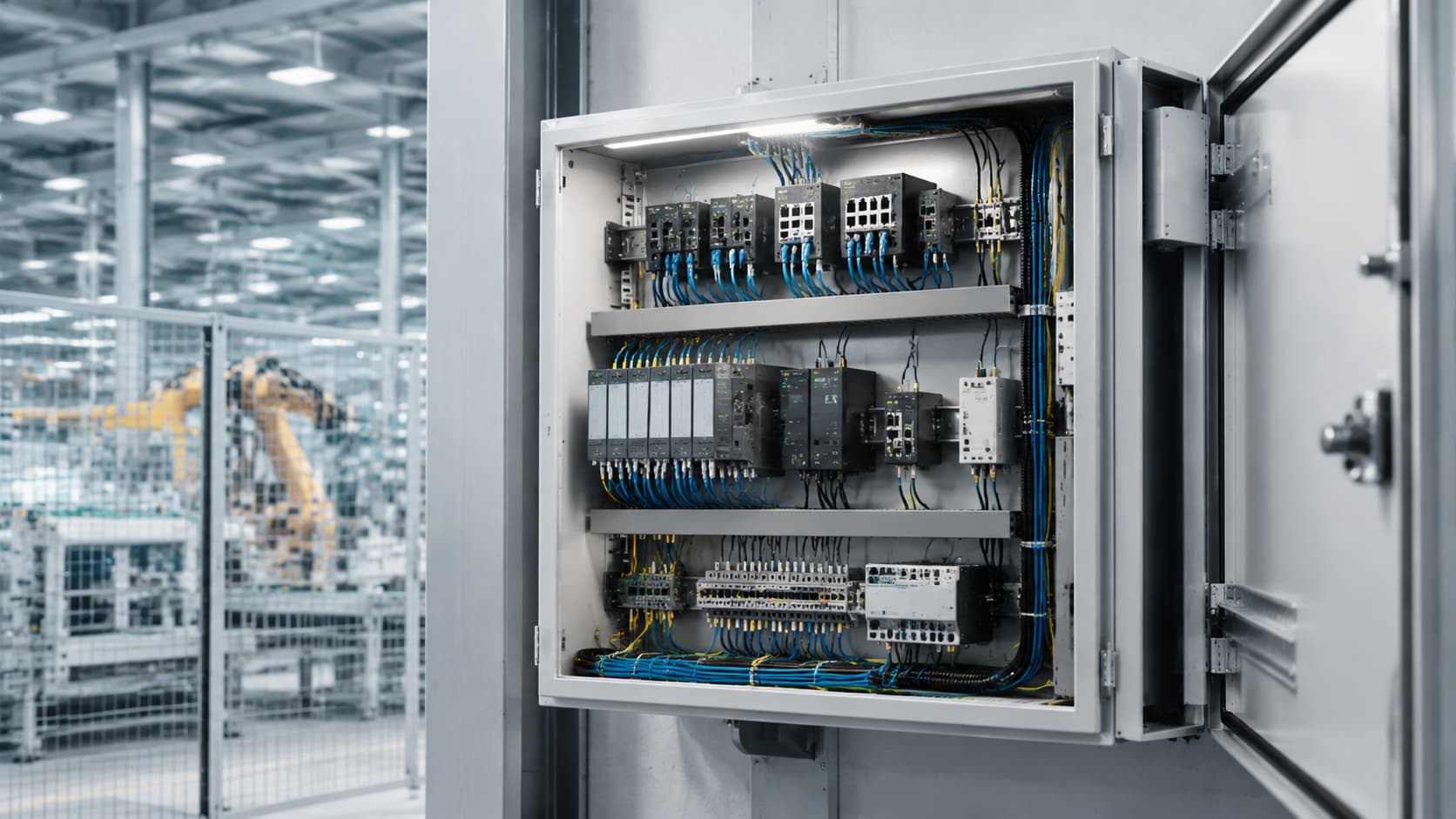

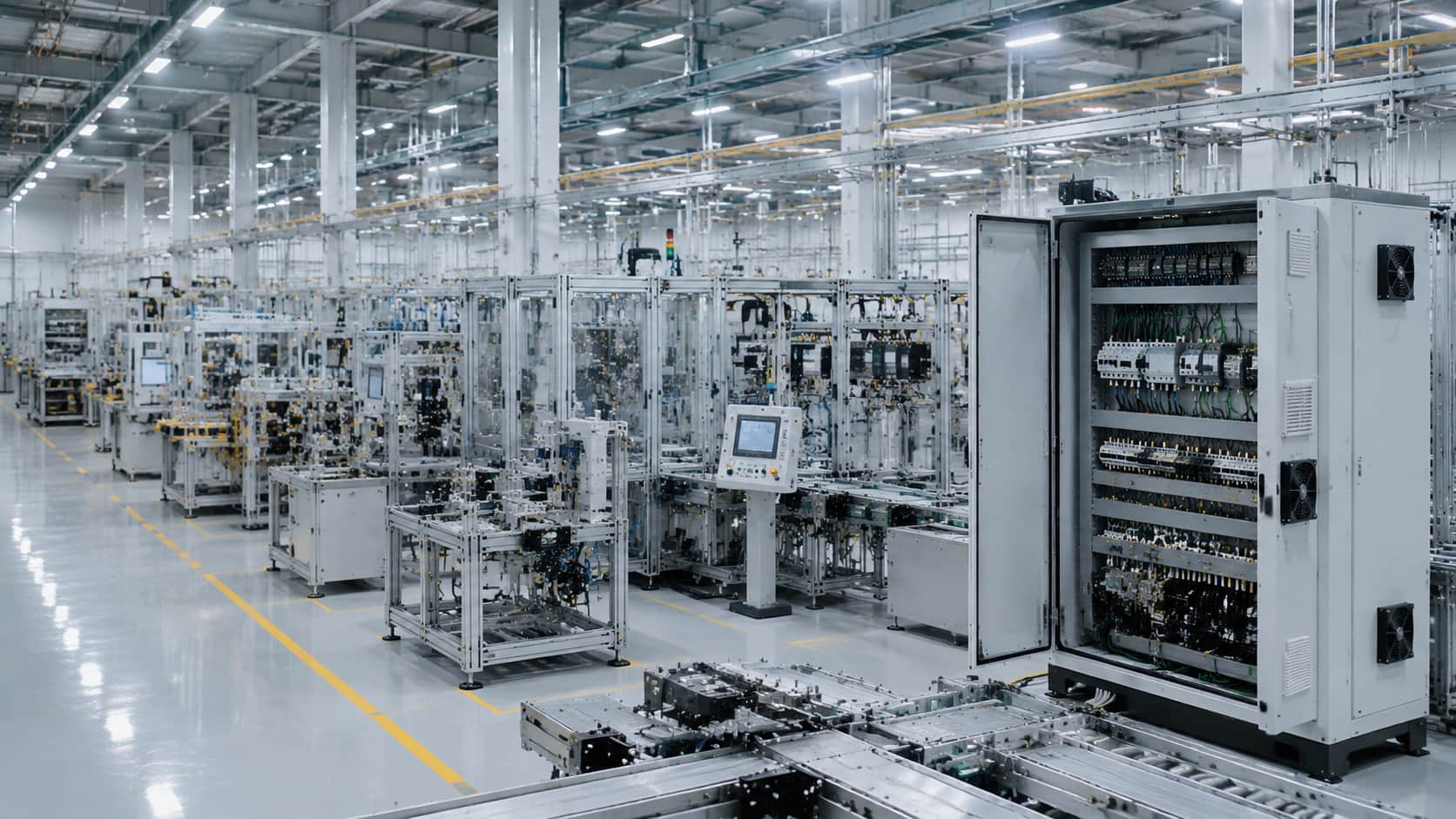

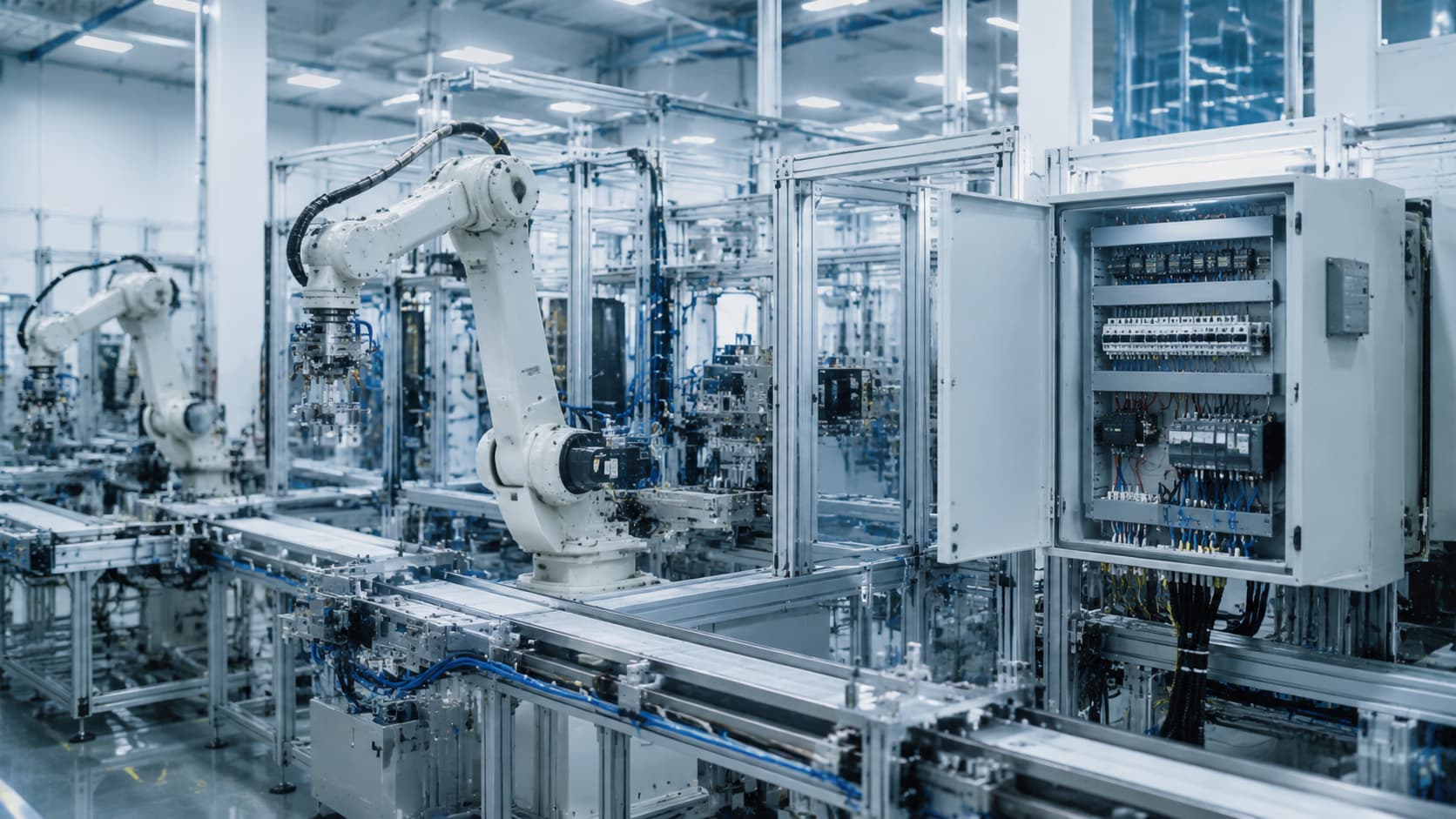

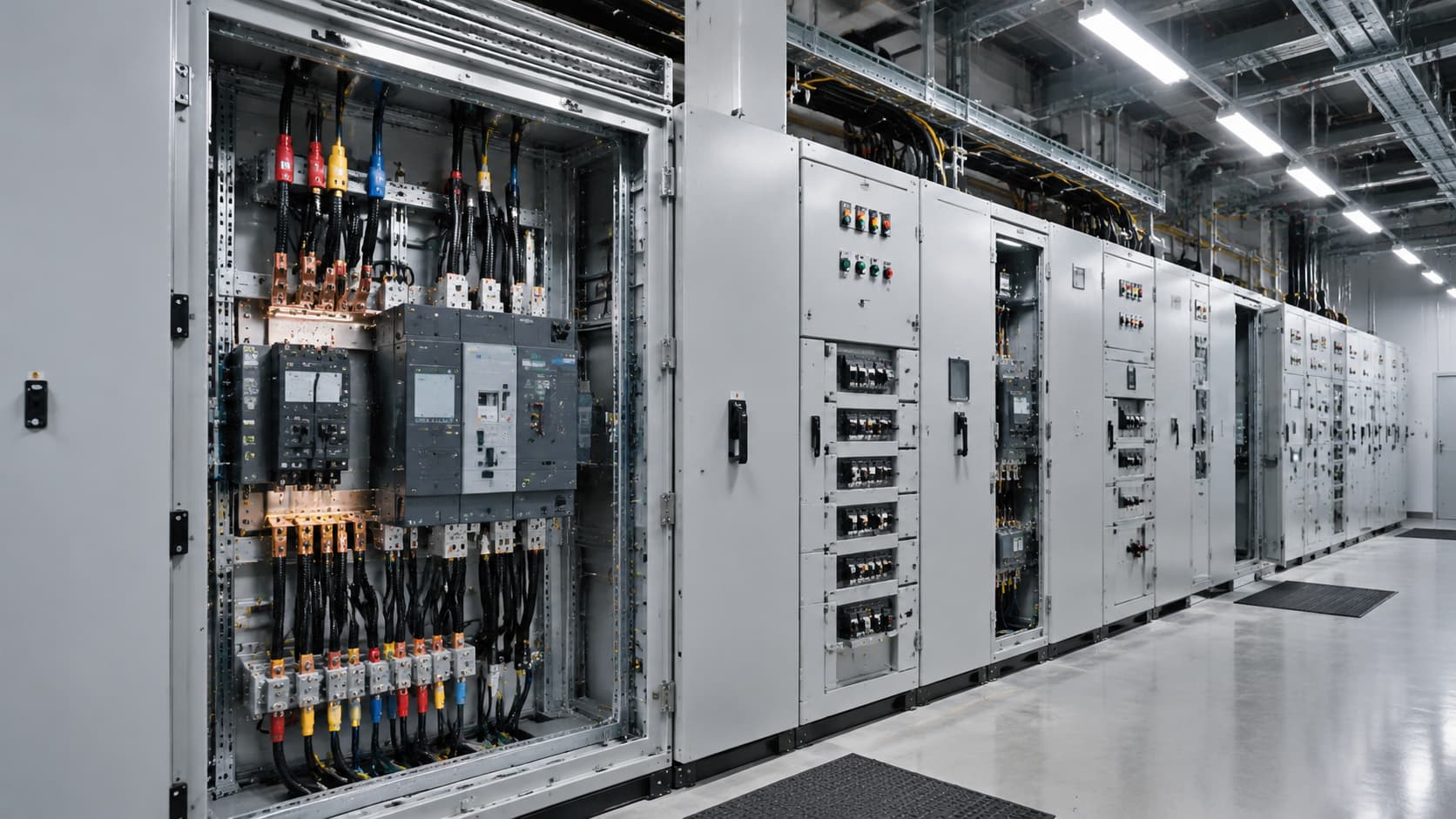

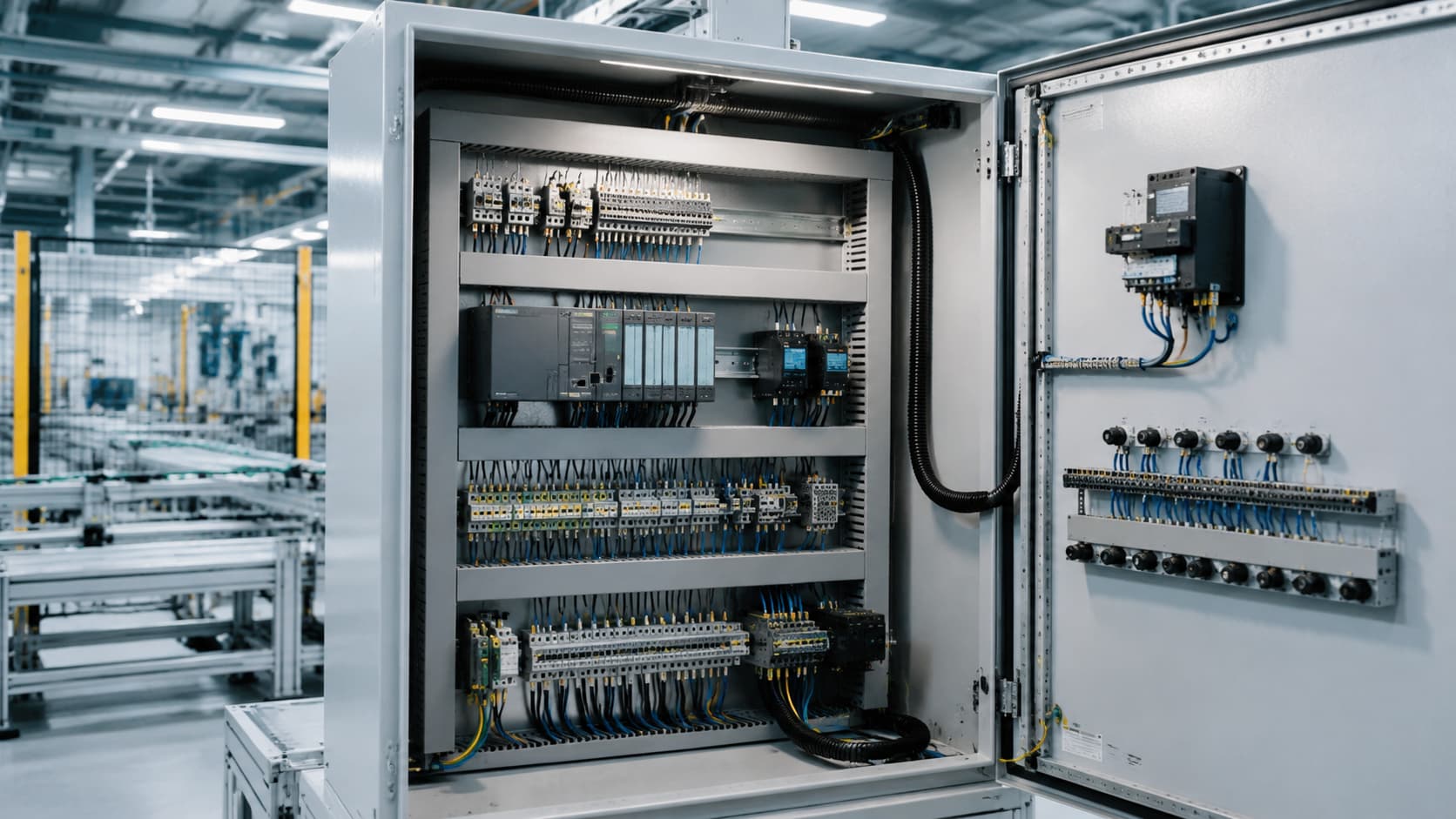

The AX wall-mounted electrical enclosure is designed for industrial automation, machine building, electrical control, and industrial communication applications. It provides reliable protection, flexible installation, and thermal management solutions for different industrial environments.

How to Select the Right Model

Check the required IP rating based on dust, moisture, and installation conditions.

Select the enclosure size according to the number of components, mounting requirements, cable routing space, and possible future expansion.

Choose the appropriate protection rating based on the installation environment, including dust exposure, moisture conditions, and factory operating requirements.

Consider the heat generated by components such as PLCs, power supplies, drives, and communication modules. For higher heat loads, Blue e+ outlet filters or additional cooling solutions can help maintain proper operating temperatures.

Select suitable accessories based on the application requirements, including mounting plates, DIN rails, cable management systems, and 19-inch equipment mounting options.

Choose the door type and access configuration according to visibility requirements, maintenance frequency, and security needs.

Downloads

Approvals

Supply & Support

Suwi provides original Rittal products with technical support, product selection assistance and enclosure customization services for industrial automation applications.

Our Factory

SUWIAUTO provides industrial enclosure solutions for automation systems, electrical control applications, and equipment manufacturers. We support customers with product selection, technical consultation, customization requirements, and reliable supply.

Besides supplying Rittal original components, Suwi provides enclosure customization, modification, assembly and automation integration services.

FAQ

Q1: Can the AX wall-mounted enclosure be installed in limited spaces?

A: Yes. The compact wall-mounted design is suitable for applications where floor space is limited, while still providing sufficient space for electrical components and cable routing.

Q2: How easy is it to install and maintain the AX enclosure?
A: The 3-part design allows easier access to internal components, making installation, wiring, inspection, and maintenance more convenient.

Q3: Does the AX enclosure require additional cooling?
A: Cooling requirements depend on the heat generated by internal components. Models with Blue e+ outlet filters improve airflow and help reduce heat accumulation inside the enclosure.

Q4: Can AX enclosures be customized with accessories?
A: Yes. AX enclosures support various accessories, including mounting plates, DIN rails, cable management solutions, and 19-inch equipment installation components.
