Suwi supplies Rittal SV 9340 OM adapters with connection cables for 60mm busbar systems. Check current ratings, dimensions, compatibility and request a bulk quote.
Item No :
SV 9340Version :
With connection cableMaterial :
Polyamide / Fire protection corresponding to UL 94-V0Color :
Chassis: RAL 7035Approvals :
ULETIM 9 :
EC001531

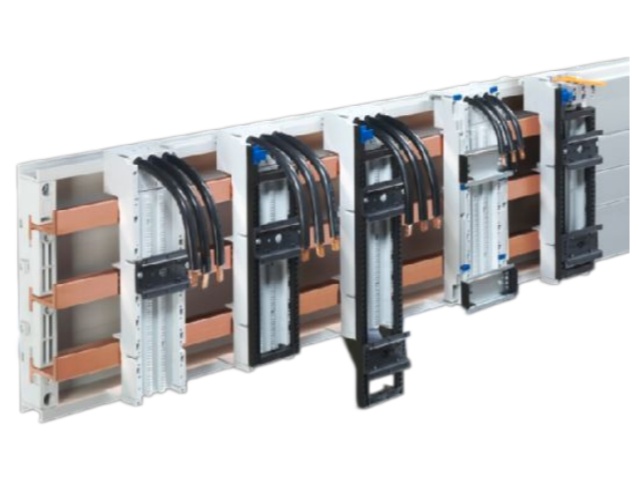

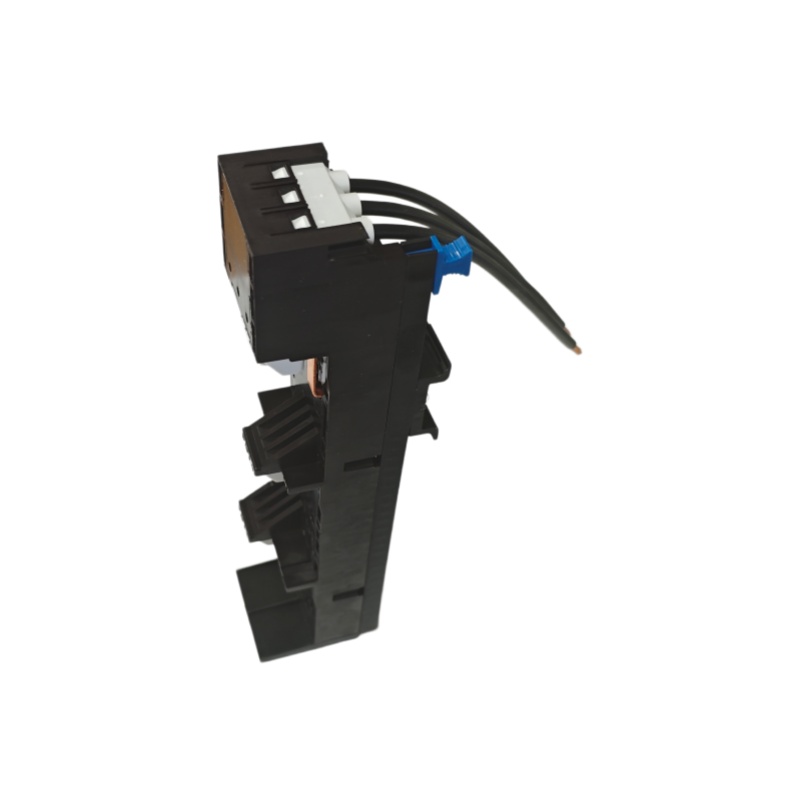

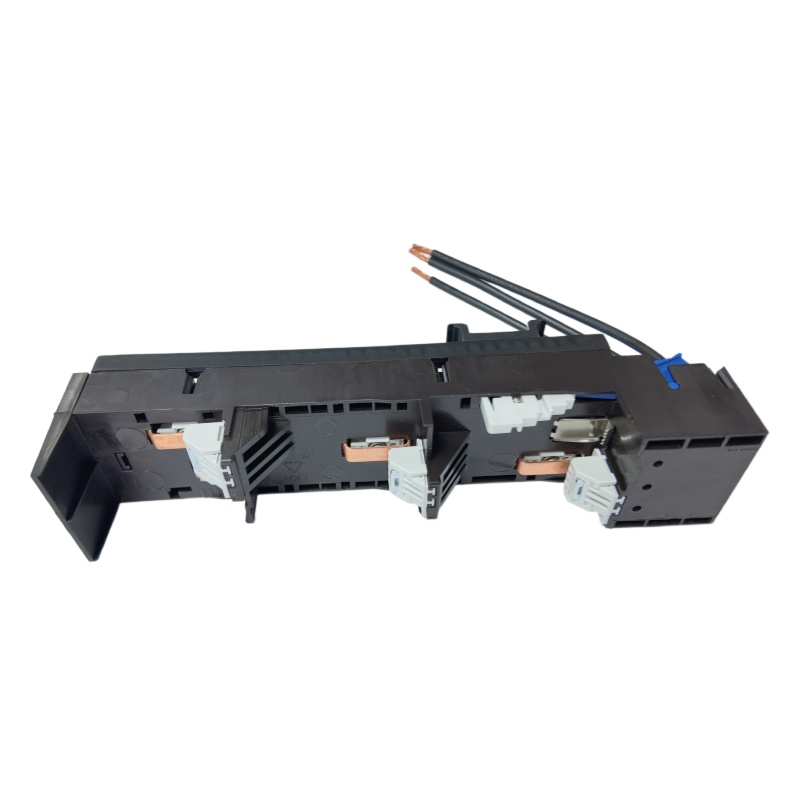

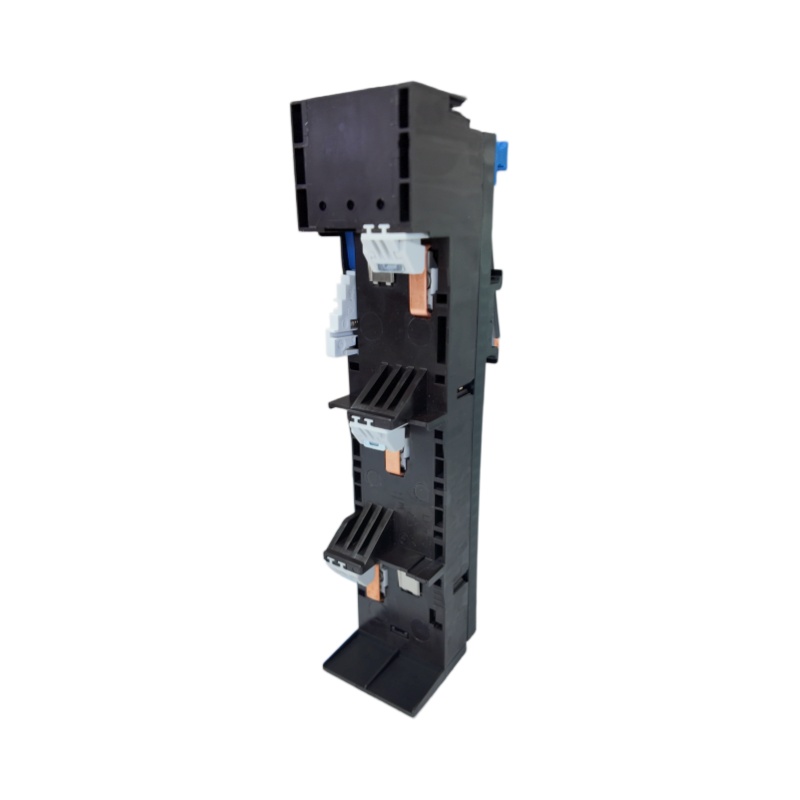

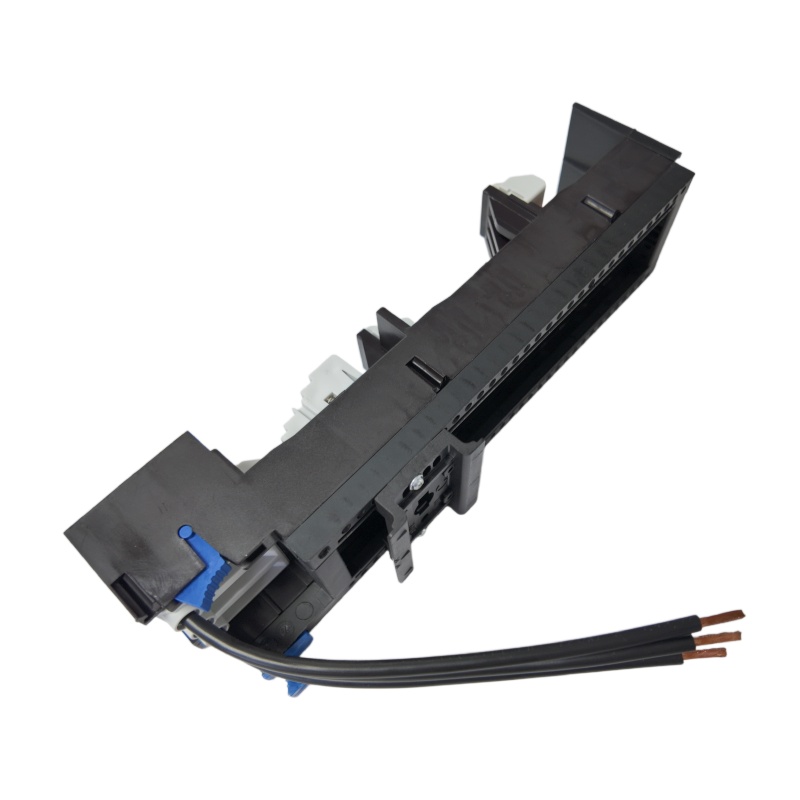

Rittal OM Adapter with Connection Cables with connection cables is a modular power distribution adapter for RiLine 60 mm busbar power distribution systems in industrial control enclosures. The fibreglass-reinforced polyamide (PA 6.6) adapter is designed in a screwless, snap-on style to provide direct power tapping from 3-phase copper busbars and has a flame retardant rating that meets the UL 94-V0 standard. Standard DIN rail and pre-assembled heat resistant AWG connection cables are mounted on the front side.
OM adapter with Connection Cables, which connects the busbars with motor circuit breakers made by Siemens, Schneider and ABB, is a mechanical-and-electrical combination that saves space in the enclosure and enhances assembly time and safety while operating equipment.
| Article no. | Rated current max. | Width | PinBlock | Support rails Qty | Support frame height | Support frame support |
| SV 9340310 | 25A | 45 mm ( 1.77 ˝ ) |
/ | 1 | / | / |
| SV 9340320 | 25A | 45 mm ( 1.77 ˝ ) |
/ | 2 | / | / |
| SV 9340340 | 25A | 45 mm ( 1.77 ˝ ) |
/ | 1 | 170 mm ( 6.69 ˝ ) |
/ |
| SV 9340350 | 32A | 45 mm ( 1.77 ˝ ) |
/ | 1 | 170 mm ( 6.69 ˝ ) |
/ |
| SV 9340370 | 25A | 45 mm ( 1.77 ˝ ) |
Yes | 1 | 170 mm ( 6.69 ˝ ) |
/ |
| SV 9340380 | 32A | 45 mm ( 1.77 ˝ ) |
/ | 2 | 170 mm ( 6.69 ˝ ) |
/ |
| SV 9340390 | 32A | 45 mm ( 1.77 ˝ ) |
/ | 2 | 237 mm ( 9.33 ˝ ) |
Yes |
| SV 9340400 | 25A | 90 mm ( 3.54 ˝ ) |
/ | 3 | 170 mm ( 6.69 ˝ ) |
/ |
| SV 9340410 | 65A | 55 mm ( 2.17 ˝ ) |
/ | 1 | / | / |
| SV 9340430 | 65A | 55 mm ( 2.17 ˝ ) |
/ | 1 | 170 mm ( 6.69 ˝ ) |
/ |
| SV 9340450 | 65A | 55 mm ( 2.17 ˝ ) |
/ | 2 | 237 mm ( 9.33 ˝ ) |
Yes |
| SV 9340460 | 32A | 55 mm ( 2.17 ˝ ) |
/ | 1 | 170 mm ( 6.69 ˝ ) |
/ |
| SV 9340470 | 32A | 55 mm ( 2.17 ˝ ) |
/ | 2 | 170 mm ( 6.69 ˝ ) |
/ |
| SV 9340700 | 65A | 75 mm ( 2.95 ˝ ) |
/ | 1 | / | / |
| SV 9340710 | 40A | 75 mm ( 2.95 ˝ ) |
/ | 2 | / | / |
| SV 9340720 | 40A | 55 mm ( 2.17 ˝ ) |
/ | 1 | 170 mm ( 6.69 ˝ ) |
/ |
| SV 9340730 | 40A | 55 mm ( 2.17 ˝ ) |
/ | 2 | 237 mm ( 9.33 ˝ ) |
Yes |
| SV 9340740 | 40A | 55 mm ( 2.17 ˝ ) |
/ | 2 | / | / |
| SV 9340750 | 40A | 55 mm ( 2.17 ˝ ) |
/ | 1 | / | / |
| SV 9340760 | 16A | 45 mm ( 1.77 ˝ ) |
Yes | 1 | 237 mm ( 9.33 ˝ ) |
Yes |
| SV 9340770 | 32A | 45 mm ( 1.77 ˝ ) |
Yes | 1 | 237 mm ( 9.33 ˝ ) |
Yes |
| SV 9340780 | 16A | 45 mm ( 1.77 ˝ ) |
/ | 2 | 170 mm ( 6.69 ˝ ) |
/ |
| SV 9340790 | 32A | 45 mm ( 1.77 ˝ ) |
/ | 2 | 170 mm ( 6.69 ˝ ) |
/ |
Rittal circuit breaker adapter Feature :
Plug & Play (Time Saving): Prefabricated with internal contacts and external leads out of the box. Eliminates manual cutting, stripping, and crimping, reducing panel assembly time by over 50%.
Maintenance-Free Connection: Features premium vibration-proof spring clamp technology. Factory-tested for pull-out force and contact resistance, eliminating risks of loose screws, poor contact, or loose joints.
Premium Materials: Made of high-strength, flame-retardant plastic (UL 94-V0 rated). Ensures superior mechanical stability and safety even under high short-circuit currents.
Fully Compliant Design: Pre-wired conductors are precisely matched to rated currents (16A / 32A / 65A) with optimized cross-sections (AWG/mm²) and temperature resistance.
Global Certifications: Fully certified with UL.

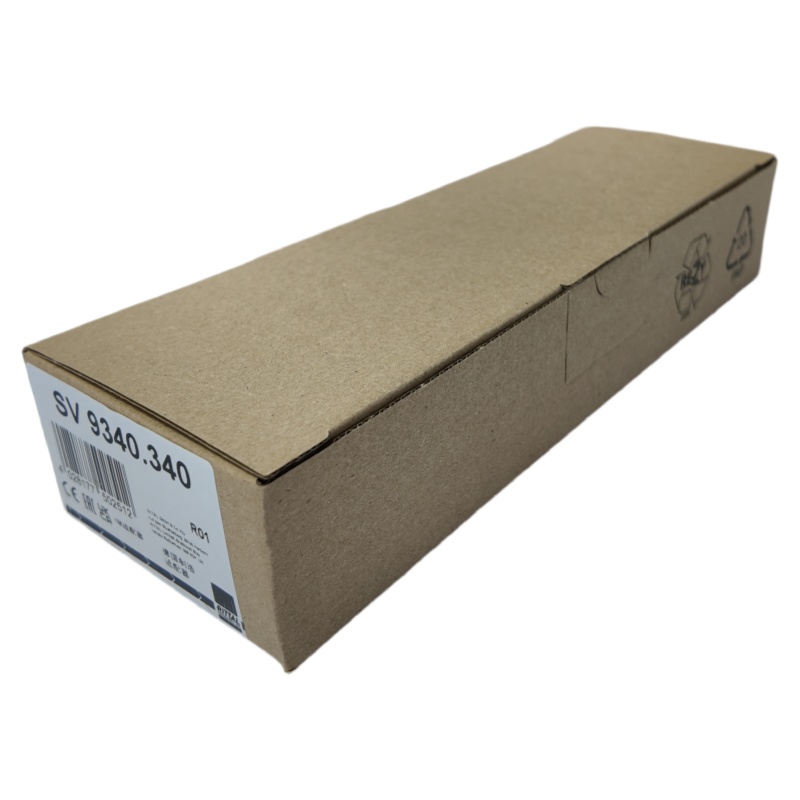

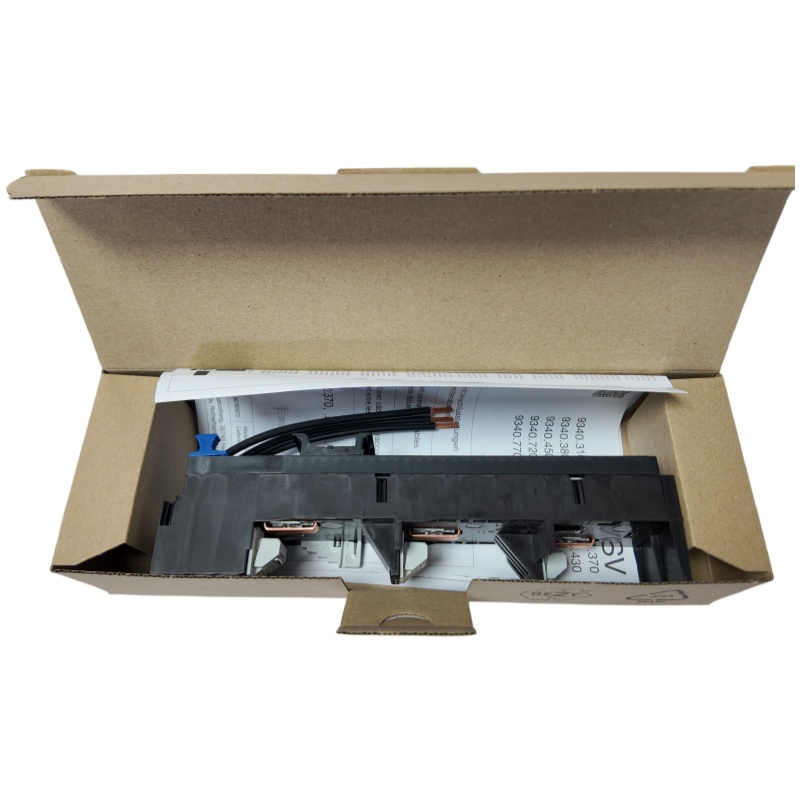

Product Packing
 |
 |
B2B Supply Information:
MOQ: Contact us for project quantity or sample order.
Lead Time: Depends on model and stock availability.
Documents: Datasheet and product information can be provided.
Packing: Standard export packing for industrial electrical components.
Service: Model selection, compatibility checking, and bulk quotation support are available.
Our Factory
A:We are Xiamen Suwi Automation Technology Co., Ltd., established in January 2010, headquartered in Xiamen, Fujian, China. We specialize in industrial automation and are committed to providing efficient and innovative automation solutions to meet a variety of customer needs, serving clients globally.
A: You can purchase a variety of industrial automation products from us, including:
1. Low-voltage electrical and industrial control equipment
2. Automation electrical products
3. Touchscreens and relay devices
4. Industrial automation engineering solutions
We provide one-stop services to meet the needs of various industries and customers.
3 Q: What is the OM Adapter SV 9340 used for?
A: It is used to connect circuit breakers and electrical components to 60mm busbar power distribution systems inside control cabinets or switchgear panels.
4 Q: Is this OM adapter compatible with 60mm busbar systems?
A: Yes, the SV 9340 series is designed for 60mm busbar systems. Please confirm the article number, rated current, width and support rail configuration before ordering.
5 Q: Which current ratings are available?
A: Different SV 9340 models are available with different rated current values. Please check the specification table or contact Suwi for model selection support.
6 Q: Can Suwi provide datasheets or technical documents?
A: Yes, datasheets and related product information can be provided for quotation and project confirmation.
7 Q: Do you support bulk orders?
A: Yes, Suwi supports B2B bulk supply for distributors, panel builders, automation integrators and industrial projects.
8 Q: How do I choose the correct OM adapter model?
A: Please confirm your busbar system, rated current, installation width, circuit breaker type and cabinet layout. Suwi can help check the suitable model before ordering.
