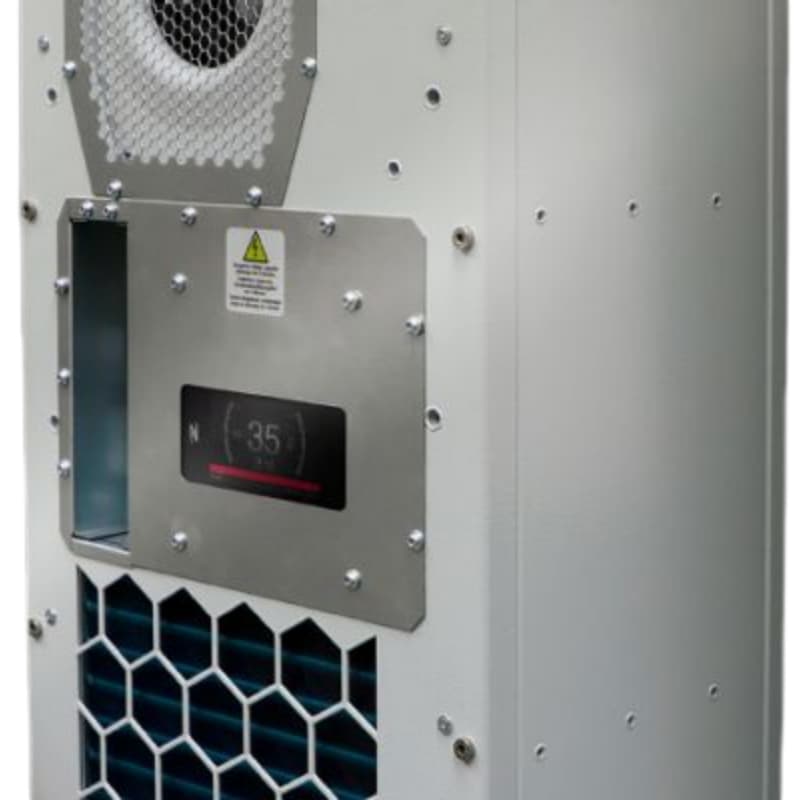

Energy-efficient wall-mounted cooling units Blue e+ Outdoor in the power classes 5118.21 to 17060.71 BTU/h （1.5 - 5 kW）. They offer optimum protection for demanding environments thanks to the high protection category of IP56 / UL Type 12/3R/4 and the temperature range of -30 °C to 60 °C. The cooling unit can be mounted in three mounting types (surface mounting, partially internal installation and fully internal installation), for example on Toptec project solutions.
Item No :
SK Blue e+ cooling unitVersion :
wall-mounted OutdoorMaterial :
Aluminum AlMg3Order(MOQ) :
1 pc(s).Color :
RAL 7035ETIM 8 :
EC000855ETIM 9 :
EC000855

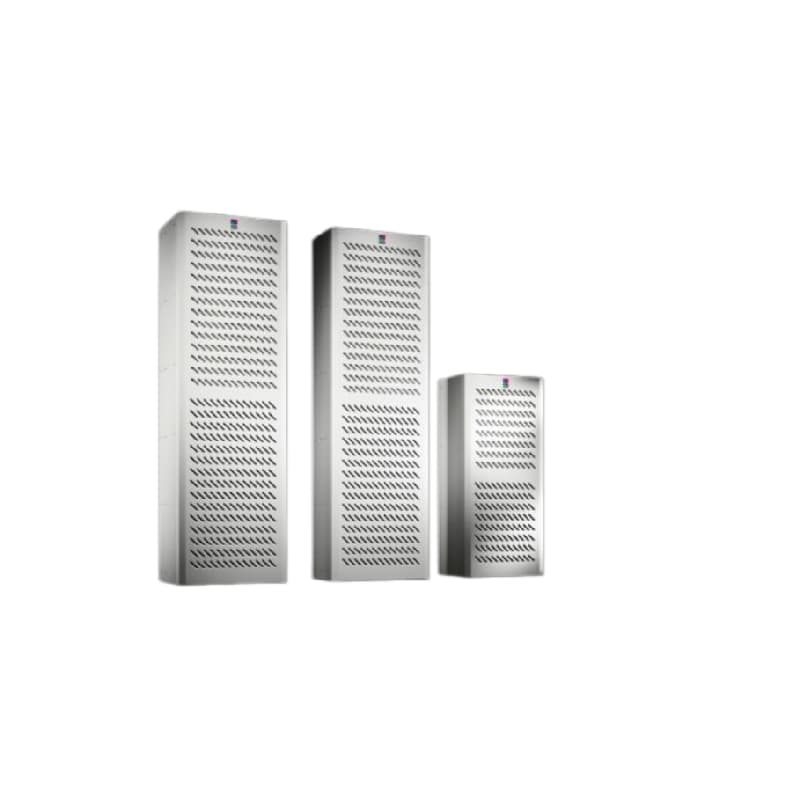

Blue e+ Outdoor Wall-Mounted Air Conditioner for Electrical Enclosures 1.5–5 kW (5,118–17,061 BTU/h)
The Blue e+ Outdoor wall-mounted air conditioner is designed for reliable cooling of outdoor electrical enclosures and control cabinets. It helps maintain stable operating temperatures for sensitive electrical components in industrial environments, including automation systems, power distribution equipment, and outdoor control applications.
With its robust design and flexible installation options, it provides a dependable cooling solution for demanding operating environments.
| Article no. | Cooling Capacity L35 (50 Hz) | Cooling Capacity L35 (60 Hz) | Material | Refrigerant |
| SK 3185330 | 1.5 kW ( 5,118 BTU/h ) |
1.5 kW ( 5,118 BTU/h ) |
Aluminum AlMg3 | R-1234yf |
| SK 3186330 | 2 kW ( 6,824 BTU/h ) |
2 kW ( 6,824 BTU/h ) |
Aluminum AlMg3 | R-1234yf |
| SK 3187330 | 2.5 kW ( 8,530 BTU/h ) |
2.5 kW ( 8,530 BTU/h ) |
Aluminum AlMg3 | R-1234yf |
| SK 3188340 | 3.7 kW ( 12,625 BTU/h ) |
3.7 kW ( 12,625 BTU/h ) |
Aluminum AlMg3 | R-1234yf |
| SK 3189340 | 4.55 kW ( 15,525 BTU/h ) |
4.55 kW ( 15,525 BTU/h ) |
Aluminum AlMg3 | R-1234yf |
| SK 3485330 | 1.5 kW ( 5,118 BTU/h ) |
1.5 kW ( 5,118 BTU/h ) |
Aluminum AlMg3 | R-513A |
| SK 3486330 | 2 kW ( 6,824 BTU/h ) |
2 kW ( 6,824 BTU/h ) |
Aluminum AlMg3 | R-513A |
| SK 3487330 | 2.5 kW ( 8,530 BTU/h ) |
2.5 kW ( 8,530 BTU/h ) |
Aluminum AlMg3 | R-513A |
| SK 3488340 | 3.7 kW ( 12,625 BTU/h ) |
3.7 kW ( 12,625 BTU/h ) |
Aluminum AlMg3 | R-513A |
| SK 3489340 | 4.9 kW ( 16,719 BTU/h ) |
4.9 kW ( 16,719 BTU/h ) |
Aluminum AlMg3 | R-513A |
Note: The connection box cover for protecting the electrical connection is available as an optional accessory. Starting from 2024, the cover is no longer included in the standard scope of delivery. Compatible covers 3355.200 and 3355.210 can be ordered separately according to installation requirements.
For detailed technical specifications, installation requirements, and customized cooling solutions, please contact us.
Benefits of Blue e+ Outdoor Wall-Mounted Air Conditioner
The Blue e+ Outdoor wall-mounted air conditioner achieves up to 75% energy savings through speed-regulated components and innovative heat pipe technology.
Reliable enclosure cooling helps protect sensitive electrical components from overheating while extending the service life of control cabinets and cooling systems.
A user-friendly touch display and intelligent interfaces enable simple operation, real-time monitoring, and efficient integration into modern industrial automation systems.
How to Choose the Right Blue e+ Outdoor Wall-Mounted Air Conditioner
Choosing the right enclosure air conditioner depends on several factors, including cooling capacity, enclosure size, installation environment, and application requirements.
Cooling Capacity
Select the cooling capacity based on the heat generated by electrical components inside the enclosure. As a general guideline:
For small control cabinets with limited heat generation, a 1.5 kW (5,118 BTU/h) cooling unit is usually sufficient.
For medium-sized electrical enclosures with automation components, a 2–3 kW (6,824–10,236 BTU/h) model provides reliable temperature control.
For large outdoor enclosures with high-power components such as drives and power electronics, a 3–5 kW (10,236–17,061 BTU/h) cooling capacity ensures effective heat dissipation.
Enclosure Size and Installation Space
Consider the enclosure dimensions, available mounting space, and airflow conditions to ensure efficient cooling performance.
Operating Environment
For outdoor applications, evaluate ambient temperature, sunlight exposure, dust, moisture, and other environmental factors to ensure reliable operation.
Application Requirements
Consider the type and quantity of internal components, such as PLCs, frequency converters, power supplies, and other heat-generating devices.
With multiple cooling capacities available from 1.5 to 5 kW (5,118–17,061 BTU/h), the series provides flexible cooling options for different outdoor electrical enclosure applications.
Need help selecting the right enclosure air conditioner?
Downloads, Technical Documents & Approvals
DocumentationInstructions – R-513A Data sheets Safety data sheet refrigerant – R-513A |
ApprovalsDeclarations |
Accessories
A range of compatible accessories is available for the Blue e+ Outdoor Wall-Mounted Air Conditioner, including monitoring interfaces, temperature sensors, protection components, and installation accessories, helping improve system integration, reliability, and maintenance efficiency.
Packaging unit: 4 pc(s).
4127010 Door-Operated Switch
Version: without connection cable
Installation options: for LED System Light
for standard and courtesy lights without an integrated door-operated switch
For cooling units and air-water heat exchangers
UL approval: yes
UR approval: no
Packaging unit: 1 pc(s).
Packaging unit: 1 pc(s).
3124400 Temperature sensor
Packaging unit: 1 pc(s).
4127010 Door-Operated Switch
Version: without connection cable
Installation options: for LED System Light
for standard and courtesy lights without an integrated door-operated switch
For cooling units and air-water heat exchangers
UL approval: yes
UR approval: no
Packaging unit: 1 pc(s).
4538000 Ride-up roller
Suitable for enclosure type: TS, VX ,SE, PC
Packaging unit: 10 pc(s).
3301612 Condensate hose
Lengh: 10mm
Diameter: 12mm
Packaging unit: 1 pc(s).
3235600 Pre-fuse
Lengh: 10mm
Diameter: 12mm
Depth: 76mm
3355200 Cover
Suitable for Model No.: 3184.837 / 3484.837
3185.x3x / 3485.x3x
Packaging unit: 1 pc(s).
3235610 Pre-fuse
Number of poles: 3-pole
Lengh: 10mm
Diameter: 12mm
Depth: 76mm
3235620 Pre-fuse
Number of poles: 3-pole
UL approval: yes
Lengh: 144mm
Diameter: 45mm
Depth: 97mm
Packaging unit: 1 pc(s).

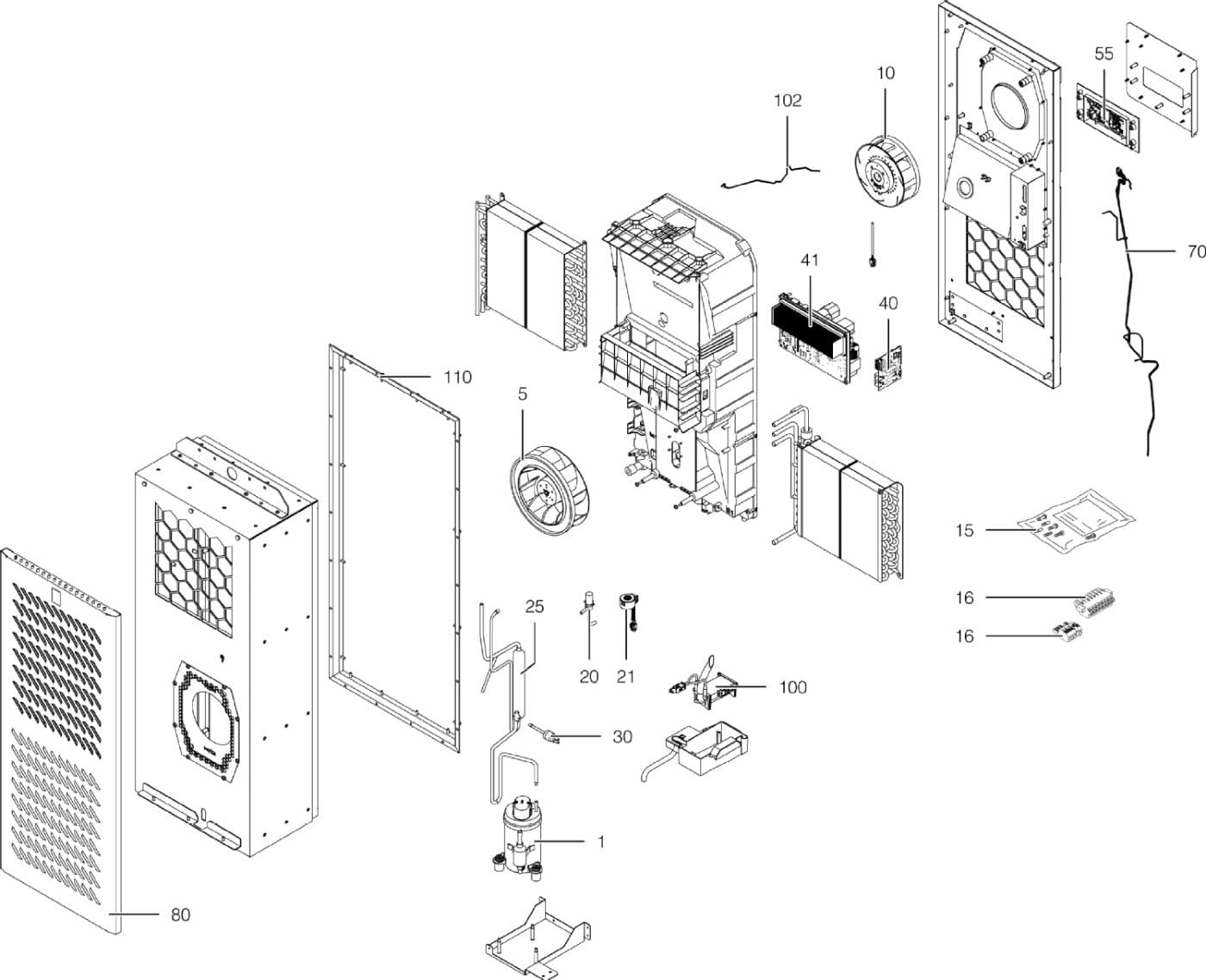

Spare parts
Available spare parts help reduce downtime and simplify long-term maintenance.
1. No. 3398488 - Compressor
2. No. 3396797 - Assembly components for compressor
5. No. 3398415 - Radial fan
6. No. 3398407 - Fan trim panel
10. No. 3398415 - Radial fan
15. No. 3399020 - Accessory bag
16. No. 3398404 - Connector
20. No. 3398414 - Expansion valve
21. No. 3398343 - Coil for expansion valve
25. No. 3398413 - Dryer
30. No. 3398336 - Pressostat
40. No. 3398354 - I/O board
41. No. 3398408 - Inverter
55. No. 3396824 - Display
70. No. 3398411 - Temperature sensor cable set
100. No. 3398350 - Condensate Evaporator
102. No. 3398338 - Display cable
190. No. 3398649 - Cable power input AC
Our Factory
FAQ
Q1: What power supply is required for the Blue e+ Outdoor air conditioner?
A: The required power supply depends on the selected model. Before installation, users should confirm the voltage, frequency, and available power capacity to ensure stable operation and avoid electrical issues.
Q2: How does the air conditioner protect electrical enclosures?
A: The Blue e+ Outdoor air conditioner is designed for outdoor industrial environments. It helps protect sensitive electrical components from overheating, dust, moisture, and changing weather conditions while maintaining a stable enclosure temperature.
Q3: Is an enclosure air conditioner more cost-effective than ventilation?
A: Although the initial investment is higher than simple ventilation solutions, active cooling helps prevent overheating failures, reduce equipment downtime, extend component lifetime, and lower long-term maintenance costs.
Q4: Is the Blue e+ Outdoor compatible with different electrical cabinets?
A: Yes. The air conditioner can be installed on various electrical enclosures. Users should confirm cabinet dimensions, mounting requirements, and heat load before selecting the appropriate model.
Q5: Is installation and commissioning complicated?
A: The wall-mounted design simplifies installation and reduces setup time. Proper model selection and preparation of mounting space and power supply can improve installation efficiency.
Q6: What after-sales support is available?
A: Customers can receive technical support for product selection, installation guidance, troubleshooting, and spare parts replacement to ensure long-term reliable operation.
