The VX Hybrid Double Door is a robust yet lightweight enclosure solution, perfect for applications where simple, quick deployment, portability, and safety are critical. The removable mullion allows for a single mounting panel and ample space for installing and removal of the panel. With our superior dip-paint primer and powder coat paint, these enclosures will meet the conditions of many environments and applications. High level of protection to IP 66/Type 4.
Item No :
VX Hybrid Double DoorColor :
RAL 7035Protection category NEMA :
Type 4Protection category IP to EN 60 529 :
IP 66

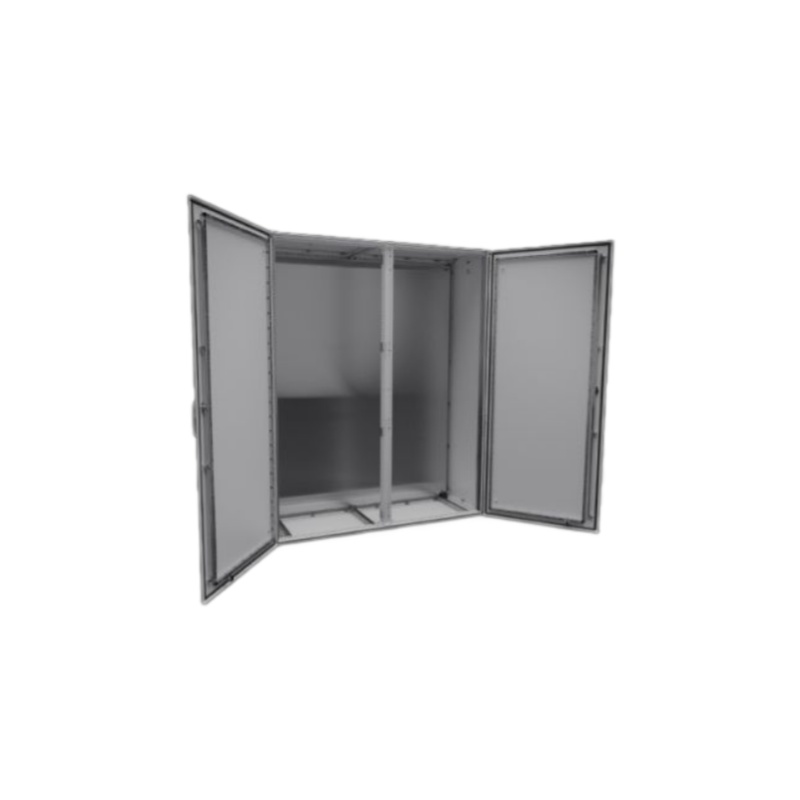

VX Hybrid Double Door Carbon Steel Enclosure for Industrial Control Cabinets
The VX Hybrid Double Door Carbon Steel Enclosure is designed for industrial control cabinets, automation systems, and power distribution applications. Featuring a robust carbon steel structure, modular frame design, IP66 protection, and NEMA 4 rating, it provides reliable protection for electrical components in demanding industrial environments.

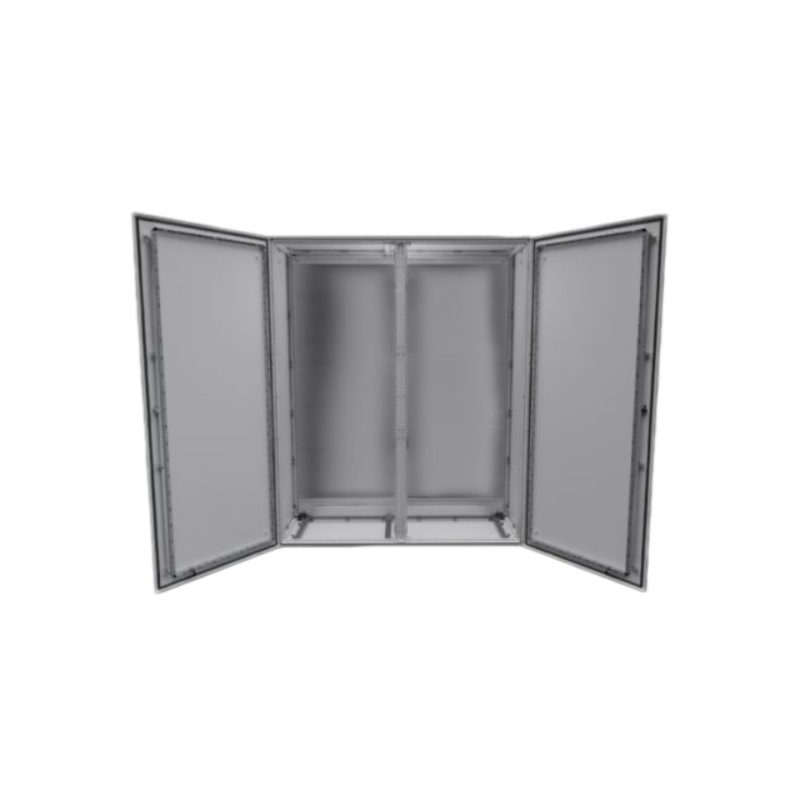

The double-door enclosure design provides a wide access area for installation, wiring, inspection, and maintenance. Compatible with modular mounting systems and enclosure accessories, it enables flexible configuration for PLC cabinets, automation equipment, and industrial power distribution systems.
Suwi provides industrial enclosure solutions including genuine Rittal VX enclosure products, customized enclosure manufacturing, modification, and cabinet integration services. Our engineering team supports enclosure selection, accessory matching, and configuration optimization based on project requirements.
| Article no. | Height | Width | Depth | Protection |
VX 9840300 |
1,600 mm ( 63 ˝ ) |
1,600 mm ( 63 ˝ ) |
400 mm ( 15.7 ˝ ) |
IP66 / NEMA 4 |
| VX 9840301 | 1,800 mm ( 70.9 ˝ ) |
1,600 mm ( 63 ˝ ) |
500 mm ( 19.7 ˝ ) |
IP66 / NEMA 4 |
| VX 9840302 | 1,800 mm ( 70.9 ˝ ) |
1,800 mm ( 70.9 ˝ ) |
600 mm ( 23.6 ˝ ) |
IP66 / NEMA 4 |
| VX 9840303 | 2,000 mm ( 78.7 ˝ ) |
1,800 mm ( 70.9 ˝ ) |
600 mm ( 23.6 ˝ ) |
IP66 / NEMA 4 |
| VX 9840304 | 2,200 mm ( 86.6 ˝ ) |
1,800 mm ( 70.9 ˝ ) |
600 mm ( 23.6 ˝ ) |
IP66 / NEMA 4 |
Why Choose a Double Door Electrical Enclosure?
The standard supply includes the main enclosure components required for industrial control cabinet assembly and customization:
- Robust enclosure frame for mechanical protection and structural stability
- Center-latched doors with flexible left or right-side hinging options

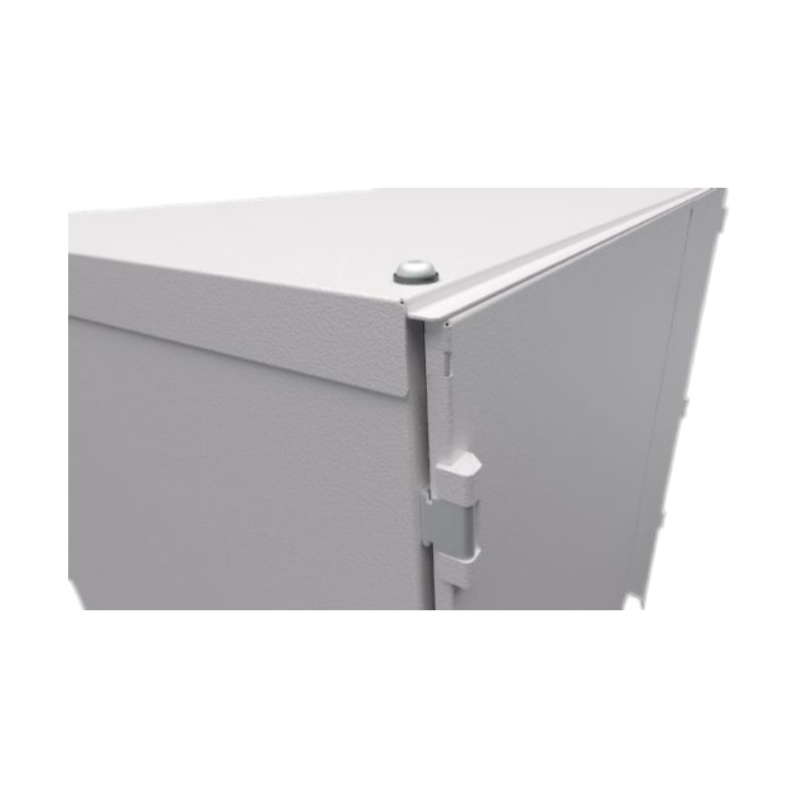

- Roof plate with overlapping sides for enhanced protection against dust and water ingress
- Rear drip shield and protective back cover design
- Solid base plate for improved enclosure stability and installation support
- Removable rear panels for convenient maintenance and cable access
- Detachable side panels for easy installation and customization
- Mounting panel for electrical components and control equipment installation

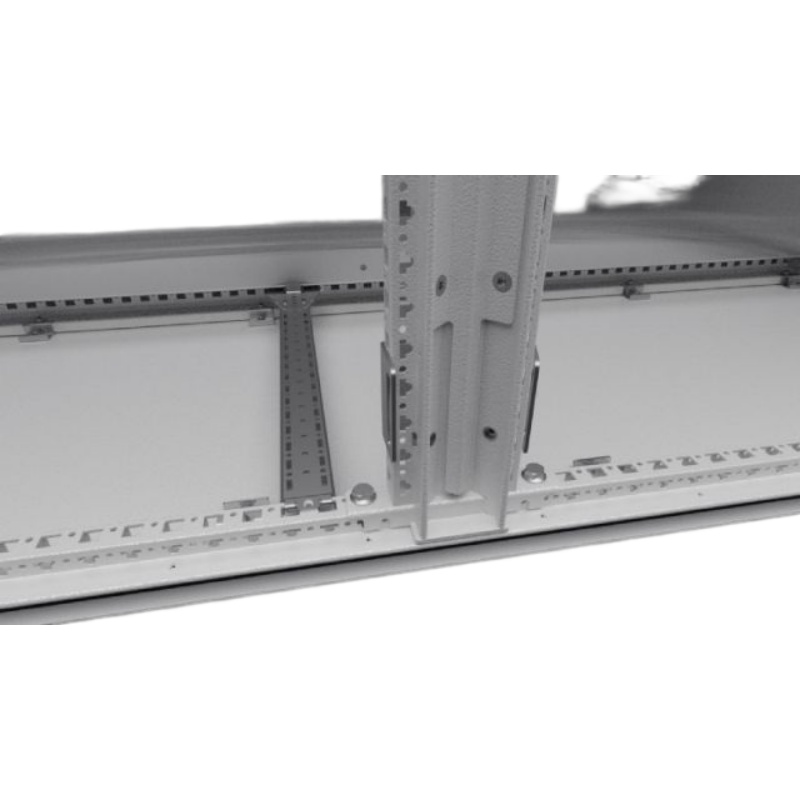

- Removable center mullion for flexible equipment mounting and wiring operations
- Heavy-duty padlockable handle for secure access control
- Four punched mounting rails (18 × 39 mm) for accessory installation and internal configuration
Benefits of the VX Double Door Carbon Steel Enclosure
◾ Fast Deployment of Industrial Enclosures:
The single-footprint design of this double door electrical enclosure eliminates complex on-site assembly, helping reduce installation time and accelerate control cabinet deployment.
◾ High Strength with Improved Handling:
The robust frame structure provides the mechanical strength expected from a heavy-duty carbon steel enclosure, while the optimized design allows safer transportation and easier installation without requiring forklifts.
◾ Efficient Electrical Cabinet Integration:
A removable center mullion creates a full-width mounting area, allowing easier installation of electrical components, wiring systems, and control equipment inside the industrial control cabinet enclosure.
◾ Easy Modification for Machine Building Applications:
The lightweight yet durable enclosure design simplifies machining and modification processes, reducing tooling stress while supporting customized electrical control cabinet configurations.
◾ Flexible Expansion with VX25 Compatibility:
Designed for compatibility with VX25 accessories, this modular electrical enclosure system supports future upgrades, accessory integration, and changing industrial automation requirements.
Built for Performance, Designed for Tough Environments

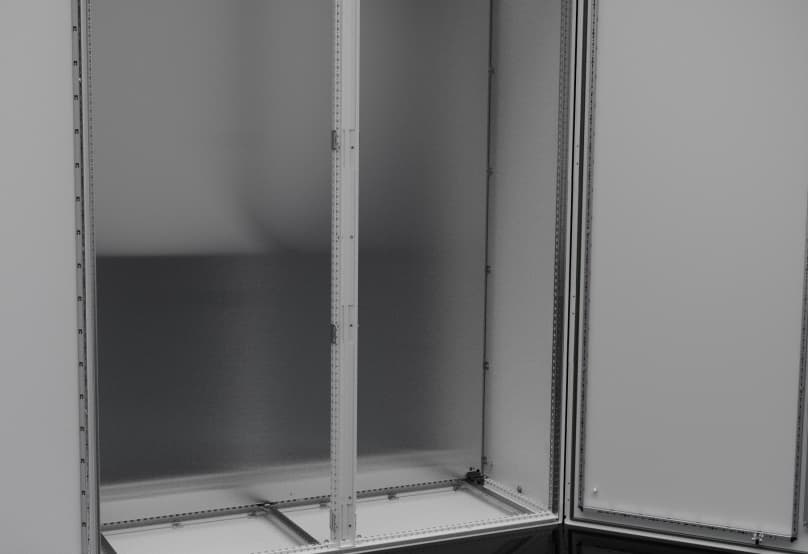

The VX Hybrid Double Door Carbon Steel Enclosure provides a flexible platform for building industrial control cabinets where strength, accessibility, and configuration flexibility are required.
The rigid frame structure, modular mounting system, and VX25 accessory compatibility allow engineers to adapt the enclosure for different electrical layouts, automation systems, and power distribution requirements.
◾ Mining & Construction Equipment – Protection for electrical control systems used in harsh working environments
◾ Utilities & Infrastructure – Suitable for power distribution and electrical control applications
◾ Oil & Gas Industry – Suitable for control and electrical installations in industrial facilities.
◾ Water & Wastewater Treatment – Supports control panels and automation systems
◾ Food & Beverage Processing – Suitable for industrial control cabinet applications
◾ Outdoor Industrial Installations – Provides protection for electrical components in demanding environments
◾ Energy & Energy Storage Systems – Used for power management and control equipment
◾ Agricultural Automation – Supports electrical systems in agricultural machinery and facilities
◾ Pulp & Paper Manufacturing – Designed for industrial automation and process control applications
Documentation & Certifications
Suwi provides support for enclosure selection, accessory matching, cabinet configuration, and customized requirements based on project specifications.
From standard industrial electrical enclosures to application-specific solutions, we help customers select suitable configurations for automation systems, control cabinets, and electrical installations.
Accessories
The VX Hybrid Double Door Carbon Steel Enclosure supports a wide range of accessories for cabinet customization, including cable management, mounting systems, grounding components, locking solutions, and installation accessories.
These accessories help engineers optimize internal layout, improve wiring organization, and adapt the enclosure configuration for different industrial control cabinet requirements.
Plastic Wiring Plan Pocket
Packaging unit: 1 pc(s).
4052000 Multitool
Packaging unit: 1 pc(s).
8619450 Cable clamp rail
Suitable for enclosure type: VX SE / CX Pedestal
Suitable for width: 1600 mm
Length: 1554 mm
Packaging unit: 2 pc(s).
8619450 Cable clamp rail
Suitable for enclosure type: VX SE / CX Pedestal
Suitable for width: 1600 mm
Length: 1554 mm
Packaging unit: 2 pc(s).
4695000 Support Strip
Suitable for enclosure type: VX / TS / VX SE / TP / AX / AE
Length: 440 mm
Packaging unit: 20 pc(s).

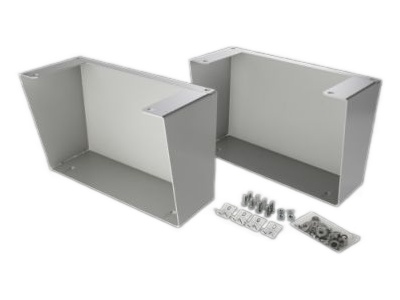

9963523 TS / VX SE / VX Double Door Floormount Floorstand Kit
Suitable for depth: 500 mm
Height: 300 mm
Material: Carbon steel
Packaging unit: 1 Pair
4612000 Leveling Feet
Version: without hex socket
Suitable for enclosure type: VX / TS / TS IT / VX SE / PC / IW / Blue e+ chiller / TX CableNet
Packaging unit: 4 pc(s).
9963523 TS / VX SE / VX Double Door Floormount Floorstand Kit
Suitable for depth: 500 mm
Height: 300 mm
Material: Carbon steel
Packaging unit: 1 Pair

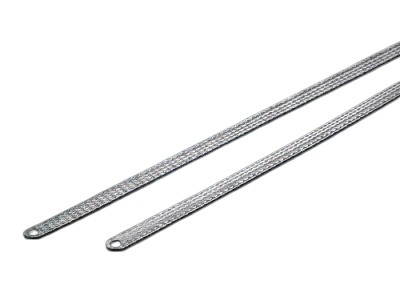

Ground Straps
Packaging unit: 5 pc(s).
Ground Straps
Packaging unit: 10 pc(s).
Safety lock
Suitable for enclosure type: VX / TS / VX SE / VX
Packaging unit: 1 pc(s).

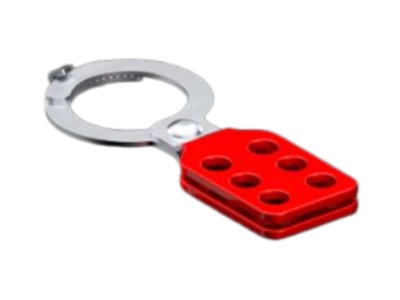

2493500 Multiple Lock
Material: Carbon steel
Packaging unit: 1 pc(s).
8619450 Cable clamp rail
Suitable for enclosure type: VX SE / CX Pedestal
Suitable for width: 1600 mm
Length: 1554 mm
Packaging unit: 2 pc(s).
4695000 Support Strip
Suitable for enclosure type: VX / TS / VX SE / TP / AX / AE
Length: 440 mm
Packaging unit: 20 pc(s).

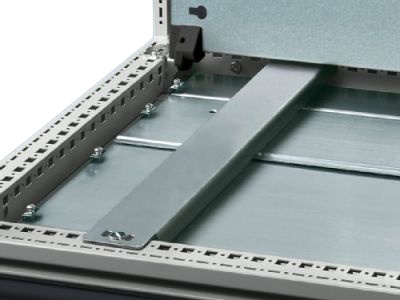

Support rail 75x20 mm
Suitable for enclosure type: VX / TS / VX SE / CM
Packaging unit: 4 pc(s).

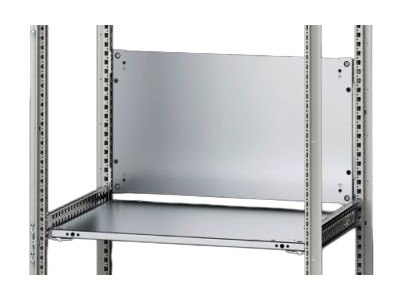

Partial Mounting Plates
Suitable for enclosure type: VX / VX SE / PC / IW
Note: Adaptor rail VX is required for installation in VX SE, PC, IW
Packaging unit: 1 pc(s).

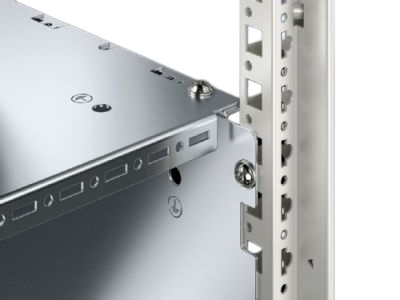

Partial assembly Plates
Suitable for enclosure type: VX / VX SE
Packaging unit: 1 pc(s).
Plastic Wiring Plan Pocket
Packaging unit: 1 pc(s).
4052000 Multitool
Packaging unit: 1 pc(s).
Our Factory
Suwi provides customized enclosure manufacturing, processing, and electrical cabinet-related services for industrial applications. At the same time, we supply genuine Rittal products and accessories, helping customers integrate reliable enclosure systems according to project requirements.
With experience in industrial enclosure applications, we support engineers and purchasing teams with enclosure selection, accessory matching, configuration guidance, and customized solutions.
FAQ
Q1: Why choose a double door enclosure instead of a single door enclosure?
A: A double door enclosure provides a wider opening area, making installation, wiring, inspection, and maintenance easier, especially for large electrical components and complex control systems.
Q2: What are the advantages of carbon steel material for this enclosure?
A: Carbon steel provides high mechanical strength, impact resistance, and durability, making it suitable for industrial environments where reliable protection of electrical components is required.
Q3: Can the enclosure doors be installed to open from the left or right side?
A: Yes. The door design supports flexible hinge installation options, allowing the enclosure configuration to adapt to different cabinet layouts and installation requirements.
Q4: Can the carbon steel enclosure be installed outdoors?
A: The enclosure provides IP66 and NEMA 4 protection against dust, rain, splashing water, and hose-directed water. For highly corrosive environments such as salt spray or chemical exposure, stainless steel enclosure solutions may be more suitable.
Q5: Is this enclosure compatible with VX25 accessories?
A: Yes. The enclosure is compatible with VX25 accessories, including mounting systems, cable management components, grounding accessories, and door accessories. Compatibility should be confirmed according to the enclosure size and model before ordering.
Q6: How do I choose the right industrial electrical enclosure size?
A: The enclosure size should be selected based on installed electrical components, mounting requirements, cable routing space, heat management requirements, and future expansion needs.
Q7: Can this enclosure be customized for OEM projects?
A: Yes. Custom configurations can be discussed according to project requirements, including dimensions, accessories, internal mounting solutions, and application-specific needs.
Q8: What industries use double door electrical enclosures?
A: Double door electrical enclosures are commonly used in industrial automation, machine building, manufacturing equipment, power distribution systems, utilities, and infrastructure applications.
