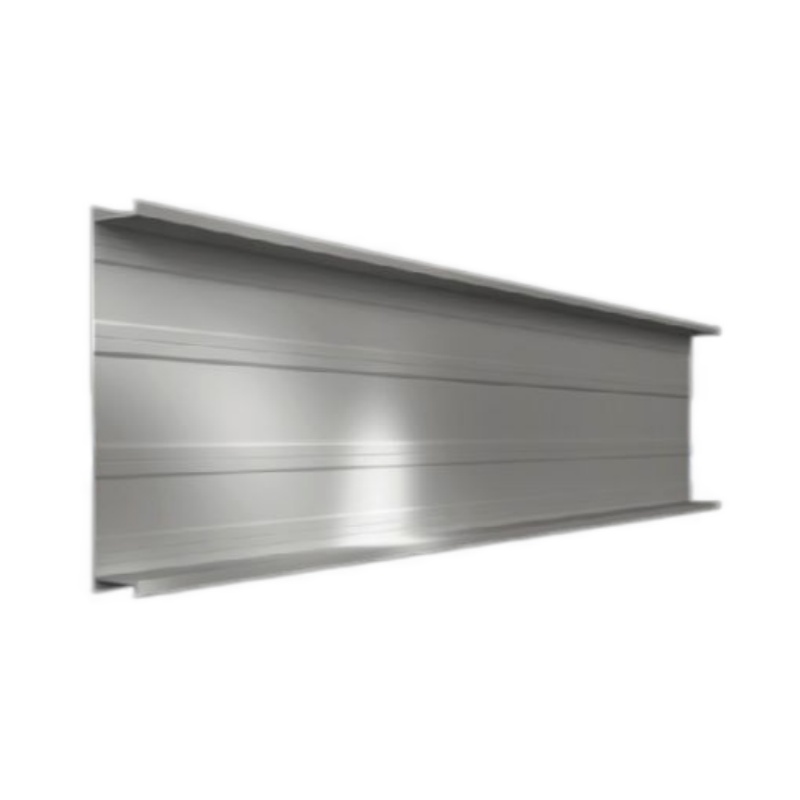

Base tray for RiLine busbar systems designed for reliable busbar mounting, power distribution panel assembly, and industrial electrical cabinet integration.
For detailed UL+C-UL, please click 'Download' to view the document.
Item No :
SV 9340 / 9341/ 9342Color :
RAL 7035ETIM 9 :
EC002270

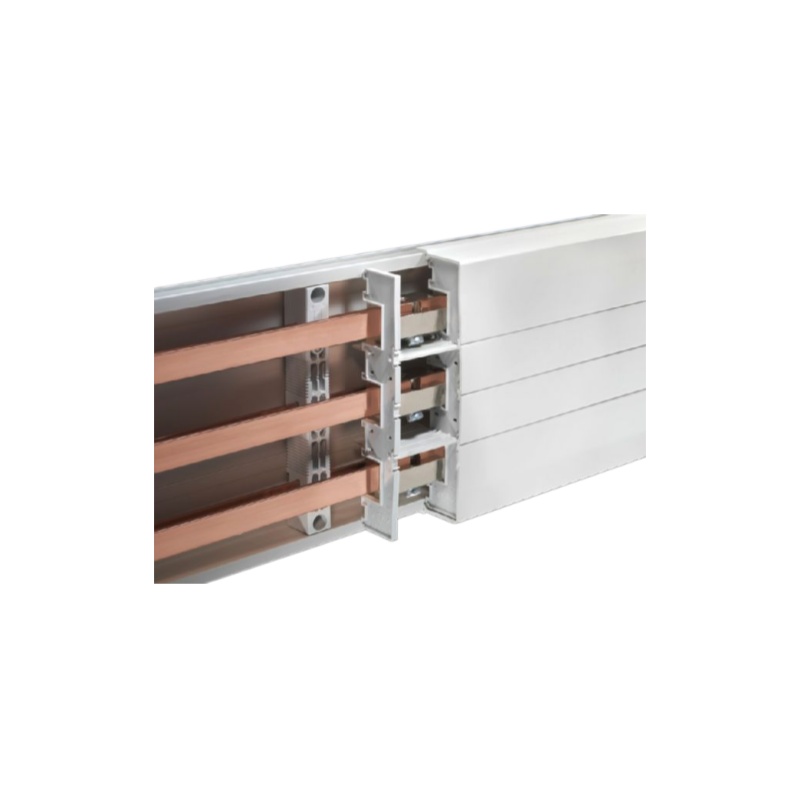

Base tray for RiLine busbar systems is designed to provide a stable mounting foundation for modular busbar assemblies in industrial power distribution applications. Built for control cabinet manufacturers, panel builders, and electrical system integrators, the base tray section helps simplify installation while supporting reliable alignment inside RiLine-based power distribution layouts.
As part of a complete busbar system, the base tray section is commonly used in low-voltage distribution panels, automation cabinets, machine control systems, and modular enclosure solutions.
For related power distribution components, explore SUWI Auto’s busbar systems product categories.
| Article no. | Length | Suitable for busbar system |
| SV 9340100 | 500 mm ( 19.7 ˝ ) |
Flat copper bars, 3-pole |
| SV 9340110 | 700 mm ( 27.6 ˝ ) |
Flat copper bars, 3-pole |
| SV 9340120 | 900 mm ( 35.4 ˝ ) |
Flat copper bars, 3-pole |
| SV 9340130 | 1,100 mm ( 43.3 ˝ ) |
Flat copper bars, 3-pole |
| SV 9340170 | 2,400 mm ( 94.5 ˝ ) |
Flat copper bars, 3-pole |
| SV 9341100 | 500 mm ( 19.7 ˝ ) |
PLS 800, 3-pole |
| SV 9341110 | 700 mm ( 27.6 ˝ ) |
PLS 800, 3-pole |
| SV 9341120 | 900 mm ( 35.4 ˝ ) |
PLS 800, 3-pole |
| SV 9341130 | 1,100 mm ( 43.3 ˝ ) |
PLS 800, 3-pole |
| SV 9341170 | 2,400 mm ( 94.5 ˝ ) |
PLS 800, 3-pole |
| SV 9342100 | 500 mm ( 19.7 ˝ ) |
PLS 1600, 3-pole |
| SV 9342110 | 700 mm ( 27.6 ˝ ) |
PLS 1600, 3-pole |
| SV 9342120 | 900 mm ( 35.4 ˝ ) |
PLS 1600, 3-pole |
| SV 9342130 | 1,100 mm ( 43.3 ˝ ) |
PLS 1600, 3-pole |
| SV 9342170 | 2,400 mm ( 94.5 ˝ ) |
PLS 1600, 3-pole |
| SV 9342134 | 1,100 mm ( 43.3 ˝ ) |
PLS 1600, 4-pole |
RiLine busbar mounting base tray Features :
May be cut to length as required
Thermally modified hard PVC.
Fire protection corresponding to UL 94-V0
To build a complete RiLine busbar solution, base tray section can be used together with compatible busbar connection and adapter components. Related products include:
Connection adapters for 60 mm busbar systems
OM adapter with connection cables
Circuit breaker component adaptors, 3-pole
NH fuse switch disconnectors 160A-630A
Why Choose SUWI Auto?
SUWI Auto supplies industrial automation, enclosures, climate control, and power distribution components for professional electrical projects. We support B2B customers with product selection, sourcing, and system matching for cabinet manufacturing and industrial automation needs.
If you are sourcing a base tray section for power distribution panels, we can help confirm compatibility with your RiLine busbar layout, enclosure size, and project requirements.
Our Factory
FAQ
A:We are Xiamen Suwei Automation Technology Co., Ltd., established in January 2010, headquartered in Xiamen, Fujian, China. We specialize in industrial automation and are committed to providing efficient and innovative automation solutions to meet a variety of customer needs, serving clients globally.
A: You can purchase a variety of industrial automation products from us, including:
1. Low-voltage electrical and industrial control equipment
2. Automation electrical products
3. Touchscreens and relay devices
4. Industrial automation engineering solutions
We provide one-stop services to meet the needs of various industries and customers.
3 Q: What is a base tray for RiLine busbar systems used for?
A: It is used as a mounting base to support and organize busbar system components inside electrical cabinets and power distribution panels.
4 Q: Who typically uses this product?
A: Panel builders, electrical cabinet manufacturers, OEM equipment builders, and industrial automation integrators commonly use this product.
5 Q: Can this base tray section be used with other busbar accessories?
A: Yes. It is typically used as part of a complete busbar assembly together with compatible adapters, connection components, and protective devices.
6 Q: How can I confirm the right model for my project?
A: Send your cabinet layout, busbar configuration, required current rating, and installation requirements to SUWI Auto for product matching.
