3-pole, for busbar systems with 185 mm center-to-center distance.

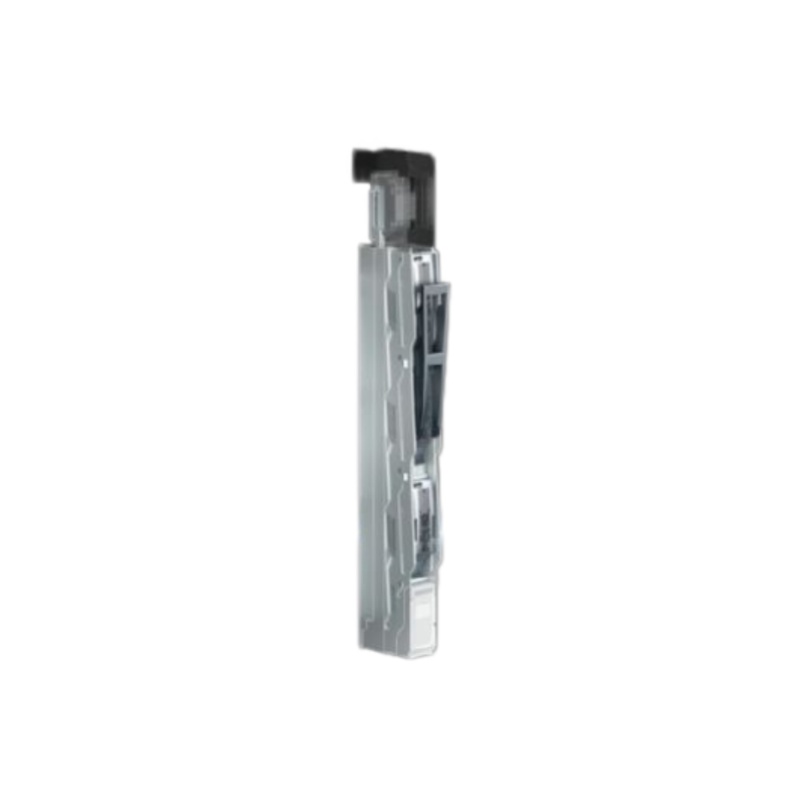

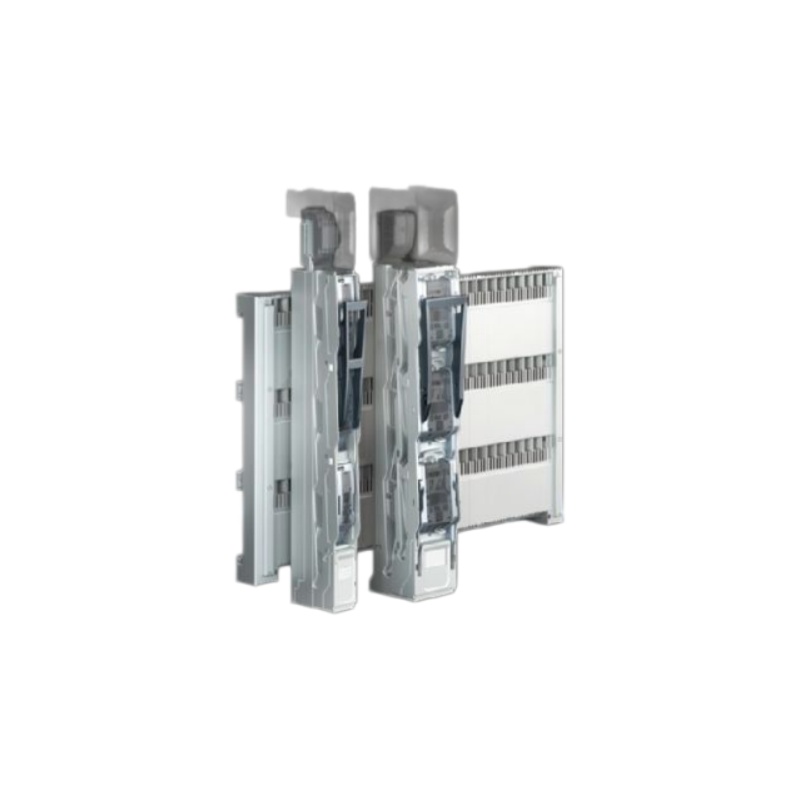

The NH In-line Fuse-Switch Disconnectors with Electronic Fuse Monitoring combine overcurrent protection, switch disconnection and electronic fuse monitoring in a single device for RiLine busbar systems.Designed for modern low-voltage power distribution systems, these NH fuse switch disconnectors combine reliable protection, safe isolation and electronic fuse monitoring in a compact design.
Each switch-disconnector continuously monitors the status of the installed NH fuse links through an integrated electronic monitoring module. When a fuse link operates, the monitoring system immediately detects the condition and provides a status indication, helping maintenance personnel locate faults quickly, reduce service time and improve the availability of low-voltage power distribution systems.
The product range includes NH00, NH1, NH2 and NH3 versions with rated currents from 160 A to 630 A, providing a suitable solution for a wide variety of industrial power distribution applications.
| Article no. | For NH size | Rated operating current max. | Type of connection (electrical) | Version |
| SV 9677015 | 00 | 160 A | Screw M8 | 3-pole, switchable |
| SV 9677115 | 1 | 250 A | Bolt M12 | 3-pole, switchable |
| SV 9677215 | 2 | 400 A | Bolt M12 | 3-pole, switchable |
| SV 9677315 | 3 | 630 A | Bolt M12 | 3-pole, switchable |
Electrical ratings and conductor capacities vary by model. Refer to the individual product page for detailed technical specifications.
The NH In-line Fuse-Switch Disconnectors with Electronic Fuse Monitoring are suitable for low-voltage power distribution systems where reliable circuit protection and continuous fuse status monitoring are required.
Typical applications include:
Industrial Switchboards – Main and sub-distribution panels for industrial facilities.
Motor Control Centres (MCCs) – Protection and isolation of motor feeder circuits.
Power Distribution Systems – Distribution of electrical power in commercial and industrial installations.
Renewable Energy – AC distribution in photovoltaic and energy storage systems.
Infrastructure – Electrical distribution for transportation, utilities and public facilities.
Process Industries – Reliable protection for manufacturing, chemical, water treatment and other continuous-process applications.
Data Centres – Power distribution systems requiring high availability and fast fault identification.
Our Factory
FAQ
A: A typical solution includes an NH fuse switch disconnector, NH fuse links, an electronic fuse monitoring module and a compatible RiLine busbar system.
A: Electronic fuse monitoring automatically detects blown fuse links and provides a status indication, helping reduce troubleshooting time and system downtime.
A: Yes. They are designed for RiLine busbar systems with a 185 mm busbar centre distance and support standard NH00, NH1, NH2 and NH3 fuse links.
A: They are widely used in industrial switchboards, MCCs, data centres, renewable energy systems and other low-voltage power distribution applications.
A: Yes. Faster fault identification shortens maintenance time, reduces downtime and helps lower overall operating costs.
A: We provide product selection assistance, technical documentation and application support to help ensure the right solution for your project.
A: Compliance varies by model. Please refer to the individual product page or technical documentation for applicable standards and certifications.
