VX 9840300 carbon steel electrical enclosure features a double door design, IP66 protection and NEMA Type 4 rating for reliable protection of industrial control and automation equipment.

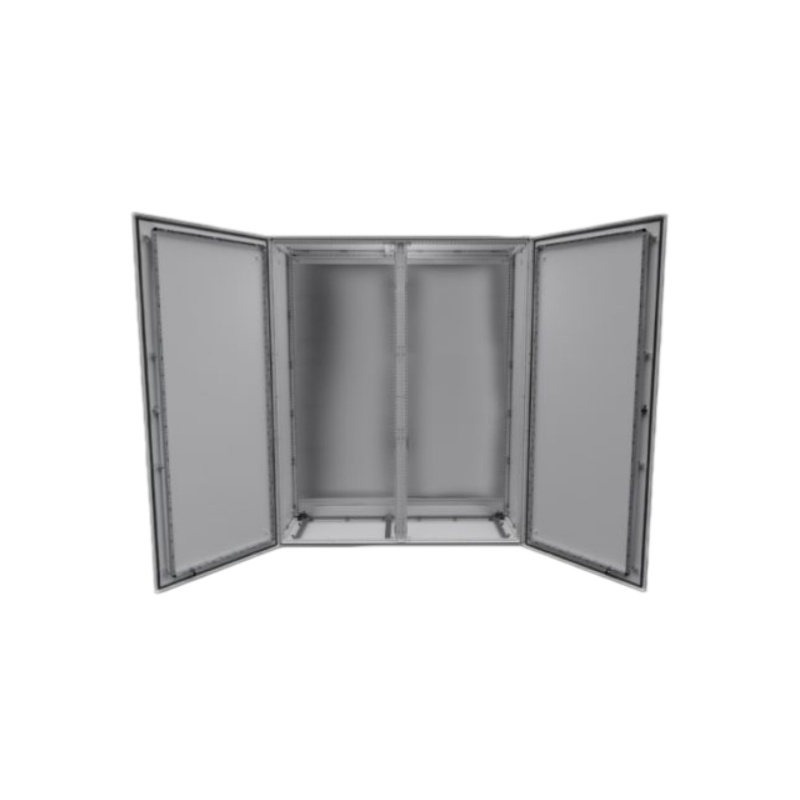

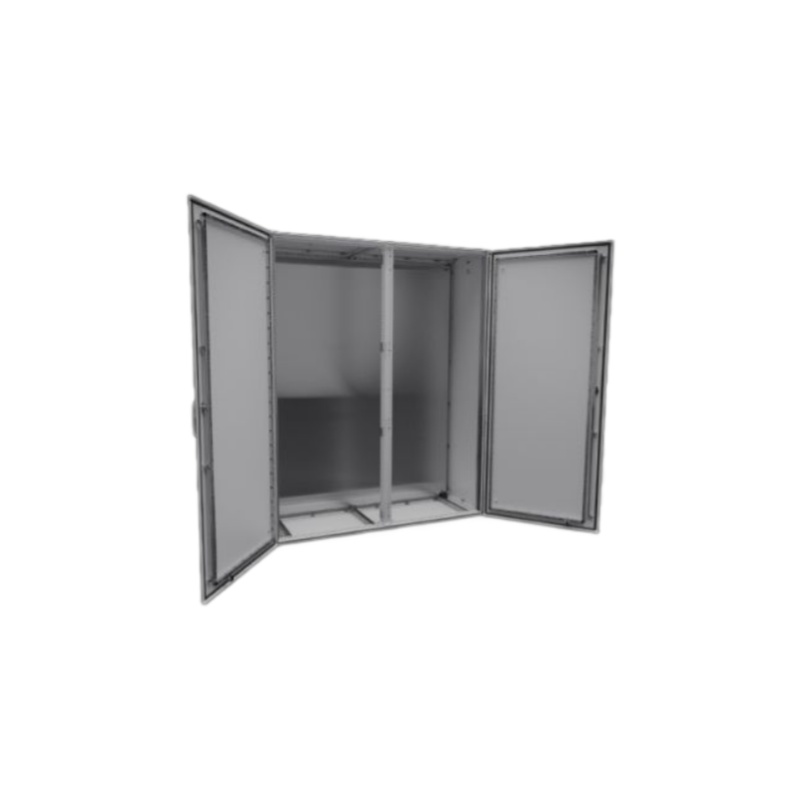

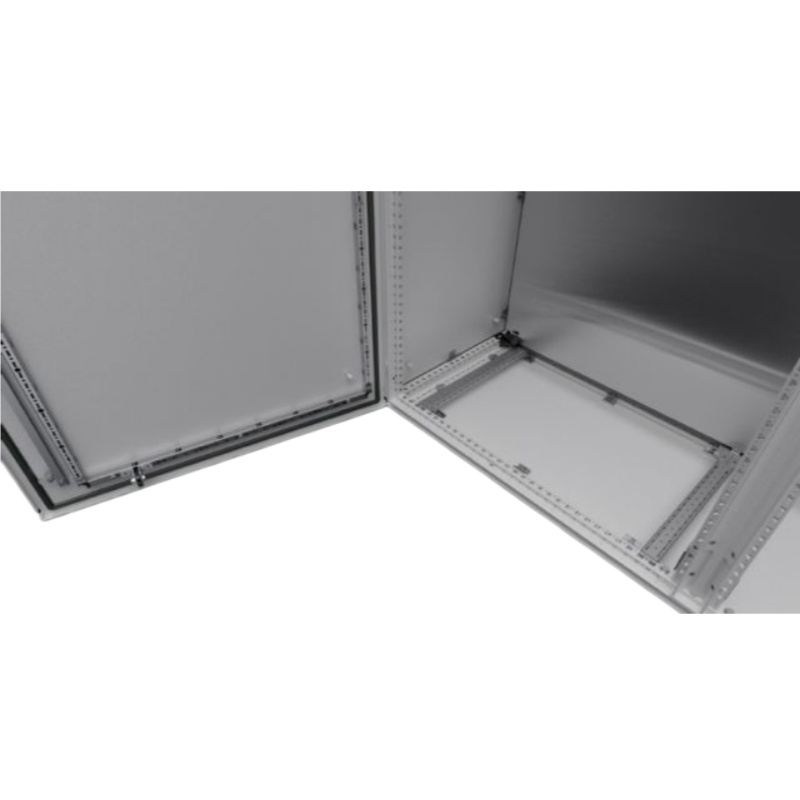

The VX 9840300 is a double-door carbon steel electrical enclosure designed for industrial control systems, automation equipment, and power distribution applications. With a 1600 × 1600 × 400 mm configuration, IP66 protection rating, and NEMA Type 4 rating, it provides reliable protection for electrical components in demanding industrial environments.
As a reliable industrial enclosure solution, the VX 9840300 is suitable for companies looking for electrical enclosure suppliers, control cabinet solutions, and customized enclosure configurations. It supports flexible installation with compatible accessories and is designed to meet the requirements of automation projects, machine builders, and industrial electrical systems.
| Article no.: | VX 9840300 |
| Model no.: | VX DOUBLE DOOR 1600Hx1600Wx400D NEMA4 |
| Dimensions | Width: 1,600 mm Height: 1,600 mm Depth: 400 mm ( Width: 63 ˝ Height: 63 ˝ Depth: 15.7 ˝ ) |
| Dimensions of mounting plate (W x H) | 1,502 mm x 1,496 mm ( 59.1 ˝ x 58.9 ˝ ) |
| Material | Housing: Carbon steel Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Side/rear panel: Carbon Steel, 1.5mm Base plate: Sheet steel, 2 mm Mounting panel: Carbon steel, 3.0 mm |
| Surface finish | Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Usable depth | 255.5 mm ( 10.1 ˝ ) |
| Protection category IP to EN 60 529 | IP 66 |
| Protection category NEMA | Type 4 |
| Type rating according to UL 50E | NEMA 1, 3R, 4, 12 |
| Number of doors | 2 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 490.5 lb |
| Gross weight | 490.5 lb |
| UPC-Code | 94140 |
| Product description | VX Hybrid Double Door, NEMA 4, internally fastened hardware used for all components (rear panel, side panel, roof, base plate) carbon steel, 63" x 63" x 16" |
| Supply includes | Enclosure frame Doors - center latched, can be hinged left or right Roof plate with overlapping sides. Back and drip shield Base, solid Rear panels Side Panels Mounting panel Center mullion - removable Heavy-duty padlockable handle 4 punched rails 18 x 39 mm |
Benefits of VX 9840300 Double Door Enclosure
Efficient Space Utilization
The VX 9840300 provides a balanced enclosure size for industrial applications where efficient use of installation space and reliable component protection are required.
Strong Structure with Improved Handling
The robust frame design provides the strength expected from industrial enclosures while supporting safer and easier handling during installation.
Simplified Integration and Maintenance

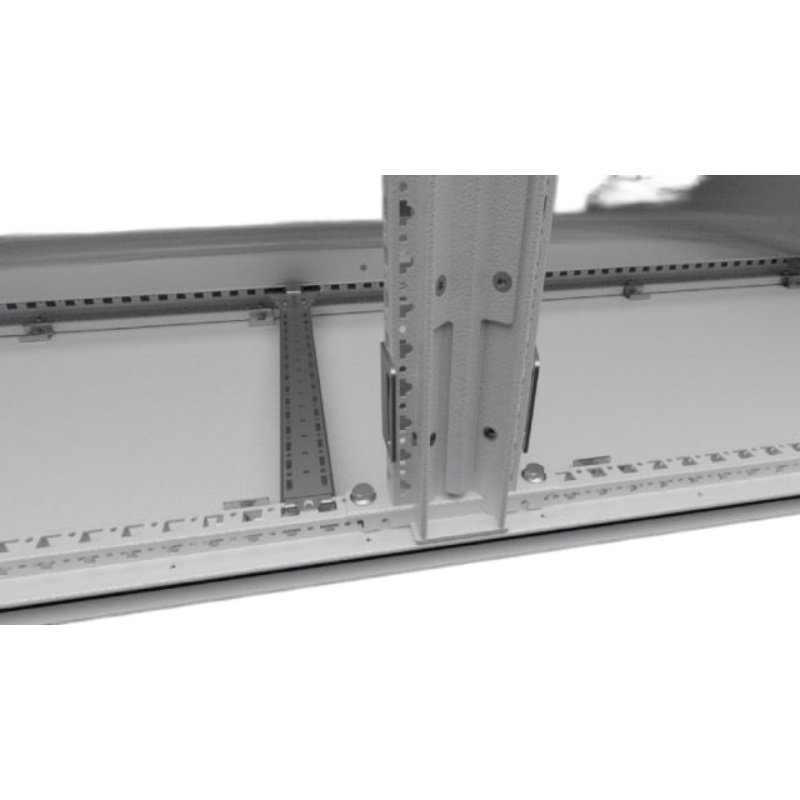

The removable center mullion creates a full-width mounting area, improving accessibility for component installation, wiring and maintenance.
Easy Modification and Configuration
The lightweight modular design simplifies enclosure modifications and reduces handling effort during machining and customization processes.
Flexible System Expansion
Compatible VX system accessories allow future modifications and system expansion when electrical installation requirements change.
When to Choose VX 9840300 Double Door Enclosure
The VX 9840300 is suitable for projects requiring a compact double-door enclosure solution while maintaining the flexibility of a modular industrial cabinet system. Its 1600 × 1600 × 400 mm configuration provides efficient installation space for automation equipment, control systems and electrical assemblies.
The VX 9840300 is suitable for projects requiring an efficient double-door enclosure solution while maintaining the flexibility of a modular industrial cabinet system.
