AX 104230 Stainless Steel Enclosure 500 × 500 × 300 mm

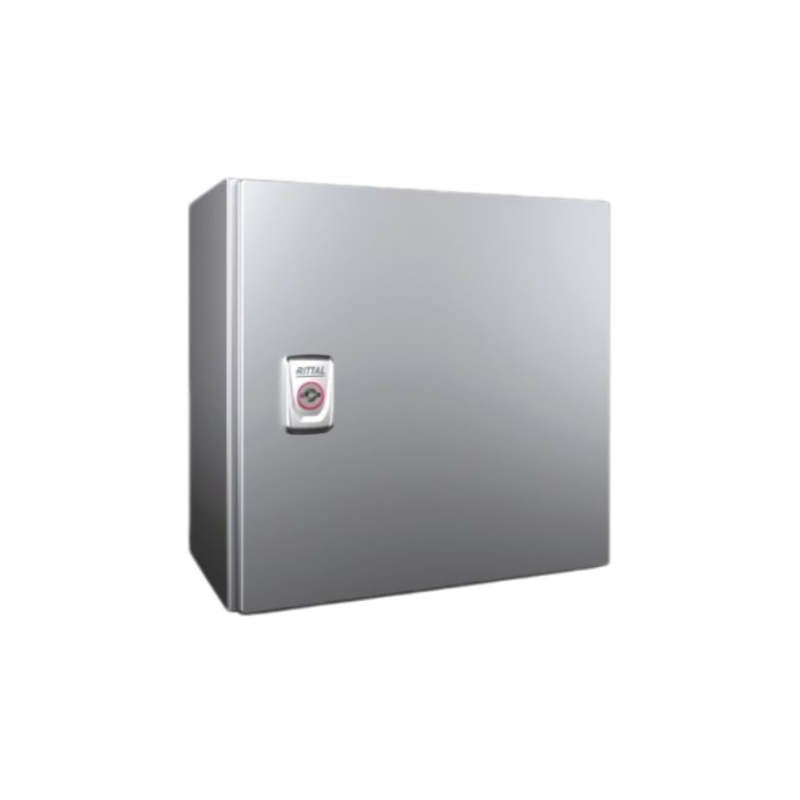

Rittal AX 1013000 is a 500 × 500 × 300 mm stainless steel compact enclosure with a 450 × 475 mm mounting plate. Unlike AX configurations that primarily add mounting width or height, this model provides additional enclosure depth for installations where component projection, connectors and cable routing require more space between the mounting plate and door. Its 500 × 500 mm format keeps the front-facing mounting area relatively compact while providing a deeper installation envelope.

Article no.:	AX 1013000
Dimensions	Width: 500 mm Height: 500 mm Depth: 300 mm ( Width: 19.7 ˝ Height: 19.7 ˝ Depth: 11.8 ˝ )
Material	Housing: Stainless steel Door: Stainless steel, all-round foamed-in PU seal Mounting plate: Carbon steel Stainless steel 1.4301 (AISI 304)
Surface finish	Enclosure and door: Brushed, grain 400 Mounting panel: Zinc-plated
Supply includes	Housing with door(s), swing angle 130° Mounting panel Lock: 3 mm double-bit
Protection category NEMA	NEMA 1 NEMA 3R NEMA 4 NEMA 4X NEMA 12
Protection category IP to EN 60 529	IP 66
Type rating according to UL 50E	Type 1 Type 3R Type 4 Type 4X Type 12
IK code	IK10
Material thickness - door	1.5 mm ( 0.06 ˝ )
Material thickness - enclosure	1.25 mm ( 0.05 ˝ )
Material thickness – mounting plate	2.5 mm ( 0.1 ˝ )
Dimensions of mounting plate (W x H)	450 mm x 475 mm ( 17.7 ˝ x 18.7 ˝ )
Number of doors	1
Lock	Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit Material lock: Die-cast zinc
Base material	Stainless steel 1.4301 (AISI 304)
Packaging unit	1 pc(s).
Net weight	16 kg
Gross weight	16.6 kg
PCF/VE (cradle-to-gate)	63.6
Customs tariff number	94032080
EAN	4028177815001
ETIM 9	EC000261
ETIM 8	EC000261
ECLASS 8.0	27180101

AX Stainless Steel Model Comparison

AX 1013000 is worth considering when the 450 × 475 mm mounting area already fits the component layout, but the 210 mm depth of AX 1007000 leaves insufficient working space in front of the installed equipment. The additional 90 mm of enclosure depth can provide more room for projecting components, connectors and cable bends without increasing the wall area occupied by the enclosure. If all equipment and wiring can maintain suitable clearance within 210 mm depth, AX 1007000 avoids unnecessary enclosure projection. If the problem is instead an overcrowded mounting plate, moving to a wider or taller AX configuration is more useful than adding depth.

Before Ordering AX 1013000

1. Check installed depth, not component body depth alone

Do not compare the 300 mm enclosure depth only with the nominal depth of the device. Include terminals, plugs, cable glands, wiring ducts and conductor bending space that project beyond the component body when evaluating the required installation depth.

2. Identify what is actually causing the door-side clearance problem

A deeper enclosure is useful when connectors, cable loops or tall components extend toward the door. If the difficulty instead comes from components competing for mounting-plate width or height, the 300 mm depth will not solve the layout problem.

3. Consider door-mounted equipment together with plate-mounted components

Pushbuttons, displays, switches or other door-mounted equipment can extend inward when the door is closed. Check their rear projection against the tallest plate-mounted devices so the two installation zones do not interfere.

4. Use additional depth to improve cable bending space

Larger conductors and connectors may physically fit within a shallower enclosure but leave impractical bending or termination space. The additional depth can be useful where cables need a less constrained route between entry points, terminals and equipment.

5. Consider the greater projection from the mounting surface

AX 1013000 projects 300 mm from its installation surface rather than 210 mm. Check nearby walkways, machinery, doors and service access so that solving an internal depth problem does not create an external clearance problem.

What Is Included with AX 1013000?

AX 1013000 is supplied with the stainless steel enclosure and single door, a zinc-plated 450 × 475 mm mounting plate and a 3 mm double-bit locking arrangement. The door has a 130° opening angle and uses two cam locks.

Accessories for AX 1013000

Accessory selection for AX 1013000 should be checked specifically against its 300 mm enclosure depth. Accessories selected for 210 mm-deep AX configurations should not be transferred automatically where depth determines compatibility. Width- and height-dependent components should match the 500 × 500 mm format, while rails, interior installation components and other depth-dependent accessories should be verified for the 300 mm configuration.

Mounting and fastening

2433010 Wall Mounting Bracket

Material: Stainless steel 1.4301 (AISI 304)

Wall distance: 20 mm

Packaging unit: 4 pc(s).

2584100 Pole Clamp

Application: Optional pole-mounting configuration for AX enclosures

Packaging unit: 2 pc(s).

1199100 Baying Kit

Suitable for: AX / KX / AE / KL

Packaging unit: 1 pc(s).

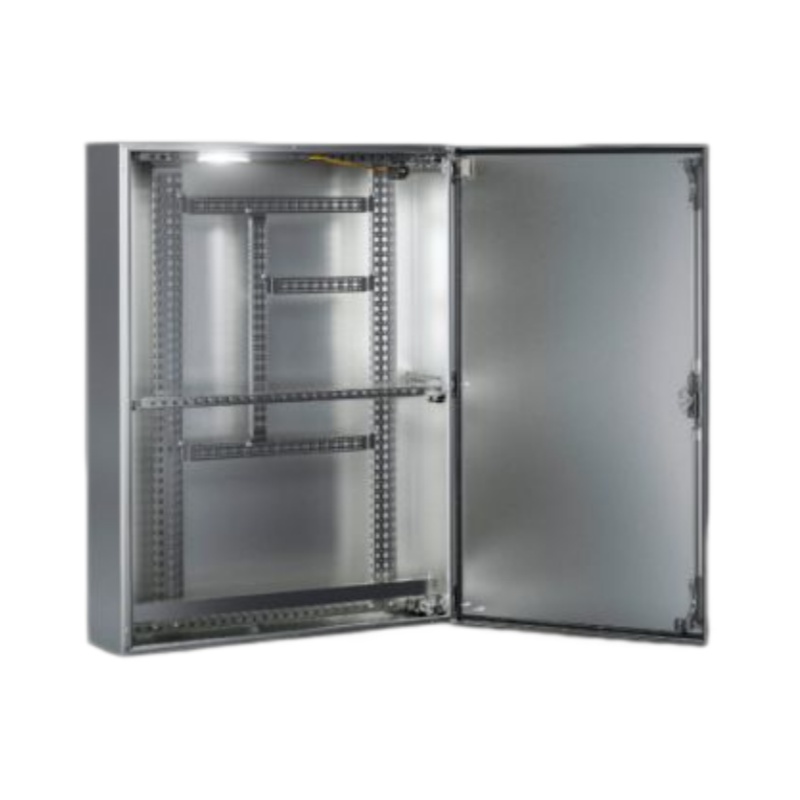

Interior installation

2394210 Rail for Interior Installation AX

Suitable for depth: 210 mm

Packaging unit: 4 pc(s).

8617100 System Chassis 23 x 64 mm

For enclosure width/height: 300 mm

Packaging unit: 4 pc(s).

2394100 Base Configuration Rail

Suitable for enclosure type: AX

Packaging unit: 4 pc(s).

Grounding and potential equalisation

Ground Straps

Packaging unit: 5 pc(s).

Locking and access

2307000 Lock Insert

Lock insert: Fiat

Packaging unit: 1 pc(s).

2460650 Lock Insert

Lock insert: 6.5 mm triangular (ONOMO)

Packaging unit: 1 pc(s).

2461000 Lock Insert

Lock insert: 8 mm square

Packaging unit: 1 pc(s).

2466000 Lock Insert

Lock insert: 3 mm double-bit

Packaging unit: 1 pc(s).

2460000 Lock Insert

Lock insert: 7 mm square

Packaging unit: 1 pc(s).

2537100 Mini-Comfort Handle AX

Version: For lock inserts and semi-cylinder

Material: Die-cast zinc / plastic

Packaging unit: 1 pc(s).

2572010 T Handle

Version: B

Lock insert: Without lock cylinder insert

Packaging unit: 1 pc(s).

2575010 T Handle

Version: B

Lock insert: Fiat

Packaging unit: 1 pc(s).

AX 1013000 is supplied with a cam lock and 3 mm double-bit insert. Alternative inserts and handles are optional configurations; verify the selected handle/insert combination before ordering.

Documentation and maintenance

4052000 Multitool

Packaging unit: 1 pc(s).

Plastic Wiring Plan Pocket

Packaging unit: 1 pc(s).

Wiring Plan Pocket with Transparent Pouch

Packaging unit: 1 pc(s).

Pressure equalisation and enclosure protection

4000300 Pressure Relief Stoppers

Material: Stainless steel 1.4301 (AISI 304)

Packaging unit: 5 pc(s).

2459000 Enclosure Breather Valve

Material: Polyamide

Packaging unit: 6 pc(s).

Roof and door accessories

2361010 Protective Roof

Suitable for width: 300 mm

Suitable for depth: 210 mm

Packaging unit: 1 pc(s).

2519110 Door Stay

Installation position: Top / bottom

Mounting note: For AX stainless steel, use in conjunction with the rail for interior installation AX.

Packaging unit: 1 pc(s).

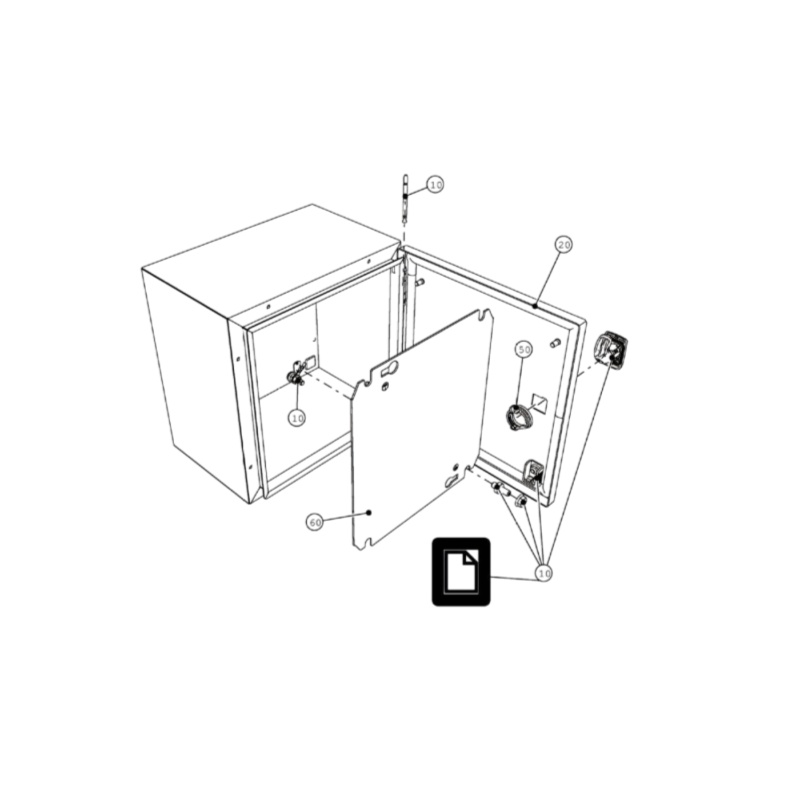

Spare parts

Item 10 — 5051305, Accessory bag for AX, Shop: Yes, Valid from: 01.03.2024
Item 20 — 5051346, Single door for AX stainless steel, Shop: Yes, Valid from: 01.03.2024
Item 50 — 5051402, Bayonet ring for AX, Shop: Yes, Valid from: 01.03.2024
Item 60 — 5051368, Mounting panel for AX, Shop: Yes, Valid from: 01.03.2024

Sourcing AX 1013000 from SuwiAuto

•
•
•
•



SuwiAuto supplies AX 1013000 for industrial enclosure and control cabinet projects. We support model verification, compatible accessory selection, quotations, and international orders. You can also review our Authorized Distributor Certification for supplier and authorization details. Send us your required quantity and delivery destination for availability and quotation support.

Request a Quote for AX 1013000



FAQ

Q1: When should I choose AX 1013000 instead of AX 1007000?

A: Choose AX 1013000 when the 450 × 475 mm mounting area is already sufficient, but components, connectors or cable routing require more installation depth. Both models use the same mounting-plate dimensions, so moving to AX 1013000 primarily addresses a depth constraint rather than a mounting-area constraint.

Q2: Does the 300 mm enclosure depth mean I have 300 mm of usable component depth?

A: No. The external enclosure depth should not be treated as the available device installation depth. Allow for the mounting plate position, component projection, wiring, connectors and any equipment installed on the inside of the door.

Q3: When is a deeper enclosure more useful than a larger mounting plate?

A: A deeper enclosure is more useful when the layout already fits the mounting plate but equipment projects too far toward the door, connectors need additional clearance or cables require more bending space. If components are crowded side by side or vertically, increasing mounting width or height is usually the more relevant change.
