Request a quotation for Rittal PC 5366050, an IP55/NEMA 12 PC enclosure system for industrial monitors, keyboards, PCs and operator stations.
Item No :
PC 5366050Version :
with glazed door at the top, keyboard drawer and component shelfOrder(MOQ) :
1 pc(s).Weight :
93.5 kg

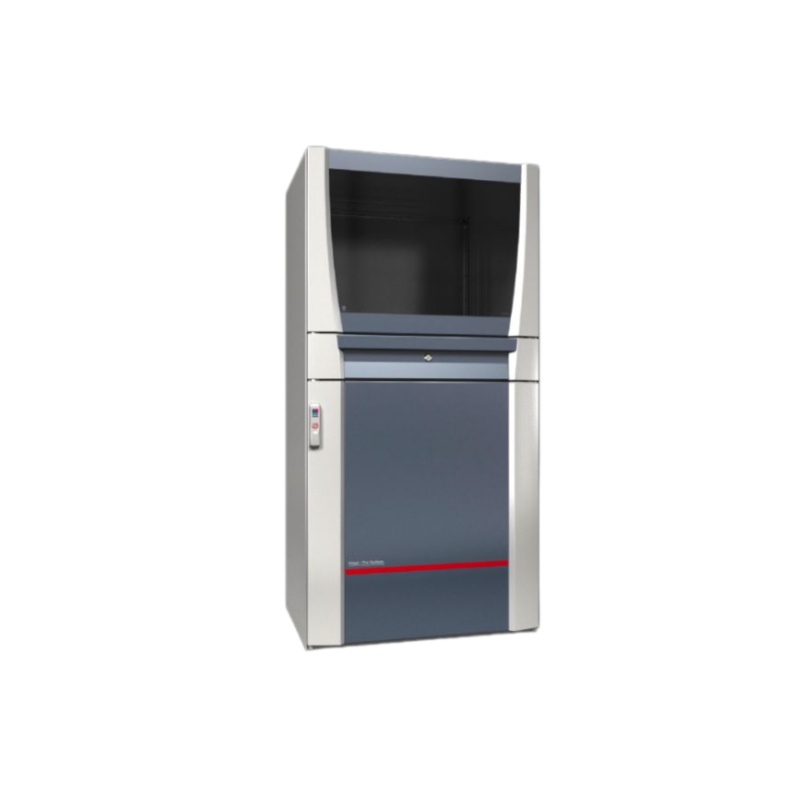

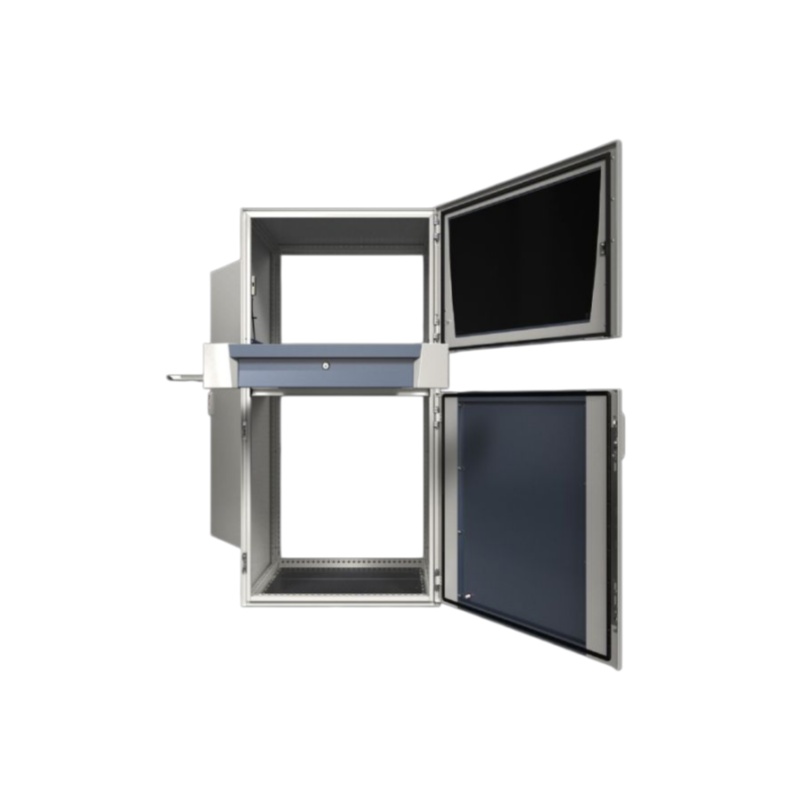

The Rittal PC 5366050 PC Enclosure System is an industrial operator workstation enclosure designed to protect monitors, PCs, keyboards and related components in demanding production environments. Built with a glazed upper door, keyboard drawer and component shelf, this enclosure provides a practical workstation format for factory floors, automation lines, machine-side operation and control areas.
If you are looking to buy PC 5366050 industrial pc enclosure or request a quotation for industrial automation projects, Suwi Automation can provide genuine products, technical support and worldwide delivery.
| Article no.: | PC 5366050 |
| Dimensions | 600 mm x 1600 mm x 636 mm |
| Version | with glazed door at the top, keyboard drawer and component shelf |
| Material | Housing, door, rear door, mounting compartment, supports: carbon steel Handles, decorative trim panels: Plastic Door trim panels: Aluminum Viewing window: Single-pane safety glass |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint |
| General color | RAL 7035 |
| Color | Housing, door, decorative trim panels, supports: RAL 7035 Handle: RAL 7015 Monitor field, door center section: RAL 7015 |
| Protection category IP to IEC 60 529 | IP 55 |
| Protection category NEMA | NEMA 12 |
| Type rating according to UL 50E | Type 1 / Type 12 |
| Max. keyboard dimensions (WxHxD) | 480 x 70 x 260 mm ( 18.9 x 2.76 x 10.2 ˝ ) |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 93.5 kg |
| Gross weight | 95.8 kg |
| PCF/VE (cradle-to-gate) | 386.3 kg CO2 eq (Cat B) |
| Information regarding the PCF class | Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177959422 |
| ETIM 9 | EC002502 |
| ECLASS 8.0 | 27180501 |
| Supply includes | Housing, door, rear door Base Plates Glazed door, top Keyboard drawer Component shelf |
The PC 5366050 is one configuration within the PC Enclosure System product range. Different models are available with various dimensions, monitor capacities, mounting options, and internal layouts to suit different industrial applications.
If you are comparing multiple configurations or selecting the most suitable enclosure for your project, you can explore the complete PC Enclosure System series to review all available options and specifications.
PC 5366050 Features
• IP55 industrial protection
• NEMA 12 enclosure
• Integrated keyboard drawer
• Glazed monitor door
• Carbon steel construction
• Ergonomic operator workstation
• Suitable for industrial PCs and HMIs
• Easy maintenance
The Rittal PC enclosure system is suitable for production and automation environments where operators need reliable access to a computer workstation close to machines or process equipment. It can be used as an industrial computer enclosure cabinet for both machine operation and process monitoring.
Common application areas include:
Manufacturing plants and industrial workshops
Automated production lines
Machine tool operation areas
Automotive factories and assembly lines
Industrial control rooms
Packaging, logistics and material handling systems
Factory-floor HMI and operator workstation positions
Industrial environments requiring protected PC and monitor installation
For projects requiring an IP55 PC enclosure for industrial environments or a NEMA 12 PC enclosure system, PC 5366050 provides a ready workstation-style enclosure format rather than a basic empty cabinet.
Recommended accessories
Documentation & Certifications
Accessories

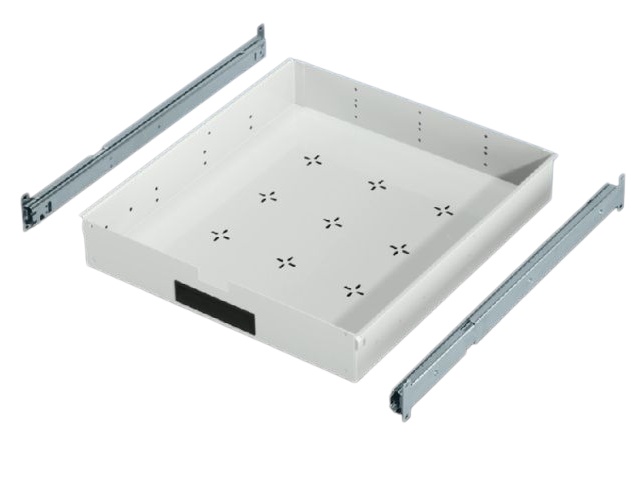

6902700 Drawer tray
Width : 484.5 mm (19.1 inch)
Height : 83 mm （3.27 inch）
Load capacity : 40 kg surface load, static
Suitable for width : 600 mm (23.6 inch)
Material : Carbon steel, 2.0 mm
Color : RAL 7035 / Design component, front: RAL 7015
Suitable for width : 600 mm (23.6 inch)
Height : 100 mm (3.94 inch)
Color : RAL 9005
Suitable for width : 600 mm (23.6 inch)
Height : 200 mm (7.87 inch)
Color : RAL 9005
Suitable for width : 600 mm (23.6 inch)
Height : 100 mm (3.94 inch)
Color : RAL 9005
Suitable for width : 600 mm (23.6 inch)
Height : 200 mm (7.87 inch)
Color : RAL 9005
Suitable for width : 600 mm (23.6 inch)
Height : 100 mm (3.94 inch)
Color : RAL 9005
Suitable for width : 600 mm (23.6 inch)
Height : 200 mm (7.87 inch)
Color : RAL 9005
Suitable for width : 600 mm (23.6 inch)
Height : 100 mm (3.94 inch)
Color : RAL 9005
Suitable for width : 600 mm (23.6 inch)
Height : 200 mm (7.87 inch)
Color : RAL 9005
Suitable for width : 600 mm (23.6 inch)
Material : Carbon steel, 2.0 mm
Color : RAL 7035 / Design component, front: RAL 7015
Suitable for width : 600 mm (23.6 inch)
Height : 100 mm (3.94 inch)
Color : RAL 9005
Suitable for width : 600 mm (23.6 inch)
Height : 200 mm (7.87 inch)
Color : RAL 9005
Suitable for width : 600 mm (23.6 inch)
Height : 100 mm (3.94 inch)
Color : RAL 9005
Suitable for width : 600 mm (23.6 inch)
Height : 200 mm (7.87 inch)
Color : RAL 9005
Version : For lock inserts
Material: Die-cast zinc
Color : RAL 7035
Version : For semi-cylinder
Material: Die-cast zinc
Color : RAL 7035
Version : For padlock and lock inserts
Material: Die-cast zinc
Color : RAL 7035
Version : For designer door IW and PC,bottom door
Material: Die-cast zinc
Color : RAL 7035
Width : 500 mm
Depth : 775 mm
Suitable for width : 600 mm
Suitable for depth : 600 mm
Width : 465 mm
Depth : 545 mm
Suitable for width : 600 mm
Suitable for depth : 600 mm /800 mm
Width : 484.5 mm
Height : 83 mm
Load capacity: 40 kg surface load, static
Packaging unit :1 pc(s).
Length : 200 mm
Suitable for enclosure type : VX SE
Packaging unit : 4 pc(s).
Suitable for door width : 600 mm
For enclosure width/height/depth : 600 mm
Packaging unit : 4 pc(s).
Suitable for enclosure type : VX / VX IT / VX SE / PC / IW / AX/ AX plastic
For enclosure width/height/depth : 600 mm
Packaging unit : 4 pc(s).
Width : 484.5 mm
Load capacity: 40 kg surface load, static
Packaging unit :1 pc(s).
Version : DIN A4
Color : RAL 7015
Packaging unit : 1 pc(s).
Suitable for width : 600 mm / 800 mm
Suitable for enclosure type : VX / TS / VX SE / PC
Packaging unit: 1 pc(s).
Our Factory
FAQ
1. Q: Can this PC enclosure be integrated into an existing production line?
A: Yes. Industrial PC enclosures are commonly integrated into existing automation systems. Before installation, engineers should verify mounting space, cable entry positions, power supply requirements, and operator accessibility to ensure smooth integration.
2. Q: Does an industrial PC enclosure require additional cooling?
A: It depends on the installed equipment and ambient temperature. High-performance industrial PCs, continuous operation, or hot production environments may require enclosure cooling units, air-to-air heat exchangers, or filter fans to maintain reliable operating temperatures.
3. Q: How can I prevent condensation inside a PC enclosure?
A: Condensation usually occurs when ambient humidity is high or temperatures fluctuate rapidly. Installing an enclosure heater or a hygrostat-controlled climate system helps reduce moisture buildup and protects sensitive electronic equipment.
4. Q: What maintenance is recommended for an industrial PC enclosure?
A: Routine maintenance includes cleaning air filters, checking door seals, inspecting cable glands, verifying cooling equipment operation, and removing accumulated dust. Regular maintenance helps extend the service life of both the enclosure and the installed PC.
5.Q: Can this PC enclosure be customized?
A: The standard enclosure can be expanded with compatible accessories, mounting components, and cable management solutions to suit different installation requirements.
