The outlet filter is used in conjunction with the corresponding fan-and-filter unit to dissipate heat loss from enclosures, ventilate the enclosure and protect temperature-sensitive components. This is achieved through the direct infeed of ambient air, the temperature of which must be lower than the permissible internal temperature of the enclosure.
Item No :
SK 3237308Material :
PlasticOrder(MOQ) :
1 pc(s).Color :
RAL 7035Weight :
0.145 kg

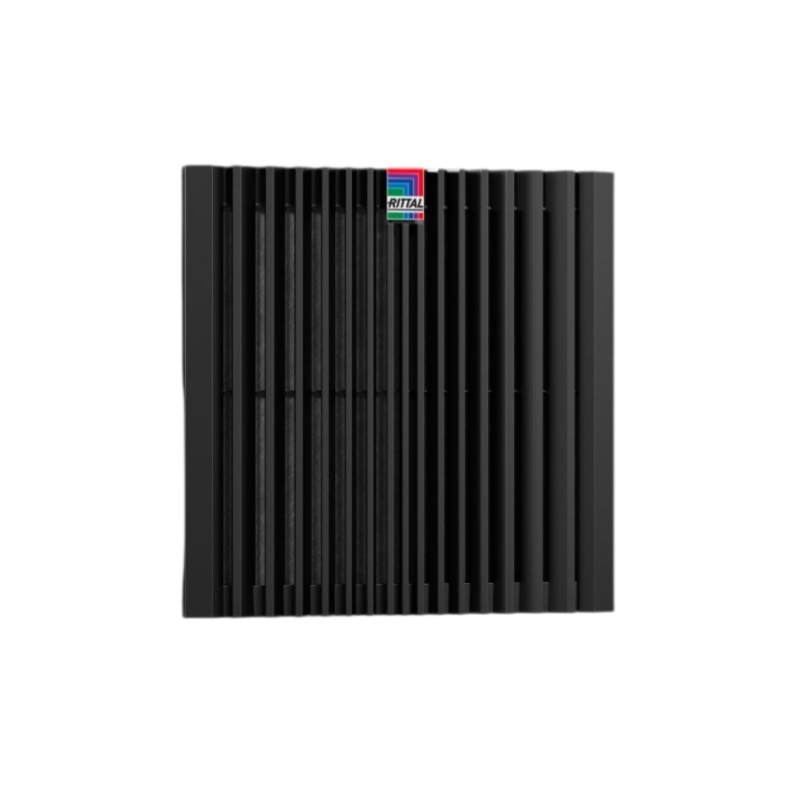

The Rittal SK 3237308 is a RAL 9005 black Blue e+ outlet filter - intended to be used together with a matching SK 3237.7xx fan & filter. It is the part of the air outlet where the filtered air is exhausted from the cabinet when the fan draws in air from the environment. This ventilation can be used to remove heat from the enclosure and ensure proper operating temperatures for temperature sensitive equipment.
It's used in control cabinets and industrial enclosures in which ventilation is fan-assisted. The black finish is suitable for enclosure designs required for RAL 9005 and the outlet filter provides an air flow path between the powered fan and the enclosure outlet opening.
| Article no.: | SK 3237308 |
| Product | Blue e+ outlet filter |
| Version | Wall-mounted |
| Dimensions | Width: 116.5 mm (4.59 in) Height: 116.5 mm (4.59 in) Depth: 33.2 mm (1.31 in) |
| Mounting cut-out | Width: 92 mm (3.62 in) Height: 92 mm (3.62 in) |
| Suitable for model no. | SK 3237.7xx |
| Benefits | Tool-free mounting Optimized snap hooks for faster enclosure installation Opening louvred grille for easier filter changes |
| Material | Plastic |
| Color | RAL 9005 |
| Supply includes | Outlet filter Chopped-fibre filter mat |
| Protection category NEMA | Type 12 with chopped-fibre filter Type 3 and 3R with chopped-fibre filter and hose-proof hood |
| IP protection category to IEC 60529 | IP54 with chopped-fibre filter IP56 with chopped-fibre filter and hose-proof hood |
| Packaging unit | 1 pc(s). |
| Net weight | 0.145 kg |
| Gross weight | 0.148 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177998421 |
| ETIM 9 / ETIM 8 | EC002513 |
| ECLASS 8.0 | 27180706 |
Choose SK 3237308 when the enclosure uses a Blue e+ SK 3237.7xx fan-and-filter unit and the outlet grille must have a RAL 9005 black finish. The 92 × 92 mm mounting cut-out and 116.5 × 116.5 mm face should be checked against the enclosure drawing before installation.
This model is also suited to installations where technicians need straightforward access to the filter mat. Its opening louvred grille allows the mat to be reached during routine maintenance, and the optimized snap hooks support tool-free mounting.
The supplied chopped-fibre filter mat supports the specified IP54 and NEMA Type 12 configuration. If the installation requires IP56 or NEMA Type 3/3R, check the completed filter-and-hood arrangement, including space for the hose-proof hood. Because this is a passive outlet, the enclosure heat loss and ambient temperature must be considered when selecting the matching powered fan.
| Article number | Use it when | Do not treat as interchangeable when |
|---|---|---|
| SK 3237308 | The powered unit belongs to the Blue e+ SK 3237.7xx family and a RAL 9005 black outlet grille is specified. | The design requires a light-grey finish, an EMC configuration or another fan-and-filter platform. |
| SK 3237300 | The matching fan belongs to the Blue e+ SK 3237.7xx family and a RAL 7035 light-grey outlet grille is specified. | The enclosure design requires the RAL 9005 black version. |
| SK 3237400 | The matching fan belongs to the SK 3237.8xx EMC range and the corresponding EMC outlet filter is required. | The project uses the non-EMC Blue e+ SK 3237.7xx arrangement specified for SK 3237308. |
| Item | Relevant customer requirement |
|---|---|
| SK 3237054 chopped-fibre filter mat 89 × 89 × 10 mm; pack of 5 |
Replacement media for the SK 3237.3xx/3237.7xx range. Inspect the mat according to site dust conditions and replace it when needed to maintain the ventilation path. |
| SK 3237080 stainless steel hose-proof hood 150 × 230 × 40 mm |
Check this accessory when the completed installation requires the specified IP56 or NEMA Type 3/3R arrangement. Allow for its larger external dimensions when planning the enclosure layout. |
For model confirmation or quotation, send: the powered fan article number, enclosure heat loss, maximum ambient temperature, permitted internal temperature, required IP/NEMA rating, installation drawing, quantity and delivery destination. These details allow the outlet, airflow and protection arrangement to be checked together.
