The folding technology ensures that the handle does not need any swiveling space, which means that the surface of the door is completely free for installed equipment. Easy installation thanks to the snap-on handle system.

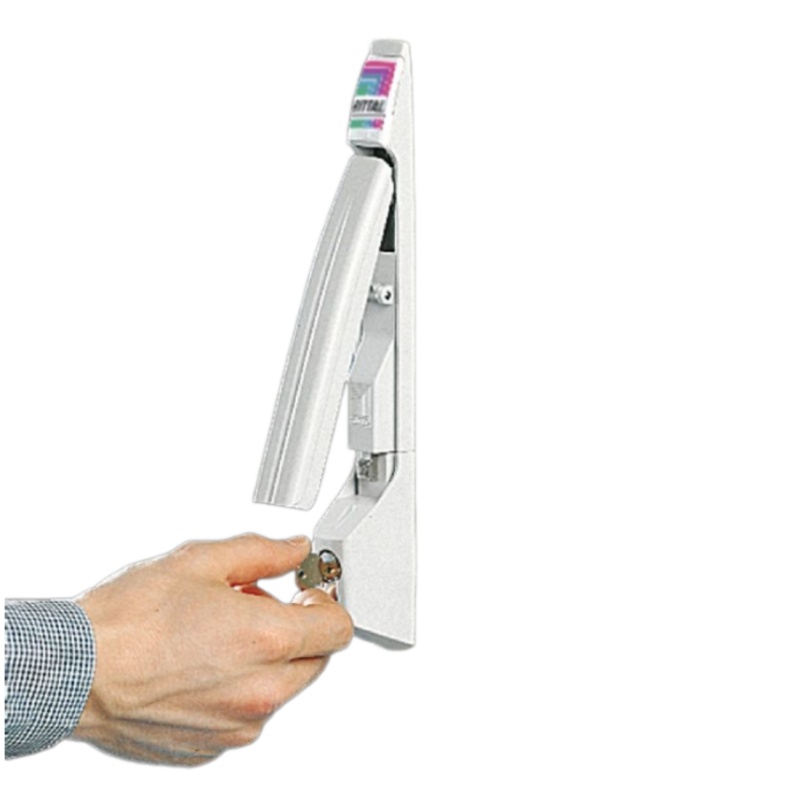

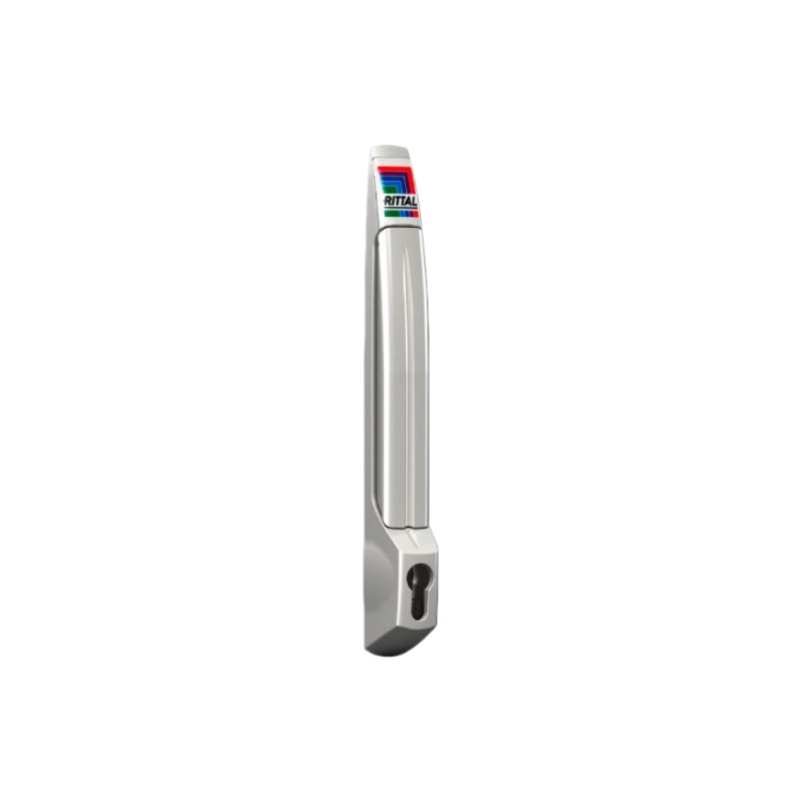

The Rittal Comfort Handle for TS, TS IT, VX SE, PC, and IW enclosures is a folding door handle designed for use on compatible Rittal enclosure systems. It allows the enclosure door to be opened and closed manually and can be combined with locking inserts or lock systems depending on the configuration.
The folding handle design reduces the protruding depth of the handle when not in use compared with fixed handles, helping to reduce the clearance required in front of the enclosure door. It is suitable for applications where enclosure doors have limited available space or where door-mounted components such as displays, control devices, or operating elements are installed.
| Article no. | Version | Material | Color | Suitable for enclosure type |
| TS 8611020 | For lock inserts | Die-cast zinc | RAL 7035 | TS TS IT VX SE PC enclosure door IW TS 8 stainless steel SE stainless steel EL 3-part 18 - 21 U AX wall-mounted housing, 3-part |
| TS 8611045 | with lock insert, lock E1 | Die-cast zinc | RAL 7035 | TS TS IT VX SE PC enclosure door IW TS 8 stainless steel SE stainless steel EL 3-part 18 - 21 U AX wall-mounted housing, 3-part |
| TS 8611070 | For semi-cylinder | Die-cast zinc | RAL 7035 | TS TS IT VX SE PC enclosure door IW TS 8 stainless steel SE stainless steel EL 3-part 18 - 21 U AX wall-mounted housing, 3-part |
| TS 8611280 | prepared for ASSA lock system | Die-cast zinc | RAL 7035 | TS TS IT VX SE PC enclosure door IW TS 8 stainless steel SE stainless steel EL 3-part 18 - 21 U AX wall-mounted housing, 3-part |
| TS 8611290 | for padlock and lock inserts | Die-cast zinc | RAL 7035 | TS TS IT VX SE PC enclosure door IW TS 8 stainless steel SE stainless steel EL 3-part 18 - 21 U AX wall-mounted housing, 3-part |
| TS 8611330 | For lock inserts | Die-cast zinc | Matt, chrome | TS TS IT VX SE PC enclosure door IW TS 8 stainless steel SE stainless steel EL 3-part 18 - 21 U AX wall-mounted housing, 3-part |
| TS 8611340 | For semi-cylinder | Die-cast zinc | Matt, chromium-plated | TS TS IT VX SE PC enclosure door IW TS 8 stainless steel SE stainless steel EL 3-part 18 - 21 U AX wall-mounted housing, 3-part |
| TS 8611350 | For lock inserts | Die-cast zinc | RAL 9005 | TS TS IT VX SE PC enclosure door IW TS 8 stainless steel SE stainless steel EL 3-part 18 - 21 U AX wall-mounted housing, 3-part |
| TS 8611360 | For semi-cylinder | Die-cast zinc | RAL 9005 | TS TS IT VX SE PC enclosure door IW TS 8 stainless steel SE stainless steel EL 3-part 18 - 21 U AX wall-mounted housing, 3-part |
Space-Saving Folding Handle Design: The folding mechanism helps reduce the external projection of the handle when not in use, making it suitable for enclosure applications where front access space is limited.
Snap-Mounted Installation System: Designed with a snap-mounted system for straightforward installation on compatible Rittal enclosure systems.
Wide Compatibility: Suitable for use with Rittal TS, TS IT, VX SE, PC, and IW enclosure series, including applications such as industrial control cabinets, automation systems, IT enclosures, and operator workstations.
Industrial-Grade Construction: Manufactured with a durable die-cast zinc housing and powder-coated finish for reliable use in industrial environments.
Black Finish for Industrial Enclosures: The black surface finish provides a professional appearance and matches common industrial cabinet designs.
Installation Note:

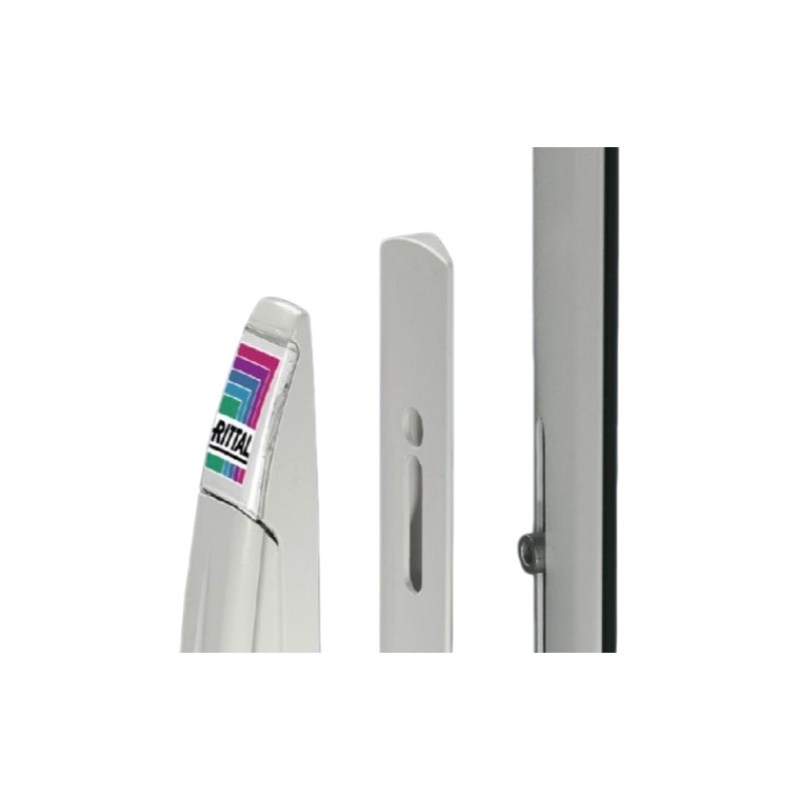

For certain enclosure configurations, such as glass doors, PC lower doors, and IW industrial workstation doors, an additional handle adapter may be required for proper installation.
Installation Guide
Verify enclosure compatibility
Prepare mounting position
Install handle adapter
Attach comfort handle
Test locking operation
Why Choose Rittal Comfort Handle?
| Feature | Rittal Comfort Handle | Standard Handle |
| Space saving | Optimized Space Utilization | Requires More Clearance |
| Rittal compatibility | Designed for Rittal Enclosures | General Compatibility |
| Industrial durability | Industrial-Grade Performance | Standard Performance |
| Locking flexibility | Flexible Locking Solutions | Limited Locking Solutions |
| Professional enclosure use | Industrial Enclosure Applications | General Cabinet Applications |
Our Factory
FAQ
Q1: How much does the Rittal Comfort Handle cost?
A: The price depends on the model, locking option, order quantity and shipping requirements. Contact us for a customized quote.
Q2: What applications is the Rittal Comfort Handle suitable for?
A: It is ideal for industrial control cabinets, electrical enclosures, automation systems, data centers and IT cabinets.
Q3: Does it meet safety requirements?
A: Yes. It features durable construction, reliable locking compatibility and is designed for professional enclosure applications.
Q4: Is the installation process easy?
A: Yes. The ergonomic design allows quick installation, replacement and efficient cabinet assembly.
Q5: What after-sales support is available?
A: We provide compatibility guidance, technical support, installation assistance and product service solutions.
