For enclosure ventilation through the base/plinth. With a 200 mm base/plinth height, one or two vented trim panels may optionally be used. With the optional panel attachment, the ventilated panels can also be mounted on the side of the base corner piece.

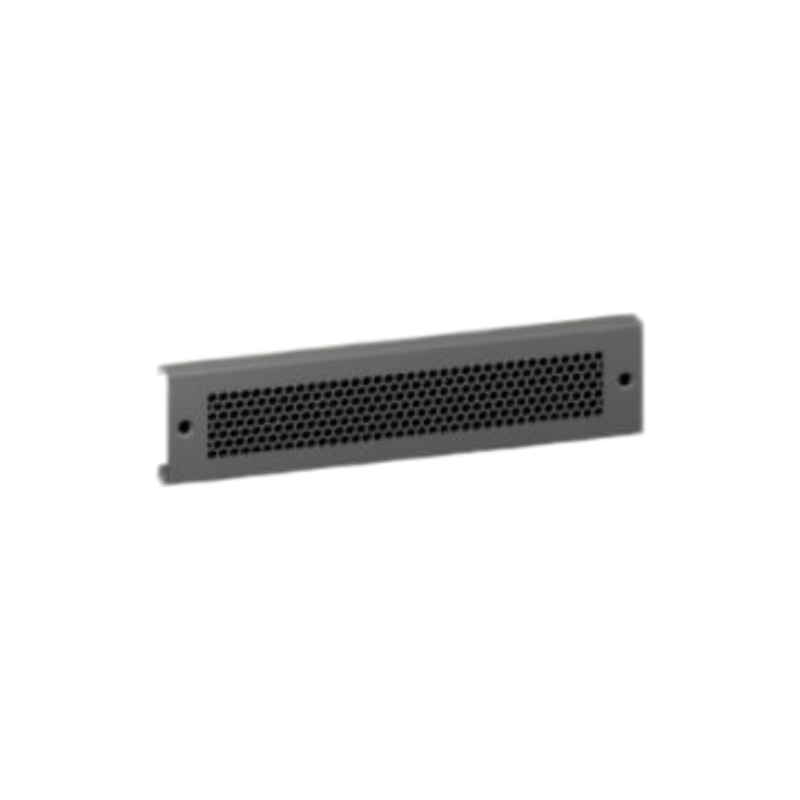

VX Vented Base/Plinth Trim Panels
Rittal VX vented base/plinth trim panels are designed to support enclosure ventilation through the base/plinth. They are particularly useful when additional airflow is required at enclosure floor level while retaining the mechanical structure of the VX base/plinth system.
Need the correct size? Send SUWI Auto the enclosure type, width/depth and quantity for article-number verification and quotation support.
Base-Level Ventilation
Allows air to enter or leave the enclosure through the base/plinth area.
Flexible Installation
With a 200 mm base/plinth height, one or two vented panels may be used depending on the installation.
Front, Rear or Side Use
With the optional trim-panel attachment, vented panels can also be mounted at the side of the base/plinth corner piece.
| Product type | Base/plinth trim panels, vented |
| System | VX base/plinth system |
| Version | Vented |
| Material | Carbon steel |
| Color | RAL 9005 |
| Panel height | 100 mm |
| Supply includes | Assembly components |
| UL 50E type rating | Type 1 / Type 12 |
| Packaging unit | 2 pc(s). |
| ETIM 9 / ETIM 8 | EC000721 |
| ECLASS 8.0 | 27182003 |
The current VX vented trim-panel series is specified for multiple Rittal enclosure platforms, including:
Select the article number according to the enclosure width or depth. The verified models below are part of this product family.
| Article No. | Panel Height | For Width/Depth | Net Weight | Pack |
|---|---|---|---|---|
| VX 8660090 | 100 mm | 600 mm | 1.0 kg | 2 pc(s). |
| VX 8660091 | 100 mm | 800 mm | 1.8 kg | 2 pc(s). |
The vent openings allow enclosure airflow through the base/plinth. In a 200 mm-high base/plinth, one or two 100 mm-high vented panels may be fitted depending on the ventilation concept.
When side installation is required, use the optional trim-panel attachment so the vented panel can be mounted to the side of the base/plinth corner piece.
Confirm these points before ordering:
Q: What are these panels used for?
A: They provide ventilation through the VX base/plinth so air can move through the lower part of the enclosure installation.
Q: What height are the panels?
A: The vented panels in this series are 100 mm high.
Q: Can they be used with a 200 mm base/plinth?
A: Yes. One or two vented panels may be used with a 200 mm base/plinth depending on the required configuration.
Q: Can the panels be installed on the side?
A: Yes. Side installation is possible with the optional trim-panel attachment.
Q: What sizes are available in this product family?
A: The verified current variants are VX 8660090 for 600 mm width/depth and VX 8660091 for 800 mm width/depth.
Q: Can SUWI Auto verify compatibility before ordering?
A: Yes. Send the enclosure type, width/depth, base height and quantity for model verification.
