Base/plinth corner pieces with trim panels for flexible cable entry.

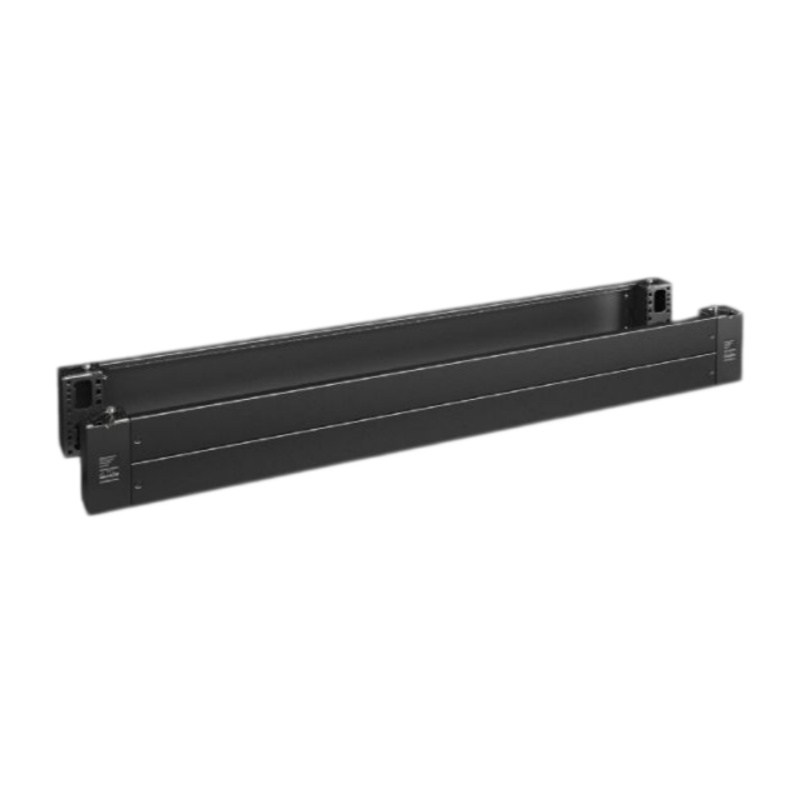

VX Base/Plinth Corner Pieces with Front and Rear Trim Panels
Rittal VX base/plinth corner pieces with front and rear trim panels form a stable enclosure base while keeping cable entry and base-level installation flexible. The system is designed for VX and compatible enclosure platforms and is available in different enclosure widths and base heights.
Need the correct article number? Send SUWI Auto the enclosure type, width, required base height and quantity for model verification and quotation support.
Stable Support
High-load-capacity corner pieces create a rigid base for the enclosure and support reliable installation.
Flexible Cable Entry
The base/plinth layout provides accessible space for cable routing and entry at enclosure floor level.
System Expansion
VX accessories can be used for additional internal installation and neighboring base/plinth configurations.
| Product type | Base/plinth corner pieces with front and rear trim panels |
| System | Base/plinth system VX |
| Corner piece material | Carbon steel |
| Front/rear trim panel material | Carbon steel |
| Corner / baying covers | Plastic |
| Color | RAL 9005 |
| Available base heights | 100 mm and 200 mm |
| UL 50E type rating | Type 1 / Type 12 |
| ETIM 9 / ETIM 8 | EC000721 |
| ECLASS 8.0 | 27182003 |
Depending on the selected width and article number, this base/plinth family is specified for multiple Rittal enclosure platforms, including:
Selection is mainly based on enclosure width and required base height. Confirm both before ordering. The examples below show how the series is structured.
| Article No. | Base Height | For Enclosure Width | Material |
|---|---|---|---|
| VX 8660000 | 100 mm | 300 mm | Carbon steel |
| VX 8660003 | 100 mm | 800 mm | Carbon steel |
| VX 8660007 | 100 mm | 1200 mm | Carbon steel |
| VX 8660020 | 200 mm | 300 mm | Carbon steel |
| VX 8660021 | 200 mm | 400 mm | Carbon steel |
| VX 8660027 | 200 mm | 1800 mm | Carbon steel |
The table above is a representative selection, not the complete size matrix. Final selection should be verified against the enclosure width and required base/plinth height.

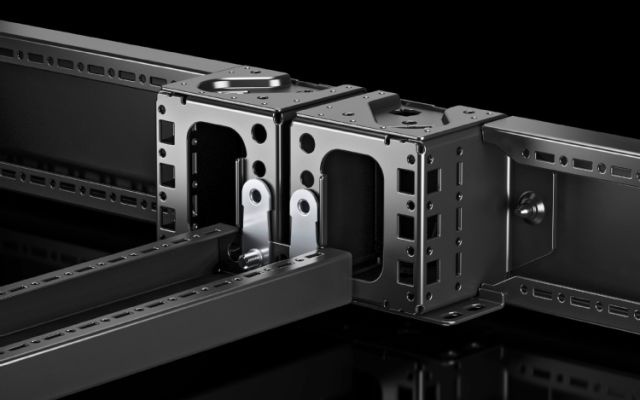

Large openings in the corner pieces provide access to enclosure fastening points and make the base area easier to use during installation. Front and rear trim panels close the base while still allowing the base/plinth system to be configured around cable-entry requirements.
Side trim panels can be added separately where the base needs to be closed at the sides, stabilized between neighboring bases, or used for additional base-level internal installation.
Confirm these four points:
Q: What determines the correct article number?
A: The key selection parameters are enclosure width and required base/plinth height. Confirm the enclosure platform as well before ordering.
Q: What is the difference between the 100 mm and 200 mm versions?
A: The difference is the total base height and the supplied trim-panel configuration. The 200 mm version provides more base-level installation and cable-routing space.
Q: Are side trim panels included?
A: Front and rear trim panels are included in this product family. Side trim panels are selected separately when required.
Q: What color is the VX base/plinth?
A: The base/plinth components are supplied in RAL 9005.
Q: Can SUWI Auto verify the correct model before ordering?
A: Yes. Provide the enclosure type, width, required base height and quantity, and SUWI Auto can help verify the article number and accessory combination.
LED system light - the first light designed especially for enclosures! Advanced LED technology provides even more light into the last recess.
Read More
For side blanking of a base/plinth unit and for additional stabilization or the interior installation of baying bases. One 200 mm-high or two 100 mm-high trim panels can optionally be fitted on 200 mm-high base/plinths.
Read More
For enclosure ventilation through the base/plinth. With a 200 mm base/plinth height, one or two vented trim panels may optionally be used. With the optional panel attachment, the ventilated panels can also be mounted on the side of the base corner piece.
Read More
For cable entry into the base/plinth. With a 200 mm base/plinth height, one or two trim panels with brush strips may optionally be used. With the optional panel attachment, the trim panels with brush strips can also be mounted on the side of the base corner piece.
Read More
Stainless steel base/plinth trim panels are used depth-wise for laterally closing a base/plinth unit.
Read More

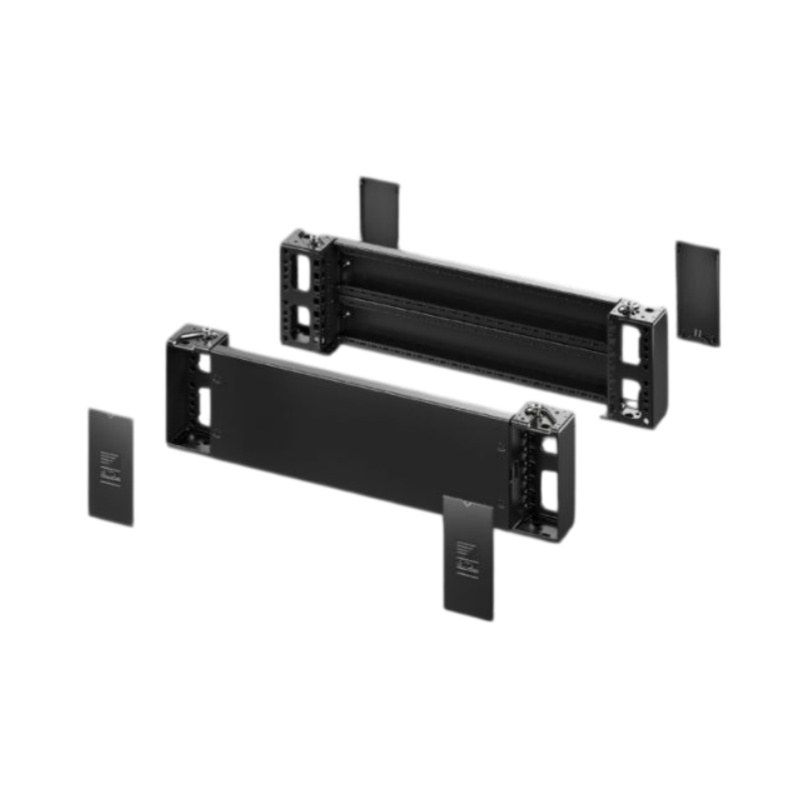

Base/plinth corner pieces with front and rear panel. Large openings in the base/plinth corner piece for best access to the screw-fastening point. Seamless baying.
