For side blanking of a base/plinth unit and for additional stabilization or the interior installation of baying bases. One 200 mm-high or two 100 mm-high trim panels can optionally be fitted on 200 mm-high base/plinths.

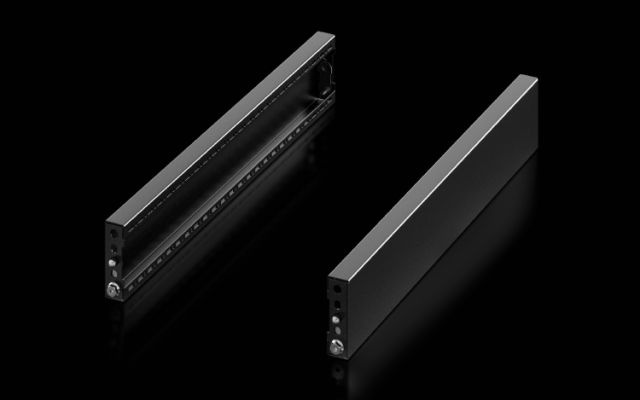

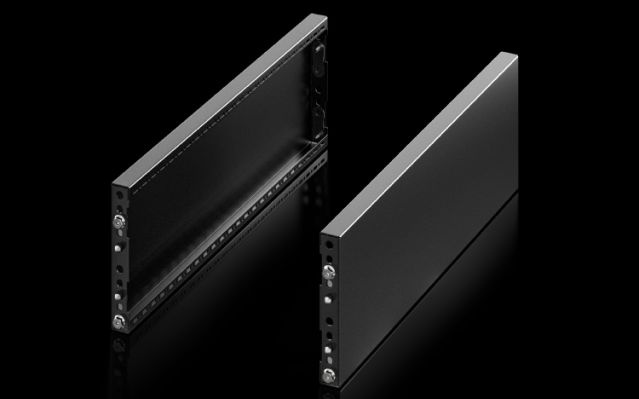

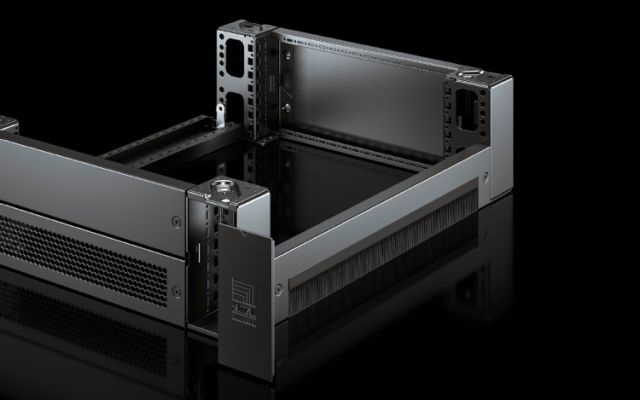

VX Base/Plinth Side Trim Panels, Carbon Steel
Rittal VX base/plinth side trim panels are designed to close the sides of VX base/plinth assemblies while providing additional stabilization and installation flexibility. They are available in different depths and in 100 mm or 200 mm heights for use with compatible Rittal enclosure platforms.
Need the correct article number? Send SUWI Auto your enclosure type, enclosure depth, required base height and quantity for model verification and quotation support.
Side Blanking
Closes the side of the base/plinth assembly for a cleaner and more complete installation.
Additional Stability
Helps stabilize the base/plinth structure, especially in larger or bayed enclosure installations.
Flexible Installation
Can also be used for interior installation between bayed base/plinth units.
| Product type | Base/plinth side trim panels |
| System | Base/plinth system VX |
| Version | Closed |
| Material | Carbon steel |
| Color | RAL 9005 |
| Available heights | 100 mm / 200 mm |
| UL 50E type rating | Type 1 / Type 12 |
| Packaging unit | 2 pc(s). |
| ETIM 9 / ETIM 8 | EC000721 |
| ECLASS 8.0 | 27182003 |
Depending on the selected article number and enclosure depth, this side trim panel family is suitable for multiple Rittal enclosure platforms, including:
Selection is mainly based on base/plinth depth and required trim panel height. Confirm both parameters before ordering.
| Article No. | Panel Height | For Base/Plinth Depth | Material |
|---|---|---|---|
| VX 8660030 | 100 mm | 300 mm | Carbon steel |
| VX 8660032 | 100 mm | 500 mm | Carbon steel |
| VX 8660034 | 100 mm | 800 mm | Carbon steel |
| VX 8660036 | 100 mm | 1200 mm | Carbon steel |
| VX 8660040 | 200 mm | 300 mm | Carbon steel |
| VX 8660041 | 200 mm | 400 mm | Carbon steel |
| VX 8660042 | 200 mm | 500 mm | Carbon steel |
| VX 8660046 | 200 mm | 1200 mm | Carbon steel |
The table above is a representative selection. Final selection should be verified against the required base/plinth depth and panel height.
Used for 100 mm-high base/plinth assemblies. Two 100 mm-high side trim panels may also be used on a 200 mm-high base/plinth where a split configuration is preferred.
One 200 mm-high side trim panel may be fitted to a 200 mm-high VX base/plinth for full-height side blanking.
VX side trim panels are used where the sides of the base/plinth should be closed or reinforced. They can also support more structured installation between neighboring bayed enclosures.
For complete base/plinth assemblies, these side panels are normally used together with VX base/plinth corner pieces and front/rear trim panels.
Need the main base assembly? Use these side trim panels together with VX Base/Plinth Corner Pieces with Front and Rear Trim Panels .
Confirm these four points:
Documentation should be verified against the selected VX article number before ordering.
Q: How do I select the correct VX side trim panel?
A: Select the article number according to the base/plinth depth and required panel height. Confirm the enclosure family before ordering.
Q: What is the difference between the 100 mm and 200 mm versions?
A: The difference is the panel height. A 200 mm-high base/plinth can use one 200 mm panel or two 100 mm panels depending on the required configuration.
Q: Are these side panels included with the main VX base/plinth set?
A: Side trim panels are separate components and should be selected according to the required base/plinth depth and height.
Q: What material and color are used?
A: The panels are carbon steel with a RAL 9005 finish.
Q: Can SUWI Auto verify the correct article number?
A: Yes. Provide the enclosure type, base/plinth depth, required panel height and quantity, and SUWI Auto can help confirm the correct model.
