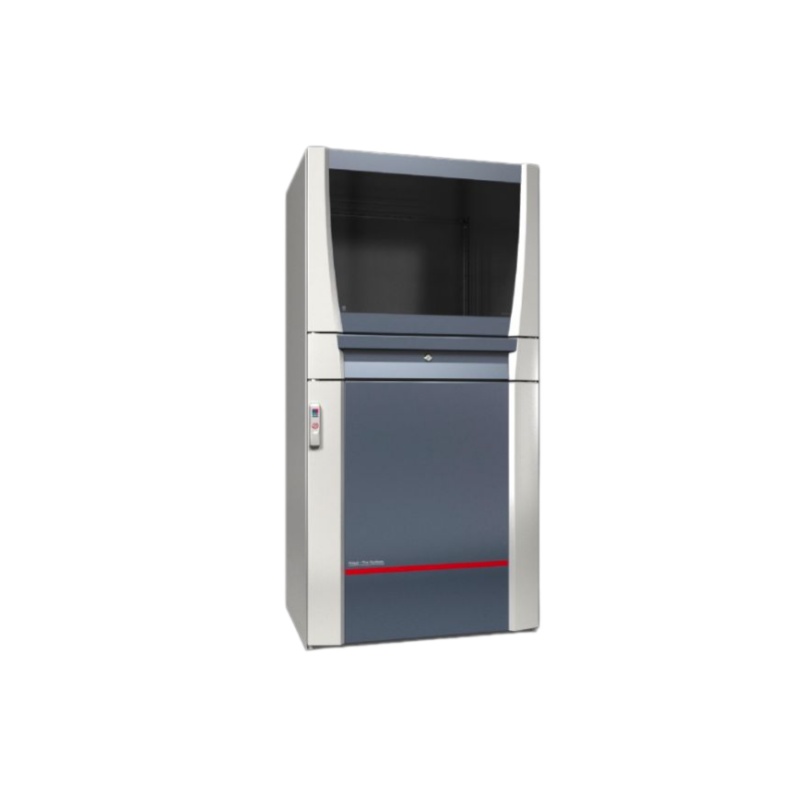

PC 5368050 PC enclosure system

The PC 5368050 PC Enclosure System is an industrial computer enclosure for production terminals and machine control stations. Its deeper design provides additional space for equipment and cabling, while helping protect installed devices from dust, moisture and unauthorized access.

Article no.:	PC 5368050
Dimensions	600 mm x 1600 mm x 836 mm
Version	with glazed door at the top, keyboard drawer and component shelf
Material	Housing, door, rear door, mounting compartment, supports: carbon steel Handles, decorative trim panels: Plastic Door trim panels: Aluminum Viewing window: Single-pane safety glass
Surface finish	Housing and door: Dipcoat primed, powder-coated on the outside, textured paint
General color	RAL 7035
Color	Housing, door, decorative trim panels, supports: RAL 7035 Handle: RAL 7015 Monitor field, door center section: RAL 7015
Protection category IP to IEC 60 529	IP 55
Protection category NEMA	NEMA 12
Type rating according to UL 50E	Type 1 / Type 12
Max. keyboard dimensions (WxHxD)	480 x 70 x 260 mm ( 18.9 x 2.76 x 10.2 ˝ )
Base material	Carbon steel
Packaging unit	1 pc(s).
Net weight	108.5 kg
Gross weight	110 kg
PCF/VE (cradle-to-gate)	422.9 kg CO2 eq (Cat B)
Information regarding the PCF class	Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
Customs tariff number	94032080
EAN	4028177959446
ETIM 9	EC002502
ECLASS 8.0	27180501
Supply includes	Housing, door, rear door Base Plates Glazed door, top Keyboard drawer Component shelf





1. Additional Equipment Space
The deeper industrial PC enclosure provides room for computers, power supplies and associated cabling.

2. Practical Workstation Layout

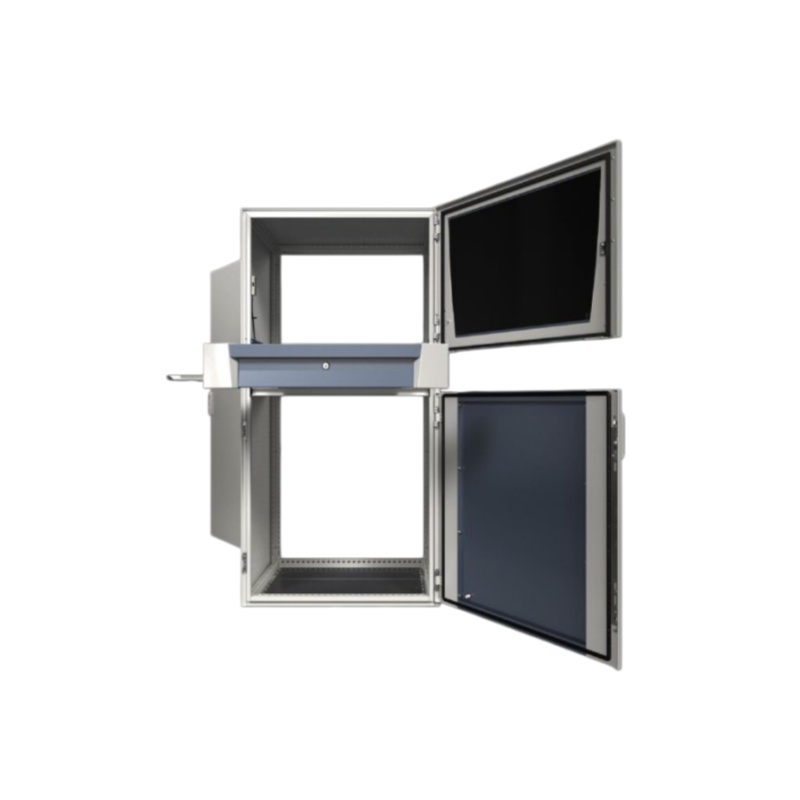

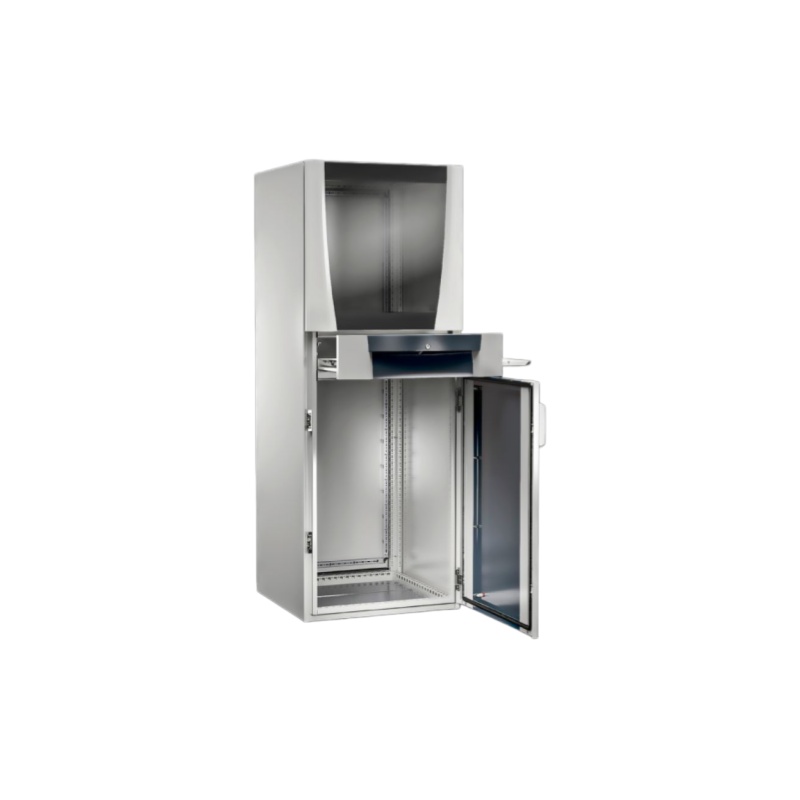

A glazed viewing door, keyboard drawer and component shelf support an organized industrial computer workstation.

3. Installation and Maintenance Access
Additional space allows equipment positioning and cable routes to be planned around service access needs.

Compare sizes and configurations in our PC Enclosure System range.



Applications

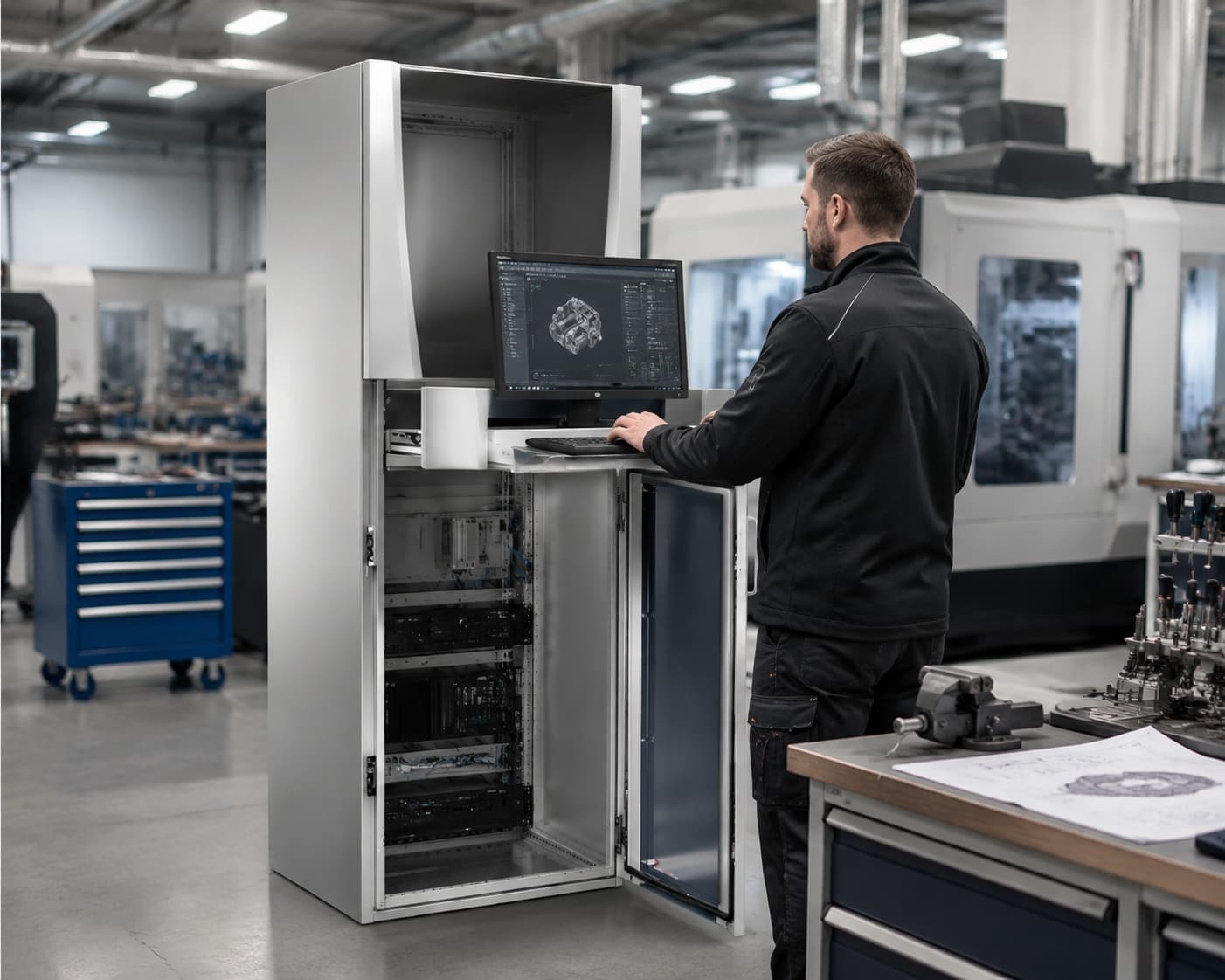

The PC 5368050 industrial PC enclosure accommodates computers, monitors and control equipment at production workstations. Its deeper design provides additional room for equipment and cable routing.

Potential applications include CNC operator stations, assembly line terminals and inspection workstations, subject to equipment fit and operating conditions. The enclosure houses the devices operators use for machine control, production monitoring and data access.



Need a Reliable Industrial PC Enclosure Solution?

Whether you need a standard configuration or a customized workstation enclosure, our team can provide suitable solutions based on your equipment size, installation requirements, and application environment.

Contact us today to discuss your PC enclosure requirements and get a customized quotation.



PC 5368050 vs Other PC Enclosure Models

Model	External Dimensions W × H × D	Main Configuration

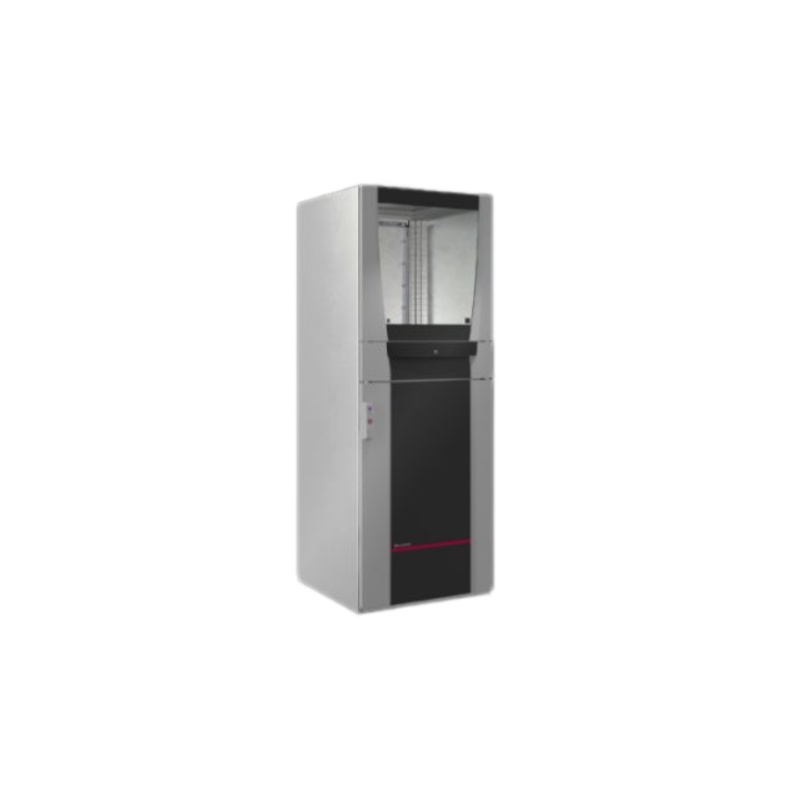

PC 5366050	600 × 1600 × 636 mm	Glazed upper door, keyboard drawer and component shelf
PC 5366450	600 × 1600 × 636 mm	Keyboard drawer and large mounting compartment
PC 5368050	600 × 1600 × 836 mm	Glazed upper door, keyboard drawer and component shelf; deeper enclosure



Which Model Should You Choose?



Choose according to your equipment dimensions, mounting arrangement, cable clearance, cooling requirements and available floor space. PC 5368050 offers greater external depth, while PC 5366450 provides a different mounting configuration.

External dimensions do not represent usable installation space. Check the enclosure drawings before ordering.

Compatible Accessories for PC 5368050

PC 5368050 PC Enclosure System can be equipped with a wide range of accessories for equipment mounting, cable organization, security and operation. Accessory selection depends on the enclosure configuration and application requirements. Verify compatibility and quantities before ordering.

Equipment Shelves and Drawer Components

8902960

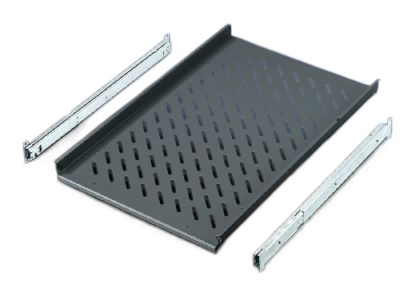

Component shelf, pull-out

6902700

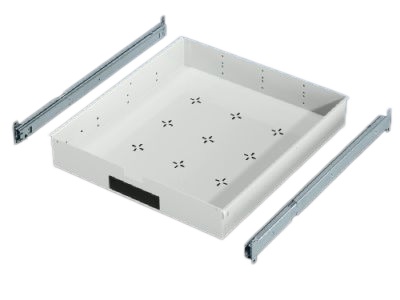

Drawer tray

Mounting Plates and Adapter Rails

8617550

Partial Mounting Plates

8617760

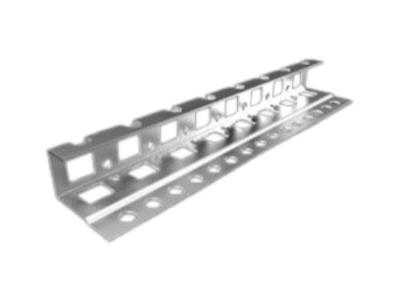

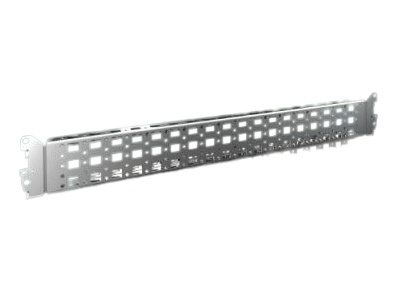

Adapter rail

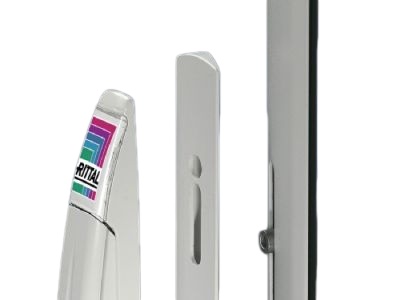

Handles and Handle Adapters

8611300

Handle Adapter

8611290

Comfort Handle

8611020

Comfort Handle

8611070

Comfort Handle

Monitor Mounting and System Chassis

Monitor mount

Model not specified

8619730

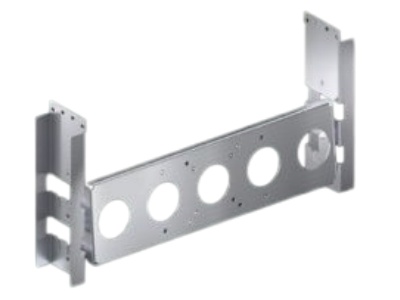

System chassis 14 × 39 mm

8617140

System chassis 23 × 64 mm

Paper Removal Components

6903200

Paper removal flap

Base / Plinth Trim Panels

8660044

Base / plinth trim panels, side

8660034

Base / plinth trim panels, side

Base / Plinth Corner Pieces

8660022

Base / plinth corner pieces

8660002

Base / plinth corner pieces

Ordering note: Accessories are selected separately according to the installation requirements. Confirm the applicable enclosure configuration, mounting dimensions and required quantities before placing an order.

Approvals

Approvals+

UL + C-UL (listed)

Technical Data Sheet

Certificates+

Surface finish

Declarations+

Declaration of conformity

Downloads

Documentation+

Additional information

Instructions

Safety instructions

Data sheets+

Technical details



SUWI Facilities

Q1. Does the PC 5368050 include a computer, monitor and keyboard?

A: These devices are not listed in the standard enclosure supply. Specify any required computer equipment separately when requesting a quotation.

Q2. How can I confirm that my equipment will fit?

A: Check the enclosure drawings against your monitor and PC dimensions, mounting method and cable clearance. The keyboard drawer accepts keyboards up to 480 × 70 × 260 mm (W × H × D). Send your equipment drawings to SUWI if you need help checking the fit.

Q3. Is additional cooling required, and what information is needed?

A: Cooling needs depend on the installed equipment and operating environment. Provide the total equipment heat load, maximum ambient temperature and required internal temperature so a suitable cooling arrangement can be assessed.

Q4. How can I get a price and delivery estimate?

A: Send SUWI the article number PC 5368050, quantity and destination country. Include any accessories, cooling or machining requirements. Price, availability and lead time will be confirmed in the quotation.
