The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Item No :
AX 1073000Material :
Carbon SteelColor :
RAL 7035

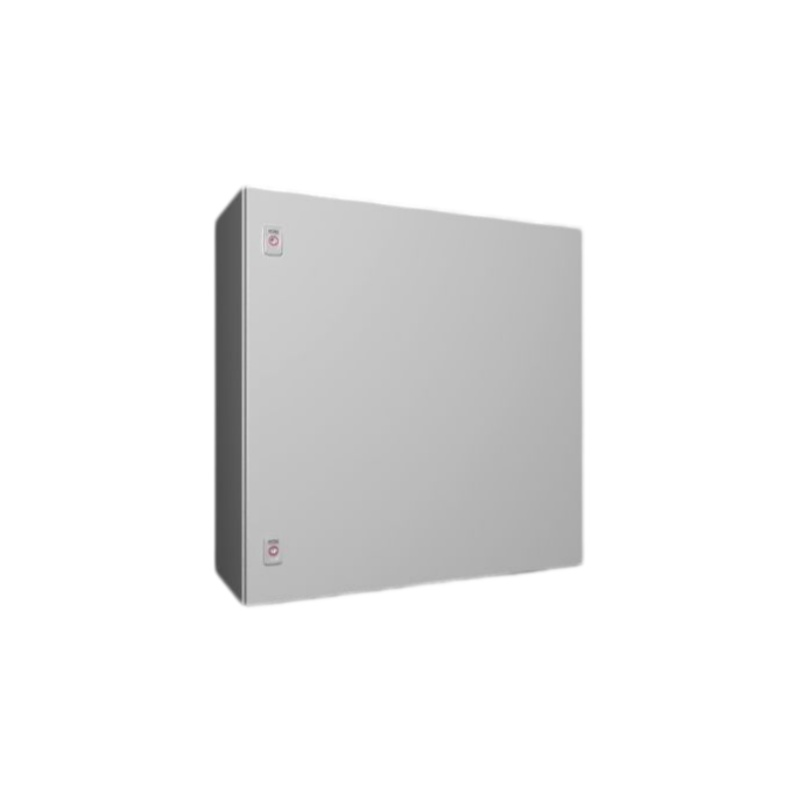

The Rittal AX 1073000 is a large square-format carbon steel wall-mounted enclosure for control systems that need substantial mounting capacity in both directions. Its 760 × 760 × 300 mm body provides a balanced 705 × 735 mm mounting area and useful front-to-back clearance, while IP66 sealing and IK10 impact resistance support demanding industrial locations.
Need pricing or availability? Contact SUWI Auto with your required quantity and delivery destination for model verification and quotation support.
| Article no.: | AX 1073000 |
| Dimensions | Width: 760 mm Height: 760 mm Depth: 300 mm ( Width: 29.9 ˝ Height: 29.9 ˝ Depth: 11.8 ˝ ) |
| Benefits |
|
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Supply includes | Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit |
| Protection category NEMA |
|
| Protection category IP to EN 60 529 | IP 66 |
| Type rating according to UL 50E |
|
| IK code | IK10 |
| Material thickness - door | 2 mm ( 0.08 ˝ ) |
| Material thickness - enclosure | 1.5 mm ( 0.06 ˝ ) |
| Material thickness – mounting plate | 2.5 mm ( 0.1 ˝ ) |
| Dimensions of mounting plate (W x H) | 705 mm x 735 mm ( 27.8 ˝ x 28.9 ˝ ) |
| Number of doors | 1 |
| Interchangeable door catch | Yes |
| No. of locks | 2 |
| Lock | Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit |
| Gland plate | Size: 5 Qty.: 2 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 39.9 kg |
| Gross weight | 40.5 kg |
| PCF/VE (cradle-to-gate) | 141.17 kg CO2 eq (Cat B) |
| Information regarding the PCF class | Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177813267 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
When the Layout Needs Nearly Equal Width and Height
AX 1073000 provides a 705 × 735 mm mounting panel for designs that need long horizontal rows and meaningful vertical separation at the same time. Its square proportions suit balanced equipment zones, while 300 mm enclosure depth leaves room for component projection, terminals and cable bends beyond the mounting panel.
Choose AX 1055000 when greater horizontal span is more important than mounting height; its panel is wider but substantially shorter. Choose AX 1058000 when the design favors vertical height and can use a narrower panel with 250 mm depth. Before machining AX 1073000, confirm the complete two-axis layout, deepest component, both lock positions, door clearances and how incoming cables will be divided between the two size 5 base openings.
Use this supply list to separate the included enclosure components from optional interior-installation and cable-entry parts:
The standard configuration includes a 705 × 735 mm mounting panel and two size 5 gland plates in the enclosure base. Plan both entry positions together so cable groups align with the horizontal and vertical routing zones above.
AX 1073000 uses interior rails specified for 300 mm depth and has two size 5 base openings. Diaphragm plates support direct cable penetration, while two-piece clamping-profile plates suit cables with pre-terminated connectors; replacing both openings requires two matching plates.
2394300 Rail for Interior Installation AX
Suitable for enclosure type: AX
Suitable for depth: 300 mm
Packaging unit: 4 pc(s).
2394100 Base configuration rail
Suitable for enclosure type: AX
Packaging unit: 1 pc(s)
2565300 Plastic Cable Gland Plate with Diaphragms
Size: 5
Width: 301 mm
Depth: 221 mm
Two plates required to replace both base openings
2565450 Two-Piece Flange Plate with Clamping Profile
Suitable for model: AX 1073000
Size: 5
Width × depth: 301 × 221 mm
Two plates required to replace both base openings
2503020 Wall Mounting Bracket
Material: Carbon steel, zinc-plated Wall distance: 40 mm Suitable for enclosure type: AX / KX / AX wall-mounted housing, 3-part
Packaging unit: 4 pc(s)
4052000 Multitool
Packaging unit: 1 pc(s)
Plastic Wiring Plan Pocket
Packaging unit: 1 pc(s)
Ground Straps
Packaging unit: 8 pc(s)
2519020 Door stay
Packaging unit: 1 pc(s)
Planning a balanced AX 1073000 assembly? Send the mounting-panel drawing, row and column spacing, deepest component, cable allocation for both base openings and proposed door cut-outs so the 705 × 735 mm working area and 300 mm depth can be reviewed together.
AX 1073000 provides a 760 × 760 × 300 mm enclosure with a 705 × 735 mm mounting panel. Compare AX 1055000 when the layout needs more width but less height, or AX 1058000 when greater vertical height is needed with less width and 250 mm depth. Base the choice on two-axis mounting area, device projection and cable-entry demand.
