The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Item No :
AX 1060000Material :
Carbon SteelColor :
RAL 7035

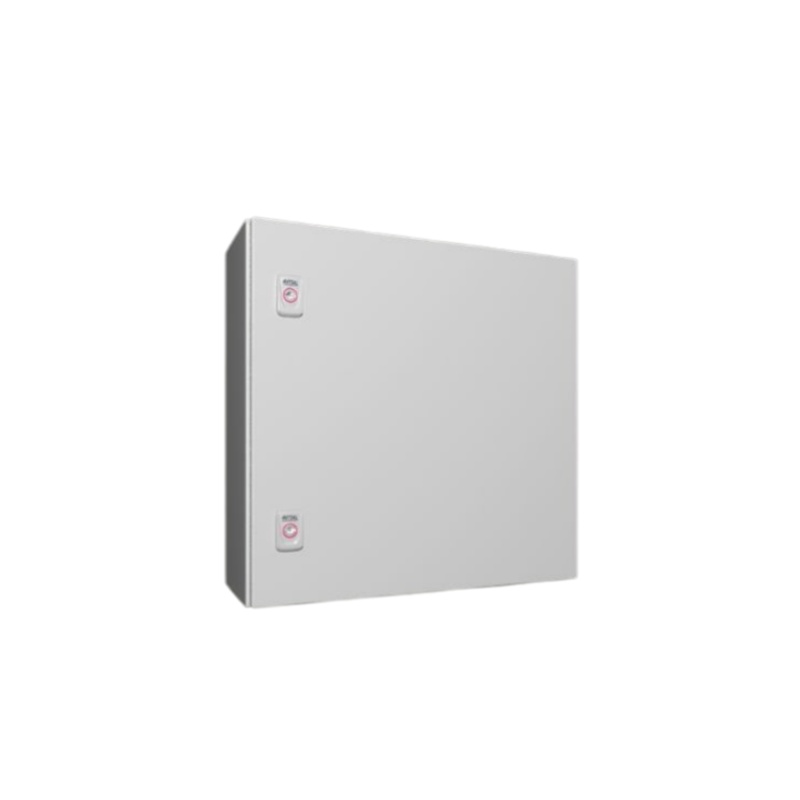

The Rittal AX 1060000 is a square-format carbon steel wall-mounted enclosure for control systems that need broad mounting space with limited cabinet projection. Its 600 × 600 × 210 mm body provides a 550 × 575 mm mounting area in a comparatively shallow housing, while IP66 sealing and IK10 impact resistance support demanding industrial locations.
Need pricing or availability? Contact SUWI Auto with your required quantity and delivery destination for model verification and quotation support.
| Article no.: | AX 1060000 |
| Dimensions | Width: 600 mm Height: 600 mm Depth: 210 mm ( Width: 23.6 ˝ Height: 23.6 ˝ Depth: 8.27 ˝ ) |
| Benefits |
|
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Supply includes | Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit |
| Protection category NEMA |
|
| Protection category IP to EN 60 529 | IP 66 |
| Type rating according to UL 50E |
|
| IK code | IK10 |
| Material thickness - door | 1.5 mm ( 0.06 ˝ ) |
| Material thickness - enclosure | 1.5 mm ( 0.06 ˝ ) |
| Material thickness – mounting plate | 2.5 mm ( 0.1 ˝ ) |
| Dimensions of mounting plate (W x H) | 550 mm x 575 mm ( 21.7 ˝ x 22.6 ˝ ) |
| Number of doors | 1 |
| Interchangeable door catch | Yes |
| No. of locks | 2 |
| Lock | Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit |
| Gland plate | Size: 4 Qty.: 1 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 22 kg |
| Gross weight | 22.3 kg |
| PCF/VE (cradle-to-gate) | 88.19 kg CO2 eq (Cat B) |
| Information regarding the PCF class | Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177813373 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
When Broad Panel Space Must Stay Close to the Wall
AX 1060000 provides a 550 × 575 mm mounting panel for side-by-side device groups, several compact equipment rows or a divided control-and-terminal layout. The square front preserves usable width, while the 210 mm depth limits wall projection where the installed components and wiring do not require a deeper housing.
Choose AX 1054000 when the same 600 × 600 mm front and mounting-panel size are required but the assembly needs 250 mm enclosure depth. Choose AX 1050000 when 210 mm depth is suitable and a smaller front area can hold the complete layout. Before machining AX 1060000, confirm the deepest device together with terminals and cable bends, both lock positions, the size 4 base-entry zone and clearance behind door-mounted controls.
Use this supply list to separate the included enclosure components from optional interior-installation and cable-entry parts:
The standard configuration includes a 550 × 575 mm mounting panel and one size 4 gland plate in the enclosure base. Define cable quantity, outside diameter and connector dimensions before selecting an alternative entry plate.
AX 1060000 uses interior rails specified for 210 mm enclosure depth and replacement entry plates matching gland-plate size 4. Confirm rail depth independently from the 600 × 600 mm front dimensions, and plan the base entry around cable quantity, connector size and bend radius.
2394210 Rail for Interior Installation AX
Suitable for enclosure type: AX
Suitable for depth: 210 mm
Packaging unit: 4 pc(s).
2394100 Base configuration rail
Suitable for enclosure type: AX
Packaging unit: 1 pc(s)
2564300 Plastic Cable Gland Plate with Diaphragms
Size: 4
Width: 534 mm
Depth: 149 mm
2503020 Wall Mounting Bracket
Material: Carbon steel, zinc-plated Wall distance: 40 mm Suitable for enclosure type: AX / KX / AX wall-mounted housing, 3-part
Packaging unit: 4 pc(s)
4052000 Multitool
Packaging unit: 1 pc(s)
Plastic Wiring Plan Pocket
Packaging unit: 1 pc(s)
Ground Straps
Packaging unit: 8 pc(s)
2519020 Door stay
Packaging unit: 1 pc(s)
Planning a shallow, wide AX 1060000 assembly? Send the mounting-panel drawing, deepest component including terminals, duct dimensions, cable-entry schedule and proposed door cut-outs so the 210 mm depth and front clearances can be reviewed before machining.
AX 1060000 provides a 600 × 600 × 210 mm enclosure with a 550 × 575 mm mounting panel. Compare AX 1054000 when the identical front and panel area need 40 mm more depth, or AX 1050000 when a smaller square housing is enough at the same 210 mm depth. Base the change on usable panel area, total installed depth and required wall projection.
