The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Item No :
AX 1077000Material :
Carbon SteelColor :
RAL 7035

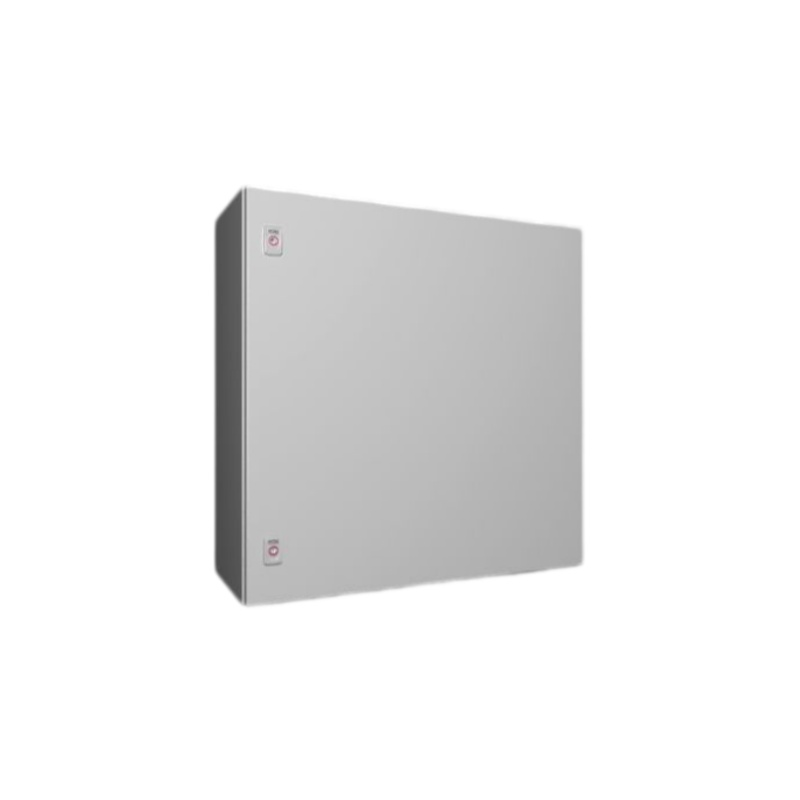

The Rittal AX 1077000 is a large square-format carbon steel wall-mounted enclosure for control systems that need broad two-axis mounting capacity with limited cabinet projection. Its 760 × 760 × 210 mm body provides a 705 × 735 mm mounting area in a shallow housing, while IP66 sealing and IK10 impact resistance support demanding industrial locations.
Need pricing or availability? Contact SUWI Auto with your required quantity and delivery destination for model verification and quotation support.
| Article no.: | AX 1077000 |
| Dimensions | Width: 760 mm Height: 760 mm Depth: 210 mm ( Width: 29.9 ˝ Height: 29.9 ˝ Depth: 8.27 ˝ ) |
| Benefits |
|
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Supply includes | Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit |
| Protection category NEMA |
|
| Protection category IP to EN 60 529 | IP 66 |
| Type rating according to UL 50E |
|
| IK code | IK10 |
| Material thickness - door | 2 mm ( 0.08 ˝ ) |
| Material thickness - enclosure | 1.5 mm ( 0.06 ˝ ) |
| Material thickness – mounting plate | 2.5 mm ( 0.1 ˝ ) |
| Dimensions of mounting plate (W x H) | 705 mm x 735 mm ( 27.8 ˝ x 28.9 ˝ ) |
| Number of doors | 1 |
| Interchangeable door catch | Yes |
| No. of locks | 2 |
| Lock | Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit |
| Gland plate | Size: 2 Qty.: 2 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 35 kg |
| Gross weight | 36.66 kg |
| PCF/VE (cradle-to-gate) | 125.24 kg CO2 eq (Cat B) |
| Information regarding the PCF class | Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177813359 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
When a Large Square Panel Must Remain Only 210 mm Deep
AX 1077000 provides a 705 × 735 mm mounting panel for layouts that need substantial row length and vertical separation in the same enclosure. Its 760 mm square front supports balanced equipment zones, while the 210 mm depth reduces wall projection compared with an enclosure offering the same panel area at 300 mm depth.
Choose AX 1073000 when the identical front dimensions and mounting-panel area need 300 mm enclosure depth for projecting equipment or larger cable bends. Choose AX 1076000 when 550 mm of panel width is sufficient and a narrower wall footprint is preferred at the same height and depth. Before machining AX 1077000, verify total installed depth, row and column spacing, both lock positions, door clearances and cable allocation between the two size 2 base openings.
Use this supply list to separate the included enclosure components from optional interior-installation and cable-entry parts:
The standard configuration includes a 705 × 735 mm mounting panel and two size 2 gland plates in the enclosure base. Plan both entry positions together so incoming cable groups align with their corresponding equipment zones.
AX 1077000 uses interior rails specified for 210 mm enclosure depth and has two size 2 base openings. Select accessories by both depth and opening size; replacing both standard gland plates requires two matching entry plates.
2394210 Rail for Interior Installation AX
Suitable for enclosure type: AX
Suitable for depth: 210 mm
Packaging unit: 4 pc(s).
2394100 Base configuration rail
Suitable for enclosure type: AX
Packaging unit: 1 pc(s)
2562300 Plastic Cable Gland Plate with Diaphragms
Size: 2
Width: 339 mm
Depth: 149 mm
Two plates required to replace both base openings
2503020 Wall Mounting Bracket
Material: Carbon steel, zinc-plated Wall distance: 40 mm Suitable for enclosure type: AX / KX / AX wall-mounted housing, 3-part
Packaging unit: 4 pc(s)
4052000 Multitool
Packaging unit: 1 pc(s)
Plastic Wiring Plan Pocket
Packaging unit: 1 pc(s)
Ground Straps
Packaging unit: 8 pc(s)
2519020 Door stay
Packaging unit: 1 pc(s)
Planning a large, shallow AX 1077000 assembly? Send the mounting-panel drawing, row and column spacing, deepest component including terminals, cable allocation for both base openings and proposed door cut-outs so the 705 × 735 mm working area and 210 mm depth can be reviewed before machining.
AX 1077000 provides a 760 × 760 × 210 mm enclosure with a 705 × 735 mm mounting panel. Compare AX 1073000 when the same panel area needs 300 mm depth, or AX 1076000 when a narrower 550 mm panel width is sufficient at the same height and depth. Base the change on horizontal span, total installed depth and allowable wall projection.
