The small enclosure KX, E-Box KX, carbon steel offers remarkable ease of assembly and flexibility when selecting lock systems.
Item No :
KX 1545000Color :
RAL 7035Weight :
2.343 kgProtection category IP to EN 60 529 :
IP 66

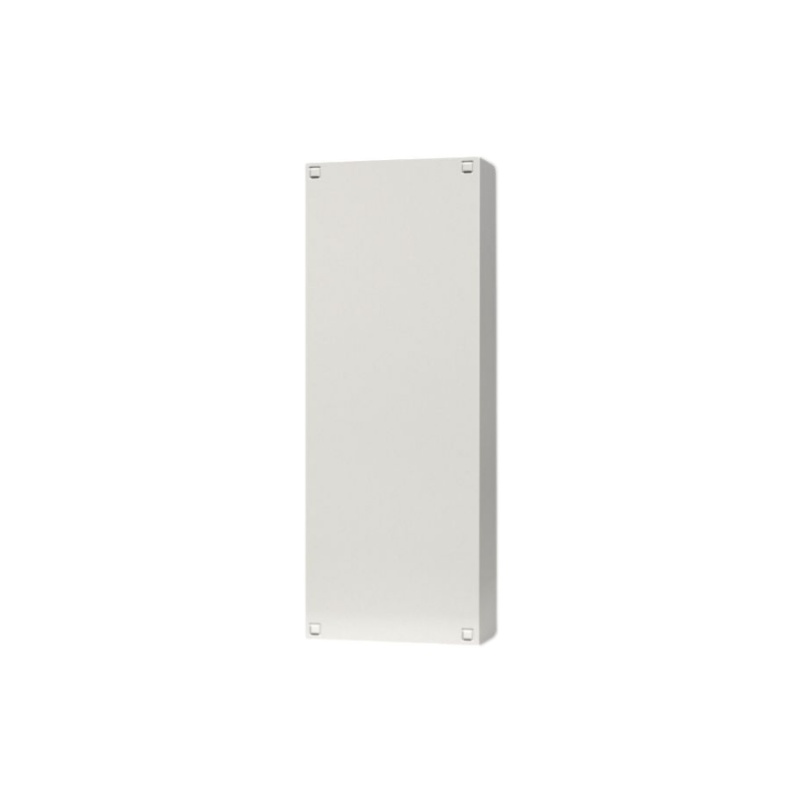

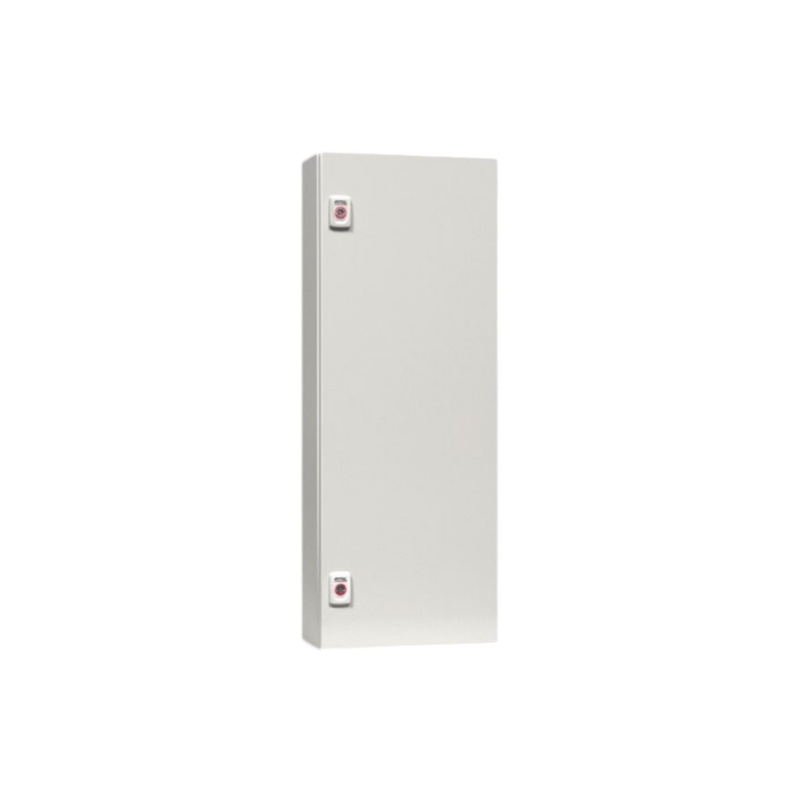

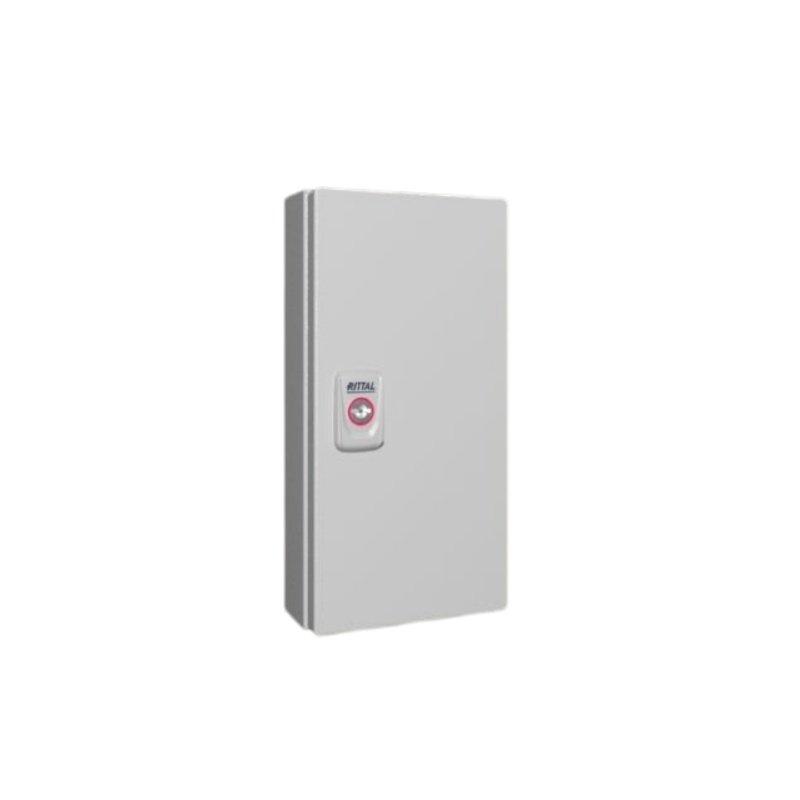

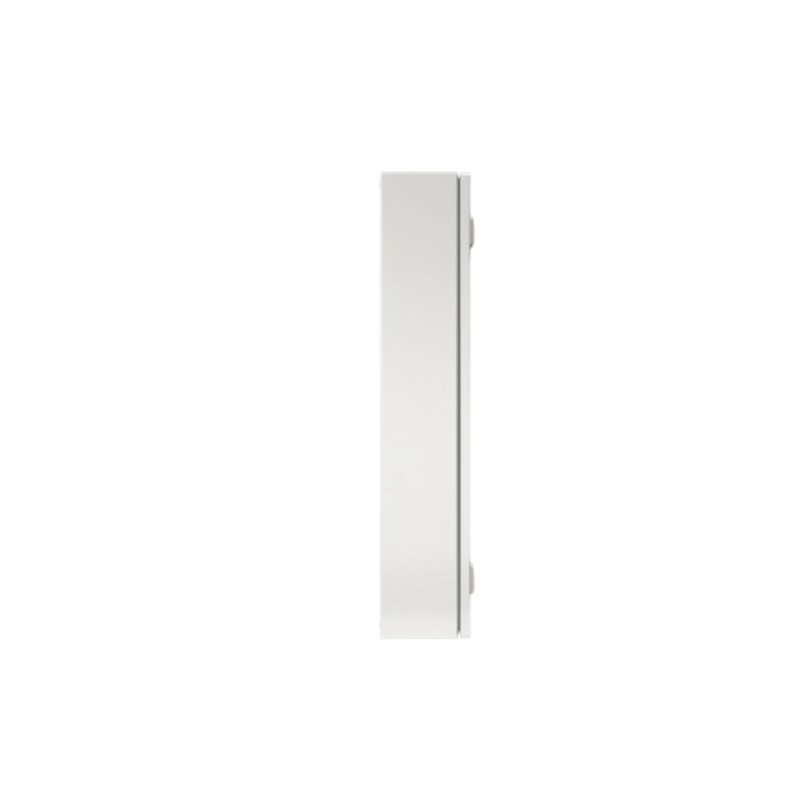

Rittal KX 1545000 E-Box, Carbon Steel

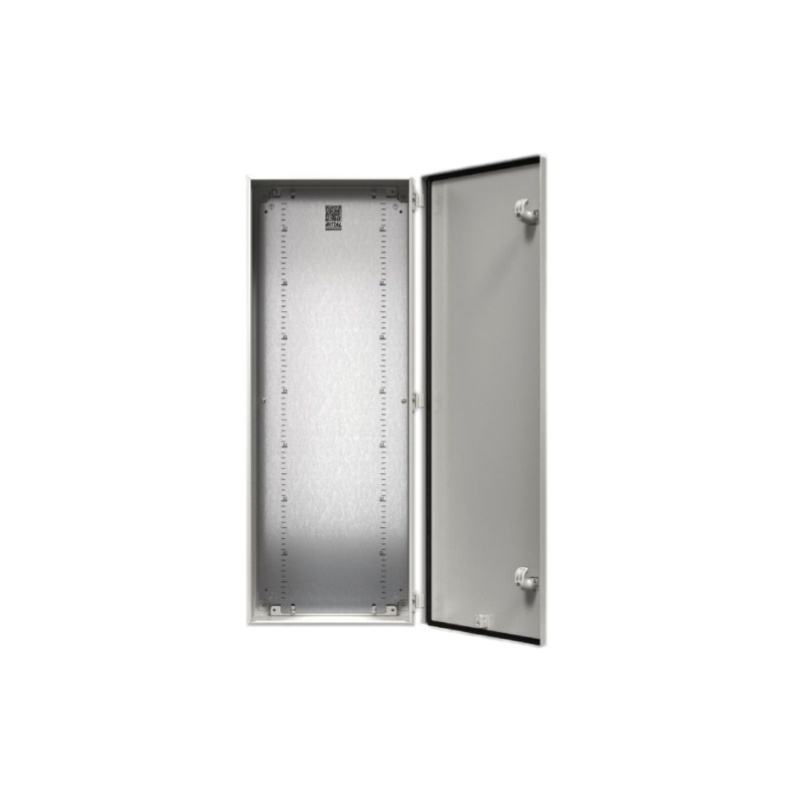

The Rittal KX 1545000 is a compact carbon steel E-Box for small electrical control, terminal and automation assemblies. Its 150 × 300 × 80 mm housing includes a mounting panel and hinged door, providing front access to installed components and wiring. The model is a practical starting point when the available 125 × 285 mm mounting area and 80 mm enclosure depth meet the component layout, wiring-clearance and cable-entry requirements.
| Article no.: | KX 1545000 |
| Dimensions | Width: 150 mm Height: 300 mm Depth: 80 mm ( Width: 5.91 in Height: 11.8 in Depth: 3.15 in ) |
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Dimensions of mounting plate (W x H) | 125 mm x 285 mm ( 4.92 in x 11.2 in ) |
| Protection category IP to EN 60 529 | IP 66 |
| Protection category NEMA |
|
| Type rating according to UL 50E |
|
| IK code | IK08 |
| Material thickness - enclosure | 1.25 mm ( 0.05 in ) |
| Material thickness - door | 1.25 mm ( 0.05 in ) |
| Material thickness – mounting plate | 2 mm ( 0.08 in ) |
| Lock | No. of locks: 1 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 2.343 kg |
| Gross weight | 2.543 kg |
| PCF/VE (cradle-to-gate) | 27.63 kg CO2 eq (Cat B) |
| Information regarding the PCF class | Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared |
| Customs tariff number | 84879059 |
| EAN | 4028177816473 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | KX E-Box, WHD: 150 × 300 × 80 mm, sheet steel, with mounting plate, with door |
Included with KX 1545000
Confirm Separately
KX 1545000 can be considered for compact terminal arrangements, relays, small control devices, local machine-control functions and sensor or actuator connections when the available mounting area and enclosure depth are sufficient.
2400500 Connector Gland, Small
Number of cable entries: 3
Min. cable diameter: 4 mm
Max. cable diameter: 6 mm
Packaging unit: 5 pc(s).
Sealing frame, modular
Packaging unit: 1 pc(s).
1590010 Wall Mounting Bracket
Material: Carbon steel, zinc-plated
Wall distance: 10 mm
Suitable for enclosure type: AX carbon steel / KX carbon steel / AX wall-mounted housing, 3-part
Packaging unit: 4 pc(s).
Wall Mounting Bracket
Material: Carbon steel, zinc-plated
Suitable for enclosure type: AX carbon steel / KX carbon steel / AX IT / EL
Packaging unit: 4 pc(s).
Pole clamp
Packaging unit: 1 pc(s).
2565100 Ground Straps
Connection: M6 – M6
Cross-section: 10 mm²
Length: 200 mm (7.87 in)
Installation options: Connection options KX: Door/cover M6, enclosure M6, mounting plate M6
Packaging unit: 5 pc(s).
Lock inserts, covers and handles should not be selected by appearance alone. Provide the current lock code or a clear photo and state the required access method so SUWI Auto can check compatibility.
2307000 Lock Insert
Packaging unit: 1 pc(s)
2460000 Lock Insert
Packaging unit: 1 pc(s)
2463000 Lock Insert
Packaging unit: 1 pc(s)
2462000 Lock Insert
Packaging unit: 1 pc(s)
2464000 Lock Insert
Packaging unit: 1 pc(s)
2476100 Lock cover
Packaging unit: 1 pc(s)
2537300 Mini-Comfort Handle AX
Packaging unit: 1 pc(s)
2537400 Mini-Comfort Handle AX
Packaging unit: 1 pc(s)
2537100 Mini-Comfort Handle AX
Packaging unit: 1 pc(s)
2466000 Lock Insert
Packaging unit: 1 pc(s)
2465000 Lock Insert
Packaging unit: 1 pc(s)
2461000 Lock Insert
Packaging unit: 1 pc(s)
2460650 Lock Insert
Packaging unit: 1 pc(s)
2537500 Mini-Comfort Handle AX
Packaging unit: 1 pc(s)
2493000 Lock Cover
Packaging unit: 1 pc(s)
2314000 Support rail TH 35/7.5
Suitable for width: 150 mm
Length of support rail: 137 mm
Packaging unit: 10 pc(s)
2309000 Mounting clip
Packaging unit: 30 pc(s).
4597000 Mounting Bracket
Packaging unit: 4 pc(s).
2365000 Rail Mounting Bracket
Version: Flat
Packaging unit: 20 pc(s).
2487000 Self-tapping screws
Version: Self-tapping screws
Thread: ST 4.8
Thread length: 9.5 mm (0.37 in)
Packaging unit: 300 pc(s).
2459500 Pressure Relief Stopper
Packaging unit: 5 pc(s)
2459000 Enclosure Breather Valve
Packaging unit: 6 pc(s)
5051311 — Accessory Bag for E-Box KX
