The small enclosure KX, E-Box KX, carbon steel offers remarkable ease of assembly and flexibility when selecting lock systems.
Item No :
KX 1546000Color :
RAL 7035Weight :
2.048 kgProtection category IP to EN 60 529 :
IP 66

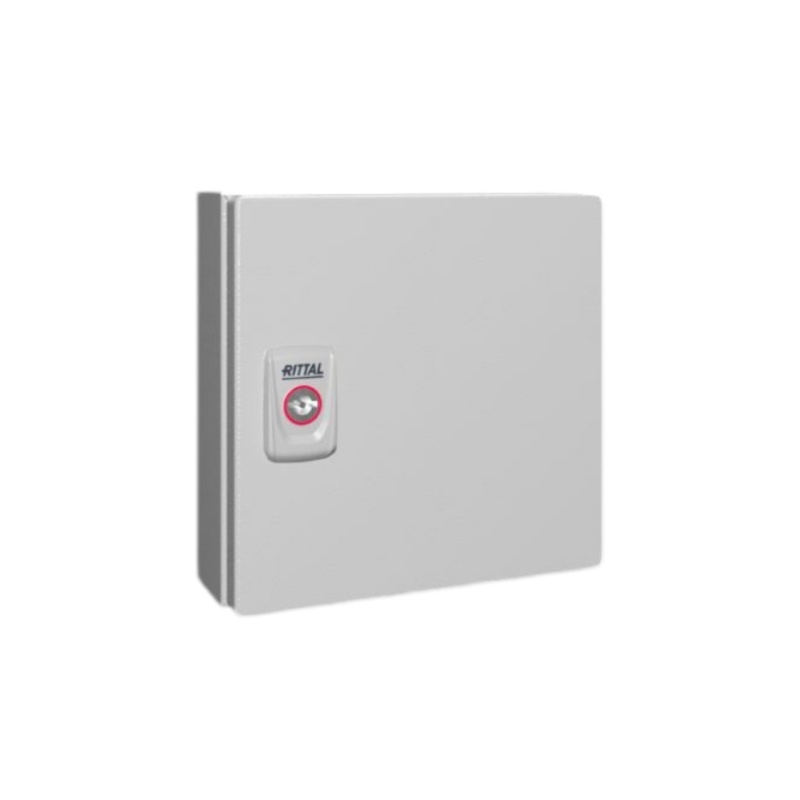

Rittal KX 1546000 E-Box, Carbon Steel
Rittal KX 1546000 combines a 200 × 200 mm square footprint with a shallow 80 mm depth for compact electrical assemblies where width and height are similarly restricted. The 175 × 185 mm mounting panel can accommodate short terminal rows, interface relays and low-profile control components. Before selection, verify device projection, wiring-duct space and cable-bend clearance against the available enclosure depth.
| Article no.: | KX 1546000 |
| Dimensions | Width: 200 mm Height: 200 mm Depth: 80 mm ( Width: 7.87 in Height: 7.87 in Depth: 3.15 in ) |
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Dimensions of mounting plate (W x H) | 175 mm x 185 mm ( 6.89 in x 7.28 in ) |
| Protection category IP to EN 60 529 | IP 66 |
| Protection category NEMA |
|
| Type rating according to UL 50E |
|
| IK code | IK08 |
| Material thickness - enclosure | 1.25 mm ( 0.05 in ) |
| Material thickness - door | 1.25 mm ( 0.05 in ) |
| Material thickness – mounting plate | 2 mm ( 0.08 in ) |
| Lock | No. of locks: 1 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 2.048 kg |
| Gross weight | 2.33 kg |
| PCF/VE (cradle-to-gate) | 27.13 kg CO2 eq (Cat B) |
| Information regarding the PCF class | Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared |
| Customs tariff number | 84879059 |
| EAN | 4028177816480 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | KX E-Box, WHD: 200 × 200 × 80 mm, sheet steel, with mounting plate, with door |
Included with KX 1546000
Confirm Separately
The square proportions of KX 1546000 suit localized connection points and small control assemblies that benefit from a balanced horizontal and vertical layout. It may be used near a machine for grouped signals, compact relay functions or short terminal rows, provided the installed equipment remains within the shallow enclosure profile.
This shortlist reflects the 200 mm width and connection arrangement of KX 1546000. The support rail is sized for this enclosure width; mounting and grounding items still require confirmation against the planned installation and bill of materials.
SZ 1590010 Wall Mounting Bracket
Fit basis: Listed for KX sheet steel enclosures
Wall distance: 10 mm
Packaging unit: 4 pc(s)
SZ 2315000 Support Rail TH 35/7.5
Fit basis: KX enclosure width 200 mm
Rail length: 187 mm
Packaging unit: 10 pc(s)
SZ 2565100 Earth Strap
Fit basis: KX M6 door, enclosure and mounting-panel connection points
Connection: M6–M6, 10 mm², length 200 mm
Packaging unit: 5 pc(s)
For door apertures or cable-entry machining, provide a dimensioned drawing referenced from fixed enclosure edges rather than a visual sketch. Include component cut-out sizes, hole diameters, orientation, tolerances and keep-out areas. SUWI Auto can review the requested work, while final feasibility and sealing conditions must be approved before production.
