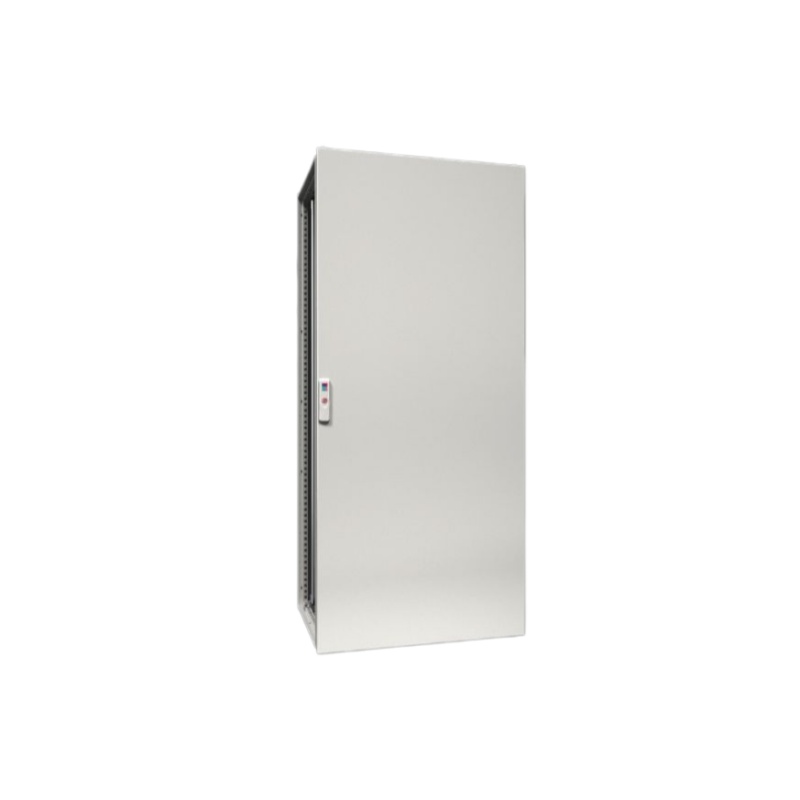

VX 8804000 Bayed Enclosure 800 x 2000 x 400 mm

VX 8804000 is a single-door VX25 bayed enclosure measuring 800 × 2000 × 400 mm. Its sheet-steel frame, 25 mm pitch pattern and two mounting levels support flexible installation of electrical components, control equipment and cable management accessories. It is suitable for machine automation, manufacturing equipment and power distribution applications. With separately ordered side panels, it can be installed as a standalone enclosure or bayed with other VX25 enclosures to create a larger enclosure system.



VX 8804000 Technical Specifications

Scope of Supply

• Enclosure frame
• One front door, hinged on the right and reversible to the left
• Roof plate
• Rear panel
• Divided gland plates
• Mounting plate
• Two punched rails, 18 x 39 mm
• Lock with 3 mm double-bit insert

VX25 System Features

• 25 mm frame pattern: The symmetrical frame provides two mounting levels accessible from inside and outside for flexible interior installation.
• All-side baying: The enclosure can be combined with other VX25 enclosures using the appropriate baying components.
• Depth-adjustable mounting plate: The mounting plate can be positioned on a 25 mm pitch pattern.
• Door access: The standard opening angle is 130 degrees, and the hinge side can be changed from right to left. A 180-degree opening is possible with the appropriate hinge solution.
• Load capacity: The enclosure system is specified for a load capacity of up to 15,000 N when installed in accordance with the applicable instructions.
• Potential equalization: The rear panel, roof and gland plates are conductively connected to the frame and prepared for additional earthing straps.

Applications and Selection Notes

VX 8804000 may be used as a floor-standing enclosure for machine controls, automation systems, manufacturing equipment and electrical distribution assemblies. It can operate as a standalone cabinet with side panels or as one section of a bayed enclosure suite.

Compatible VX25 Accessory Categories

Common accessory categories for VX 8804000 include:

• Screw-fastened side panels for 2000 mm high, 400 mm deep VX enclosures
• Internal baying brackets and blocks, plus external baying connectors
• Punched sections and rails for interior installation
• Cable-entry sections, cable-entry plates and cable-management components
• VX base/plinth corner pieces and trim panels
• Comfort handles, door accessories and 180-degree hinge solutions
• LED system lights, earthing components and transportation accessories

Accessory compatibility depends on enclosure dimensions, installation position and project configuration. Confirm the required article numbers before placing an order.

View All VX25 Accessories and System Components

Approvals

Downloads

FAQ

Q1: What are the dimensions of Rittal VX 8804000?

A: VX 8804000 measures 800 mm wide, 2000 mm high and 400 mm deep. It has one front door and a 699 x 1896 mm mounting plate.

Q2: Are side panels included with VX 8804000?

A: No. Side panels are ordered separately. They are required for the open sides when the enclosure is used as a standalone cabinet; bayed installations instead use the applicable connection and sealing components between enclosures.

Q3: What protection ratings apply to VX 8804000?

A: The model is specified as IP55 to IEC 60529 with side panels mounted, NEMA 1 and NEMA 12, Type 1 and Type 12 to UL 50E, and IK10 for impact protection. Final protection depends on correct assembly, cable entry, installed accessories and any enclosure modifications.

Q4: Can VX 8804000 be expanded into a multi-enclosure system?

A: Yes. VX25 enclosures are designed for baying on all sides. Use the compatible internal or external baying components and confirm the sealing, grounding, base/plinth and cable-routing requirements for the complete enclosure suite.
