Complete VX25 enclosure system with frame, front door, rear panel, mounting plate, roof plate and divided gland plates, designed for efficient industrial control cabinet installation.
Item No :
VX 8805000Material :
Sheet steelColor :
RAL 7035IK code :
IK10

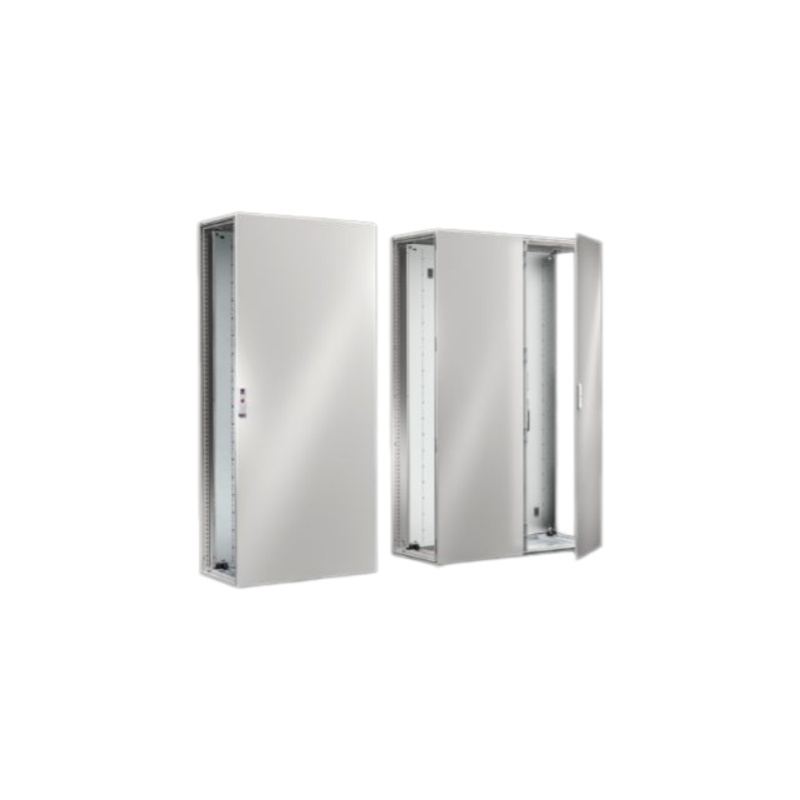

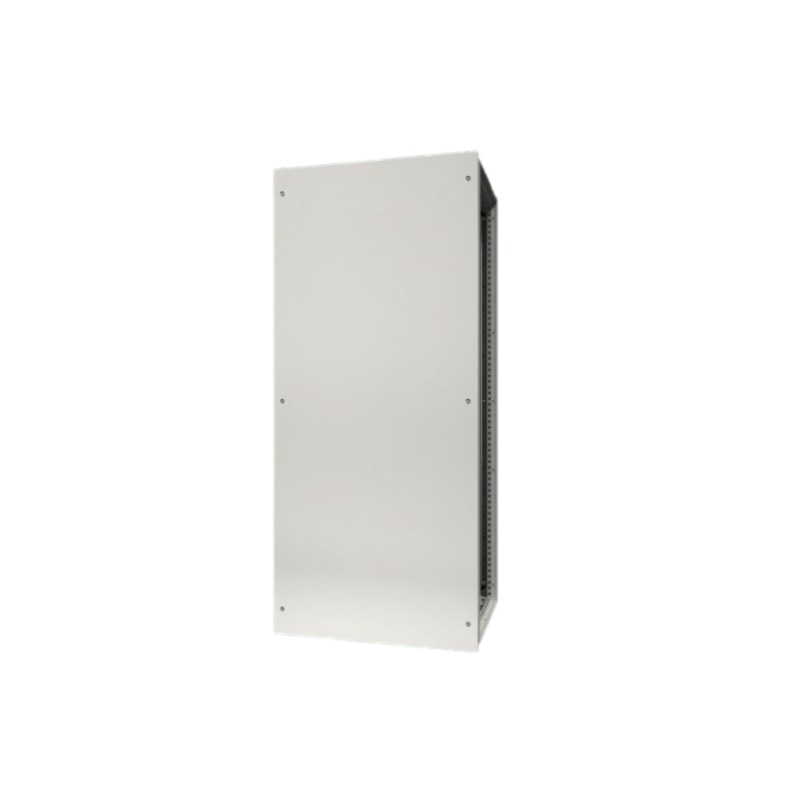

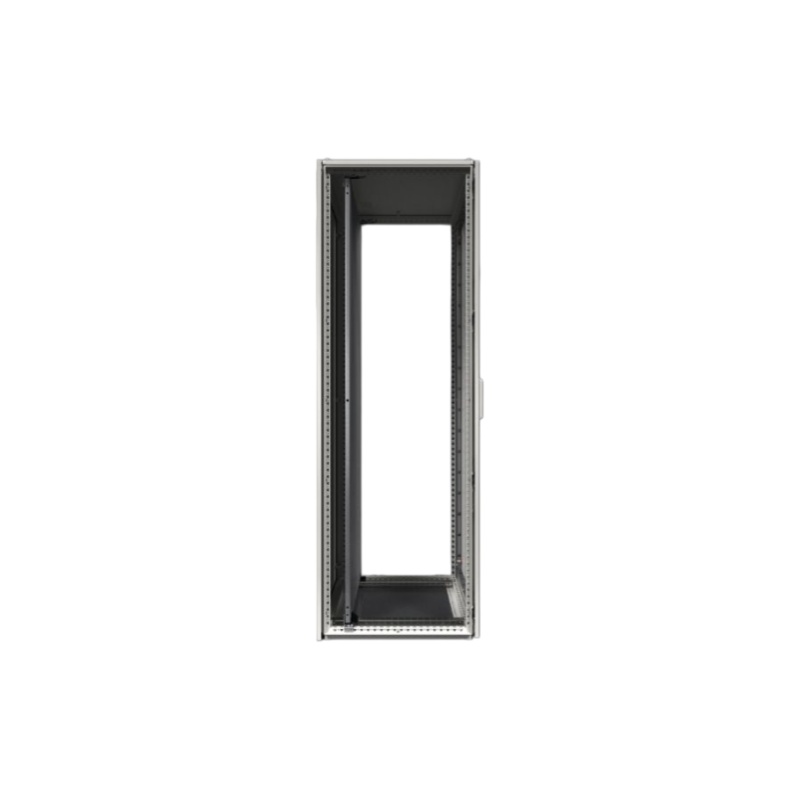

VX 8805000 is a single-door VX25 bayed enclosure measuring 800 × 2000 × 500 mm. The sheet-steel enclosure includes a mounting plate, rear panel, roof plate and divided gland plates. Its 25 mm pitch pattern and two mounting levels support flexible installation of electrical components, control equipment and cable-management accessories. With separately ordered side panels, it can be installed as a standalone enclosure or bayed with other VX25 enclosures to create a larger enclosure system.
We support both single-unit and bulk procurement of VX 8805000, providing model verification, compatible accessory matching, consolidated quotations, technical documentation and international delivery coordination to reduce sourcing time and avoid configuration errors.
| Article no.: | VX 8805000 |
| Dimensions | 800 mm x 2000 mm x 500 mm |
| Dimensions mounting plate (W x H) | 699 mm x 1,896 mm |
| Material | Enclosure frame: Sheet steel, 1.5 mm Roof: Sheet steel, 1.5 mm Door: Sheet steel, 2.0 mm Rear panel: Sheet steel, 1.5 mm Gland plates: Sheet steel, 1.5 mm Mounting plate: Sheet steel, 3.0 mm |
| Surface finish | Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and gland plates: Zinc-plated |
| Colour | RAL 7035 |
| Protection category to IEC 60 529 | IP 55 |
| Protection category NEMA |
|
| Type rating to UL 50E |
|
| IK Code | IK10 |
| Number of doors | 1 |
| Basic material | Sheet steel |
| Packs of | 1 pc(s). |
| Net weight | 118.25 kg |
| Gross weight | 122.3 kg |
| PCF per pack (cradle-to-gate) | 346.31 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177813830 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
VX 8805000 may be used as a floor-standing enclosure for machine controls, automation systems, manufacturing equipment and electrical distribution assemblies. It can operate as a standalone cabinet with side panels or as one section of a bayed enclosure suite.
Confirm the following before ordering:
Whether 500 mm depth provides sufficient clearance for equipment, terminals and cable-bending radii
Internal heat losses and the required enclosure climate-control method
Standalone side panels or baying components for an enclosure suite
Required base/plinth height, cable-entry arrangement and transportation accessories
Project-specific protection ratings, approvals and documentation requirements
Common accessory categories for VX 8805000 include:
Accessory compatibility depends on enclosure dimensions, installation position and project configuration. Confirm the required article numbers before placing an order.
View All VX25 Accessories and System Components
Confirm the current certificate edition, language and project acceptance requirements before procurement. Documentation availability may vary by market and document type.
Q1: What are the dimensions of Rittal VX 8805000?
A: VX 8805000 measures 800 mm wide, 2000 mm high and 500 mm deep. It has one front door and a 699 x 1896 mm mounting plate.
Q2: Are side panels included with VX 8805000?
A: No. Side panels are ordered separately. They are required for the open sides when the enclosure is used as a standalone cabinet; bayed installations instead use the applicable connection and sealing components between enclosures.
Q3: What protection ratings apply to VX 8805000?
A: The model is specified as IP55 to IEC 60529 with side panels mounted, NEMA 1 and NEMA 12, Type 1 and Type 12 to UL 50E, and IK10 for impact protection. Final protection depends on correct assembly, cable entry, installed accessories and any enclosure modifications.
Q4: Can VX 8805000 be expanded into a multi-enclosure system?
A: Yes. VX25 enclosures are designed for baying on all sides. Use compatible internal or external baying components and confirm the sealing, grounding, base/plinth and cable-routing requirements for the complete enclosure suite.
Send us the required quantity, delivery country, accessory list and documentation requirements. We can help confirm the model configuration before quotation.
Contact Us About VX 8805000
Complete VX25 enclosure system with frame, front door, rear panel, mounting plate, roof plate and divided gland plates, designed for efficient industrial control cabinet installation.
Read More

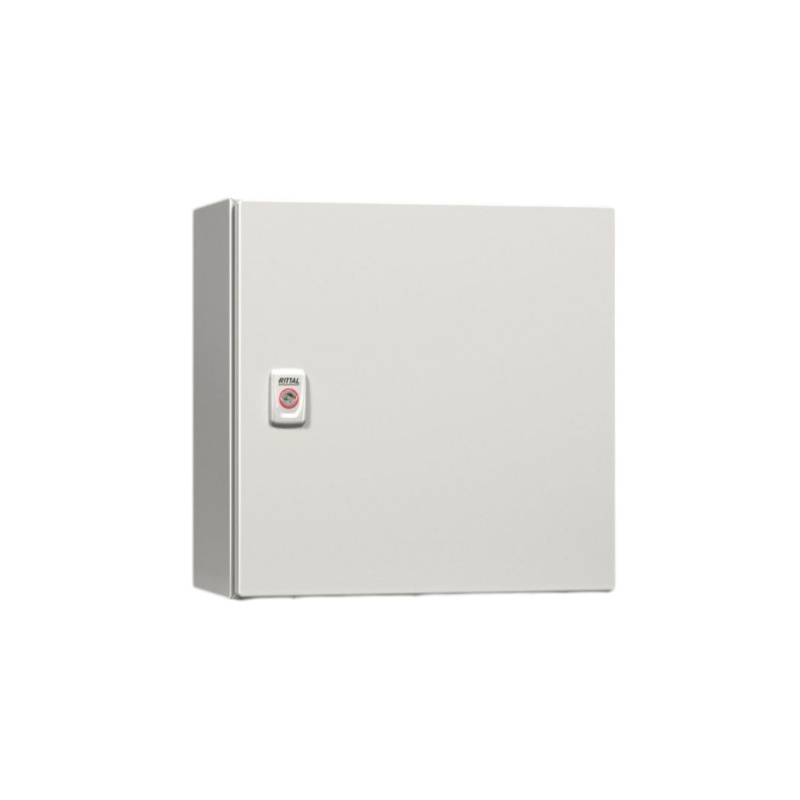

The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
