Base/plinth corner pieces with front and rear panel. Large openings in the base/plinth corner piece for best access to the screw-fastening point. Seamless baying.
VX Base/Plinth Corner Pieces with Front and Rear Trim Panels, Stainless Steel
Rittal VX stainless steel base/plinth corner pieces with front and rear trim panels provide a robust base solution for VX-compatible enclosures. Large openings in the corner pieces provide good access to the screw-fastening points, while the system is designed for seamless baying.
Available in 100 mm and 200 mm heights for enclosure widths from 600 to 1200 mm.
Stainless Steel Construction
Corner pieces and front/rear trim panels are made from stainless steel 1.4301 (AISI 304) with a brushed grain 400 finish.
Easy Assembly Access
Large openings in the corner pieces improve access to the screw-fastening points during installation.
Seamless Baying
Designed for clean integration in bayed enclosure configurations.
| Product type | Base/plinth corner pieces with front and rear trim panels |
| System | VX base/plinth system |
| Corner piece material | Stainless steel 1.4301 (AISI 304) |
| Front/rear trim panel material | Stainless steel 1.4301 (AISI 304) |
| Cover caps | ABS |
| Surface finish | Brushed, grain 400 |
| Available heights | 100 mm / 200 mm |
| Suitable enclosure types | VX / VX SE / TS / PC |
| UL 50E type rating | Type 1 / 3R / 4 / 4X / 12 |
| ETIM | EC000721 |
| ECLASS | 27182003 |
Choose the article number by base/plinth height and enclosure width.
| Article No. | Height | For Width | Material |
|---|---|---|---|
| VX 8660050 | 100 mm | 600 mm | AISI 304 |
| VX 8660051 | 100 mm | 800 mm | AISI 304 |
| VX 8660052 | 100 mm | 1000 mm | AISI 304 |
| VX 8660053 | 100 mm | 1200 mm | AISI 304 |
| VX 8660060 | 200 mm | 600 mm | AISI 304 |
| VX 8660061 | 200 mm | 800 mm | AISI 304 |
| VX 8660062 | 200 mm | 1000 mm | AISI 304 |
| VX 8660063 | 200 mm | 1200 mm | AISI 304 |
Suitable for selected VX, VX SE, TS and PC enclosures. Match the base/plinth width to the enclosure width shown in the model table.

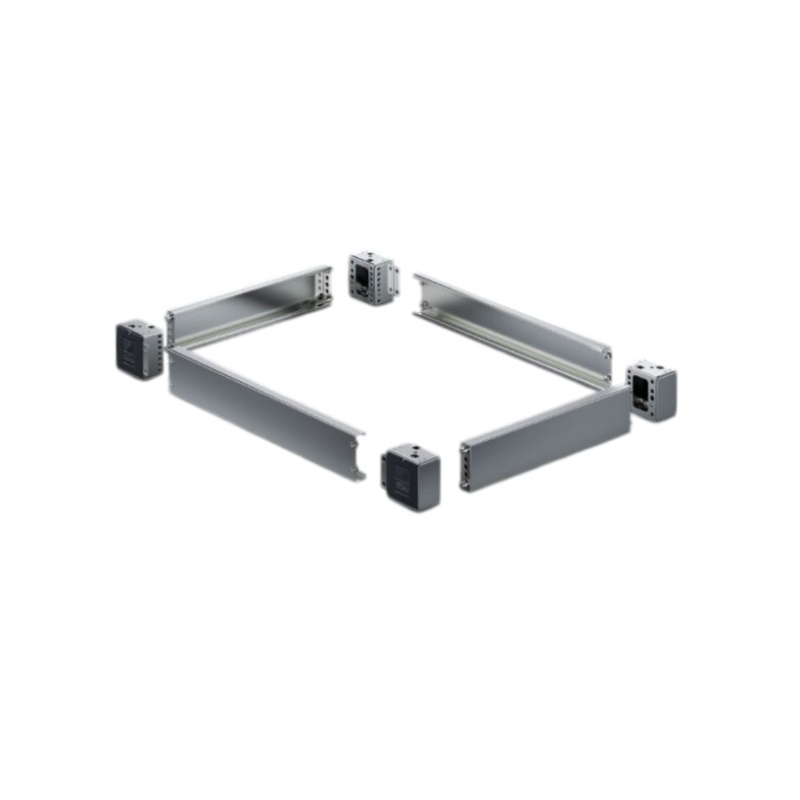

100 mm versions:

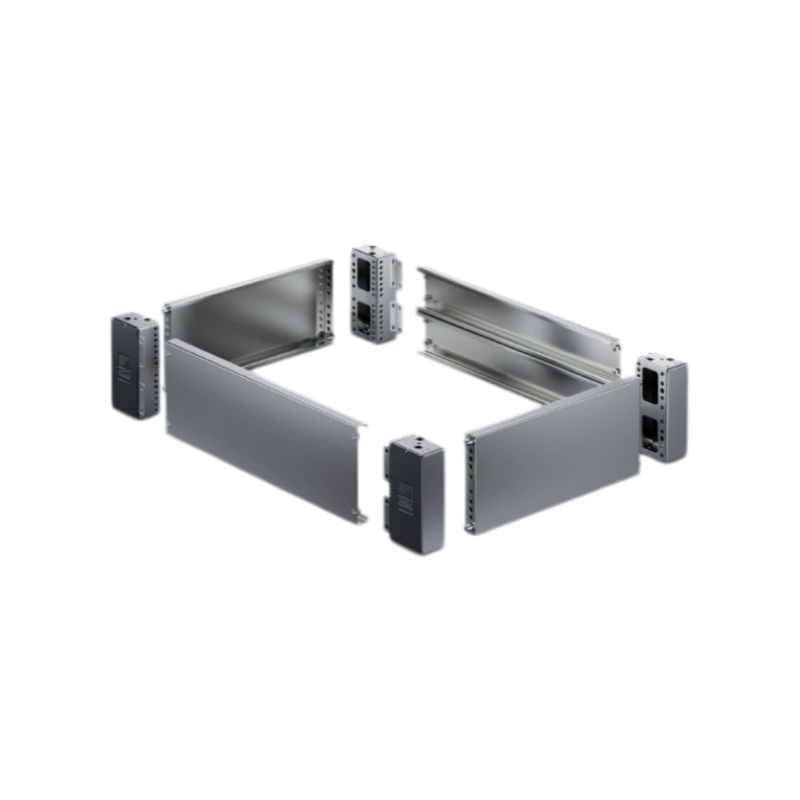

200 mm versions:
Q: What stainless steel grade is used?
A: The corner pieces and front/rear trim panels are made from stainless steel 1.4301, equivalent to AISI 304.
Q: Are side panels required?
A: Yes. Rittal specifies side base/plinth trim panels to finish the base/plinth unit; they can also add stabilization between adjacent base/plinths.
Q: Can first-generation and second-generation base/plinth components be combined?
A: No. Components from the two system generations must not be mixed.
Q: Can SUWI Auto help verify the correct article number?
A: Yes. Provide the enclosure family, enclosure width, required base/plinth height and quantity for model verification before ordering.
