The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Item No :
AX 1033000Material :
Carbon SteelColor :
RAL 7035

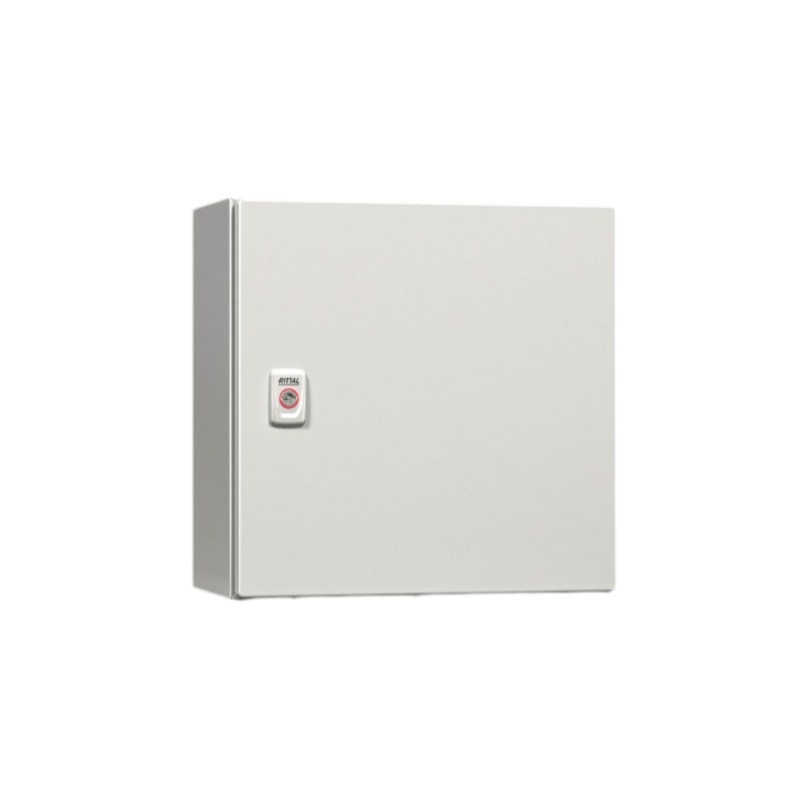

The Rittal AX 1033000 is a square-format carbon steel wall-mounted enclosure for compact control points where both the available wall area and equipment layout must stay within a 300 mm width and height. Its 300 × 300 × 210 mm body combines a small front footprint with useful depth for control devices, terminals and cable routing, while IP66 and IK10 protection support demanding industrial locations.
Need pricing or availability? Contact SUWI Auto with your required quantity and delivery destination for model verification and quotation support.
| Article no.: | AX 1033000 |
| Dimensions | Width: 300 mm Height: 300 mm Depth: 210 mm ( Width: 11.8 ˝ Height: 11.8 ˝ Depth: 8.27 ˝ ) |
| Benefits |
|
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Supply includes | Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit |
| Protection category NEMA |
|
| Protection category IP to EN 60 529 | IP 66 |
| Type rating according to UL 50E |
|
| IK code | IK10 |
| Material thickness - door | 1.5 mm ( 0.06 ˝ ) |
| Material thickness - enclosure | 1.25 mm ( 0.05 ˝ ) |
| Material thickness – mounting plate | 2 mm ( 0.08 ˝ ) |
| Dimensions of mounting plate (W x H) | 250 mm x 275 mm ( 9.84 ˝ x 10.8 ˝ ) |
| Number of doors | 1 |
| Interchangeable door catch | Yes |
| No. of locks | 1 |
| Lock | Lock version: Cam No. of locks: 1 Lock Insert: 3 mm double-bit |
| Gland plate | Size: 1 Qty.: 1 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 6.44 kg |
| Gross weight | 6.7 kg |
| PCF/VE (cradle-to-gate) | 43.37 kg CO2 eq (Cat B) |
| Information regarding the PCF class | Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177813458 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
When the 300 × 300 mm Format Makes Sense
AX 1033000 suits control points that need a balanced square layout rather than a wide or tall mounting surface. The 250 × 275 mm mounting panel is practical for a compact controller, terminals and protection devices arranged in short rows, while the 210 mm enclosure depth leaves more room for device bodies and cable bends than a shallow terminal box.
Before ordering, lay out the components on the 250 × 275 mm usable mounting panel and reserve space for wire ducts, terminal access and bend radius. Choose AX 1031000 when the same 300 mm height and 210 mm depth are suitable but an extra 80 mm of enclosure width is required. Choose AX 1034000 when the layout needs more vertical space while retaining a 300 mm width and 210 mm depth.
Confirm the following standard supply items against the project bill of materials before adding installation hardware:
Because the mounting panel and size 1 gland plate are already included, they should not be duplicated in the purchase list unless spares or replacements are required.
Accessory selection for this model is controlled mainly by its 210 mm depth and size 1 gland-plate opening. Use the article numbers below as a starting point, then confirm the planned installation method and cable-entry arrangement before ordering.
2394210 Rail for Interior Installation AX
Suitable for enclosure type: AX
Suitable for depth: 210 mm
Packaging unit: 4 pc(s).
2394100 Base configuration rail
Suitable for enclosure type: AX
Packaging unit: 1 pc(s)
2561300 Plastic Cable Gland Plate with Diaphragms
Size: 1
Width: 256 mm
Depth: 149 mm
2503020 Wall Mounting Bracket
Material: Carbon steel, zinc-plated Wall distance: 40 mm Suitable for enclosure type: AX / KX / AX wall-mounted housing, 3-part
Packaging unit: 4 pc(s)
4052000 Multitool
Packaging unit: 1 pc(s)
Plastic Wiring Plan Pocket
Packaging unit: 1 pc(s)
Ground Straps
Packaging unit: 8 pc(s)
2519020 Door stay
Packaging unit: 1 pc(s)
Planning machining or a different cable entry? Send the enclosure article number, component layout and cable-entry requirements to SUWI Auto so compatibility can be checked before the enclosure or gland plate is modified.
AX 1033000 provides a 300 × 300 × 210 mm enclosure with a 250 × 275 mm mounting panel. Move to a wider AX model when horizontal component rows are the constraint, or to a taller model when additional DIN-rail levels are required. Keep the 210 mm depth only when device projection, wiring bends and door clearance have been checked.
