The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Item No :
AX 1034000Material :
Carbon SteelColor :
RAL 7035

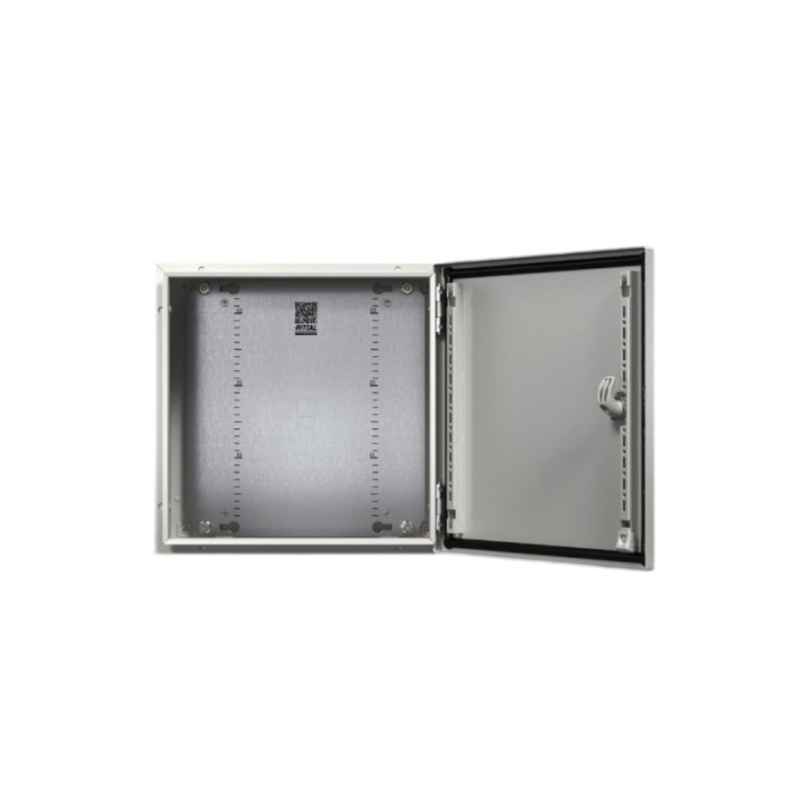

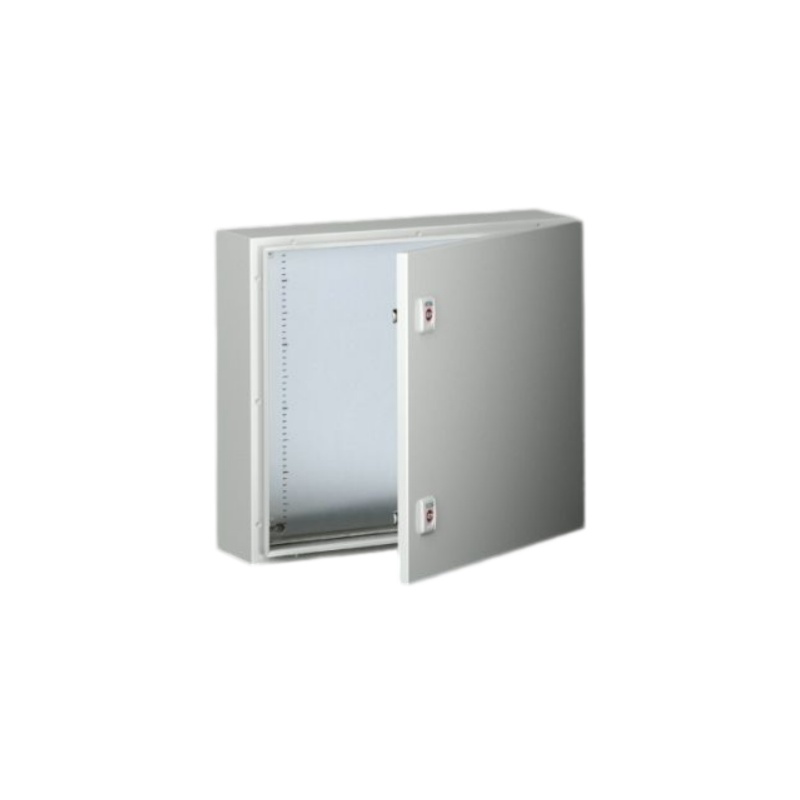

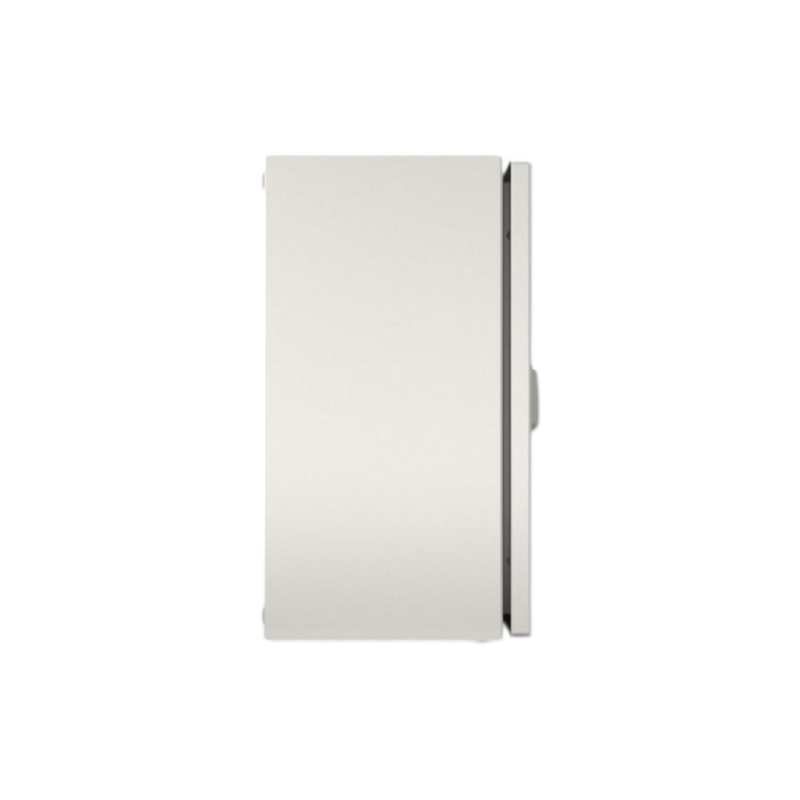

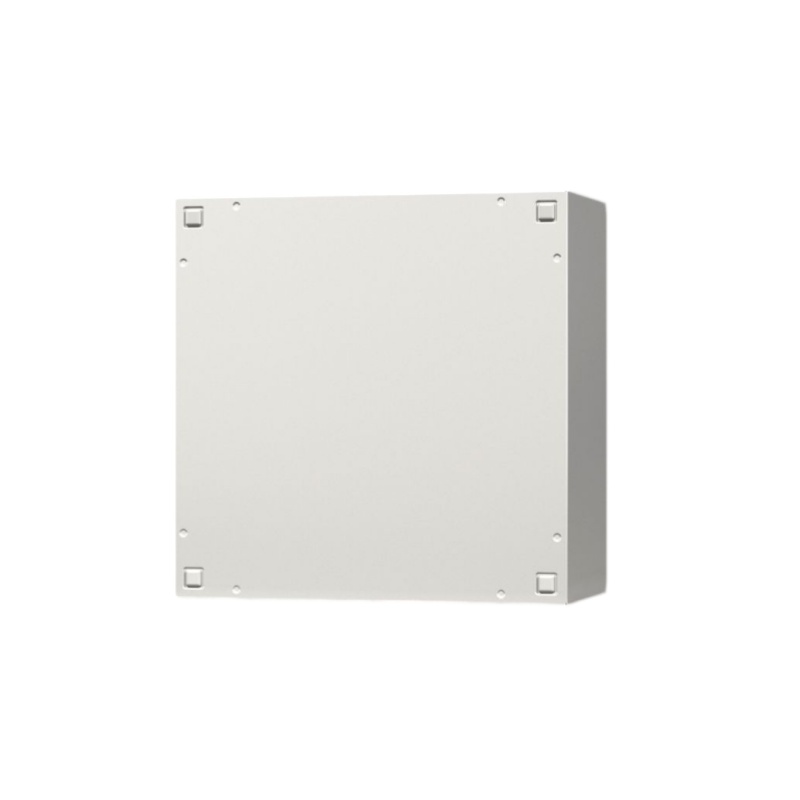

The Rittal AX 1034000 is a vertically proportioned carbon steel wall-mounted enclosure for control layouts that need more mounting height without using additional wall width. Its 300 × 400 × 210 mm body supports stacked device rows and organized separation between control, protection and terminal sections, while IP66 and IK10 protection suit demanding industrial locations.
Need pricing or availability? Contact SUWI Auto with your required quantity and delivery destination for model verification and quotation support.
| Article no.: | AX 1034000 |
| Dimensions | Width: 300 mm Height: 400 mm Depth: 210 mm ( Width: 11.8 ˝ Height: 15.7 ˝ Depth: 8.27 ˝ ) |
| Benefits |
|
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Supply includes | Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit |
| Protection category NEMA |
|
| Protection category IP to EN 60 529 | IP 66 |
| Type rating according to UL 50E |
|
| IK code | IK10 |
| Material thickness - door | 1.5 mm ( 0.06 ˝ ) |
| Material thickness - enclosure | 1.25 mm ( 0.05 ˝ ) |
| Material thickness – mounting plate | 2 mm ( 0.08 ˝ ) |
| Dimensions of mounting plate (W x H) | 250 mm x 375 mm ( 9.84 ˝ x 14.8 ˝ ) |
| Number of doors | 1 |
| Interchangeable door catch | Yes |
| No. of locks | 1 |
| Lock | Lock version: Cam No. of locks: 1 Lock Insert: 3 mm double-bit |
| Gland plate | Size: 1 Qty.: 1 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 8.06 kg |
| Gross weight | 8.38 kg |
| PCF/VE (cradle-to-gate) | 47.64 kg CO2 eq (Cat B) |
| Information regarding the PCF class | Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177813441 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
When a Narrower, Taller Layout Is Better
AX 1034000 is useful when the wall position limits enclosure width but the component schedule needs more vertical separation. Its 250 × 375 mm mounting panel can support stacked DIN-rail rows, with terminals placed below control and protection devices so wiring can follow a clearer top-to-bottom path. The 210 mm depth must still be checked against device projection, duct depth and door clearance.
Choose AX 1033000 when the same 300 mm width and 210 mm depth are suitable but the extra 100 mm of height is unnecessary. Choose AX 1031000 when horizontal component rows matter more than vertical stacking: it adds 80 mm of width but uses a 300 mm height. Before machining the door or gland plate, confirm component cut-outs, cable bend radius and the clear space required around the door seal.
The standard delivery already provides the enclosure parts listed below. Check them against the project bill of materials before adding separate installation items:
The included mounting panel measures 250 × 375 mm, and the enclosure base accepts one size 1 gland plate. Order replacements or alternative cable-entry parts only when the planned installation requires them.
For this model, match interior rails to the 210 mm enclosure depth and cable-entry parts to its size 1 base opening. The taller mounting area may also require the rail positions and wiring route to be planned before accessories are ordered.
2394210 Rail for Interior Installation AX
Suitable for enclosure type: AX
Suitable for depth: 210 mm
Packaging unit: 4 pc(s).
2394100 Base configuration rail
Suitable for enclosure type: AX
Packaging unit: 1 pc(s)
2561300 Plastic Cable Gland Plate with Diaphragms
Size: 1
Width: 256 mm
Depth: 149 mm
2503020 Wall Mounting Bracket
Material: Carbon steel, zinc-plated Wall distance: 40 mm Suitable for enclosure type: AX / KX / AX wall-mounted housing, 3-part
Packaging unit: 4 pc(s)
4052000 Multitool
Packaging unit: 1 pc(s)
Plastic Wiring Plan Pocket
Packaging unit: 1 pc(s)
Ground Straps
Packaging unit: 8 pc(s)
2519020 Door stay
Packaging unit: 1 pc(s)
Need a different internal layout? Send the AX 1034000 article number together with the DIN-rail arrangement, device depths and cable-entry plan so accessory compatibility can be checked before ordering.
AX 1034000 provides a 300 × 400 × 210 mm enclosure and a 250 × 375 mm mounting panel. Move to a shorter model when the additional vertical rail space is not needed, or compare wider AX sizes when components cannot be arranged within a 250 mm mounting width. Confirm both external wall clearance and usable mounting-panel dimensions before changing models.
