The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Item No :
AX 1055000Material :
Carbon SteelColor :
RAL 7035

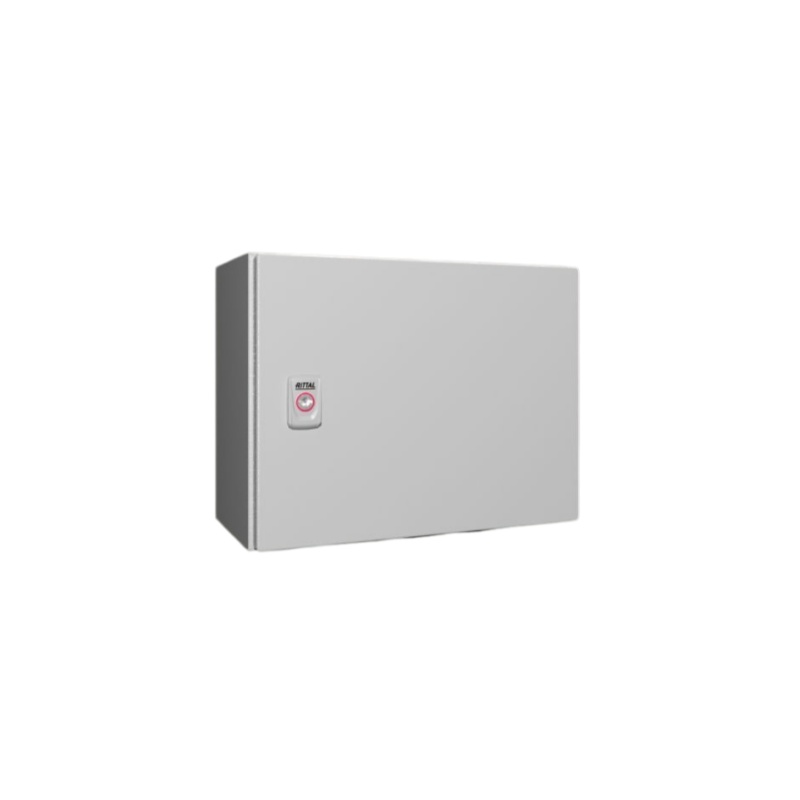

The Rittal AX 1055000 is a wide, deep carbon steel wall-mounted enclosure for control systems that need long horizontal equipment rows within a single-door housing. Its 800 × 600 × 300 mm format provides substantial side-by-side mounting space and depth for larger device bodies, wiring ducts and connector bends, while IP66 and IK10 protection support demanding industrial locations.
Need pricing or availability? Contact SUWI Auto with your required quantity and delivery destination for model verification and quotation support.
| Article no.: | AX 1055000 |
| Dimensions | Width: 800 mm Height: 600 mm Depth: 300 mm ( Width: 31.5 ˝ Height: 23.6 ˝ Depth: 11.8 ˝ ) |
| Benefits |
|
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Supply includes | Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit |
| Protection category NEMA |
|
| Protection category IP to EN 60 529 | IP 66 |
| Type rating according to UL 50E |
|
| IK code | IK10 |
| Material thickness - door | 2 mm ( 0.08 ˝ ) |
| Material thickness - enclosure | 1.5 mm ( 0.06 ˝ ) |
| Material thickness – mounting plate | 2.5 mm ( 0.1 ˝ ) |
| Dimensions of mounting plate (W x H) | 750 mm x 575 mm ( 29.5 ˝ x 22.6 ˝ ) |
| Number of doors | 1 |
| Interchangeable door catch | Yes |
| No. of locks | 2 |
| Lock | Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit |
| Gland plate | Size: 5 Qty.: 2 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 32.3 kg |
| Gross weight | 34.2 kg |
| PCF/VE (cradle-to-gate) | 126.15 kg CO2 eq (Cat B) |
| Information regarding the PCF class | Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177813250 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
When 750 mm of Usable Mounting Width Is the Main Requirement
AX 1055000 provides a 750 × 575 mm mounting panel for long DIN-rail rows, wide terminal fields or side-by-side power and control sections. The 300 mm enclosure depth gives additional clearance for deeper components, larger wiring ducts and front-facing connectors that would be crowded in 210 or 250 mm-deep housings.
Choose AX 1054000 when a 600 × 600 mm front area and 250 mm depth are sufficient. Choose AX 1037000 when the project needs 800 mm height rather than 800 mm width while retaining 300 mm depth. Before machining AX 1055000, verify the 750 mm usable width, both lock positions, door-component clearance and how incoming cables will be divided between the two size 5 base openings.
Use this supply list to separate the included enclosure components from optional interior-installation and cable-entry parts:
The standard configuration includes a 750 × 575 mm mounting panel and two size 5 gland plates in the enclosure base. Plan both entry positions together so power, control and communication cables can be separated where the installation requires it.
AX 1055000 uses 300 mm interior rails and has two size 5 cable-entry openings. Choose diaphragm plates for direct cable penetration or two-piece clamping-profile plates when pre-terminated connectors must pass through; replacing both standard openings requires two matching plates.
2394300 Rail for Interior Installation AX
Suitable for enclosure type: AX
Suitable for depth: 300 mm
Packaging unit: 4 pc(s).
2394100 Base configuration rail
Suitable for enclosure type: AX
Packaging unit: 1 pc(s)
2565300 Plastic Cable Gland Plate with Diaphragms
Size: 5
Width: 301 mm
Depth: 221 mm
Two plates required to replace both base openings
2565450 Two-Piece Flange Plate with Clamping Profile
Suitable for model: AX 1055000
Size: 5
Width × depth: 301 × 221 mm
Required for enclosure width >760 mm: 2 pc(s)
2503020 Wall Mounting Bracket
Material: Carbon steel, zinc-plated Wall distance: 40 mm Suitable for enclosure type: AX / KX / AX wall-mounted housing, 3-part
Packaging unit: 4 pc(s)
4052000 Multitool
Packaging unit: 1 pc(s)
Plastic Wiring Plan Pocket
Packaging unit: 1 pc(s)
Ground Straps
Packaging unit: 8 pc(s)
2519020 Door stay
Packaging unit: 1 pc(s)
Planning a wide AX 1055000 assembly? Send the mounting-panel drawing, deepest component, horizontal duct layout, cable allocation for both base openings and proposed door cut-outs so the 300 mm depth and installation load can be reviewed together.
AX 1055000 provides an 800 × 600 × 300 mm enclosure with a 750 × 575 mm mounting panel. Compare AX 1054000 when less width and 250 mm depth are adequate, or AX 1037000 when vertical mounting height is more important than horizontal span. Base the choice on layout direction, component depth and cable-entry demand.
