The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Item No :
AX 1057000Material :
Carbon SteelColor :
RAL 7035

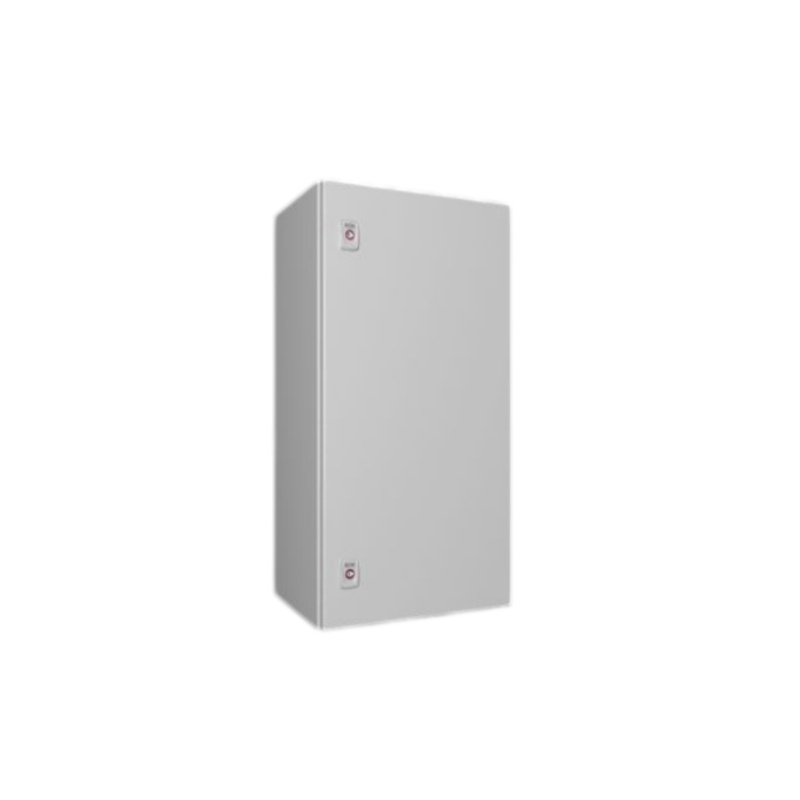

The Rittal AX 1057000 is a tall, medium-width carbon steel wall-mounted enclosure for control systems arranged in several vertical functional zones. Its 500 × 700 × 250 mm body provides substantial mounting height without the wall width or projection of larger AX housings, while IP66 sealing and IK10 impact resistance support demanding industrial locations.
Need pricing or availability? Contact SUWI Auto with your required quantity and delivery destination for model verification and quotation support.
| Article no.: | AX 1057000 |
| Dimensions | Width: 500 mm Height: 700 mm Depth: 250 mm ( Width: 19.7 ˝ Height: 27.6 ˝ Depth: 9.84 ˝ ) |
| Benefits |
|
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Supply includes | Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit |
| Protection category NEMA |
|
| Protection category IP to EN 60 529 | IP 66 |
| Type rating according to UL 50E |
|
| IK code | IK10 |
| Material thickness - door | 2 mm ( 0.08 ˝ ) |
| Material thickness - enclosure | 1.5 mm ( 0.06 ˝ ) |
| Material thickness – mounting plate | 2.5 mm ( 0.1 ˝ ) |
| Dimensions of mounting plate (W x H) | 450 mm x 675 mm ( 17.7 ˝ x 26.6 ˝ ) |
| Number of doors | 1 |
| Interchangeable door catch | Yes |
| No. of locks | 2 |
| Lock | Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit |
| Gland plate | Size: 3 Qty.: 1 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 24.75 kg |
| Gross weight | 24.96 kg |
| PCF/VE (cradle-to-gate) | 95.89 kg CO2 eq (Cat B) |
| Information regarding the PCF class | Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177813335 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
When 675 mm of Mounting Height Must Fit Within 500 mm Width
AX 1057000 provides a 450 × 675 mm mounting panel for vertically stacked DIN-rail rows, separated control and terminal zones, or a tall wiring path beside the devices. Its 250 mm depth offers more working clearance than 210 mm AX models without increasing the cabinet projection to 300 mm.
Choose AX 1054000 when a wider 550 × 575 mm panel suits side-by-side equipment better at the same depth. Choose AX 1037000 when the design needs 800 mm overall height and 300 mm depth, accepting its narrower 345 mm mounting-panel width. Before machining AX 1057000, verify the 450 mm usable width, both lock positions, top and bottom duct allowances, cable bend radius at the size 3 base entry and clearance for door-mounted controls.
Use this supply list to separate the included enclosure components from optional interior-installation and cable-entry parts:
The standard configuration includes a 450 × 675 mm mounting panel and one size 3 gland plate in the enclosure base. Define cable quantity, outside diameter and connector dimensions before selecting an alternative entry plate.
AX 1057000 uses interior rails specified for 250 mm enclosure depth and replacement entry plates matching gland-plate size 3. In a tall assembly, reserve an uninterrupted vertical wiring route and confirm heat-producing components have the spacing required by their manufacturers.
2394250 Rail for Interior Installation AX
Suitable for enclosure type: AX
Suitable for depth: 250 mm
Packaging unit: 4 pc(s).
2394100 Base configuration rail
Suitable for enclosure type: AX
Packaging unit: 1 pc(s)
2563300 Plastic Cable Gland Plate with Diaphragms
Size: 3
Width: 447 mm
Depth: 149 mm
2503020 Wall Mounting Bracket
Material: Carbon steel, zinc-plated Wall distance: 40 mm Suitable for enclosure type: AX / KX / AX wall-mounted housing, 3-part
Packaging unit: 4 pc(s)
4052000 Multitool
Packaging unit: 1 pc(s)
Plastic Wiring Plan Pocket
Packaging unit: 1 pc(s)
Ground Straps
Packaging unit: 8 pc(s)
2519020 Door stay
Packaging unit: 1 pc(s)
Planning a vertically zoned AX 1057000 assembly? Send the mounting-panel drawing, row spacing, deepest component, vertical duct dimensions, cable-entry schedule and proposed door cut-outs so the 675 mm mounting height and 250 mm depth can be reviewed before machining.
AX 1057000 provides a 500 × 700 × 250 mm enclosure with a 450 × 675 mm mounting panel. Compare AX 1054000 when the project needs more panel width in a square housing, or AX 1037000 when greater overall height and 300 mm depth are more important than usable width. Base the change on row layout, component projection and cable-bend requirements.
