The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Item No :
AX 1058000Material :
Carbon SteelColor :
RAL 7035

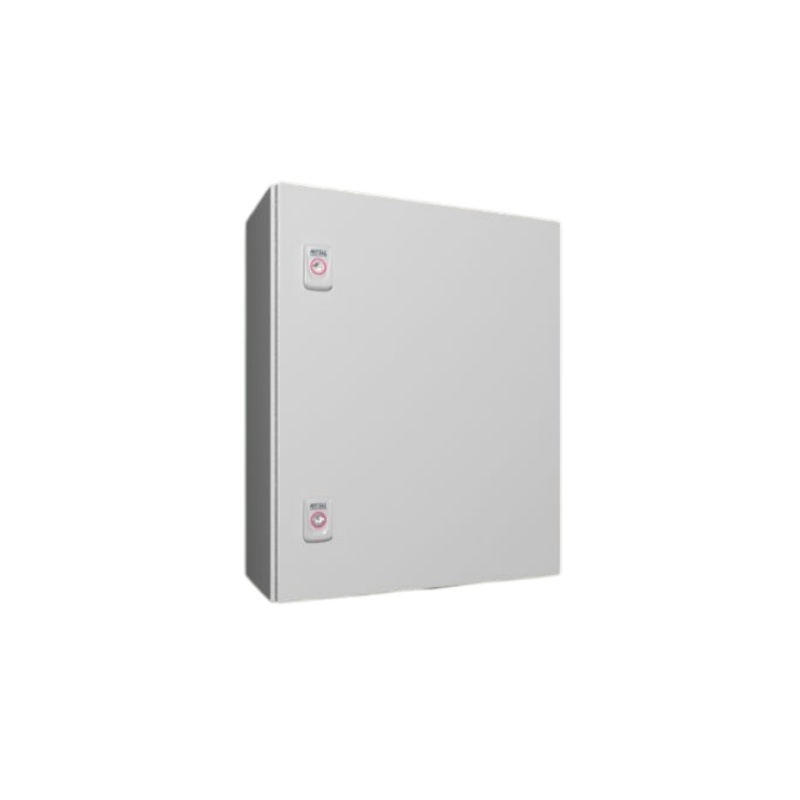

The Rittal AX 1058000 is a large single-door carbon steel wall-mounted enclosure for control systems that require both broad device rows and substantial vertical separation. Its 600 × 800 × 250 mm body combines a 545 × 775 mm mounting area with a moderate cabinet projection, while IP66 sealing and IK10 impact resistance support demanding industrial locations.
Need pricing or availability? Contact SUWI Auto with your required quantity and delivery destination for model verification and quotation support.
| Article no.: | AX 1058000 |
| Dimensions | Width: 600 mm Height: 800 mm Depth: 250 mm ( Width: 23.6 ˝ Height: 31.5 ˝ Depth: 9.84 ˝ ) |
| Benefits |
|
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Supply includes | Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit |
| Protection category NEMA |
|
| Protection category IP to EN 60 529 | IP 66 |
| Type rating according to UL 50E |
|
| IK code | IK10 |
| Material thickness - door | 2 mm ( 0.08 ˝ ) |
| Material thickness - enclosure | 1.5 mm ( 0.06 ˝ ) |
| Material thickness – mounting plate | 2.5 mm ( 0.1 ˝ ) |
| Dimensions of mounting plate (W x H) | 545 mm x 775 mm ( 21.5 ˝ x 30.5 ˝ ) |
| Number of doors | 1 |
| Interchangeable door catch | Yes |
| No. of locks | 2 |
| Lock | Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit |
| Gland plate | Size: 4 Qty.: 1 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 30.25 kg |
| Gross weight | 32 kg |
| PCF/VE (cradle-to-gate) | 116.31 kg CO2 eq (Cat B) |
| Information regarding the PCF class | Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177813311 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
When the Layout Needs Width and Height Without 300 mm Depth
AX 1058000 provides a 545 × 775 mm mounting panel for assemblies that combine several horizontal equipment rows with separate terminal, control or power sections. The 600 mm enclosure width leaves more room for side-by-side devices than narrow 800 mm-high AX models, while the 250 mm depth keeps wall projection below comparable 300 mm-deep housings.
Choose AX 1057000 when a 450 × 675 mm mounting panel can hold the design and a smaller wall footprint is preferred. Choose AX 1037000 when 300 mm depth is required for greater component projection, accepting a much narrower 345 mm mounting-panel width. Before machining AX 1058000, confirm the full row arrangement, vertical duct path, deepest device, both lock positions, size 4 cable-entry zone and clearances behind door-mounted equipment.
Use this supply list to separate the included enclosure components from optional interior-installation and cable-entry parts:
The standard configuration includes a 545 × 775 mm mounting panel and one size 4 gland plate in the enclosure base. Define cable quantity, outside diameter and connector dimensions before selecting an alternative entry plate.
AX 1058000 uses interior rails specified for 250 mm enclosure depth and replacement entry plates matching gland-plate size 4. Plan the broader base entry around cable groups and connector diameters, then preserve separate routing space for the multiple equipment rows above.
2394250 Rail for Interior Installation AX
Suitable for enclosure type: AX
Suitable for depth: 250 mm
Packaging unit: 4 pc(s).
2394100 Base configuration rail
Suitable for enclosure type: AX
Packaging unit: 1 pc(s)
2564300 Plastic Cable Gland Plate with Diaphragms
Size: 4
Width: 534 mm
Depth: 149 mm
2503020 Wall Mounting Bracket
Material: Carbon steel, zinc-plated Wall distance: 40 mm Suitable for enclosure type: AX / KX / AX wall-mounted housing, 3-part
Packaging unit: 4 pc(s)
4052000 Multitool
Packaging unit: 1 pc(s)
Plastic Wiring Plan Pocket
Packaging unit: 1 pc(s)
Ground Straps
Packaging unit: 8 pc(s)
2519020 Door stay
Packaging unit: 1 pc(s)
Planning a multi-row AX 1058000 assembly? Send the mounting-panel drawing, equipment-row widths, vertical separation, deepest component, cable-entry schedule and proposed door cut-outs so the 545 × 775 mm working area and 250 mm depth can be reviewed before machining.
AX 1058000 provides a 600 × 800 × 250 mm enclosure with a 545 × 775 mm mounting panel. Compare AX 1057000 when the assembly can use less width and height at the same depth, or AX 1037000 when a narrower panel with 300 mm enclosure depth better suits the equipment. Base the change on horizontal row length, vertical zoning, component projection and cable-bend requirements.
