The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Item No :
AX 1059000Material :
Carbon SteelColor :
RAL 7035

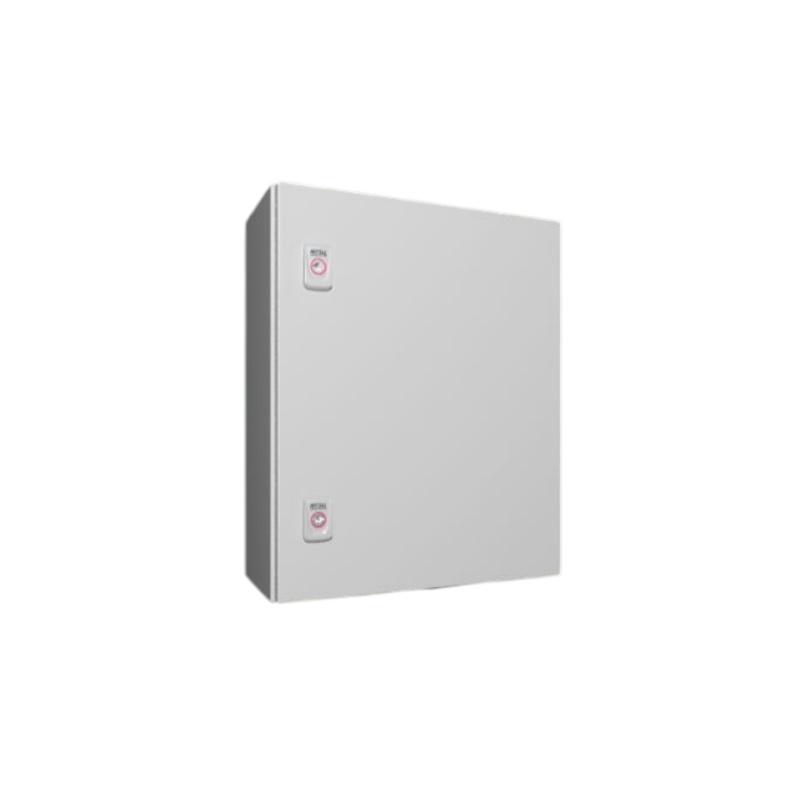

The Rittal AX 1059000 is a deep single-door carbon steel wall-mounted enclosure for control systems with projecting devices, layered wiring or greater front-to-back service clearance. Its 600 × 800 × 400 mm body combines a broad 545 × 775 mm mounting area with generous installation depth, while IP66 sealing and IK10 impact resistance support demanding industrial locations.
Need pricing or availability? Contact SUWI Auto with your required quantity and delivery destination for model verification and quotation support.
| Article no.: | AX 1059000 |
| Dimensions | Width: 600 mm Height: 800 mm Depth: 400 mm ( Width: 23.6 ˝ Height: 31.5 ˝ Depth: 15.7 ˝ ) |
| Benefits |
|
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Supply includes | Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit |
| Protection category NEMA |
|
| Protection category IP to EN 60 529 | IP 66 |
| Type rating according to UL 50E |
|
| IK code | IK10 |
| Material thickness - door | 2 mm ( 0.08 ˝ ) |
| Material thickness - enclosure | 1.5 mm ( 0.06 ˝ ) |
| Material thickness – mounting plate | 2.5 mm ( 0.1 ˝ ) |
| Dimensions of mounting plate (W x H) | 545 mm x 775 mm ( 21.5 ˝ x 30.5 ˝ ) |
| Number of doors | 1 |
| Interchangeable door catch | Yes |
| No. of locks | 2 |
| Lock | Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit |
| Gland plate | Size: 7 Qty.: 1 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 35.5 kg |
| Gross weight | 37.36 kg |
| PCF/VE (cradle-to-gate) | 143.32 kg CO2 eq (Cat B) |
| Information regarding the PCF class | Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177813144 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
When 400 mm Depth Is the Deciding Dimension
AX 1059000 uses the same 545 × 775 mm mounting-panel footprint as AX 1058000, but increases enclosure depth from 250 to 400 mm. That difference matters when the assembly includes deep device bodies, forward-facing terminals, stacked wiring paths or cable bends that cannot be accommodated safely in a shallower housing.
Choose AX 1058000 when the complete assembly fits within 250 mm depth and lower wall projection is more important. Choose AX 1037000 when 300 mm depth is sufficient and a narrower 345 mm mounting-panel width can hold the layout. Before machining AX 1059000, measure the deepest installed component together with its terminals and bend radius, then check front clearance, both lock positions and the size 7 base-entry area.
Use this supply list to separate the included enclosure components from optional interior-installation and cable-entry parts:
The standard configuration includes a 545 × 775 mm mounting panel and one size 7 gland plate in the enclosure base. Define cable quantity, outside diameter and connector dimensions before selecting an alternative entry plate.
AX 1059000 requires interior rails specified for 400 mm enclosure depth and replacement entry plates matching gland-plate size 7. Confirm that each accessory matches the deeper housing and the larger base opening rather than selecting by the 600 × 800 mm front dimensions alone.
2394400 Rail for Interior Installation AX
Suitable for enclosure type: AX
Suitable for depth: 400 mm
Packaging unit: 4 pc(s).
2394100 Base configuration rail
Suitable for enclosure type: AX
Packaging unit: 1 pc(s)
2567300 Plastic Cable Gland Plate with Diaphragms
Size: 7
Width: 436 mm
Depth: 221 mm
2503020 Wall Mounting Bracket
Material: Carbon steel, zinc-plated Wall distance: 40 mm Suitable for enclosure type: AX / KX / AX wall-mounted housing, 3-part
Packaging unit: 4 pc(s)
4052000 Multitool
Packaging unit: 1 pc(s)
Plastic Wiring Plan Pocket
Packaging unit: 1 pc(s)
Ground Straps
Packaging unit: 8 pc(s)
2519020 Door stay
Packaging unit: 1 pc(s)
Planning a deep AX 1059000 assembly? Send the mounting-panel drawing, deepest device including terminals, cable-bend requirements, front-clearance target, cable-entry schedule and proposed door cut-outs so the 400 mm depth can be checked as part of the complete layout.
AX 1059000 provides a 600 × 800 × 400 mm enclosure with a 545 × 775 mm mounting panel. Compare AX 1058000 when the same panel area is required but 250 mm depth is sufficient, or AX 1037000 when 300 mm depth and a narrower mounting area better match the assembly. Base the change on actual installed depth, terminal access, cable bends and wall projection.
