The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Item No :
AX 1091000Material :
Carbon SteelColor :
RAL 7035

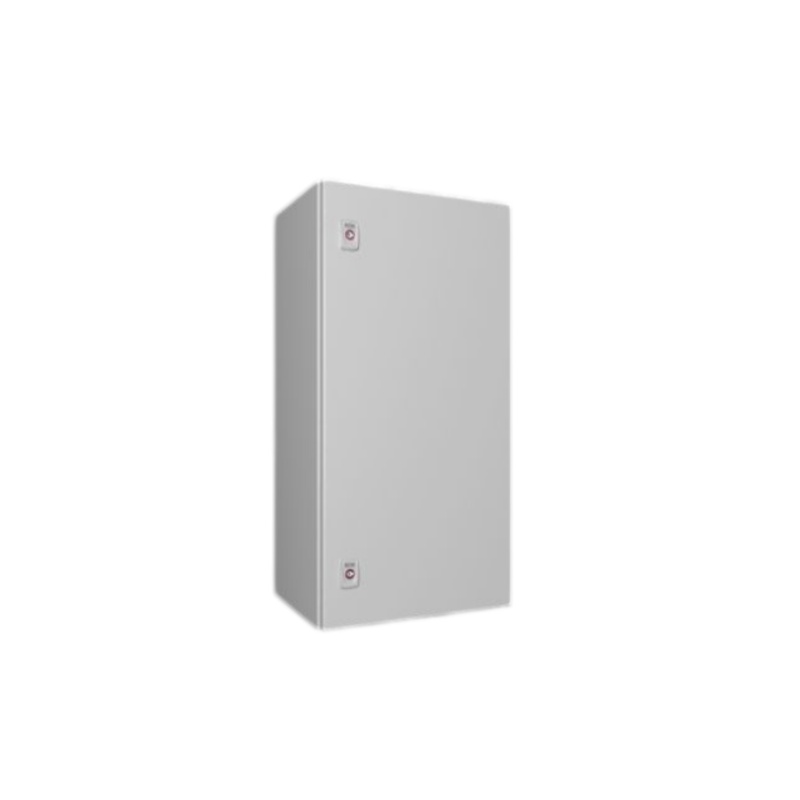

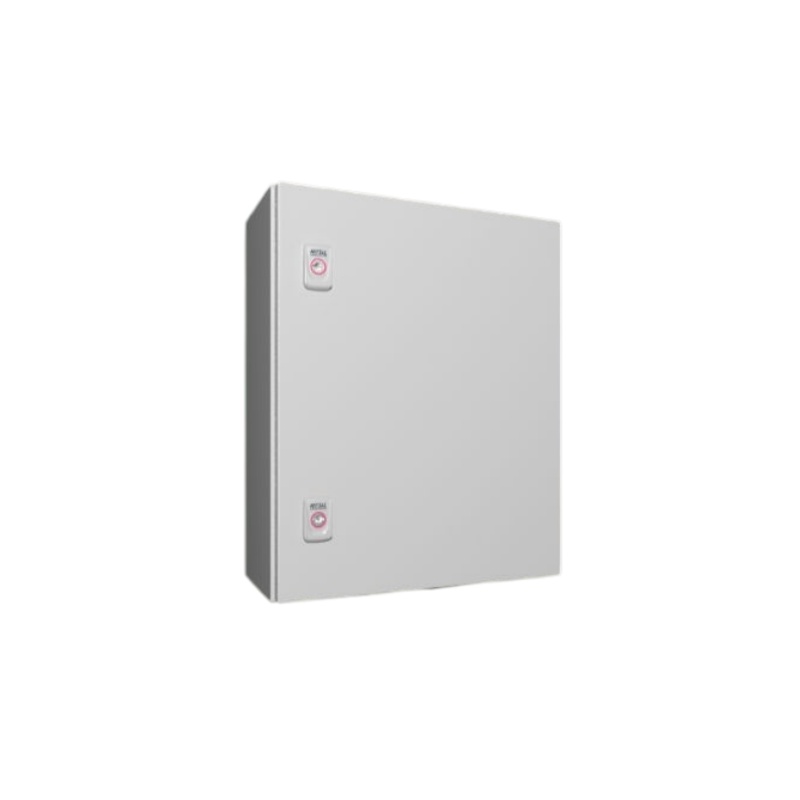

The Rittal AX 1091000 is a deep, extra-tall single-door carbon steel wall-mounted enclosure for control systems that need extensive vertical mounting capacity and generous front-to-back clearance. Its 600 × 1,000 × 400 mm body combines a 545 × 975 mm mounting area with room for components with greater projection, terminal access and cable bends, while IP66 sealing and IK10 impact resistance support demanding industrial locations.
Need pricing or availability? Contact SUWI Auto with your required quantity and delivery destination for model verification and quotation support.
| Article no.: | AX 1091000 |
| Dimensions | Width: 600 mm Height: 1,000 mm Depth: 400 mm ( Width: 23.6 ˝ Height: 39.4 ˝ Depth: 15.7 ˝ ) |
| Benefits |
|
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Supply includes | Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit |
| Protection category NEMA |
|
| Protection category IP to EN 60 529 | IP 66 |
| Type rating according to UL 50E |
|
| IK code | IK10 |
| Material thickness - door | 2 mm ( 0.08 ˝ ) |
| Material thickness - enclosure | 1.5 mm ( 0.06 ˝ ) |
| Material thickness – mounting plate | 2.5 mm ( 0.1 ˝ ) |
| Dimensions of mounting plate (W x H) | 545 mm x 975 mm ( 21.5 ˝ x 38.4 ˝ ) |
| Number of doors | 1 |
| Interchangeable door catch | Yes |
| No. of locks | 2 |
| Lock | Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit |
| Gland plate | Size: 7 Qty.: 1 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 44.5 kg |
| Gross weight | 45 kg |
| PCF/VE (cradle-to-gate) | 163.84 kg CO2 eq (Cat B) |
| Information regarding the PCF class | Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177813137 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
When Both 975 mm Panel Height and 400 mm Depth Are Required
AX 1091000 combines a 545 × 975 mm mounting panel with 400 mm enclosure depth for assemblies that need many vertical equipment rows plus substantial clearance in front of the panel. The deeper body is useful when component projection, terminal access, larger cable bends or door-mounted devices would make a 250 mm-deep enclosure restrictive.
Choose AX 1090000 when the same 600 × 1,000 mm face size and panel area are required but 250 mm depth is sufficient. Choose AX 1059000 when 400 mm depth is necessary but a 545 × 775 mm mounting panel can hold the shorter layout. Before machining AX 1091000, verify the deepest installed component with terminals and wiring, cable-bend radii, duct-cover access, door-mounted equipment clearance, both lock positions and the size 7 base-entry zone.
Use this supply list to separate the included enclosure components from optional interior-installation and cable-entry parts:
The standard configuration includes a 545 × 975 mm mounting panel and one size 7 gland plate in the enclosure base. Define cable quantity, outside diameter and connector dimensions before selecting an alternative entry plate.
AX 1091000 requires interior rails specified for 400 mm enclosure depth and replacement entry plates matching gland-plate size 7. Coordinate the deeper base-entry area with cable grouping, connector dimensions and the vertical route to upper equipment rows before finalizing the panel layout.
2394400 Rail for Interior Installation AX
Suitable for enclosure type: AX
Suitable for depth: 400 mm
Packaging unit: 4 pc(s).
2394100 Base configuration rail
Suitable for enclosure type: AX
Packaging unit: 1 pc(s)
2567300 Plastic Cable Gland Plate with Diaphragms
Size: 7
Width: 436 mm
Depth: 221 mm
2503020 Wall Mounting Bracket
Material: Carbon steel, zinc-plated Wall distance: 40 mm Suitable for enclosure type: AX / KX / AX wall-mounted housing, 3-part
Packaging unit: 4 pc(s)
4052000 Multitool
Packaging unit: 1 pc(s)
Plastic Wiring Plan Pocket
Packaging unit: 1 pc(s)
Ground Straps
Packaging unit: 8 pc(s)
2519020 Door stay
Packaging unit: 1 pc(s)
Planning a deep, extra-tall AX 1091000 assembly? Send the mounting-panel drawing, complete row schedule, deepest component with wiring, cable-bend requirements, duct dimensions, cable-entry schedule and proposed door cut-outs so the 975 mm panel height and 400 mm depth can be reviewed before machining.
AX 1091000 provides a 600 × 1,000 × 400 mm enclosure with a 545 × 975 mm mounting panel. Compare AX 1090000 when the same panel area is required with a shallower 250 mm body, or AX 1059000 when 400 mm depth is required but 775 mm of panel height is sufficient. Base the change on vertical row count, component projection, terminal access and cable-bend requirements.
