The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Item No :
AX 1096000Material :
Carbon SteelColor :
RAL 7035

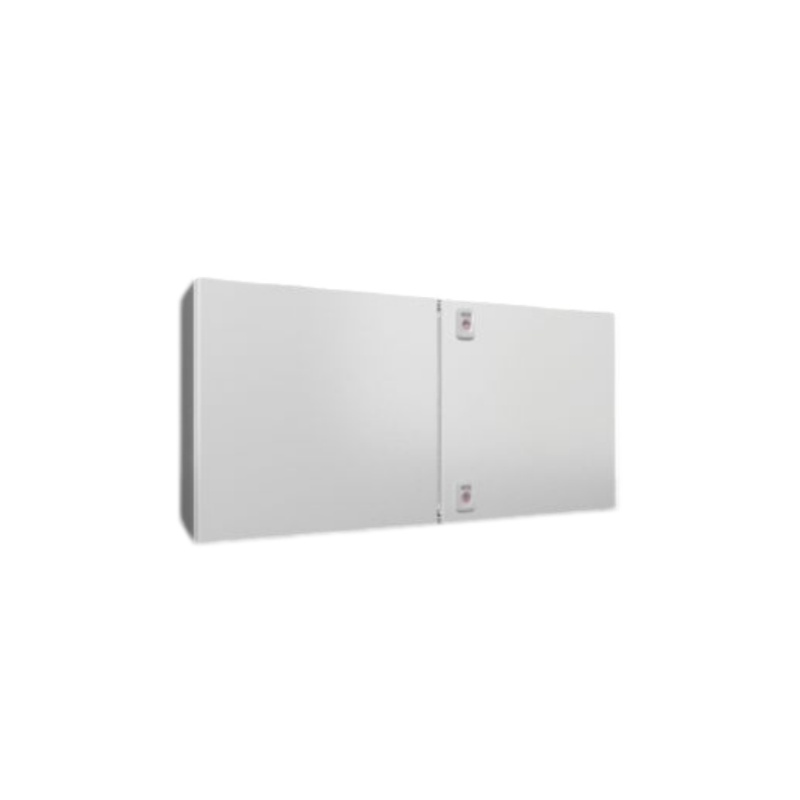

The Rittal AX 1096000 is a broad double-door carbon steel wall-mounted enclosure for control systems that need extensive horizontal mounting space and practical vertical zoning. Its 1,000 × 600 × 300 mm body provides a 950 × 575 mm mounting area for multiple device rows or separated functional sections, while the two door leaves divide the wide front opening. IP55 protection and IK10 impact resistance suit protected industrial locations.
Need pricing or availability? Contact SUWI Auto with your required quantity and delivery destination for model verification and quotation support.
| Article no.: | AX 1096000 |
| Dimensions | Width: 1,000 mm Height: 600 mm Depth: 300 mm ( Width: 39.4 ˝ Height: 23.6 ˝ Depth: 11.8 ˝ ) |
| Benefits |
|
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Supply includes | Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit |
| Protection category IP to EN 60 529 | IP 55 |
| Type rating according to UL 50E |
|
| IK code | IK10 |
| Material thickness - door | 2 mm ( 0.08 ˝ ) |
| Material thickness - enclosure | 1.5 mm ( 0.06 ˝ ) |
| Material thickness – mounting plate | 2.5 mm ( 0.1 ˝ ) |
| Dimensions of mounting plate (W x H) | 950 mm x 575 mm ( 37.4 ˝ x 22.6 ˝ ) |
| Number of doors | 2 |
| No. of locks | 2 |
| Lock | Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit |
| Gland plate | Size: 6 Qty.: 2 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 42.243 kg |
| Gross weight | 42.778 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177995253 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
When the Assembly Needs 950 mm of Usable Panel Width
AX 1096000 provides a 950 × 575 mm mounting panel for designs that cannot be compressed into the 750 mm panel width of smaller double-door AX enclosures. The additional horizontal span can accommodate longer device rows, broader terminal sections or two functional zones placed side by side, while 575 mm of panel height supports several organized rows.
Choose AX 1055000 when a 750 × 575 mm panel is sufficient and reducing enclosure width by 200 mm is preferred. Choose AX 1095000 when the design can also use a shorter 375 mm panel height. Before machining AX 1096000, divide the mounting drawing into left and right service zones, assign each door cut-out to its door leaf, check the door meeting edges and lock areas, and route incoming cables through the two size 6 base-entry zones.
Use this supply list to separate the included enclosure components from optional interior-installation and cable-entry parts:
The standard configuration includes a 950 × 575 mm mounting panel and two size 6 gland plates in the enclosure base. Define cable quantity, outside diameter and connector dimensions for each entry zone before selecting alternative plates.
AX 1096000 uses interior rails specified for 300 mm enclosure depth and replacement entry plates matching gland-plate size 6. With two separate base plates across the 1,000 mm cabinet width, determine whether each cable group enters beneath its corresponding functional zone before setting the replacement quantity.
2394300 Rail for Interior Installation AX
Suitable for enclosure type: AX
Suitable for depth: 300 mm
Packaging unit: 4 pc(s).
2394100 Base configuration rail
Suitable for enclosure type: AX
Packaging unit: 1 pc(s)
2566300 Plastic Cable Gland Plate with Diaphragms
Size: 6
Width: 401 mm
Depth: 221 mm
2503020 Wall Mounting Bracket
Material: Carbon steel, zinc-plated Wall distance: 40 mm Suitable for enclosure type: AX / KX / AX wall-mounted housing, 3-part
Packaging unit: 4 pc(s)
4052000 Multitool
Packaging unit: 1 pc(s)
Plastic Wiring Plan Pocket
Packaging unit: 1 pc(s)
Ground Straps
Packaging unit: 8 pc(s)
2519020 Door stay
Packaging unit: 1 pc(s)
Planning a wide AX 1096000 assembly? Send the mounting-panel drawing with left and right functional zones, longest equipment row, deepest component, cable allocation for both size 6 base plates, and door cut-outs identified by leaf so the 950 × 575 mm panel can be reviewed before machining.
AX 1096000 provides a 1,000 × 600 × 300 mm double-door enclosure with a 950 × 575 mm mounting panel. Compare AX 1055000 when 750 mm of panel width is sufficient at the same panel height and depth, or AX 1095000 when both a narrower and shorter panel can hold the design. Base the change on horizontal row length, functional-zone width, vertical row count and available wall area.
