The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Item No :
AX 1112000Material :
Carbon SteelColor :
RAL 7035

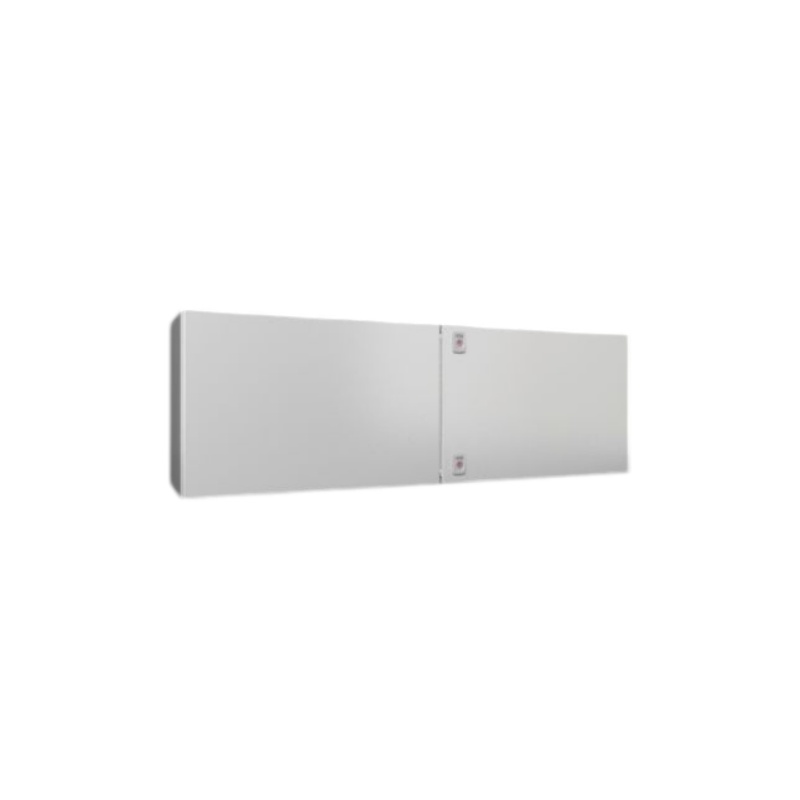

The Rittal AX 1112000 is an extra-wide, low-height double-door carbon steel wall-mounted enclosure for control layouts built around very long horizontal equipment rows. Its 1,200 × 400 × 300 mm body provides a 1,145 × 375 mm mounting area while limiting vertical wall use, with sufficient enclosure depth for projected components, terminals and cable bends. IP55 protection and IK10 impact resistance suit protected industrial locations.
Need pricing or availability? Contact SUWI Auto with your required quantity and delivery destination for model verification and quotation support.
| Article no.: | AX 1112000 |
| Dimensions | Width: 1,200 mm Height: 400 mm Depth: 300 mm ( Width: 47.2 ˝ Height: 15.7 ˝ Depth: 11.8 ˝ ) |
| Benefits |
|
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Supply includes | Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit |
| Protection category IP to EN 60 529 | IP 55 |
| Type rating according to UL 50E |
|
| IK code | IK10 |
| Material thickness - door | 2 mm ( 0.08 ˝ ) |
| Material thickness - enclosure | 1.5 mm ( 0.06 ˝ ) |
| Material thickness – mounting plate | 2.5 mm ( 0.1 ˝ ) |
| Dimensions of mounting plate (W x H) | 1,145 mm x 375 mm ( 45.1 ˝ x 14.8 ˝ ) |
| Number of doors | 2 |
| No. of locks | 2 |
| Lock | Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit |
| Gland plate | Size: 7 Qty.: 2 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 34.891 kg |
| Gross weight | 35.333 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177995260 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
When the Layout Requires More Than One Metre of Panel Width
AX 1112000 provides a 1,145 × 375 mm mounting panel for assemblies dominated by one or two very long horizontal equipment rows, extended terminal strips, or distributed controls that must remain on a single level. Its 400 mm enclosure height limits vertical wall use, while the 300 mm depth provides working clearance for projected components and cable bends.
Choose AX 1095000 when a 750 × 375 mm panel provides enough horizontal span at the same height and depth, reducing enclosure width by 400 mm. Choose AX 1096000 when a 950 × 575 mm panel is more useful because the design needs additional vertical rows. Before machining AX 1112000, verify the longest uninterrupted rail and wiring-duct runs, assign door cut-outs to the correct leaf, allow for the central door meeting line and locks, and divide incoming cables between the two size 7 base-entry zones.
Use this supply list to separate the included enclosure components from optional interior-installation and cable-entry parts:
The standard configuration includes a 1,145 × 375 mm mounting panel and two size 7 gland plates in the enclosure base. Define cable quantity, outside diameter and connector dimensions for each entry zone before selecting alternative plates.
AX 1112000 uses interior rails specified for 300 mm enclosure depth and replacement entry plates matching gland-plate size 7. Its two base plates span the extra-wide enclosure, so align each cable group beneath the corresponding horizontal panel zone and order replacements for one or both entry areas as required.
2394300 Rail for Interior Installation AX
Suitable for enclosure type: AX
Suitable for depth: 300 mm
Packaging unit: 4 pc(s).
2394100 Base configuration rail
Suitable for enclosure type: AX
Packaging unit: 1 pc(s)
2567300 Plastic Cable Gland Plate with Diaphragms
Size: 7
Width: 436 mm
Depth: 221 mm
2503020 Wall Mounting Bracket
Material: Carbon steel, zinc-plated Wall distance: 40 mm Suitable for enclosure type: AX / KX / AX wall-mounted housing, 3-part
Packaging unit: 4 pc(s)
4052000 Multitool
Packaging unit: 1 pc(s)
Plastic Wiring Plan Pocket
Packaging unit: 1 pc(s)
Ground Straps
Packaging unit: 8 pc(s)
2519020 Door stay
Packaging unit: 1 pc(s)
Planning an extra-wide AX 1112000 assembly? Send the mounting-panel drawing, longest uninterrupted equipment or DIN-rail run, component depth, cable allocation for both size 7 base plates, and door cut-outs identified by leaf so the 1,145 × 375 mm panel can be reviewed before machining.
AX 1112000 provides a 1,200 × 400 × 300 mm double-door enclosure with a 1,145 × 375 mm mounting panel. Compare AX 1095000 when 750 mm of panel width is sufficient at the same height and depth, or AX 1096000 when the design benefits more from 575 mm of panel height than from maximum horizontal span. Base the change on longest row length, vertical row count, wall width and door-mounted controls.
