The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Item No :
AX 1113000Material :
Carbon SteelColor :
RAL 7035

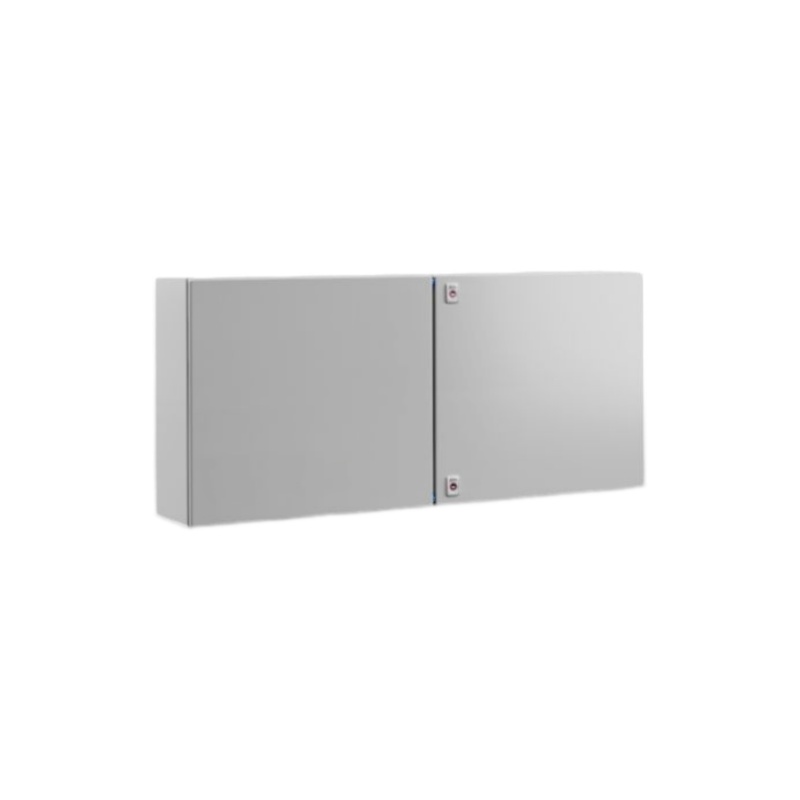

The Rittal AX 1113000 is an extra-wide double-door carbon steel wall-mounted enclosure for control systems that need long horizontal equipment runs together with several usable mounting rows. Its 1,200 × 600 × 300 mm body provides a 1,145 × 575 mm mounting area, combining broad panel width with useful vertical capacity and 300 mm enclosure depth for projected components, terminals and cable bends. IP55 protection and IK10 impact resistance suit protected industrial locations.
Need pricing or availability? Contact SUWI Auto with your required quantity and delivery destination for model verification and quotation support.
| Article no.: | AX 1113000 |
| Dimensions | Width: 1,200 mm Height: 600 mm Depth: 300 mm ( Width: 47.2 ˝ Height: 23.6 ˝ Depth: 11.8 ˝ ) |
| Benefits |
|
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Supply includes | Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit |
| Protection category IP to EN 60 529 | IP 55 |
| Type rating according to UL 50E |
|
| IK code | IK10 |
| Material thickness - door | 2 mm ( 0.08 ˝ ) |
| Material thickness - enclosure | 1.5 mm ( 0.06 ˝ ) |
| Material thickness – mounting plate | 2.5 mm ( 0.1 ˝ ) |
| Dimensions of mounting plate (W x H) | 1,145 mm x 575 mm ( 45.1 ˝ x 22.6 ˝ ) |
| Number of doors | 2 |
| No. of locks | 2 |
| Lock | Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit |
| Gland plate | Size: 7 Qty.: 2 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 50.065 kg |
| Gross weight | 51.317 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177995277 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
When Long Equipment Runs Also Need Multiple Mounting Rows
AX 1113000 combines a 1,145 mm panel width with 575 mm of mounting height, allowing long power-distribution, terminal, or control rows to remain continuous while still leaving room for separate upper and lower device zones. The 300 mm enclosure depth accommodates projected components and cable bends without making additional wall width necessary.
Choose AX 1112000 when the design needs the same 1,145 mm panel width but only 375 mm of mounting height. Choose AX 1096000 when 950 × 575 mm of panel space is sufficient and reducing total wall width by 200 mm is preferable. Before machining AX 1113000, map every horizontal row across the 1,145 mm panel, confirm vertical clearance between wiring ducts, assign controls to the correct door leaf, and route incoming cables through the two size 7 base-entry zones beneath their intended equipment groups.
Use this supply list to separate the included enclosure components from optional interior-installation and cable-entry parts:
The enclosure is supplied with a 1,145 × 575 mm mounting panel, two size 7 gland plates and two locking points for the double-door opening. Split the cable schedule by panel zone and confirm cable diameters and connector sizes for each base opening before selecting replacement entry plates.
For AX 1113000, the interior rail must match the 300 mm enclosure depth, while replacement entry plates must match size 7. Because the 575 mm-high panel can carry several horizontal device rows, use the two base-entry areas to separate cable groups according to the left and right panel zones and their termination paths.
2394300 Rail for Interior Installation AX
Suitable for enclosure type: AX
Suitable for depth: 300 mm
Packaging unit: 4 pc(s).
2394100 Base configuration rail
Suitable for enclosure type: AX
Packaging unit: 1 pc(s)
2567300 Plastic Cable Gland Plate with Diaphragms
Size: 7
Width: 436 mm
Depth: 221 mm
2503020 Wall Mounting Bracket
Material: Carbon steel, zinc-plated Wall distance: 40 mm Suitable for enclosure type: AX / KX / AX wall-mounted housing, 3-part
Packaging unit: 4 pc(s)
4052000 Multitool
Packaging unit: 1 pc(s)
Plastic Wiring Plan Pocket
Packaging unit: 1 pc(s)
Ground Straps
Packaging unit: 8 pc(s)
2519020 Door stay
Packaging unit: 1 pc(s)
Planning an AX 1113000 assembly with several full-width rows? Send the mounting-panel drawing, longest DIN-rail or wiring-duct run, number and spacing of vertical rows, deepest component, cable allocation for both size 7 base plates, and door cut-outs identified by leaf before machining.
AX 1113000 provides a 1,200 × 600 × 300 mm double-door enclosure with a 1,145 × 575 mm mounting panel. Move to AX 1112000 when the same long horizontal runs fit within 375 mm of panel height, or to AX 1096000 when a 950 mm-wide panel is sufficient and the installation benefits from a narrower cabinet. Compare the longest uninterrupted row, required row count, available wall width and door-mounted controls.
